Opis

The plugin radically accelerates work for all who design 3D furniture, woodworking, or other products with a lot of holes.

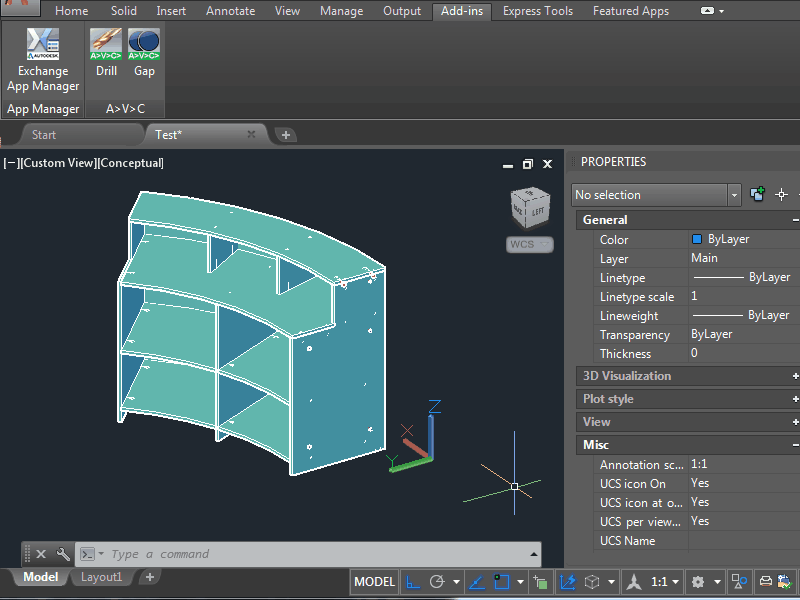

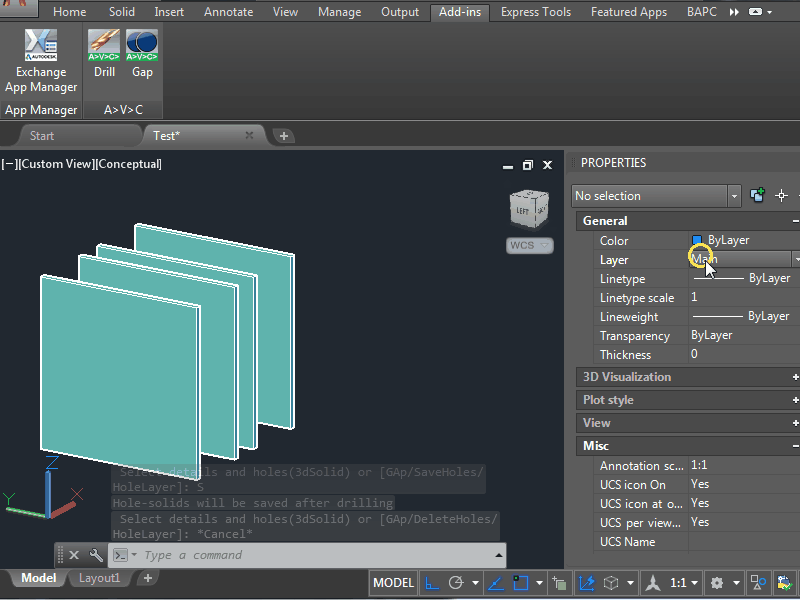

The standard command "Subtract" requires selecting each item individually and destroys the subtracted solid. Because this work is unbearably long. Now you can select all the details and holes in one frame, press the button Drill, and wait quietly until the program does all the work itself. The program itself finds details, finds hole-solids (it must be on a special layer “Holes”), and subtracts every hole. One hole can penetrate a lot of detail; you do not need to make copies of the subtracted solid. Details are not glued together (as does command Subtract).

If you find it inconvenient to separate solids by layers, then pay attention to the Solid Subtraction (SSub) and Gap commands. They work similarly to the usual subtraction and request 2 groups of solids.



In addition, the program can:

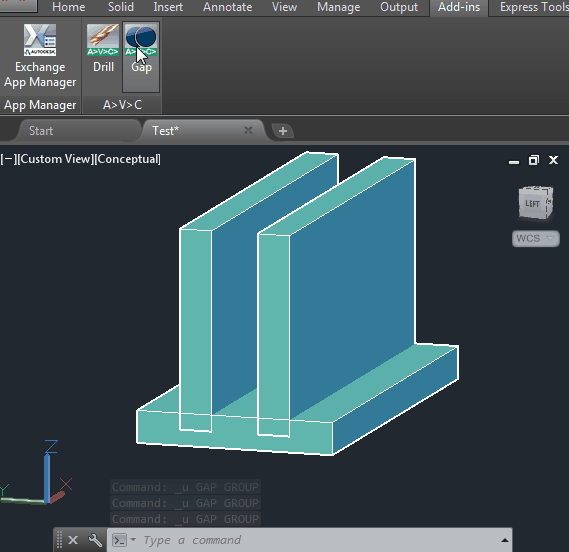

  • Make the gap between the parts for easy docking.

  • Subtract the hole-solid from blocks and nested blocks.

  • Subtract from the solids in the assembly blocks. Including piercing blocks with solid holes located in the model.

  • make a gap even if the parts did not intersect, but only touched.

  • separates the solid, which, after drilling, fell apart into parts.

  • keep subtracting solid.

  • Use pre-selected objects.

  • show the progress bar and display statistics to the console.

  • You can configure which layer will be used for the hole.

  • The program can query to select the whole layer on each Drill command.

Opis wersji testowej

To run the plugin, you will have to register your account and top up your account balance or receive bonuses.

Then you can activate one of the licenses:

Informacje na temat tej wersji

Wersja 2025.08.02, 14.11.2025
GAP command moved to AVC_SolidSub plugin Drill fixed: now the surfaces of the holes do not turn red (like the color of the subtracted solids). Drill & CSub: The commands can now work with the layer list and layer masks to select subtracted objects.
