3dp modeling tool
Zdarma
Operační systém:
Jazyk:
Popis

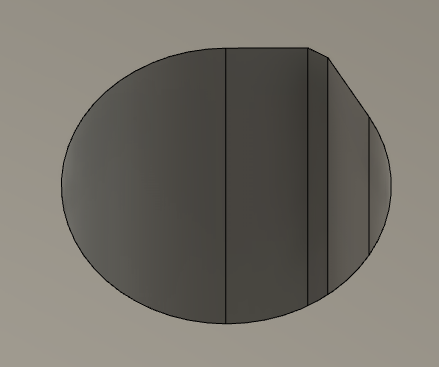

Clean vertical hole: When drilling a round hole in the side of a molding object, consider that the top of the round hole will fall in due to the lack of support. Ensure that the vertical height of the round hole can be output accurately. (Reference: *1)

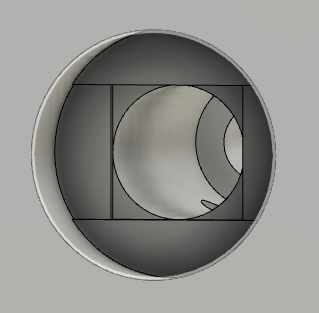

Circle mid-air hole: Used to drill a counterbored hole in the bottom of the part, allowing the 3D printer to easily bridge the part without support. (Reference: *1)
Hexagon mid air hole: Used to place hexagonal nuts on the bottom surface of the object, allowing the 3D printer to easily bridge the object without support. (Reference: *1)
Reference 1:https://github.com/gregsaun/maker_cheatsheet/blob/master/3d_printing/techniques.md
Informace o této verzi
Verze 1.0.0, 13.08.2023
Initial release
Counterbore bridging works well enough for round holes, but the tool does not respect the hole diameter for hexagonal holes. Also, the clean vertical hole tool simply does not work; it places the extrude and requisite sketch at the origin instead of the selected point, which is useless unless the hole happens to be on the origin. This is disappointing, and I'd like to see an update to address this breaking of functionality. I believe an update to Fusion at some point between October and November of 2023 broke this add-in. I hope that information can assist you in fixing it. I hate to rate this so poorly, but these issues need to be addressed. I'll update this review if you do! Please! This would be so nice if it worked like it used to. Thank you.
Clean vertical hole always places the hole at the origin instead of the selected point.
I hope you can fix this as this tool can be really handy
Hey. Clean vertical hole does not work as shown in the video. Please fix. Thanks
Very nice plugin, but when I was using Clean vertical hole, it couldn't generate at the selected point and instead went to the origin. This bothers me very much. But thank you very much for your work ~~PS: My version is Fusion 360 2.0.17721
Please can you add thread inserts? There are standard sizes for voron ... M3x5x4 holes must be smaller diameter 4,7 mm with deph 4mm and chamfer edge?
I can't create anything on the bottom plane. The vertical hole tool works well. top plane will work. I noticed that it tries to add holes to all the sketch points, but during the move commands in each group, the first step inverts it, which causes all other instances after that to fail and not create anything. If you delete that first move command in each group the hole will be generated. That's pretty tedious given that the add in is designed to do exactly that.
I really want to love this add-on, but it is only decent. The mid air hole tool doesn't make holes on the bottom of the model and is annoying to use. I would rather have the ability to select a face and have it apply the technique to the face you select.
It should be possible to open on any plane
Looking for a way to not have to de Teardrops by hand every time and here it is. Tahnks
Thank you
I was starting toi think about such an add-in ! You did it and amazingly !
Thank you
I watched the video twice to get the hang of everything. Works well and saves a bunch of time both in f360 and at the printer.
Thank you.
I watched the video twice to get the hang of everything. Works well and saves a bunch of time both in f360 and at the printer.
Thank you for creating this useful addon made designing these features much quicker.
Thank you
Before i need to do all this manually ...
Thanks to simplify my work :)
Thank you
