Mercury Works - Pattern Pilot Pro (Full Version)

Mercury Works - Pattern Pilot Pro (Full Version)

Réglé
Système d'exploitation:
Langue:

Description

A game changer for linear and circular patterns! Adaptive and scalable hole patterns that adjust count according to a max spacing between holes while remaining evenly spaced even as your model dimensions change. For both circular and linear patterns, simply click a face and reference line and watch as the Pattern Pilot engine generates within seconds.



Select from round, square, and hex hole shapes.

In addition, the extrude-all-holes option allows users to select an existing sketch within a part and change the size and shape of the circles within the sketch. A must for increasing the diameter of projected bolt holes for tolerancing on fit up or for using hex style riv-nuts/carriage bolts.



Full application usage information and documentation are available on our website https://www.mercuryopt.com/shop/p/mercuryworkspatternpilotpro

A propos de cette version

Version 1.0.0, 20/02/2025
Initial release.

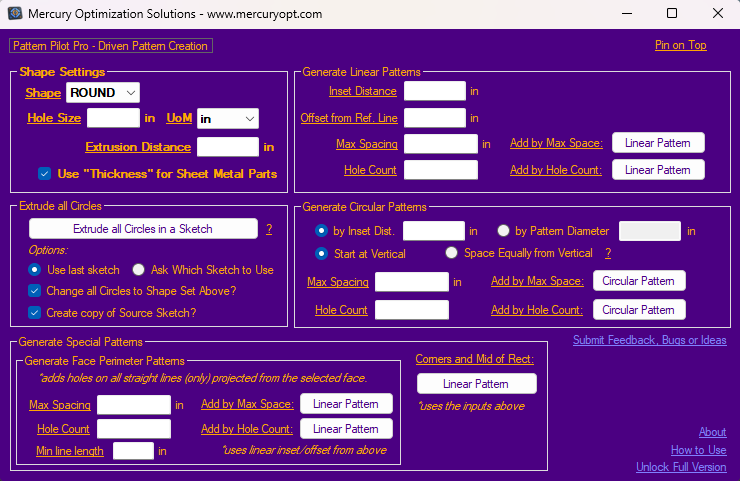

Captures d'écran et vidéos


Avis des clients

0 avis
