MEP Change Levels

MEP Change Levels

Win 32 y 64, Español

Clicker
Change reference levels for multiple MEP elements across various categories, without causing any disconnections for MEP elements.

Instrucciones generales de uso

Navigate to the ClickRT tab under the MEP Ribbon Panel and select Change Levels.

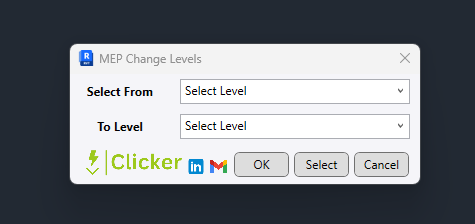

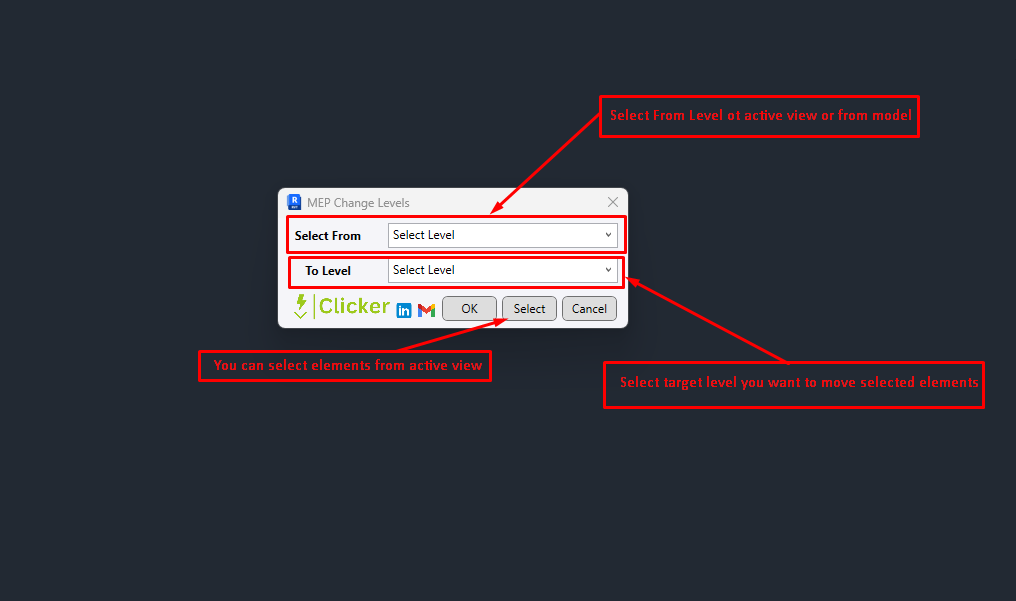

The interface will appear with the following options:

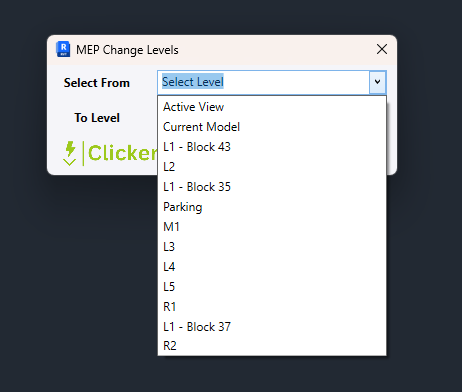

  • "From" ComboBox: Use this dropdown to select the source level. You can:
    • Choose a level from the dropdown list.
    • Select elements from the active view.
    • Select elements from a specific level by clicking the Select button

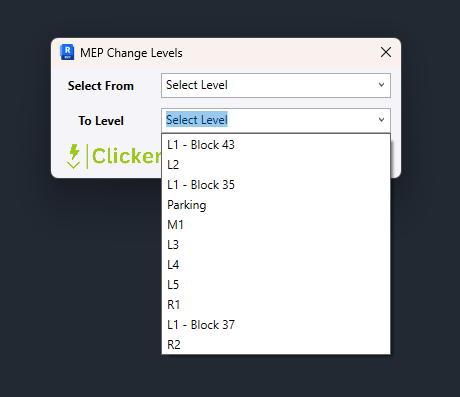

  • "To" ComboBox:
    • Use this dropdown to specify the target level where you want to move the elements.
  • Performing the Operation:
    • After selecting the desired options in the "From" and "To" ComboBoxes, click the OK button.
    • A progress bar will appear, indicating the progress of the level-change operation for the selected elements.



Capturas de pantalla

Comandos

Instalación/desinstalación

The installer that ran when you downloaded this app/plugin from the Autodesk App Store will start installing the app/plugin. Or, simply double-click the downloaded installer to install the app/plugin.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. Or, click Control Panel > Programs > Programs and Features (Windows 10/11) and uninstall as you would any other application from your system.

Información adicional

We plan to add additional functionality shortly. Please feel free to email your suggestions to mohamed.yasser2311@gmail.com.

Problemas conocidos

If this warning appears: "There are identical instances in the same place. This will result in double counting in schedules," simply click "OK." Once you finish your work, everything will be resolved.

Contacto

Nombre de la empresa: Clicker
Contacto de asistencia: mohamed.yasser2311@gmail.com

Información del autor o la empresa

Clicker

Información de soporte

Email support is available through mohamed.yasser2311@gmail.com.

Historial de versiones

Número de versión Descripción de la versión

1.0.0

First release.
