BreakerWiring
Próbaidőszak
OPERÁCIÓS RENDSZER:
Nyelv:

Leírás

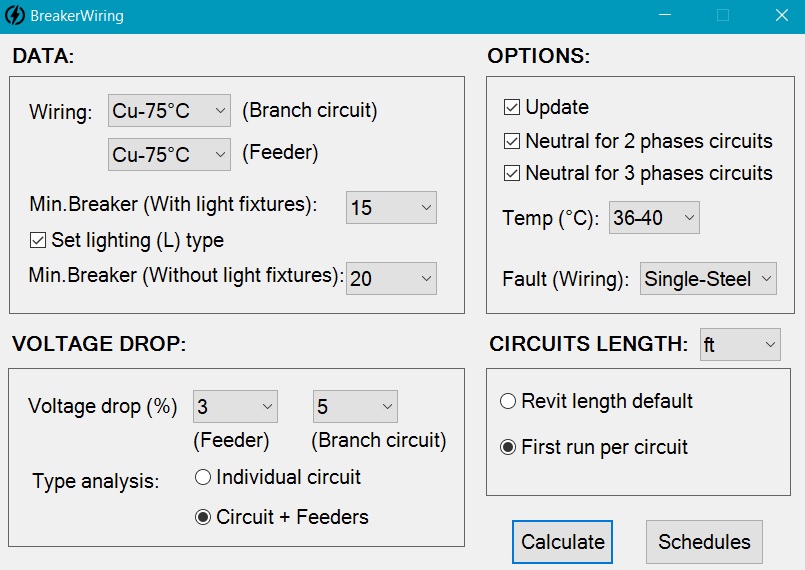

BreakerWiring is a plugin for Autodesk® Revit® that expands the electrical work based on NEC NFPA 70 standard:

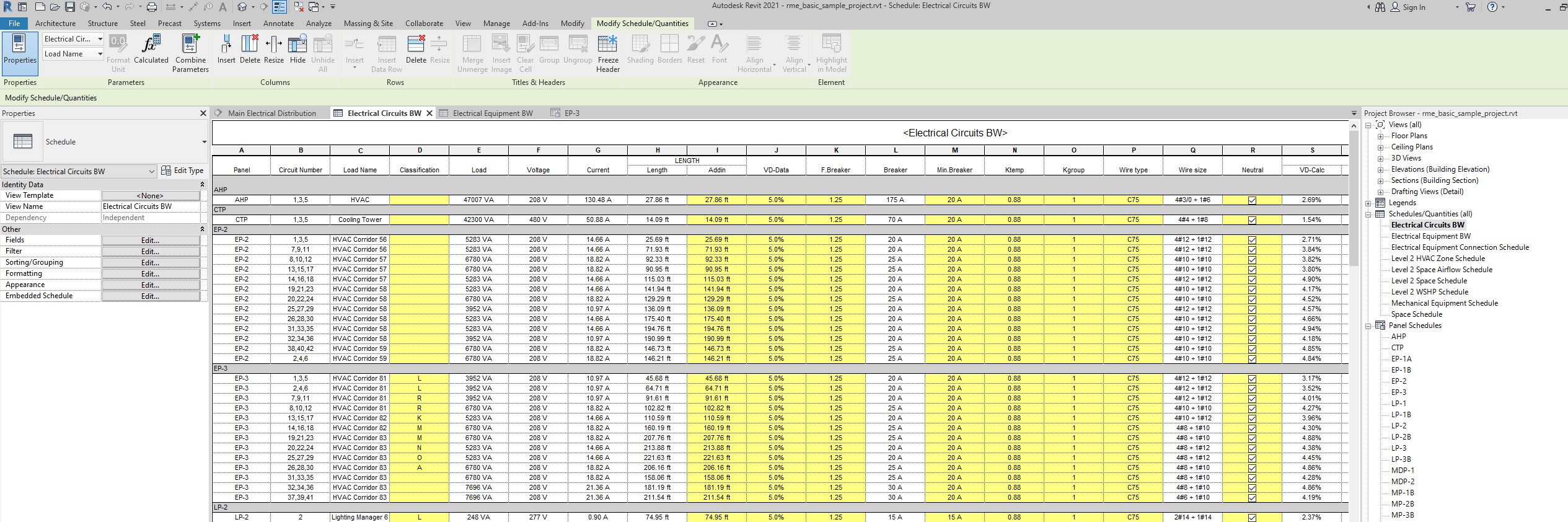

  • Feeders and branch circuits calculation: The plugin allows you to discern what type of circuit is and calculates in a different form.
  • Fault current: Fault current calculations of each panel if the user inserts the data.
  • Overcurrent protection devices of each circuit: The plugin has a parameter that the user can change manually and control the Rating according to NFPA standards.

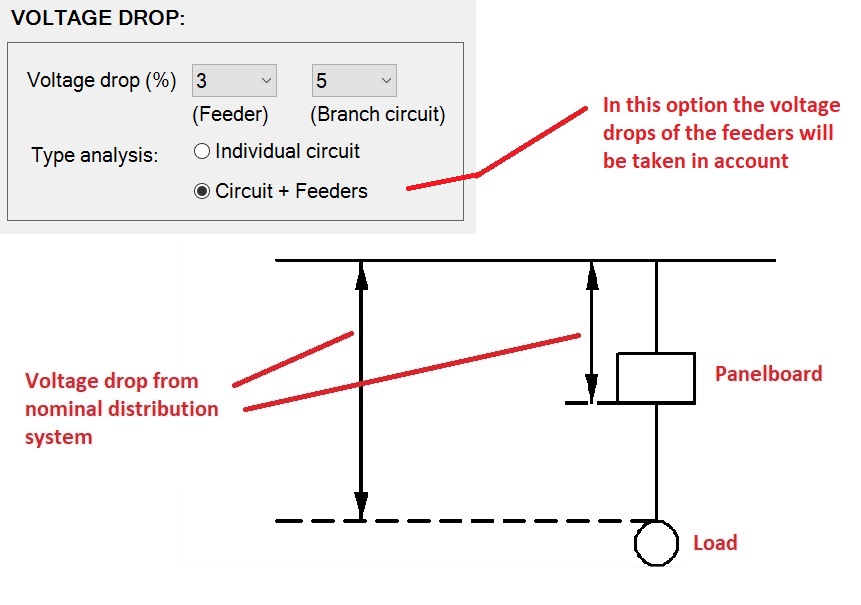

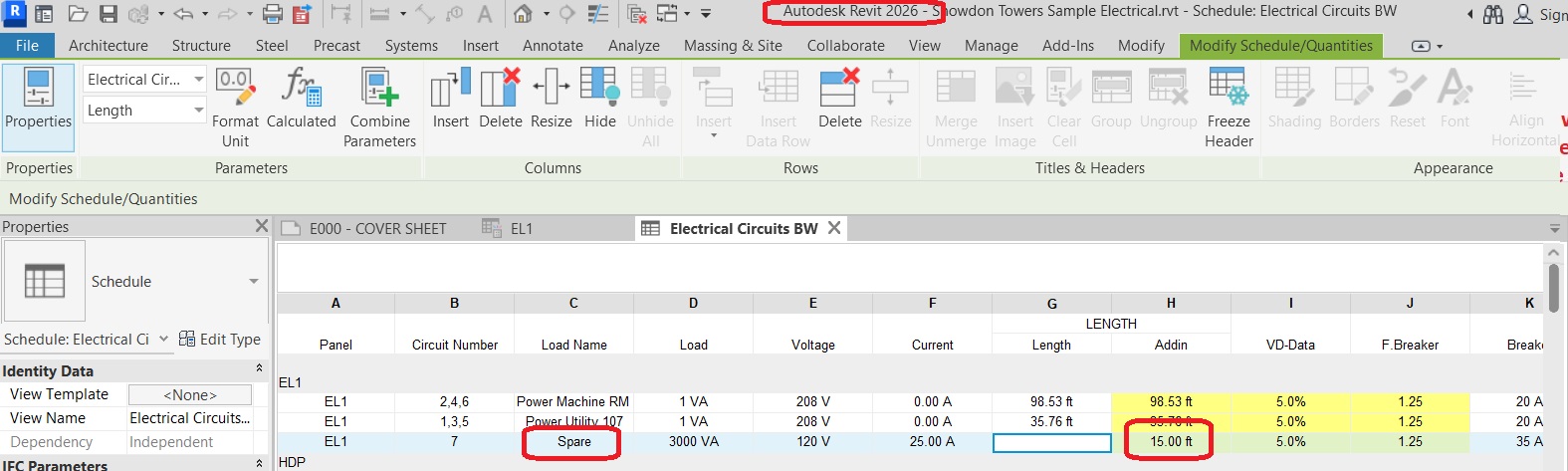

  • Voltage drops: Data percentage of voltage permissible drop: 0.5 % to 5 %, it can be manually changed by the user, and this calculation can be done individually per circuit or
  • Conductor coordination with overcurrent protection device: The plugin has the correction factors of temperature and group for conductor calculation and coordination with de overcurrent protection device rating.

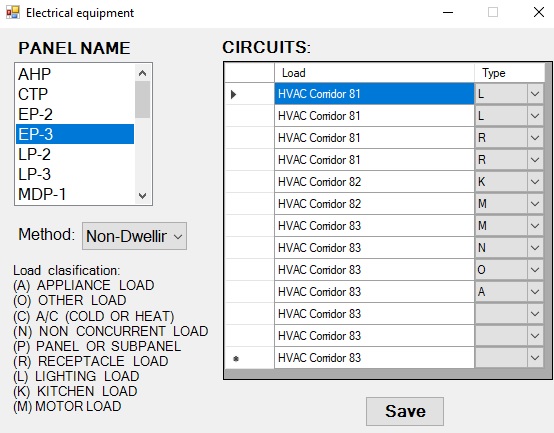

  • Load classification for circuits: The plugin has a parameter for each electrical circuit that allows to set the load classification, apart from the load classification of Autodesk Revit, to make calculations based on the plugin methods of panelboards.
  • Wire sizing: According to the load of the circuit, for panelboards circuits can be used the Estimated Demand of Autodesk Revit or the demand calculation of the addin.
  • Conduit sizing: According to the AWG of the circuit.

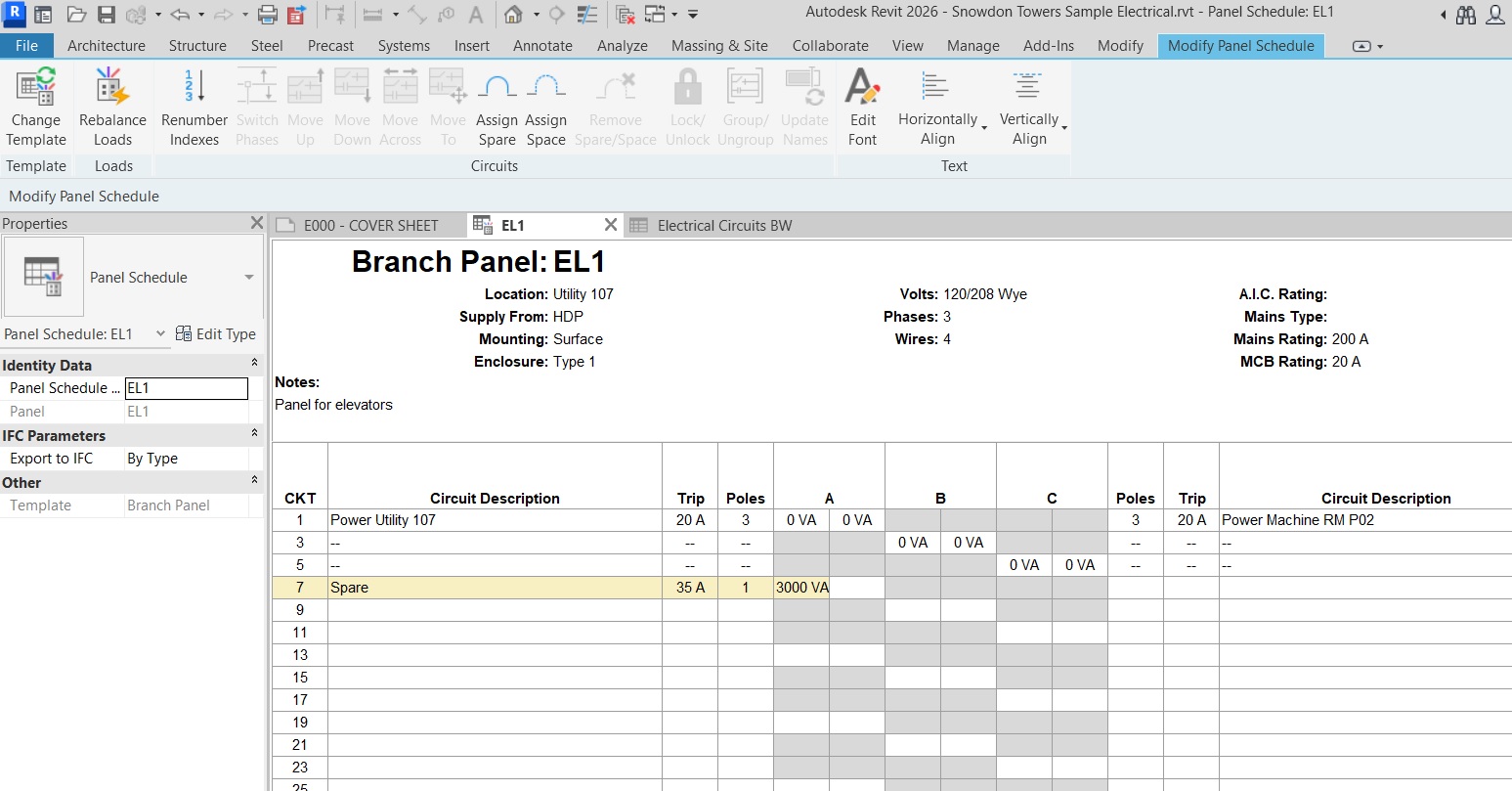

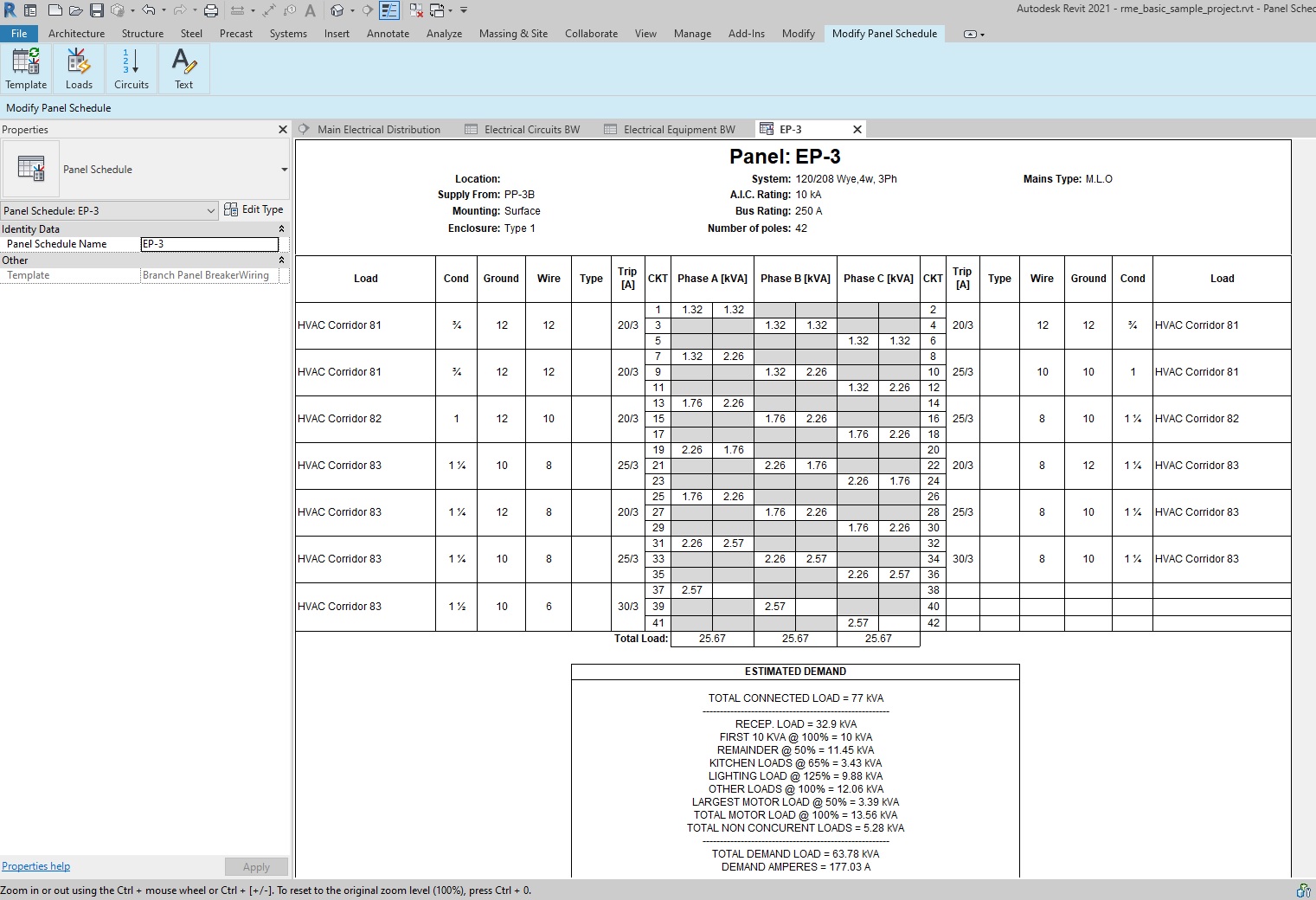

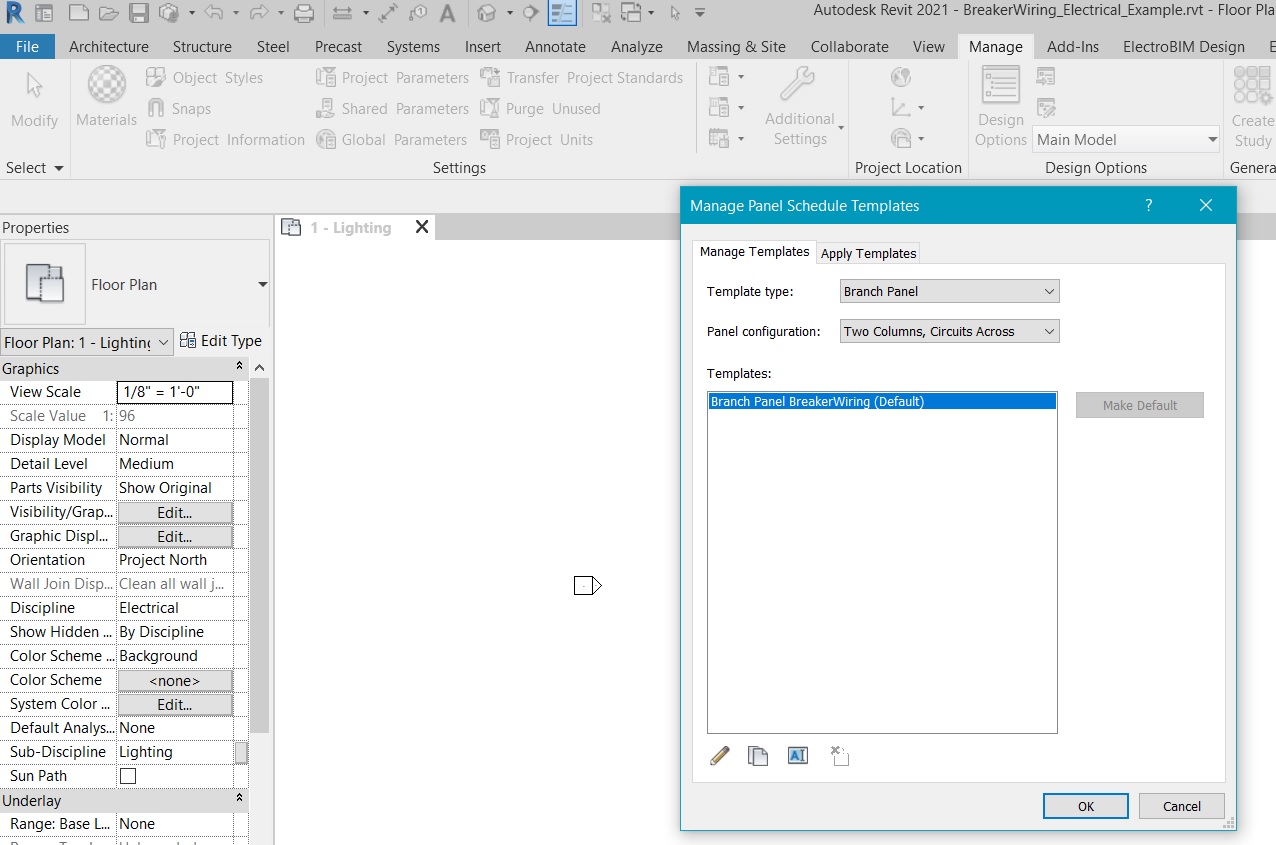

Panelboards methods: The app has 4 methods of calculations that expand the Load Classification and Demand factors of Autodesk Revit; also, a rvt file with a Panel Schedule has example:

  1. Non dwelling.
  2. Dwelling unit standard.
  3. Dwelling unit optional.
  4. Switchboard.

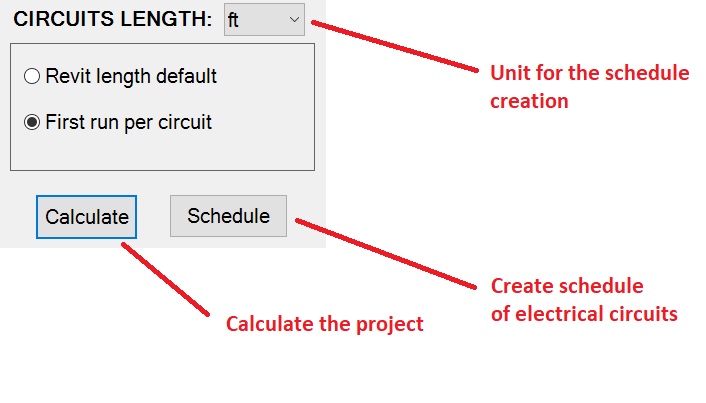

  • Electrical circuit creation for calculations.

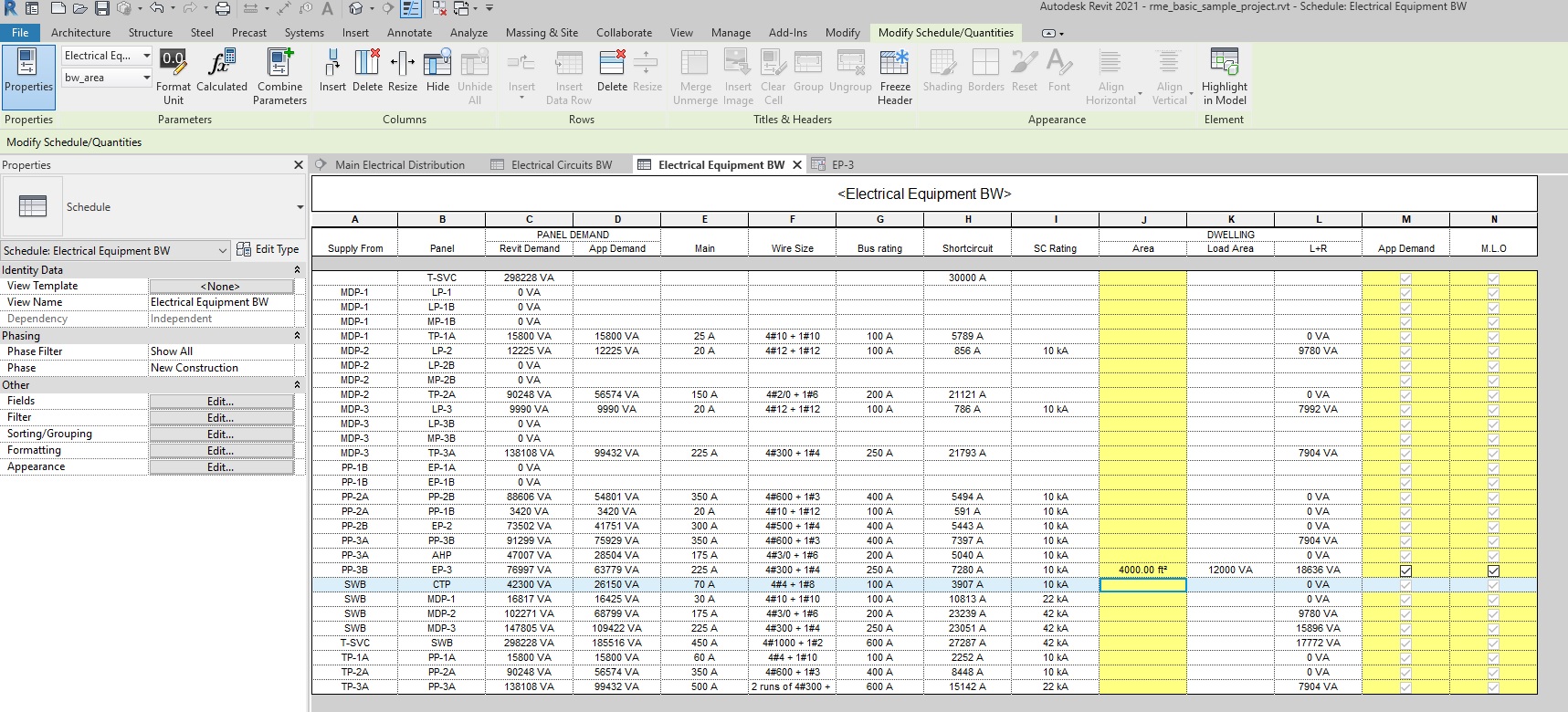

  • Electrical equipment creation for calculations.

Próbaverzió leírása

Trial app.

Limited only for conductors cooper type and 60 degrees.

Contact to dqprojectsaddins@gmail.com.

Verzióinformáció

Verzió 1.3.0, 2025. 10. 08.
New features: Fault current: Fault current calculations of each panel if the user insert the data. Panelboards methods: The app has 4 methods of calculations that expands the Load Classification and Demand factors of Autodesk Revit; also a rvt file with a Panel Schedule has example: Non dwelling. Dwelling unit standard. Dwelling unit optional. Switchboard. Electrical equipment creation for calculations.
