Center Gravity
Bezpłatna
System operacyjny:
Język:
Opis

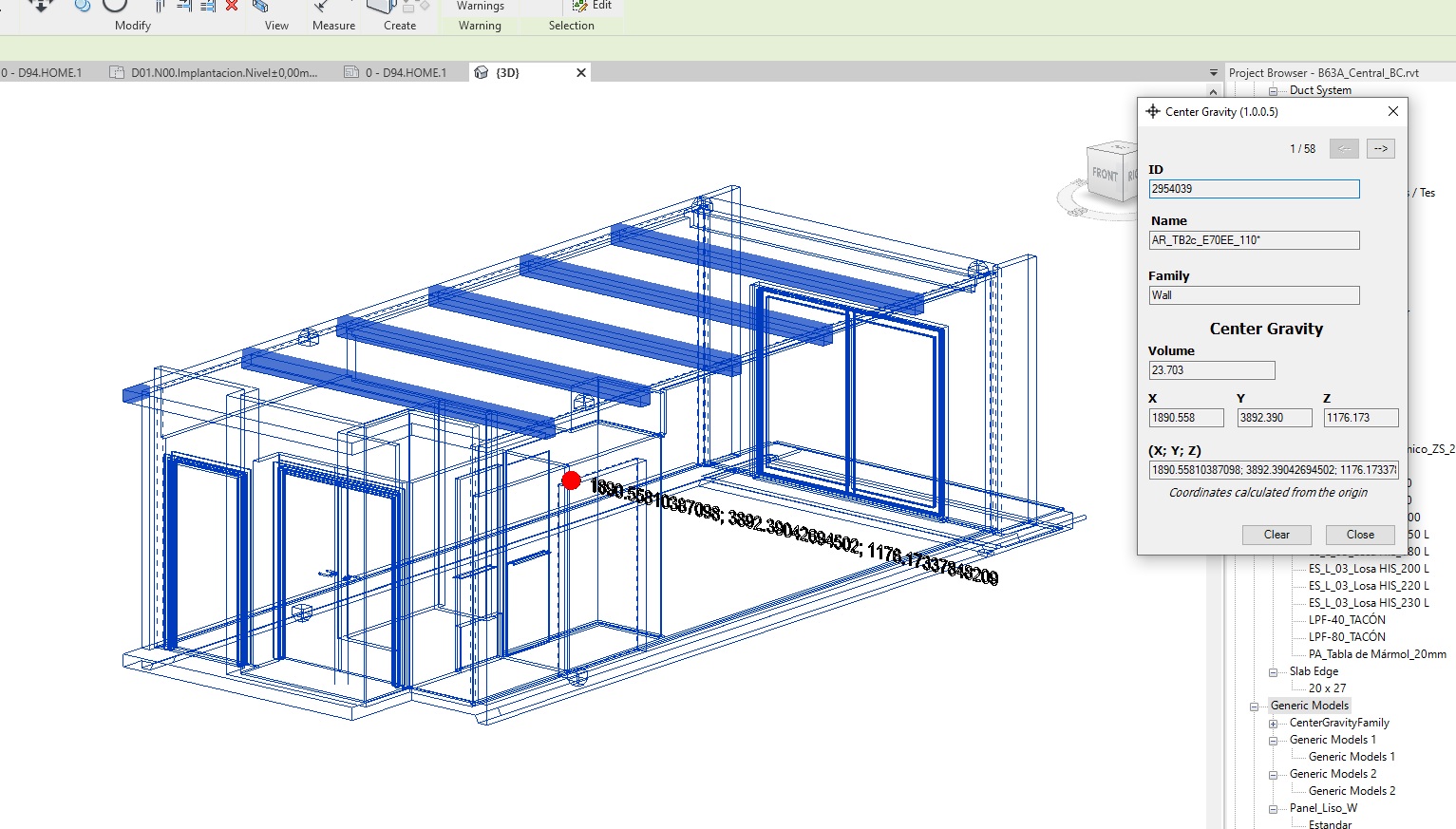

This tool allows you to calculate the Center Gravity (CG) of an element or of the set of elements; essential data if you want to carry out a lifting study.
Once the plugin is installed, the JDS tab will appear in Autodesk® Revit® which contains this and all the author's solutions.
You can see in action bellow this link.
Informacje na temat tej wersji
Wersja 1.0.0.6, 14.04.2025
- Improved filtering of selection items.
- Total volume is shown.
- XYZ vector is displayed according to the unit of measurement of the Revit file.
- Displayed description "Coordinates calculated from the origin".
- Implemented F1/Contextual help.
Dear customer,
I am pleased to inform you that a new version of the Center Gravity plugin has just been released with support until Revit 2025.
Hello, Great tool. Do you plan to release it for Revit 2026 in the near future?
Good job!
For Revit 2023 users:
- Install msi
- Copy "C:\ProgramData\Autodesk\ApplicationPlugins\jdsantana Center Gravity.bundle\Contents\2022\CenterGravity.addin" to "C:\ProgramData\Autodesk\Revit\Addins\2023\"
- Edit C:\ProgramData\Autodesk\Revit\Addins\2023\CenterGravity.addin"
- Replace "<Assembly>CenterGravity.dll</Assembly>" with <Assembly>C:\ProgramData\Autodesk\ApplicationPlugins\jdsantana Center Gravity.bundle\Contents\2022\CenterGravity.dll</Assembly>
Where is the folder where you should replace CenterGravity.dll?
Thank you, Jan Miguel, after you copy the "CenterGravity.addin" file to the 2023 folder, you open it with a text editor and change the Assembly line to reflect the file path to the original addin file in the 2022 folder. If it doesn't work, it'll be because of a type on the file path: jdsantana Center Gravity.bundle has spaces in it - that's what tripped me up the first time.
Can confirm this works great! Thank you
I got certain issue while installing in Revit 2023, Kindly guide me with this process
Did this for 2024. Not working for 2024? Center Gravity error exception C:ProgramData\Autodesk\Revit\Addins\2024/../Resources/CentreGravityFamily.rfa
I had no issues with this, and it just plain worked! Thank you thank you!!!
