Sheet number to/from Excel
Win64, EnglishGeneral Usage Instructions

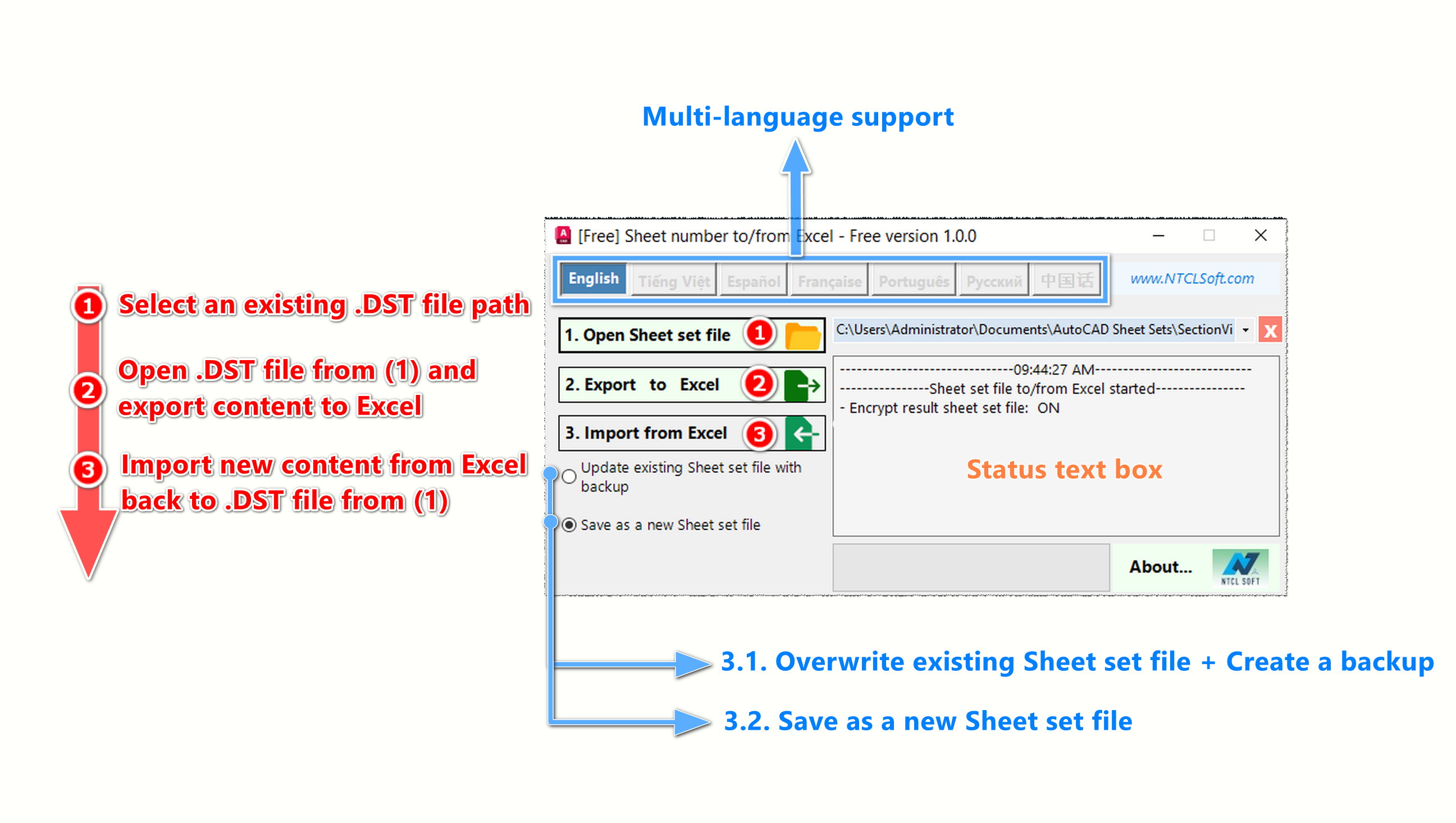

The procedure for batch editing Sheet Number and Sheet Title in a Sheet set file is as follows:

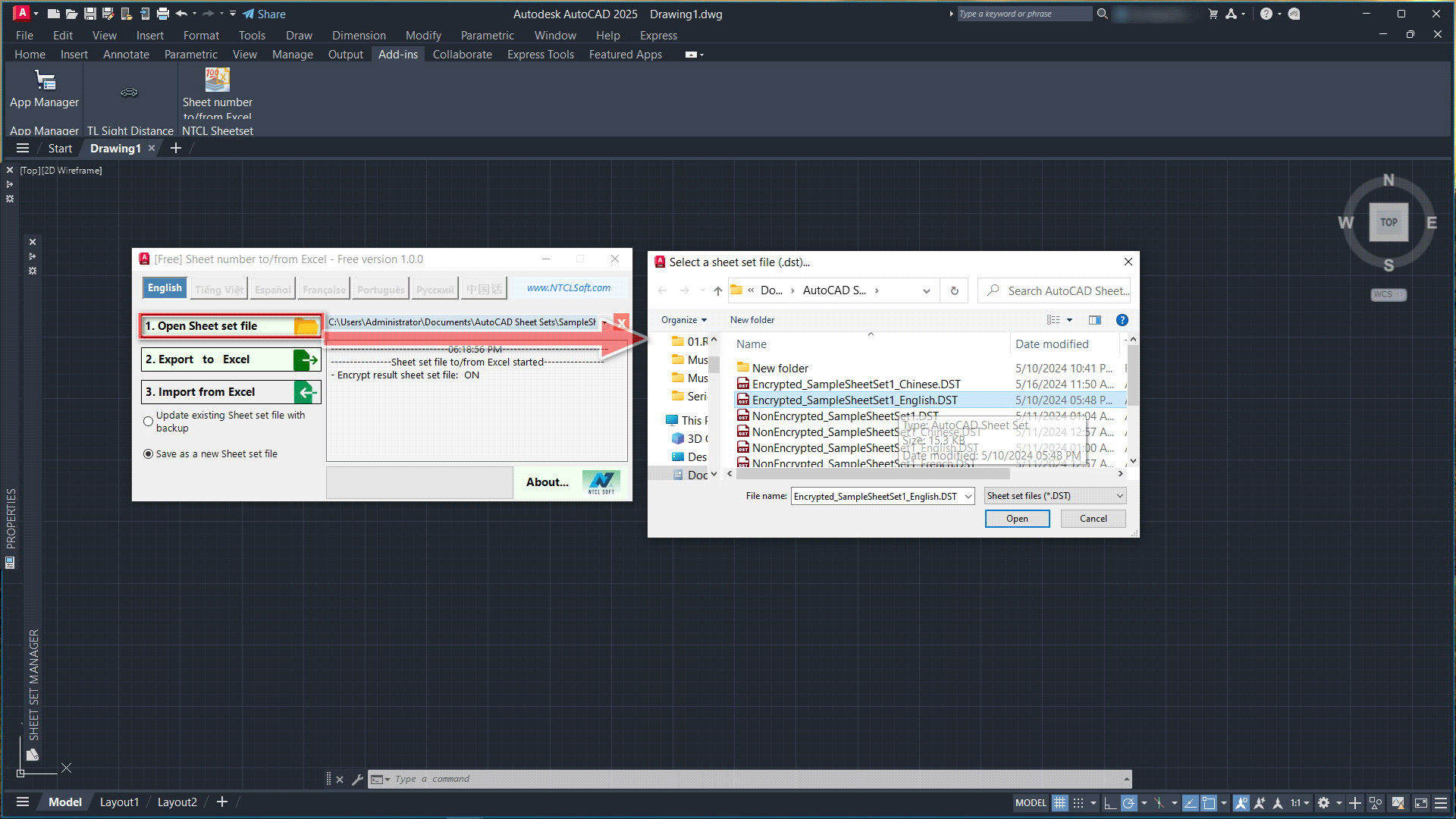

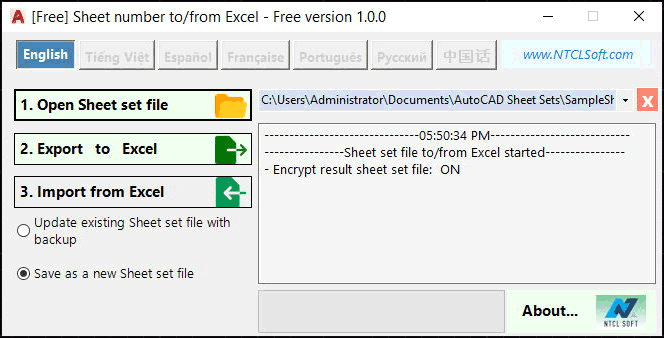

- Use this App to open an existing sheet set file.

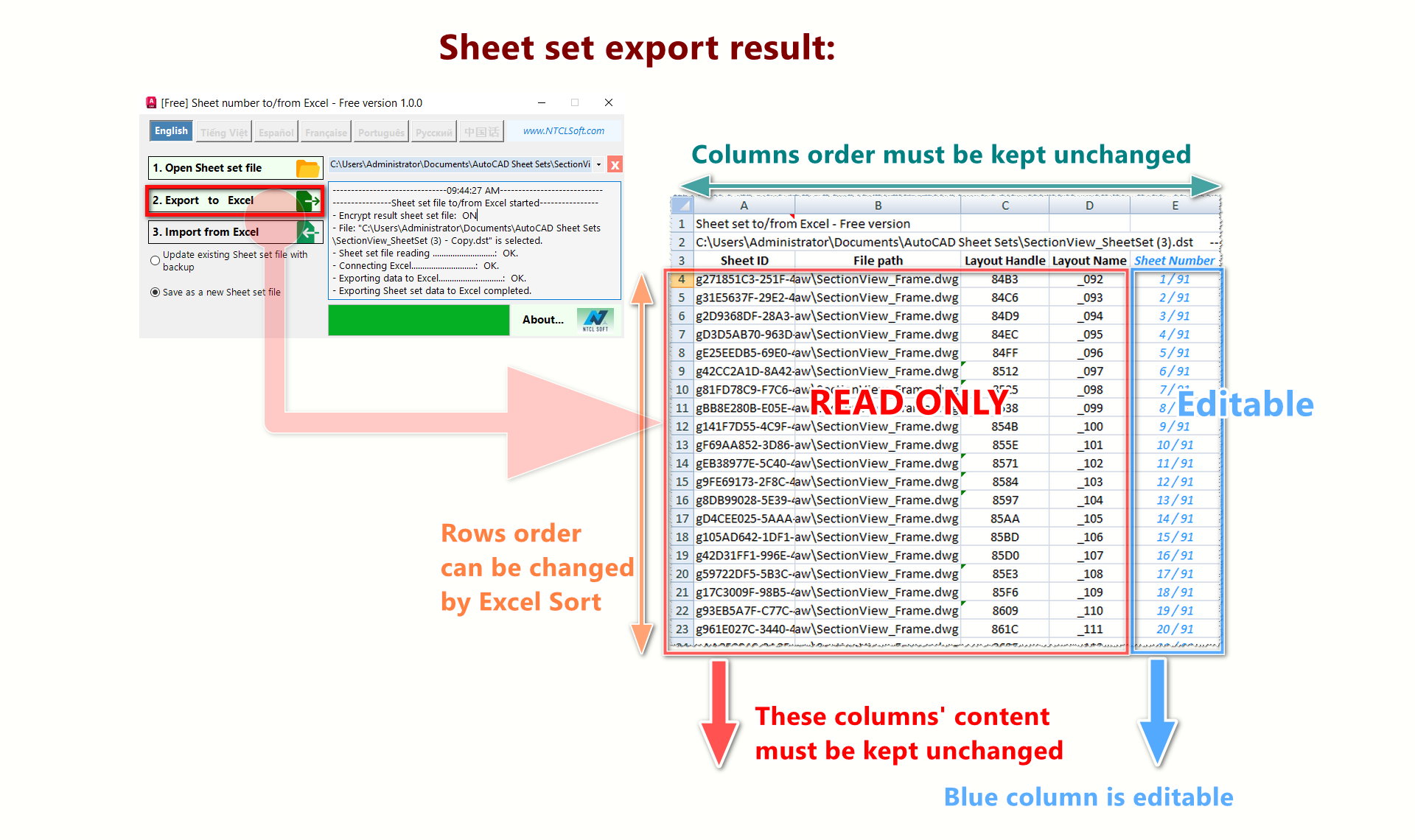

- Click the Export button to partially export sheet set content to Excel.
- In Excel, only edit the Sheet number column with blue text.
- Return to the App, and click the Import button to update the sheet set file with new Sheet Numbers read from Excel columns. Edited sheet set file will be overwritten with backup, or saved as a new sheet set file.
Commands
Ribbon/Toolbar Icon | Command | Command Description |
---|---|---|
|
NTCL_SSENum |
Sheet number export to / import from Excel worksheet |
Installation/Uninstallation
The installer that ran when you downloaded this app/plug-in from the Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 8.1/10/11) and uninstall as you would any other application from your system.
Additional Information
App interfaces support 7 languages. However, progress messages in the text box and most message boxes are in English;
Known Issues
1. In some cases, this App cannot connect Excel® in Microsoft® 365 (Office® 365). The NTCL Error message: "Cannot open Microsoft® Excel®" appears right after the app is called.
This error can be fixed by running "Quick Repair" on Microsoft® 365 (Office® 365). For more information, please refer to: https://www.NTCLSoft.com/home/troubleshooting
2. This App installer version 1.0.0 and 1.0.5 conflict with another App "Alignment SONE to worksheet". The issue is fixed from version 1.0.6
Please manually uninstall version 1.0.0 or 1.0.5 of this App (if any) before installing version 1.0.6.
If users install version 1.0.6 before uninstalling previous version 1.0.0 or 1.0.5, the installation still completes, but the core .dll file cannot overwrite old .dll file.
Contact
Author/Company Information
Support Information
For questions/comments/suggestions/bug reports etc. please send an email to NTCLApp1@gmail.com
For more information about the license, please visit: https://www.ntclsoft.com/home/license-registration-guide
Version History
Version Number | Version Description |
---|---|
1.0.6 |
Improvement: - Translate the column headers of exported result Bug fix: - Fix the bug where this App's installer conflict with App "Alignment SONE to worksheet" installer |
1.0.5 |
Improvement: - App now can extract sheets from complicated sheet set file with nested subsets Bug fix: - Fix a bug that causes some sheet number not to update as expected |
1.0.0 |
Initial version. |
