Hilti BIM/CAD Library

Hilti BIM/CAD Library

Win32 and 64, English

Hilti AG
A fast and convenient way to integrate models of Hilti objects in your project design.

General Usage Instructions

Run the _HILTIBIMLIBRARY command or click on the ribbon button from the plugins tab.

This command brings up a palette with the Hilti BIM/CAD Library.

Select a product group and you can then download and insert the selected Hilti object.

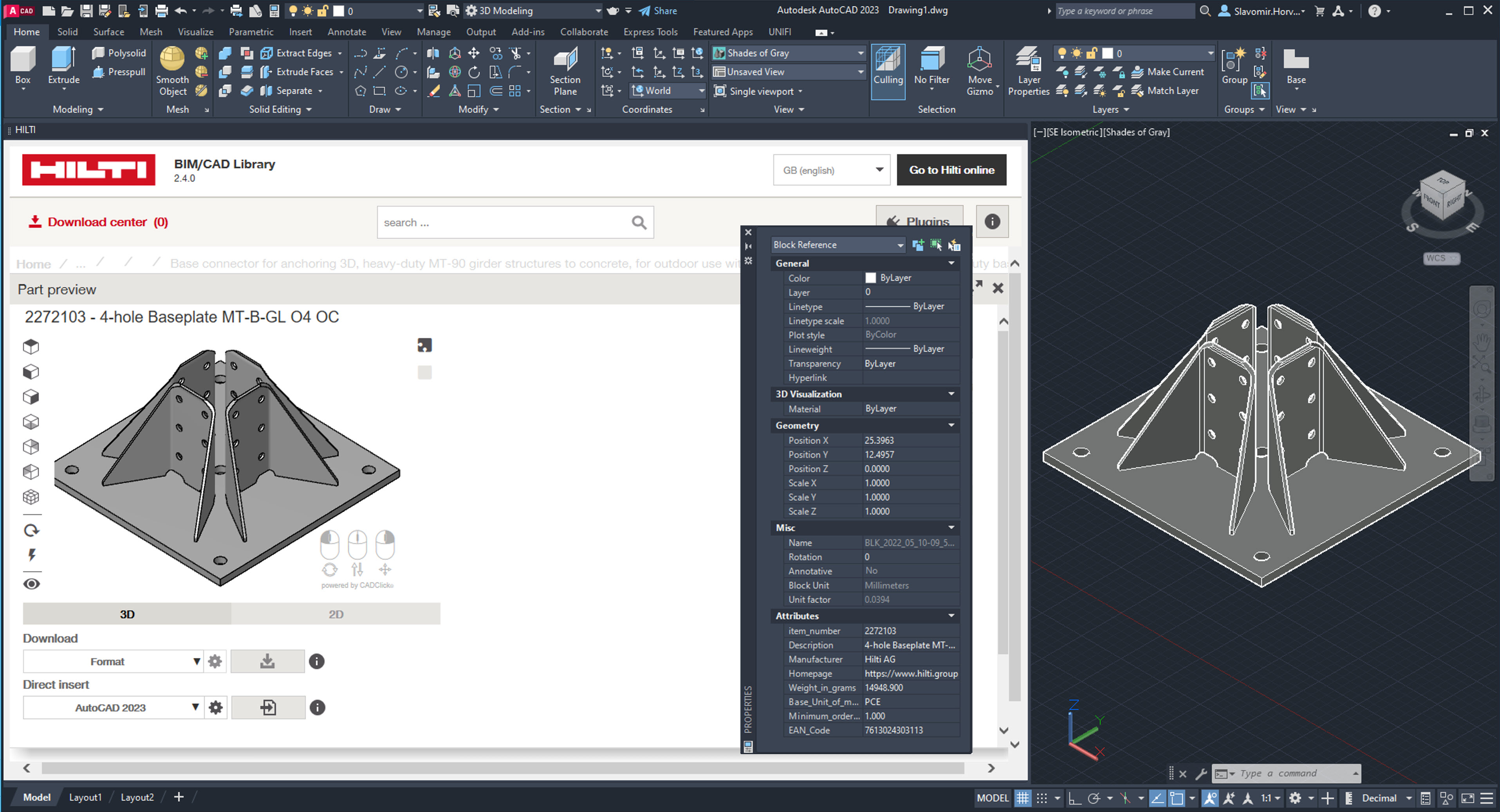

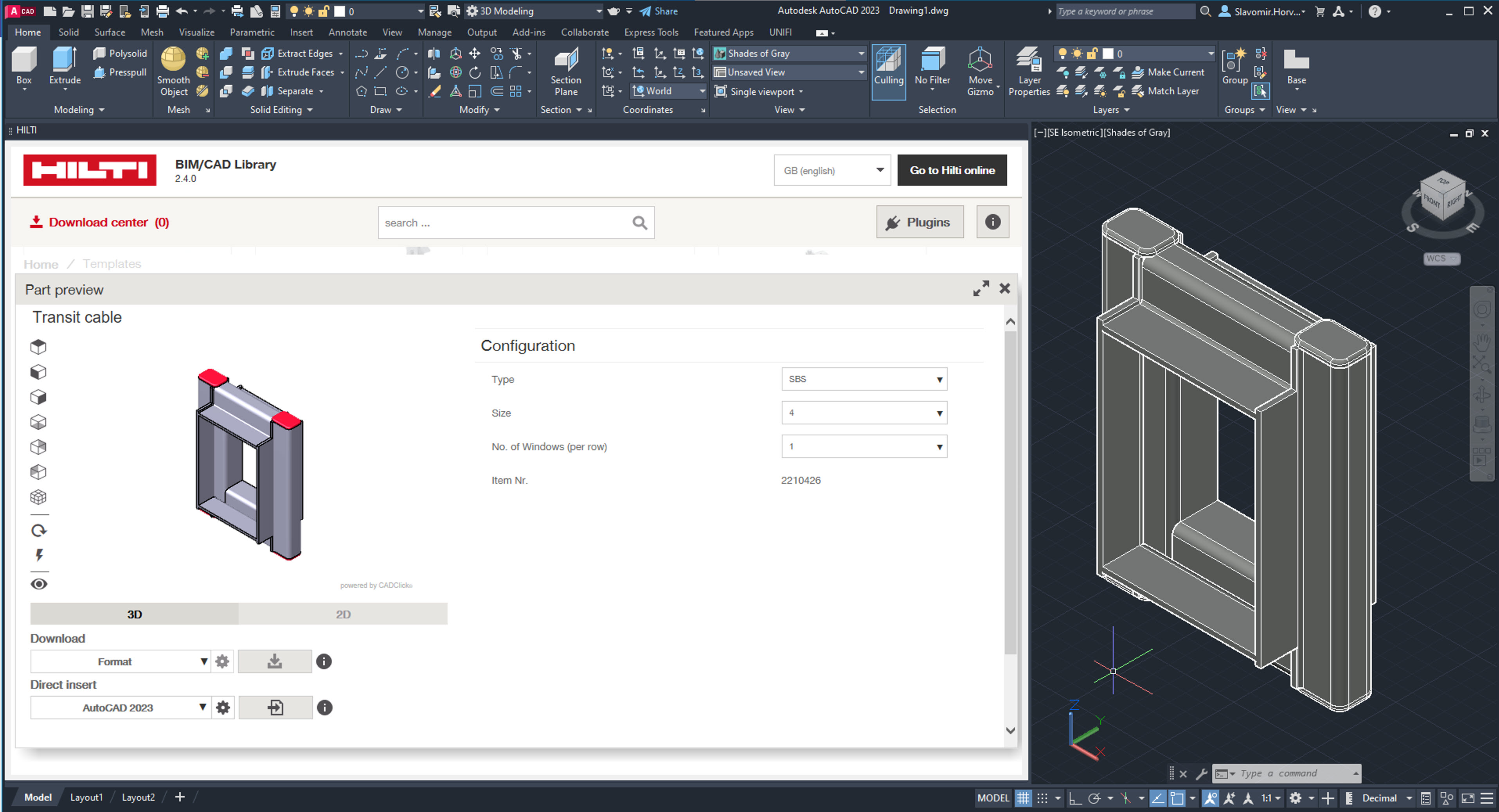

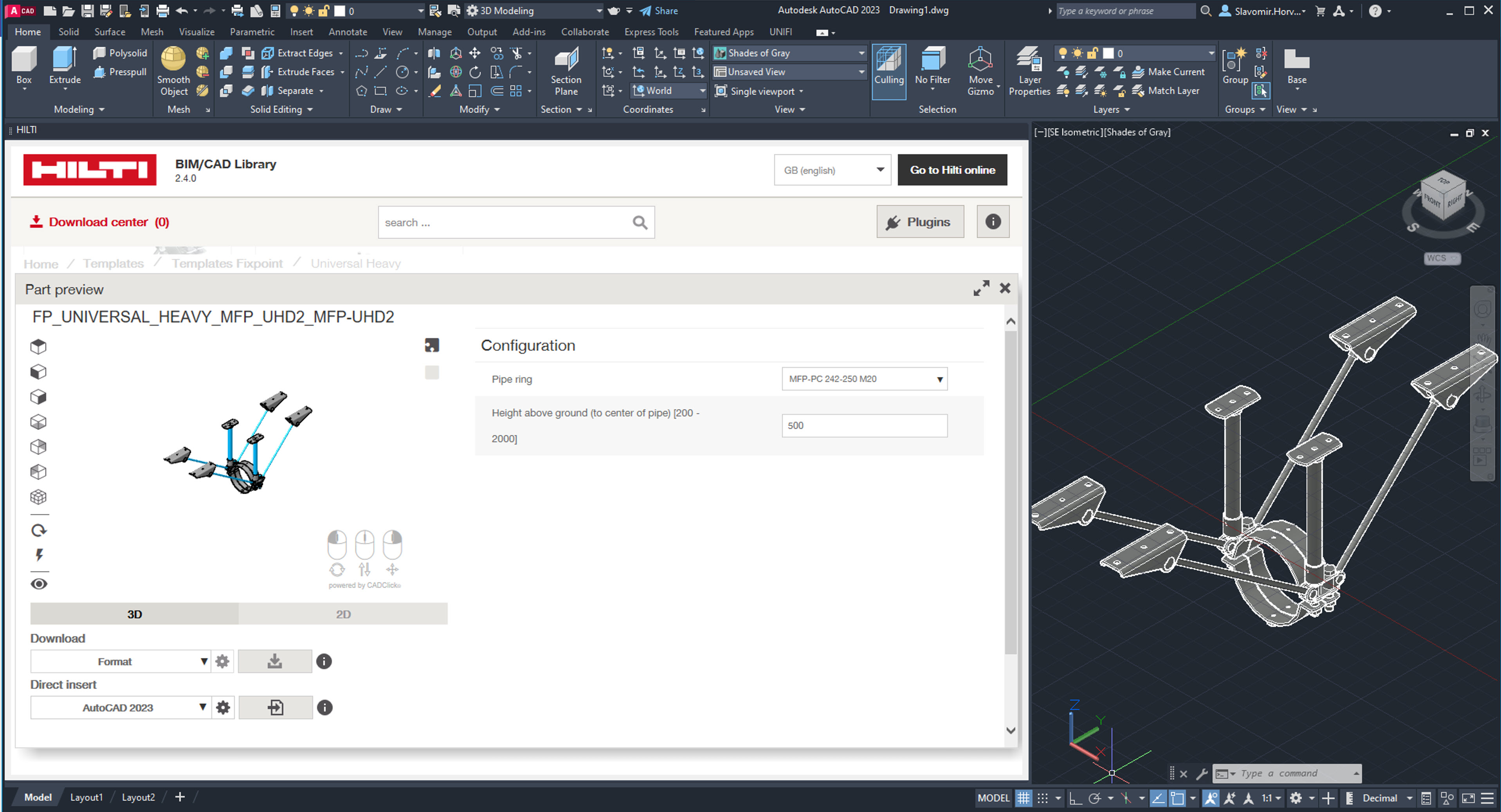

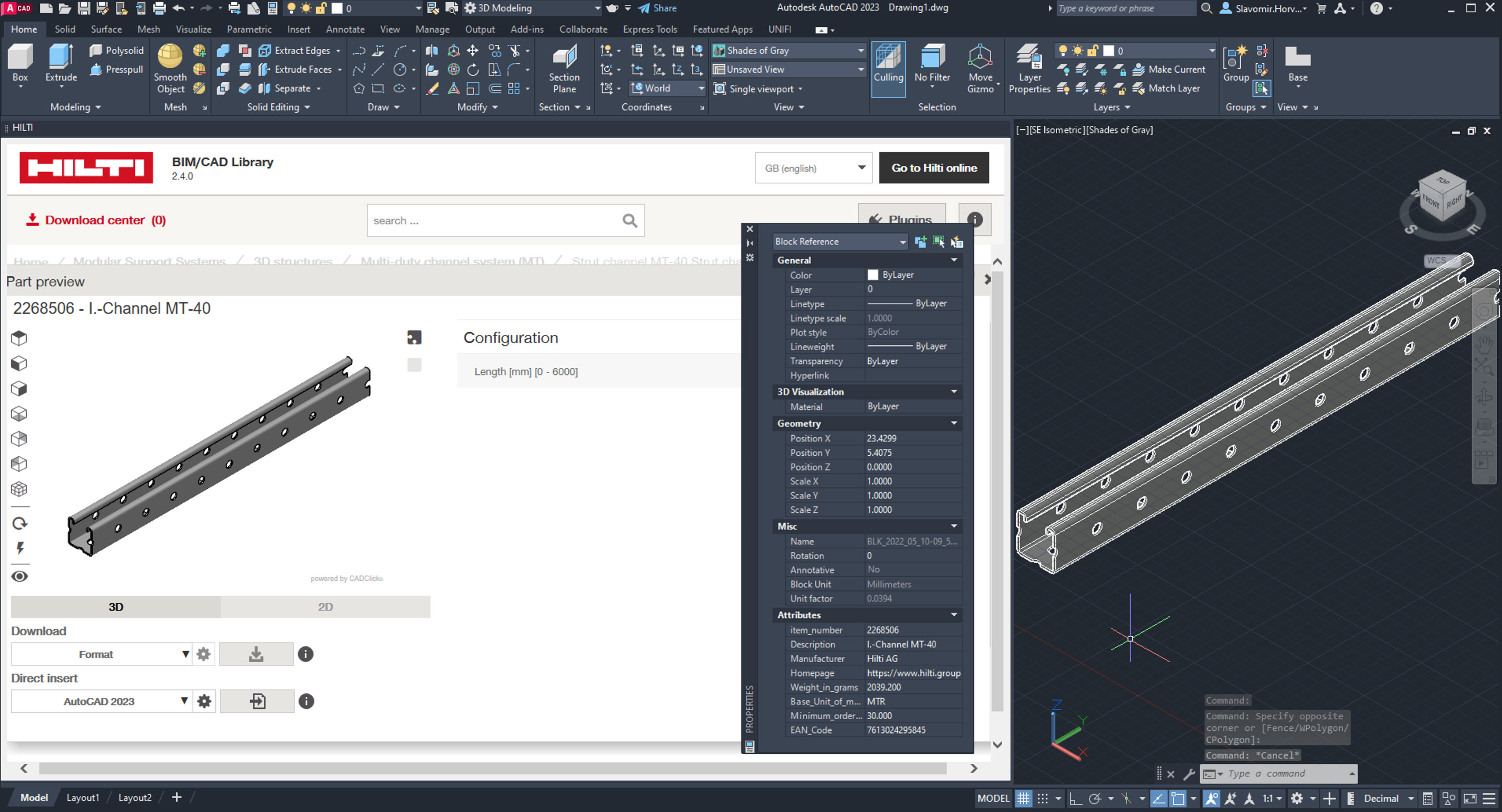

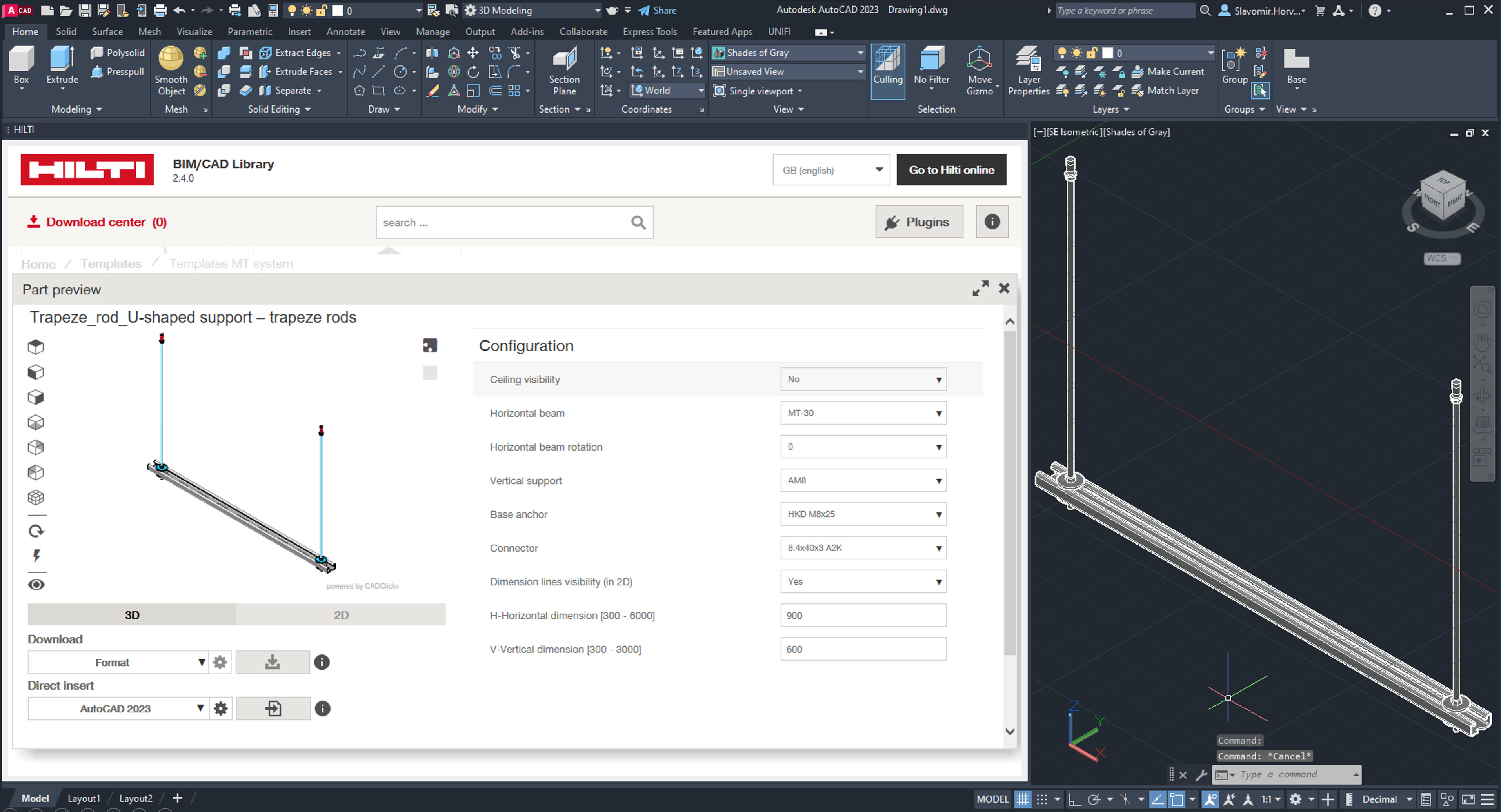

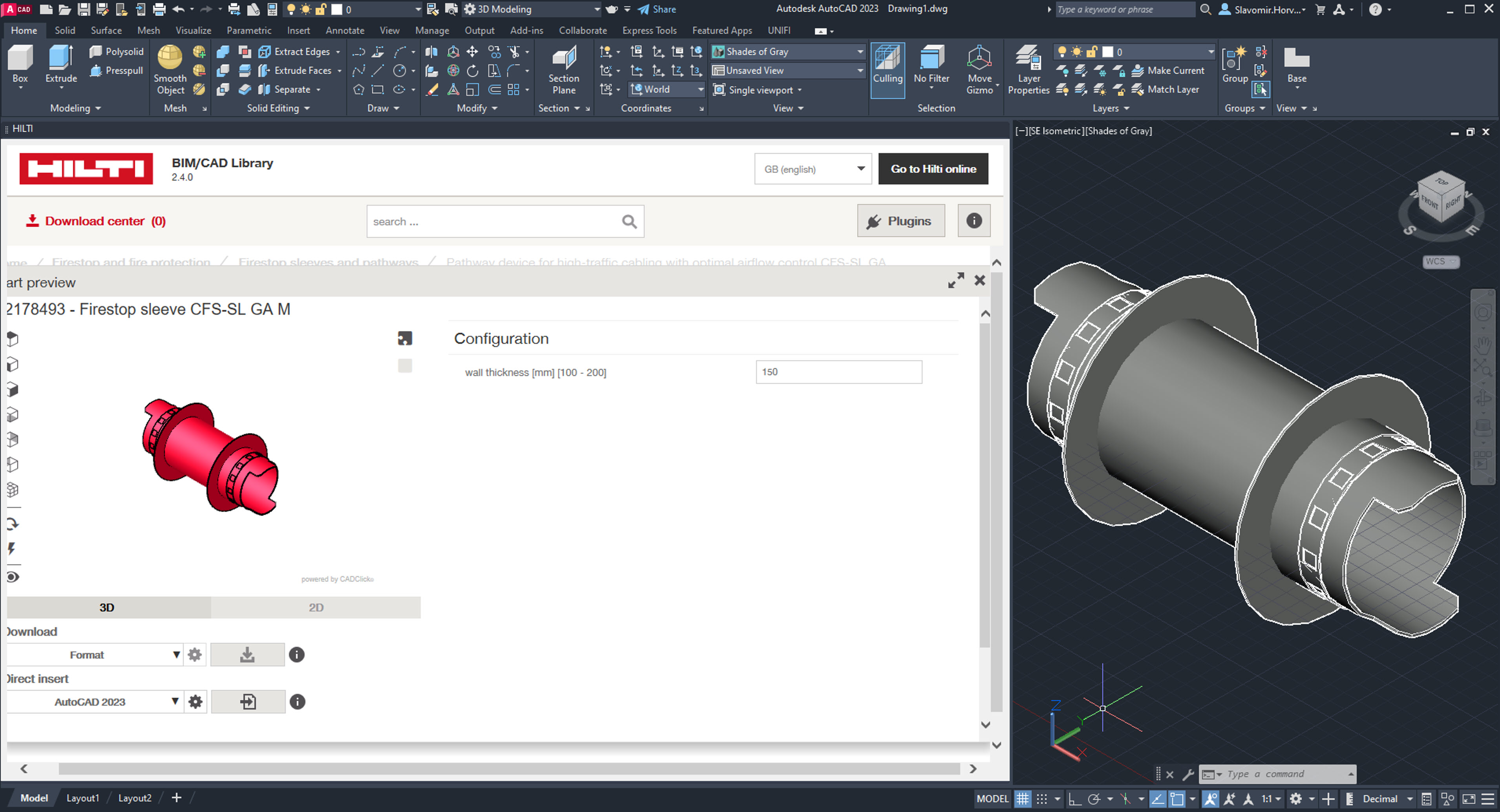

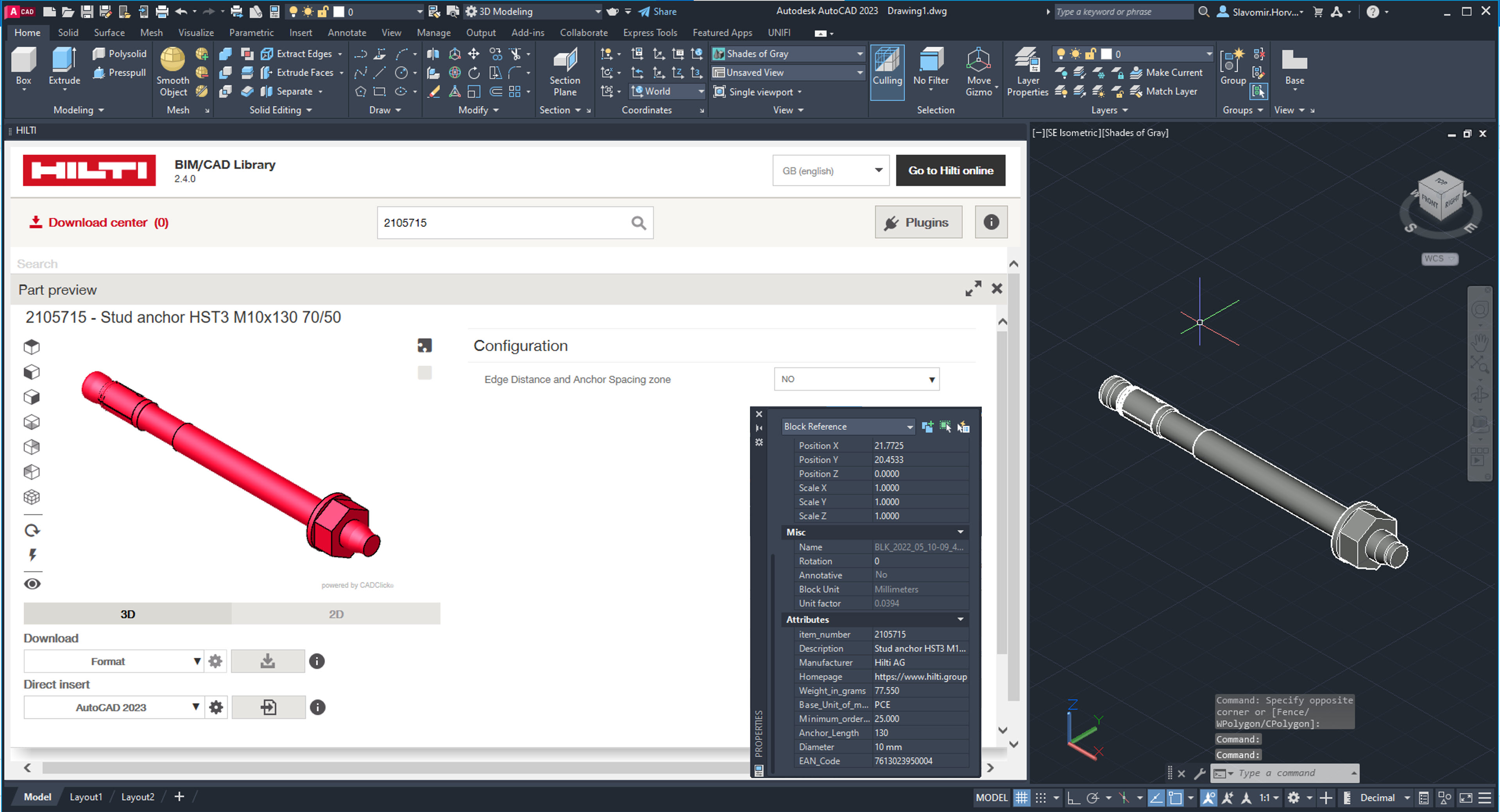

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

_HILTIBIMLIBRARY

This command brings up a palette with the Hilti BIM/CAD

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

For more information on using the HILTI libraries, please visit: http://www.us.hilti.com/bim

Known Issues

Remember: Autodesk® AutoCAD LT® VERSIONS DO NOT SUPPORT PLUGINS. If you use AutoCAD LT you can visit the BIM/CAD Library directly from here: http://hilti.cadclick.com

The Autodesk® AutoCAD® plugin is displayed directly in the tab "Hilti". If it is not visible, please try the following:

1. Enter command “NETLOAD” and select the BIMLibrary dll under: C:\Users\\AppData\Roaming\Autodesk\ApplicationPlugins\HiltiPlugin.bundle\Contents\Windows\HiltiPlugIn.dll

2. Enter command “HILTIBIMLIBRARY”

Contact

Company Name: Hilti AG
Company URL: www.hilti.com
Support Contact: profis@hilti.com

Author/Company Information

Hilti AG

Support Information

Version History

Version Number Version Description

1.0.6

Support for Autodesk® AutoCAD® 2019.

1.0.5

Support for Autodesk® AutoCAD® 2018
