AppisCAD
Win32 and 64, EnglishGeneral Usage Instructions
First of all, browse to https://www.appiscad.com/my-account/, register if you are a new user, or login in case you already have an account, then follow the steps below:
- Start adding CADtools/Applications to your library on the website.
- Open the Autodesk product and click on the My Library icon or type MYLIBRARY in the command line to open the library dialog.
- Insert your email into the login dialog then press the Login button to start downloading your website's Library to the local computer.

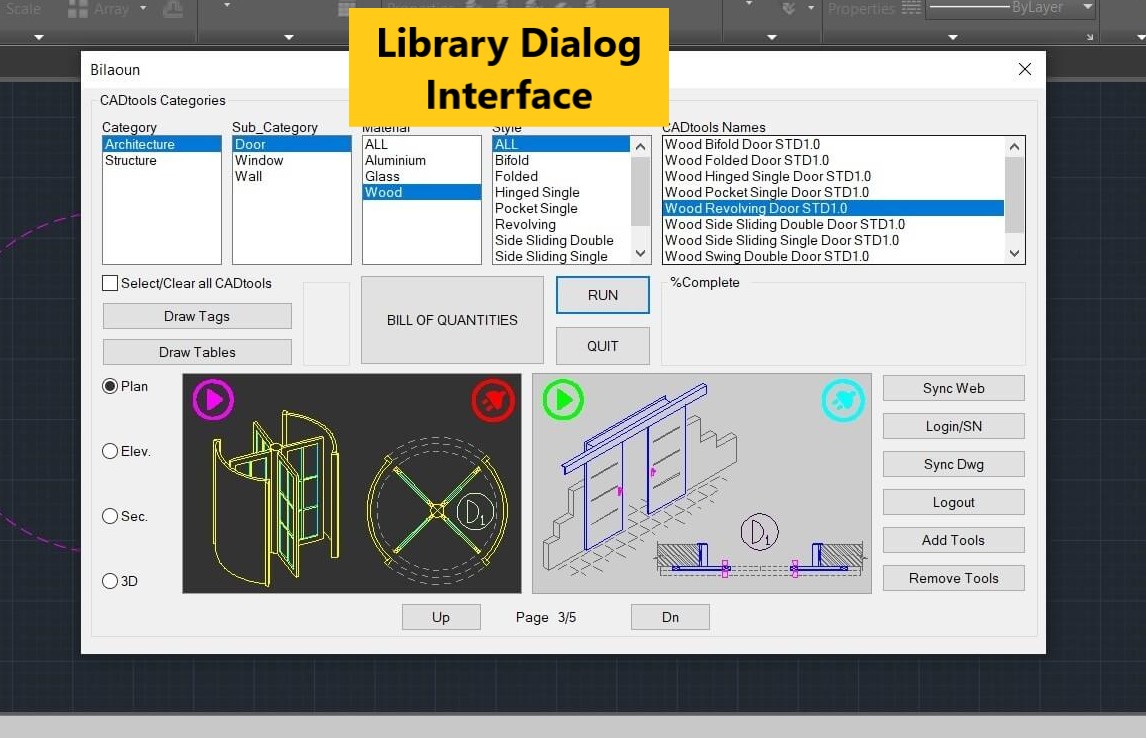

- Once the library is loaded navigate between the categories list_box to find the CADtools you are looking for, and then press on the button that executes the appropriate actions as follows:
- RUN: Insert/Draw the selected item (CADtools/CAD Blocks) into the drawing.
- Draw tags: Add tags for similar objects.

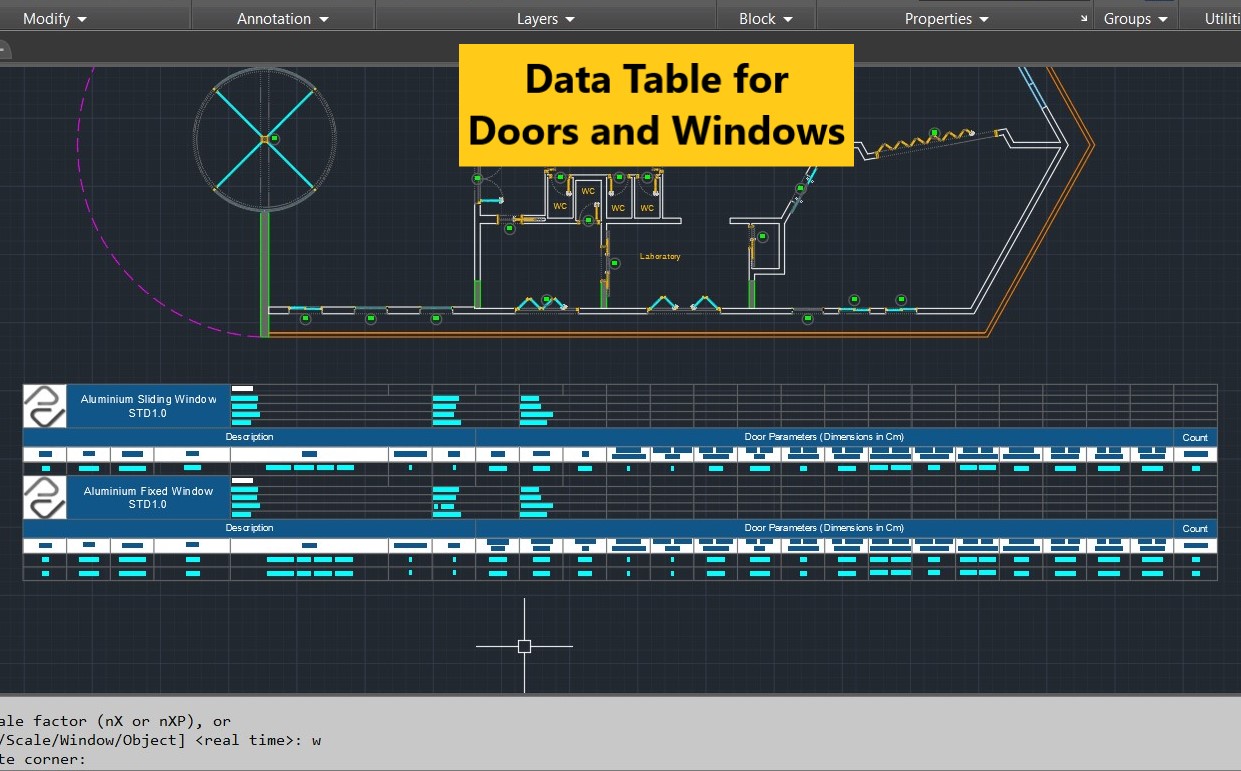

- Draw Tables: Insert data table for similar objects.

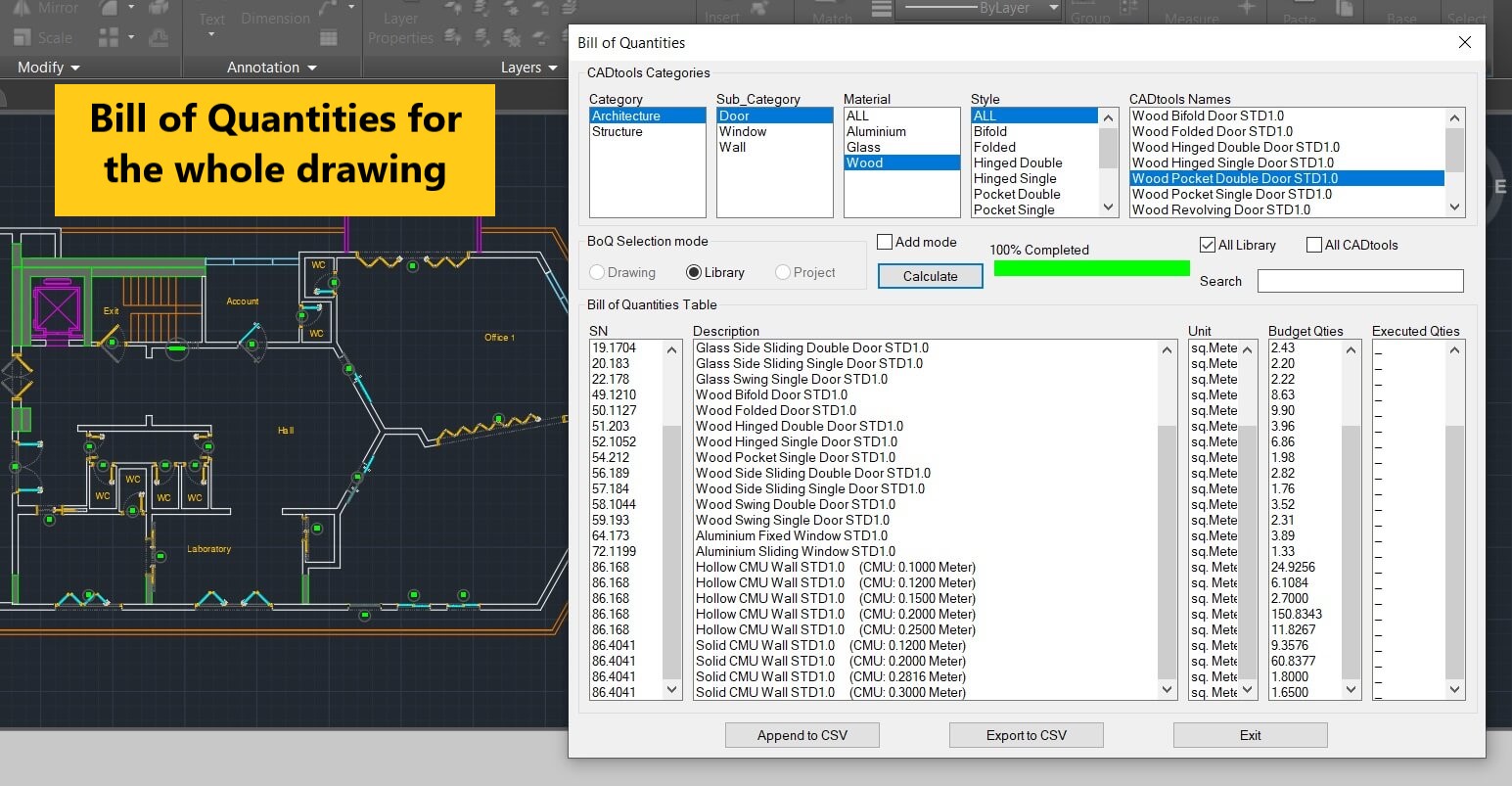

- Bill of Quantities: Generates quantities for the whole or part of the drawing.
- Sync Web: Download/Update the CADtools/Applications to your Local Library from your Website Library.
- Remove Tools: Remove CADtools/Applications from both Local and Website Libraries.
For additional information regarding options, CADtools details, and get started tutorial please visit https://www.appiscad.com/get-started/.
Commands
Ribbon/Toolbar Icon | Command | Command Description |
---|---|---|
![]() |
MYLIBRARY |
Open your AppisCAD Library Dialog. |
Installation/Uninstallation
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.
Additional Information
Known Issues
Contact
Author/Company Information
Support Information
Please contact me by email at bilal.aoun@gmail.com
Version History
Version Number | Version Description |
---|---|
1.5.5 |
Added 2024 support |
1.5.0 |
Allow new users to register in AppisCAD Webite from the Login dialog interface Changing the drawing units is available from the Library Dialog interface Fixing minor bugs and app improvement. |
1.4.9 |
Initial release |
