JTB DST Tool

JTB DST Tool

Win32 and 64, English

JTB World Inc.
Merge, purge, convert and make advanced edits of Sheet Set DST files.

General Usage Instructions

Run DSTTOOL command in Autodesk® AutoCAD® or click on the button in the Ribbon menu. This app will help you:

  • Merge DST files. If similar subsets are found, they will be merged into 1 subset.
  • Merge-Copy DST files: using this method, regardless of subsets duplication, DST files data will be added one after another.
  • Purge unused info in DST files to reduce file size. The purging is useful for IT or CAD Managers to correct performance problems with SSM Sheet Sets that start to perform badly. Sometimes the DST file can grow unreasonably large and the purging can help.
  • Convert DST files to XML format and back. Useful if manual edits needs to be done to the file. Use for Notepad or XML Notepad or other XML editor.

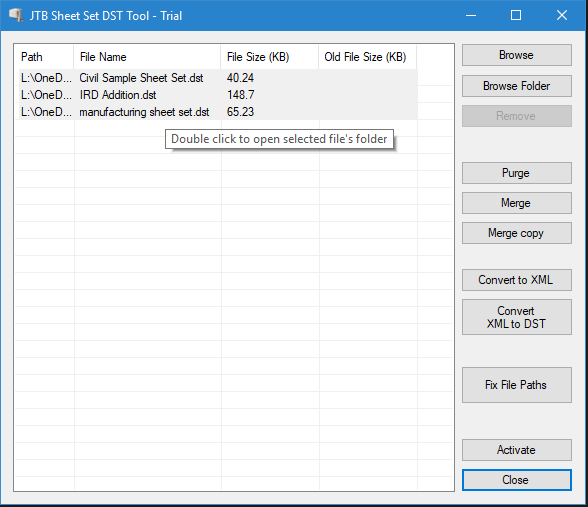

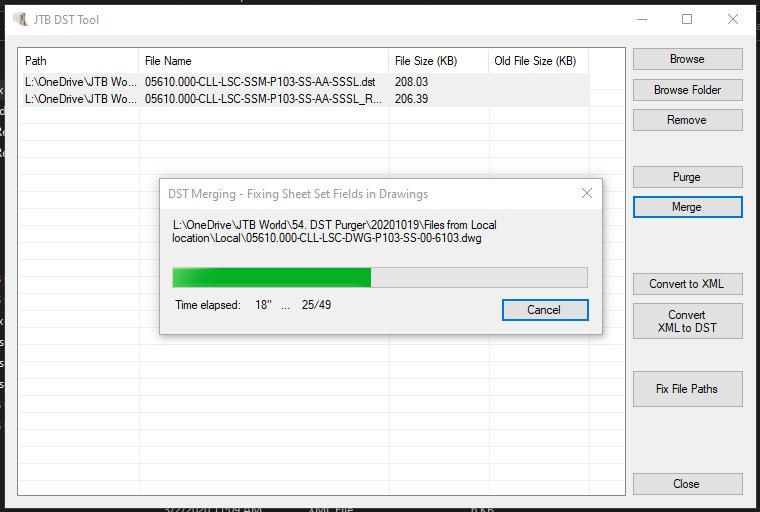

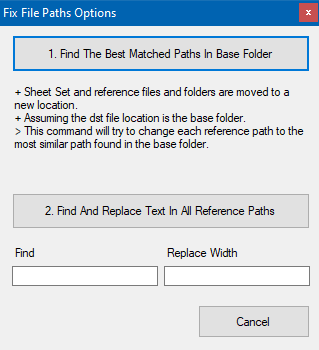

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

DSTTOOL

The DSTTOOL command starts the JTB DST Tool app.

Installation/Uninstallation

The installer that ran when you downloaded this app from Autodesk App Store has already installed the app. You may need to restart the Autodesk product to activate the app.

To uninstall this app, uninstall as you would uninstall any other app/application/program from your system.

On Windows 10 Version 1703 or later press Windows+I on the keyboard to access Settings or click the lower-left Start button on the desktop to expand Start Menu, and then select Settings in it. Click on Apps.

On Windows 7 / 8 / 8.1 / 10 (older than Version 1703) click Control Panel > Programs > Programs and Features or Control Panel > Add.

On Windows XP click Control Panel > Programs > Remove Programs.

Additional Information

Known Issues

Contact

Company Name: JTB World Inc.
Support Contact: info@jtbworld.com

Author/Company Information

JTB World Inc.

Support Information

For support visit our Contact page.

Version History

Version Number Version Description

1.5.0

Added Autodesk® AutoCAD® 2019 support. Minor adjustments.

1.4.0

Added ability to merge custom properties when DST files are merged. Added network license feature.

1.3.0

Added support for AutoCAD® 2018

1.2.0

Fixed a bug in trial mode, related to decimal symbol

1.1.0

First public release
