Table Sort

Table Sort

Win64, English

Adds context menus to tables to allow for sorting cells contents, and also moving rows and columns.

General Usage Instructions

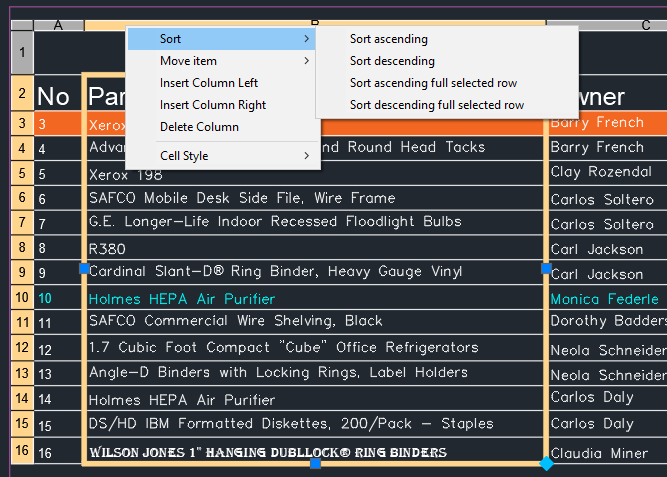

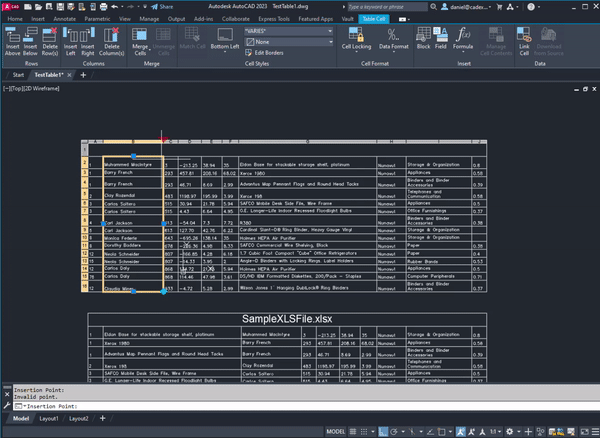

This module adds right-click context menus to Tables as shown in the screenshots.
For a full description, select the table sort icon in the add-ins ribbon tab. This will launch your web browser to view the help file.

To begin a sort, select a range of cells to be sorted, either by using the table header indicator or by dragging to select a range of cells.
Right-click in the table and choose sort from the context menu. Choose sort ascending or sort descending to sort the cells.
To sort a whole table by the leftmost column, select all the cells by using the top left table indicator, and choose sort by full selected row.

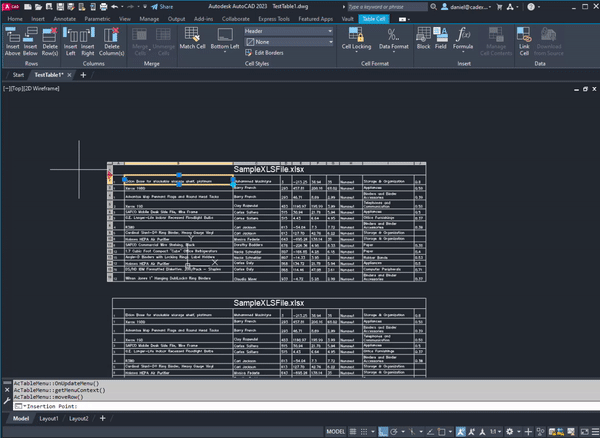

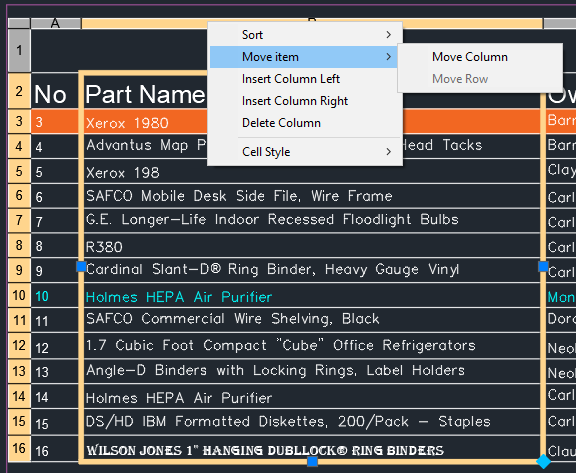

To move a row or column, select a row or column by the table indicator, right click and choose a move from the context menu.
Drag the row or column to its new position.



Ribbon/Toolbar Icon Command Command Description


This will display the help file with complete app details.


The installer that ran when you downloaded this app/plug-in from Autodesk® App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 8.1/10/11) and uninstall as you would any other application from your system.

Additional Information

Known Issues


Company Name: CadExt
Support Contact:

Author/Company Information


Support Information

Contact for help or to report issues.

Version History

Version Number Version Description


Initial release 1.1.128 improved sorting to behave more like excel


Initial release
