Join Dimensions

Join Dimensions

Win32 and 64, English

AcGROUP Project
This command allows you to select two or more dimension objects and join to form a single dimension object.

General Usage Instructions

This command allows you to select two or more dimension objects and join to form a single dimension object.

To launch the plug-in, use the command JoinDim.

The following prompts are displayed.

Select source Dimension or multiple Dimensions to join at once:

Specify an object selection method.

The selected dimensions must be aligned or rotated type (It does not allows to select parametric dimensions).

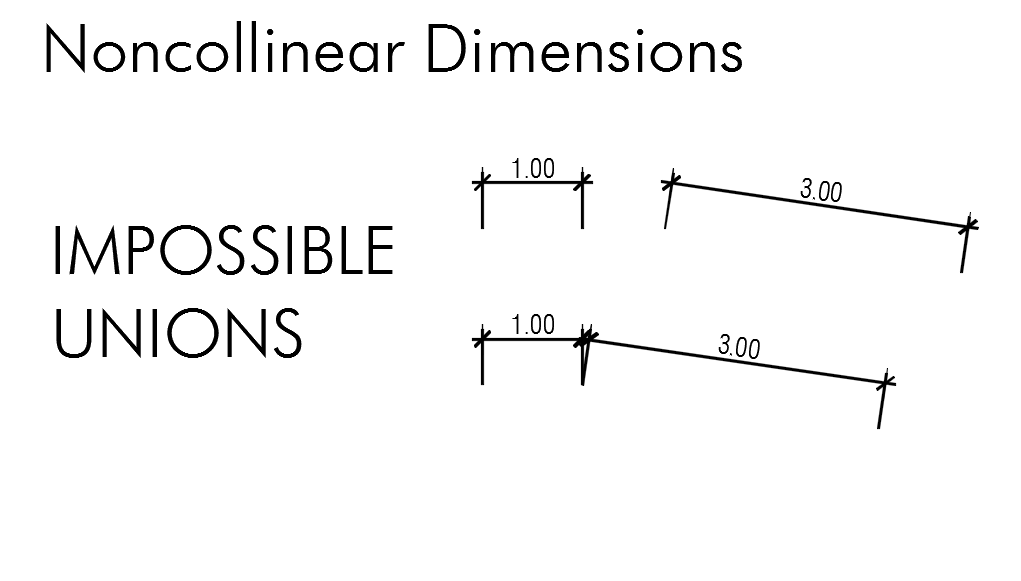

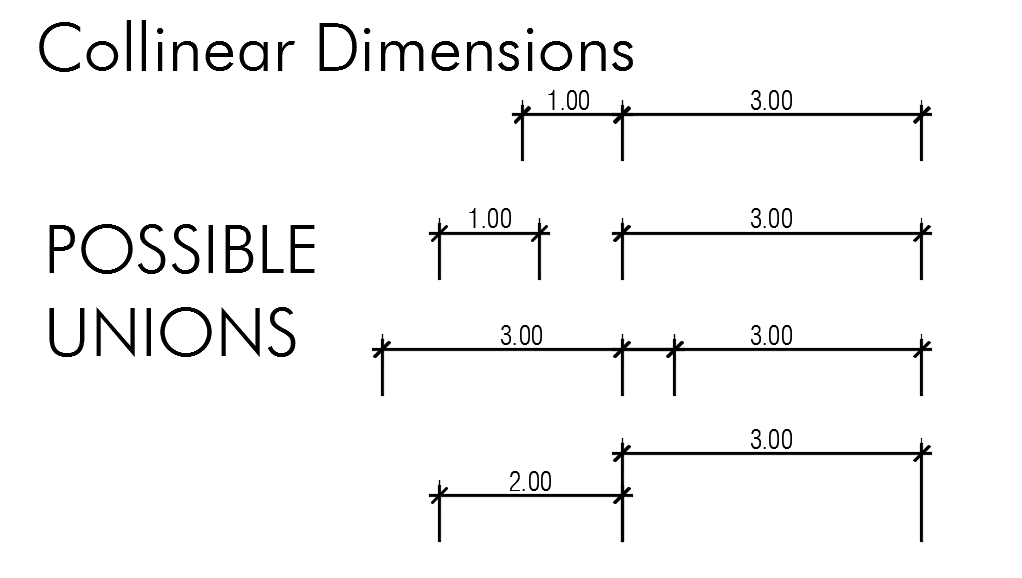

The dimension objects must all be collinear, but can have gaps between them.

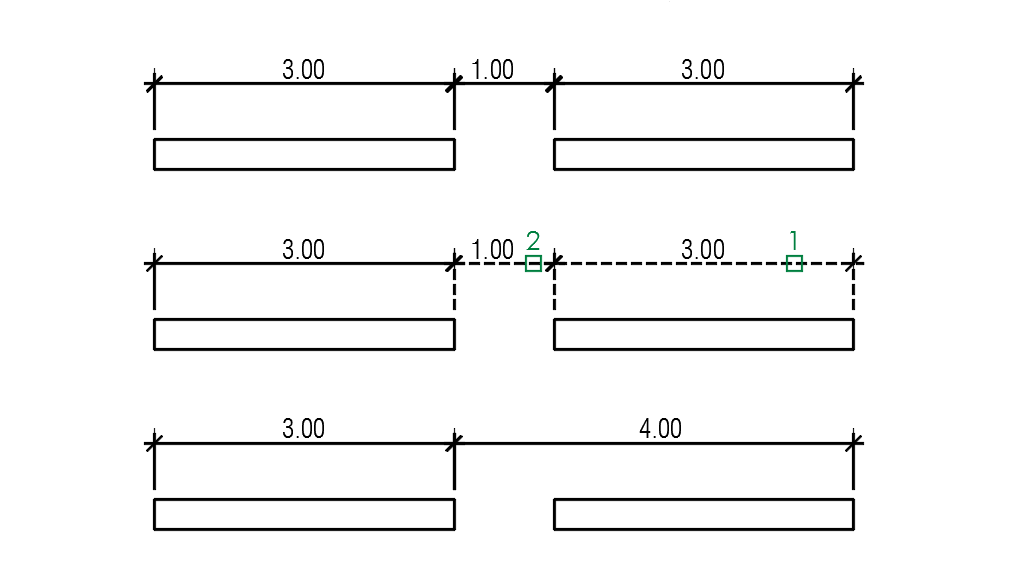

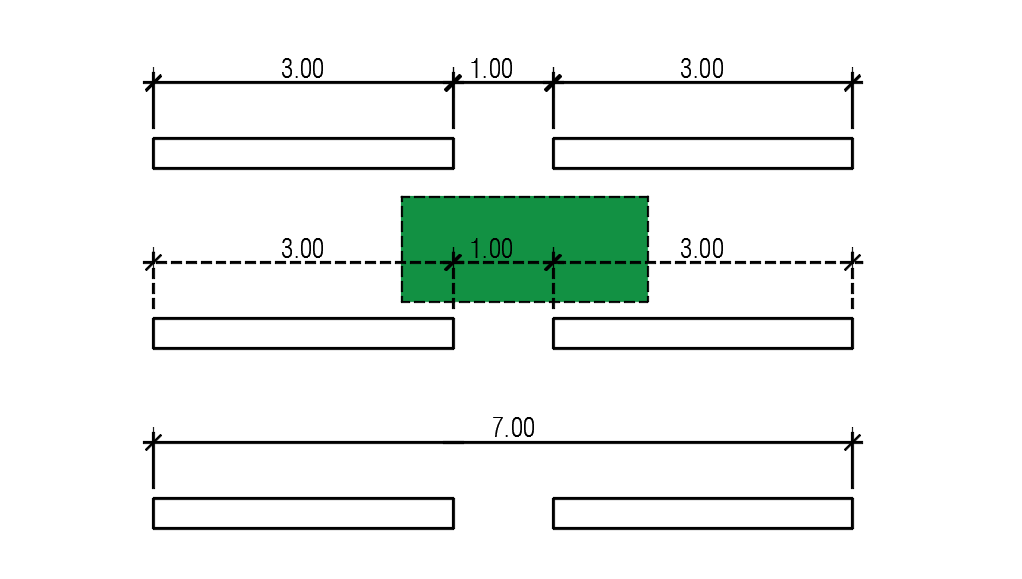

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

Ajoindim

Create a shortcut key for the Joindim command.

Joindim

This command allows you to select two or more dimension objects and join to form a single dimension object.

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.



To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

JoinDim does not support parametric dimensions.

The resulting dimension is non-associative.

Contact

Company Name: AcGROUP Project
Support Contact: acgrouproject@gmail.com

Author/Company Information

AcGROUP Project

Support Information

Email us at acgrouproject@gmail.com with feedback or requests for enhancements.

Version History

Version Number Version Description

1.1.0

1.1.0 Added support to Autodesk® AutoCAD® 2019. Fixed bug in error handling routine.

1.0.0

1.0.0 Added support to AutoCAD® 2016 (No change in version number)
1.0.0 Added support to AutoCAD 2015 (No change in version number)
1.0.0 Original release
