StereoCAD

StereoCAD

Win32 and 64, English

INDI
Stereoscopy: Vision in relief when combining two images of the same object from slightly different points of view. This is achieved naturally by observing real objects.

General Usage Instructions

Before calling the StereoCAD command:



  1. Model space must have the three-dimensional drawing that you want to appreciate.
  2. In paper space the drawing should have objects to be erased.
  3. The user can rotate or accommodate the initial point of view. By default, it is South West. Before calling the command the point of view will be activated while loading the application.

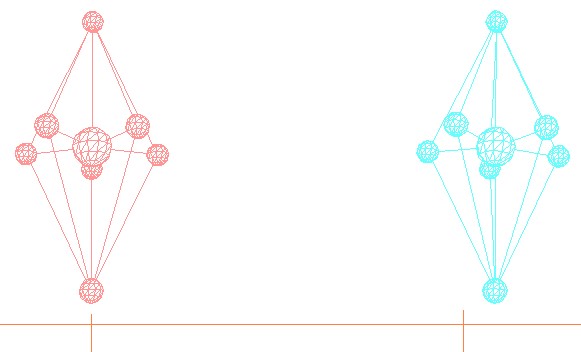

When the StereoCAD command is called up: The current view of the drawing is taken as the basis, which is expected to be some isometric visual. The final presentation will be made in presentation space, either stereoscopic or anaglyphic (colors). The stereoscopic pair can be seen with special glasses or between eye-crosses, making cross-eyed, while the anaglyph must be fused first with an image editor and then appreciated with colored filter glasses.



ARTICLE: COMPUTER AIDED STEREOSCOPY

https://dialnet.unirioja.es/ejemplar/162160

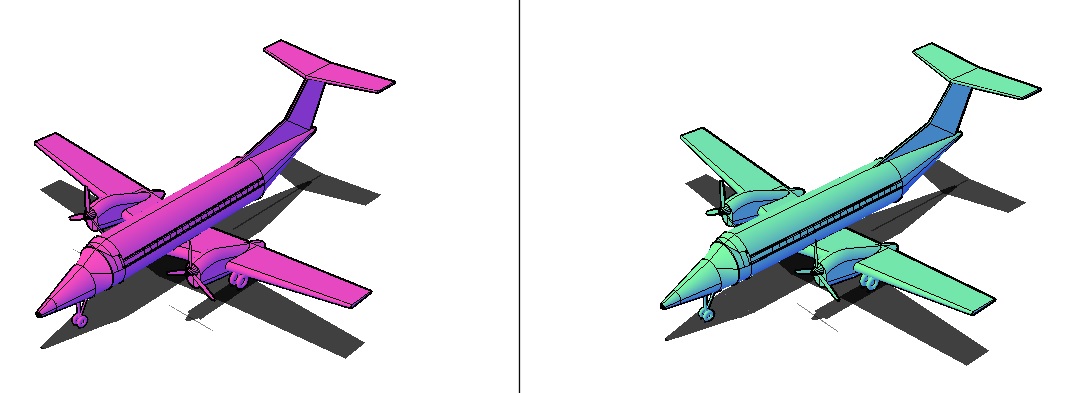

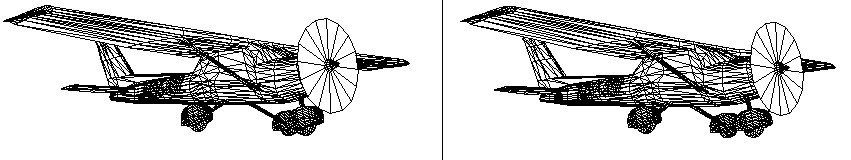

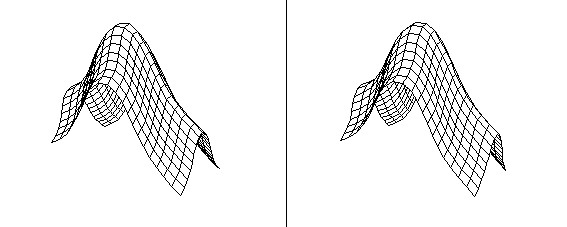

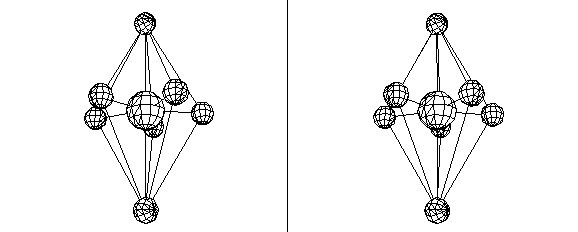

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

StereoCAD

Follow the instructions

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Author/Company Information

INDI

Support Information

Version History

Version Number Version Description

3.0.0

Adjustment in final view and final display in Conceptual mode.

2.0.0

Works in all AutoCAD languages.

1.0.0

Initial release
