SoftDraft ALUM2DS Aluminum Structural Shapes 2D
Y
OS:
Language:
Description
Alum2D is a powerful Autodesk® AutoCAD® app that streamlines your workflow for incorporating aluminum structural shapes into your designs.
Extensive Library of Shapes:

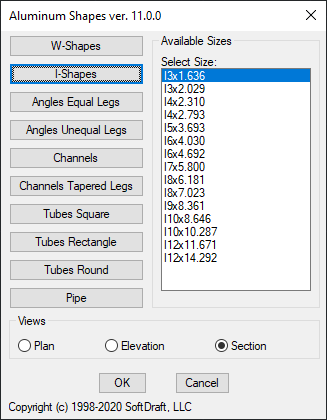

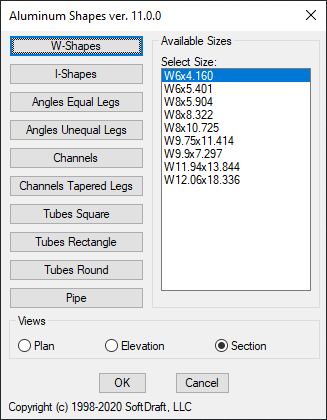

- Beams: I-Shapes, W-Shapes, S-Shapes.

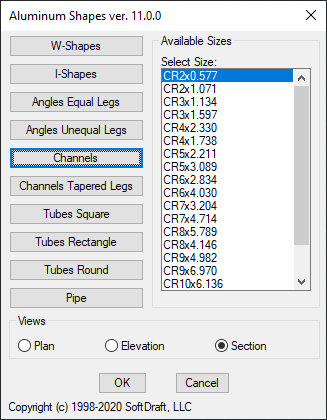

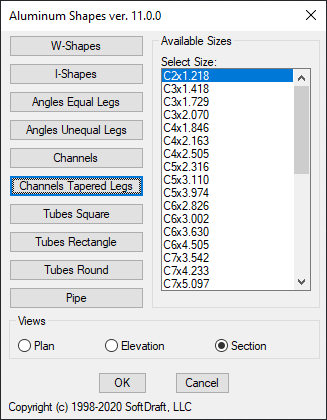

- Channels: Regular channels and tapered leg channels.

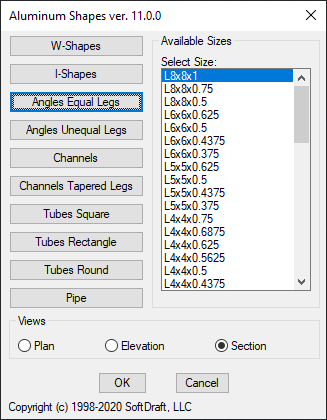

- Angles: Equal and unequal leg angles.
- Tubes: Round, square, and rectangular tubes.
- Pipes: Round pipes.
All shapes are based on Alcoa Engineered Products dimensions, ensuring accuracy and industry standards in your designs.
Key Features and Benefits:
- Create shapes in any view: Easily generate aluminum shapes in plan, section, and elevation views to perfectly suit your drafting needs.
- Minimize file size: Alum2D intelligently creates section view shapes as AutoCAD blocks, reducing file size and improving software performance.
- Parametric shape creation: All shapes are generated on-demand with parametric attributes, allowing you to modify dimensions and properties for complete design flexibility.
- Easy placement and manipulation: Shapes attach to your cursor based on a central insertion point, and you can freely rotate them after placement for precise positioning.
Overall, Alum2D significantly enhances your AutoCAD drafting experience by providing a comprehensive library of aluminum structural shapes, along with intelligent features that save time and effort.
About This Version
Version 15.0.0, 5/2/2024
Update for subscription version.
