Autodesk® Alias® Plugin to export as a Blender® file.

General Usage Instructions

Getting Started

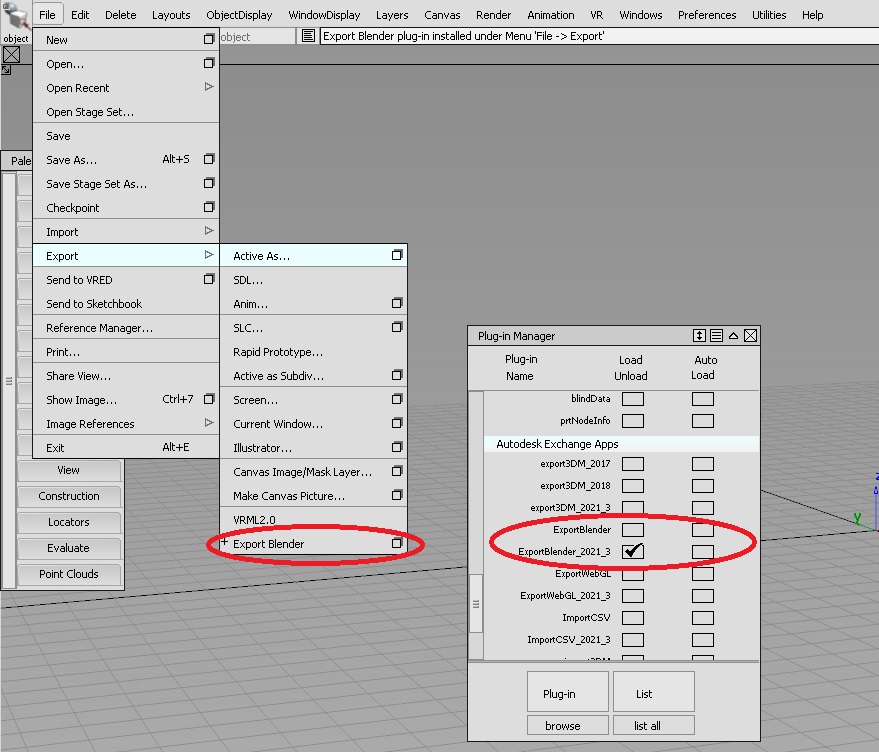

Open Utilities > Plugin Manager and select ExportBlender to enable the plugin. The plugin will be listed under Autodesk Exchange Apps. Please select ExportBlender_2021_3 if using Alias 2021.3 or above

Select the Auto Load option to automatically load the plugin the next time Alias starts.
The plugin will be installed under File > Export menu, as Export Blender

Usage

Click on ExportBlender to save as a .blend file depending upon the options in the options box.
Please ensure that the geometric normals of the surfaces and shells points outward.
The following datasets are translated

AliasBlender
Surfaces Meshes
Shells Meshes
Curves NURBS Curves
Meshes Meshes
Shaders Materials
Layers Collection


Since the Alias shading model and BSDF shading model are different only the following Alias Shader values are currently supported.

Alias ShaderBlender Principled BSDF
Color Base Color
Incandesence Emission
Trasparency Transmission
Reflectivity Roughness



Export Blender option box

  • The Tolerance option sets the accuracy of the meshes. The default chord height deviation of the mesh is set at 0.01 cm
  • The merge option joins the objects in a layer as a single mesh. It also merges double vertices into a single vertex. This option should be ideally used for fully filleted models. If there are sharp edges in the model, unselect this option. Default is off.

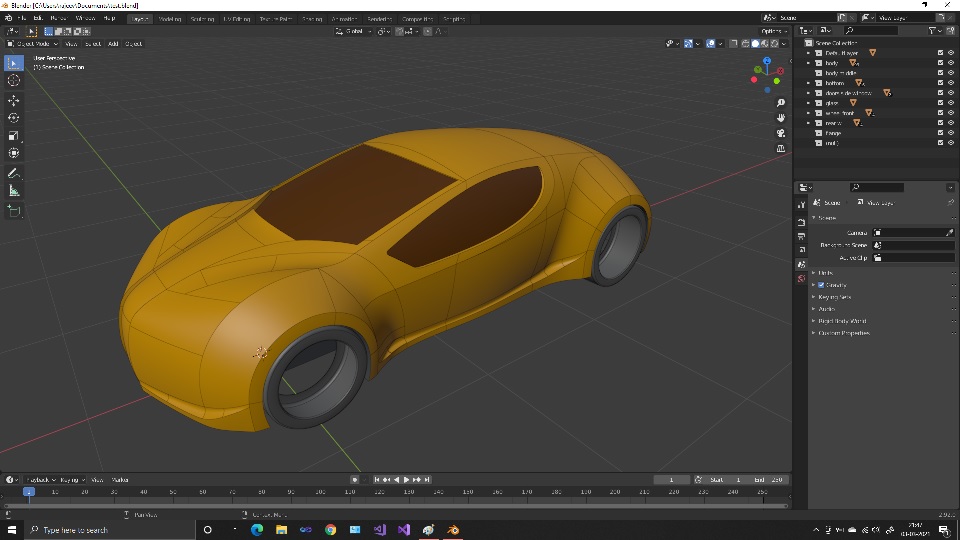

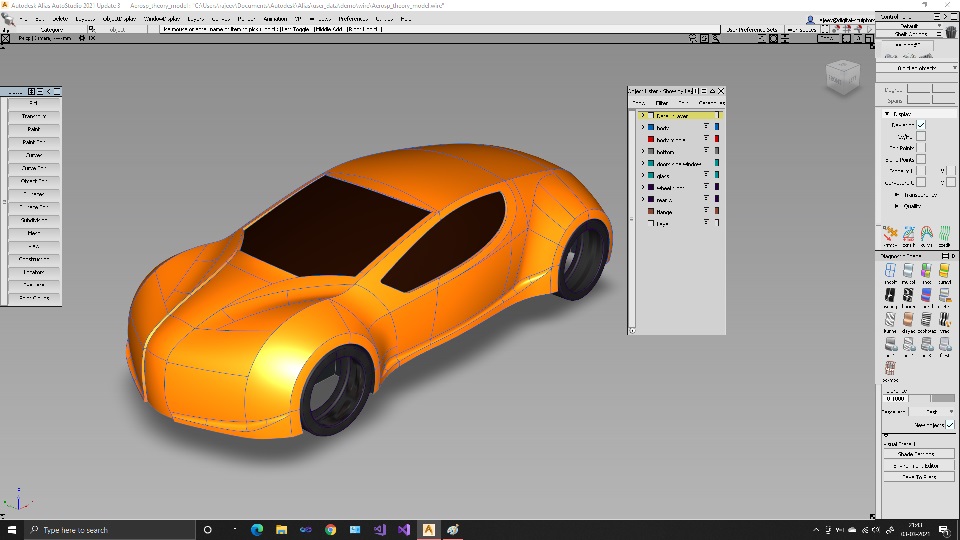

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You can unload the plugin without uninstalling it by unchecking the "Load/Unload" check box associated with the plugin in the Alias Plug-in Manager. You may have to restart Alias to completely unload the application.

Please ensure the following pre-requisites are met.

  • Recent version of Blender.Microsoft Store or from Blender Download.
    Please note that the blender executable directory should be added to the environment variable PATH. If you are using Blender from Microsoft Store, it should already be set. If in doubt, try to run blender from a command prompt.
  • Microsoft Visual C++ 2019 Redistributable or above. Download the files from https://aka.ms/vs/16/release/vc_redist.x64.exe



To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.

Additional Information

Known Issues

Limitations: Other Alias entities such as lights, camera, animation etc. are not supported this time.

Limitations: No support for non-aligned layer symmetry.

Contact

Company Name: Digital Sculptors

Author/Company Information

Digital Sculptors

Support Information

http://www.digital-sculptors.com with feedback or requests for enhancements.

Version History

Version Number Version Description

2.6.1.0

Enhancement: Improved quality of Layer Symmetry Enhancement: Improved quality of Merge Objects. BugFixes: Minor bugs

2.6.0.0

Enhancement: Improved quality of meshes. BugFixes: Minor bugs

2.5.0.0

Enhancement: Support for Meshes. Enhancement: Support for Layer symmetry.

2.0.0.0

Enhancement: Support for curves. Bugfix: Crash on older versions of Alias.

1.0.1.0

BugFix: Alias 2021.3 crashes when tesselation fails.

1.0.0.0

Initial Release
