DimNotes TrialWin32 and 64, English
General Usage Instructions

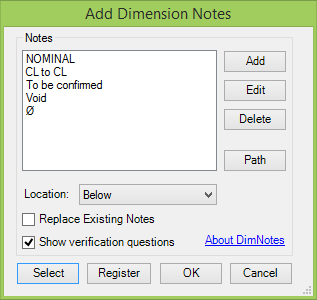

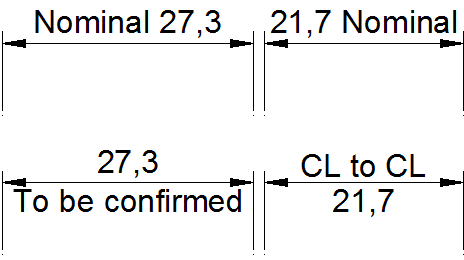

Command to use is JTBWDimNotes. Either you can pre select one or multiple dimensions or the command will ask you to select them. Start by adding your typical notes. JTBDimNotes.txt is the text file that holds the dimension notes. The file will be created when you start to add notes and have pressed OK. Use the Path button to change the location. The default location is in %appdata%\JTBWorld\DimNotes. Select one of the notes. Select the location where you want to place the note in relation to existing dimension text. The note can be added before with space, before without space, after with space, after without space, below or above existing text. There is also an option to completely replace the text so the associative dimension text is removed. If you want to replace existing notes select the checkbox "Replace Existing Notes".
For further documentation visit JTB World's DimNotes web page.
|Ribbon/Toolbar Icon||Command||Command Description|
Select dimensions to add notes to and then select one of the notes. Select the location where you want to place the note in relation to existing dimension text.
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in.
To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR
On Windows 10 Version 1703 or later press Windows+I on the keyboard to access Settings or click the lower-left Start button on the desktop to expand Start Menu, and then select Settings in it. Click on Apps. On Windows 7/8/8.1/10 (older than Version 1703) click Control Panel > Programs > Programs and Features or Control Panel > Add. On Windows XP click Control Panel > Programs > Remove Programs.
You can copy and paste the %appdata%\JTBWorld\DimNotes path to the address bar in Windows Explorer (File Explorer in Windows 8 and newer) and press enter. For further documentation visit JTB World's DimNotes web page.
Note: If you previously installed the Paid version of this software, then you must uninstall it for the Trial version to work properly.
|Version Number||Version Description|
|Added AutoCAD 2020 support. No change in version number.|
Added support to AutoCAD® 2013
