ADJUST_MEASURESWin32 and 64, English
General Usage Instructions
The ADJUST_MEADURES command is called, and you have the option of modifying the positional adjustment or at once selecting the entities to adjust.
Positional: by default, a value appears that depends on whether the units are metric or English, 0.001 and 0.0625 respectively. You can change this value to whatever you want. If a value of 0.1 is determined, the maximum lengths will have a decimal, for example, or if 1 is defined they will have an integer value, and if 2 they will be even lengths, etc.
Select: Entities that are selected first are OVERKILL to eliminate overlapping lines, then they will be modified according to the defined positional adjustment.

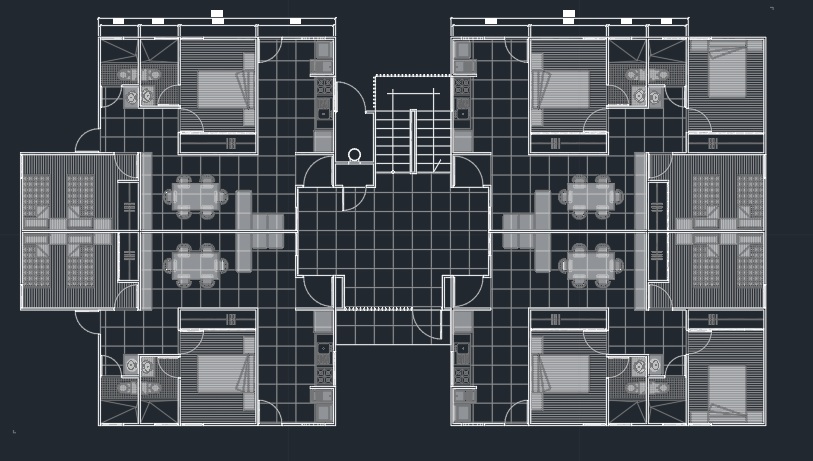

The greatest application of this command is to adjust the walls of an architectural plan, if it has many decimals or bad joints.
|Ribbon/Toolbar Icon||Command||Command Description|
Adjusts the length of lines and polylines to a more rounded value and fixes the joint between lines if the offset is very small.
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.
The main working idea of this command is to take each line or polyline and adjust the coordinates of its start and end point or vertices and automatically this makes its length and junctions with other lines fixed.
Crooked lines can be fixed, if the positional snap tolerance is enough to absorb the offset, that is the snap tolerance is more than twice this offset.
|Version Number||Version Description|
