ExtendEntityDataWithBlock

ExtendEntityDataWithBlock

Win32 and 64, English

watsonlisp.com
These autolisp programs write, copy and read extended entity data for nesting block references in entitys. It allows an association of entitys with a blocks.

General Usage Instructions

Use WED to write extended the data to the selected entity. Use CED to copy extended entity data from one entitiy to another. Use RED to insert a block based on extended entity data of the selected entity.

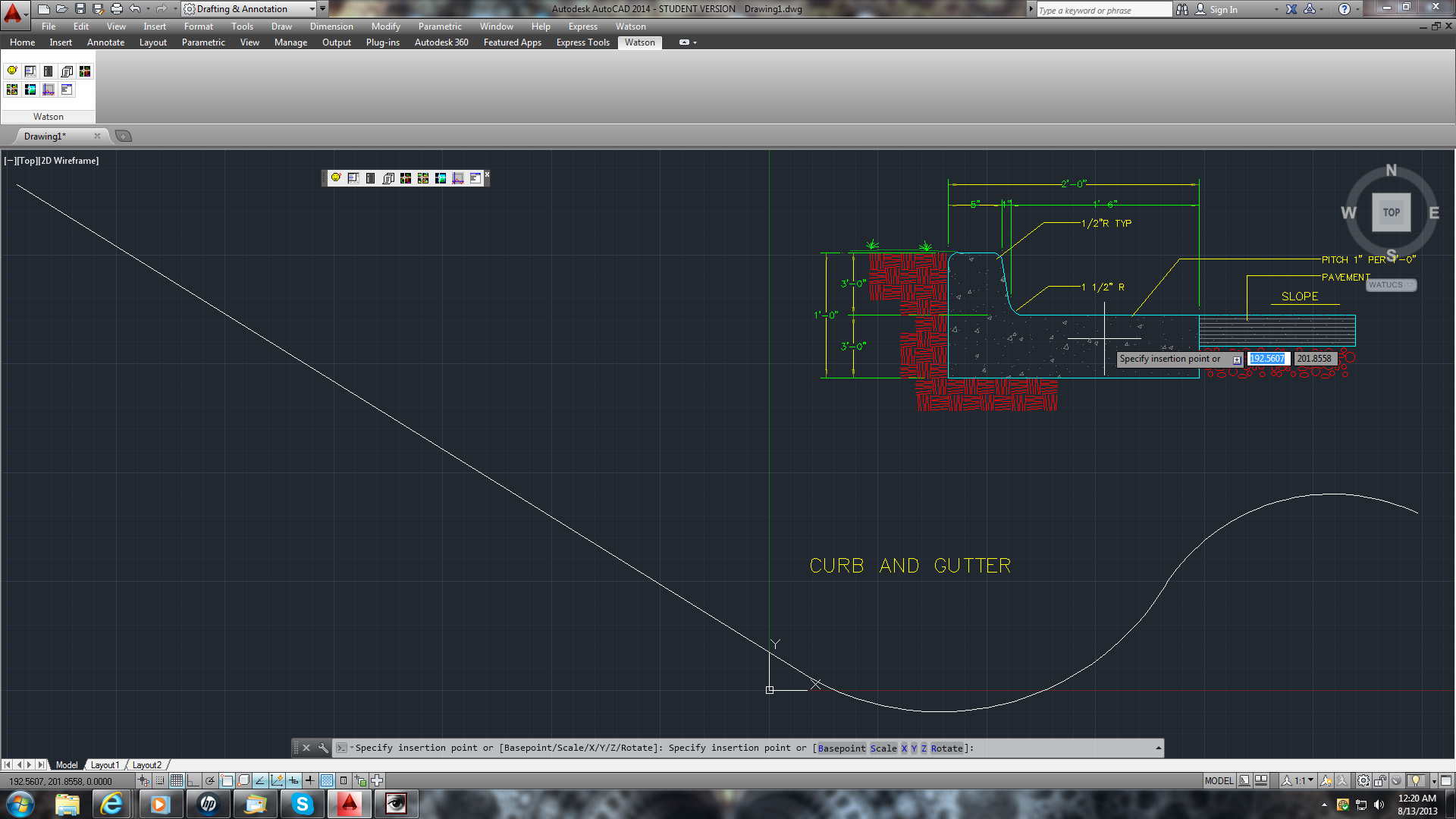

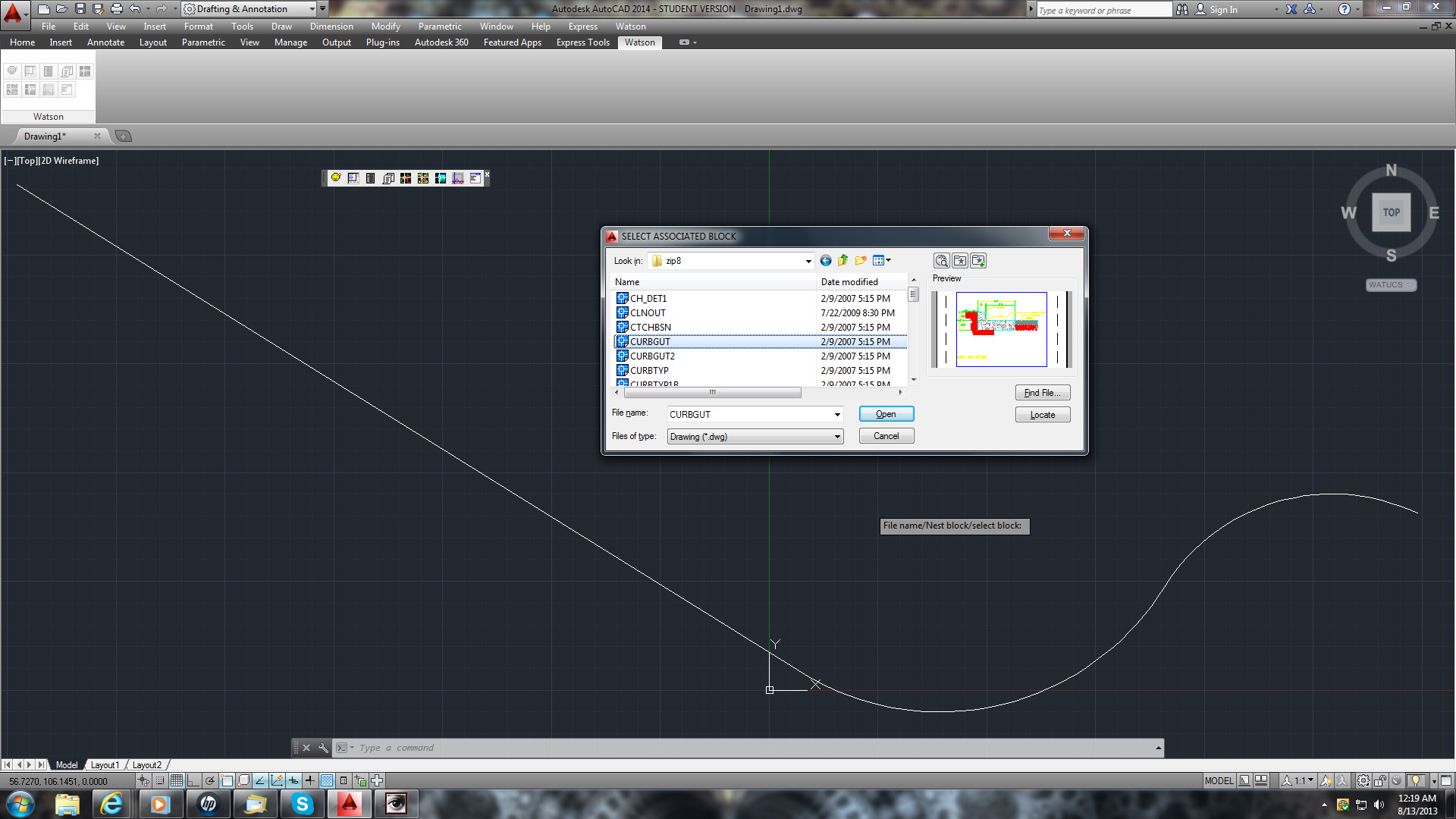

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

WED, CED, RED

Use WED to write extended the data to the selected entity. Use CED to copy extended entity data from one entitiy to another. Use RED to insert a block based on extended entity data of the selected entity.

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Company Name: watsonlisp.com

Author/Company Information

watsonlisp.com

Support Information

Version History

Version Number Version Description

1.0.0

No change in version number. Added 2021 support.
