Dynamic block that makes drawing reinforcement sections easier. Not transparent.

General Usage Instructions

Click on the Reinforcement dynamic block ribbon button under  Add-ins tab or open the Tool Palettles under View tab in Autodesk® AutoCAD®.

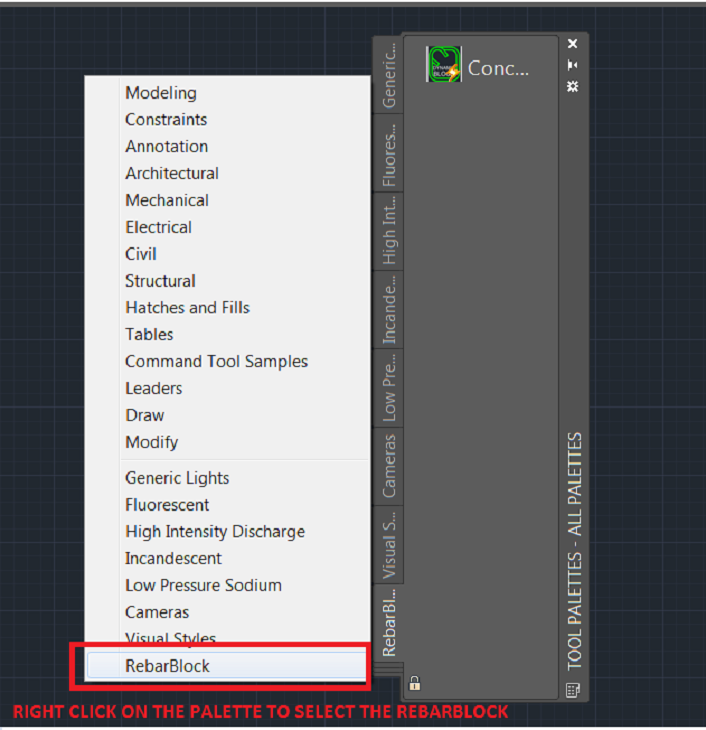

Right click and select the RebarBlock palette. Now click on the Block to insert the Rebar.

Usage instructions

1. To make the boundaries of Wipeout appear/disappear: use Wipeout Frame On/Off.

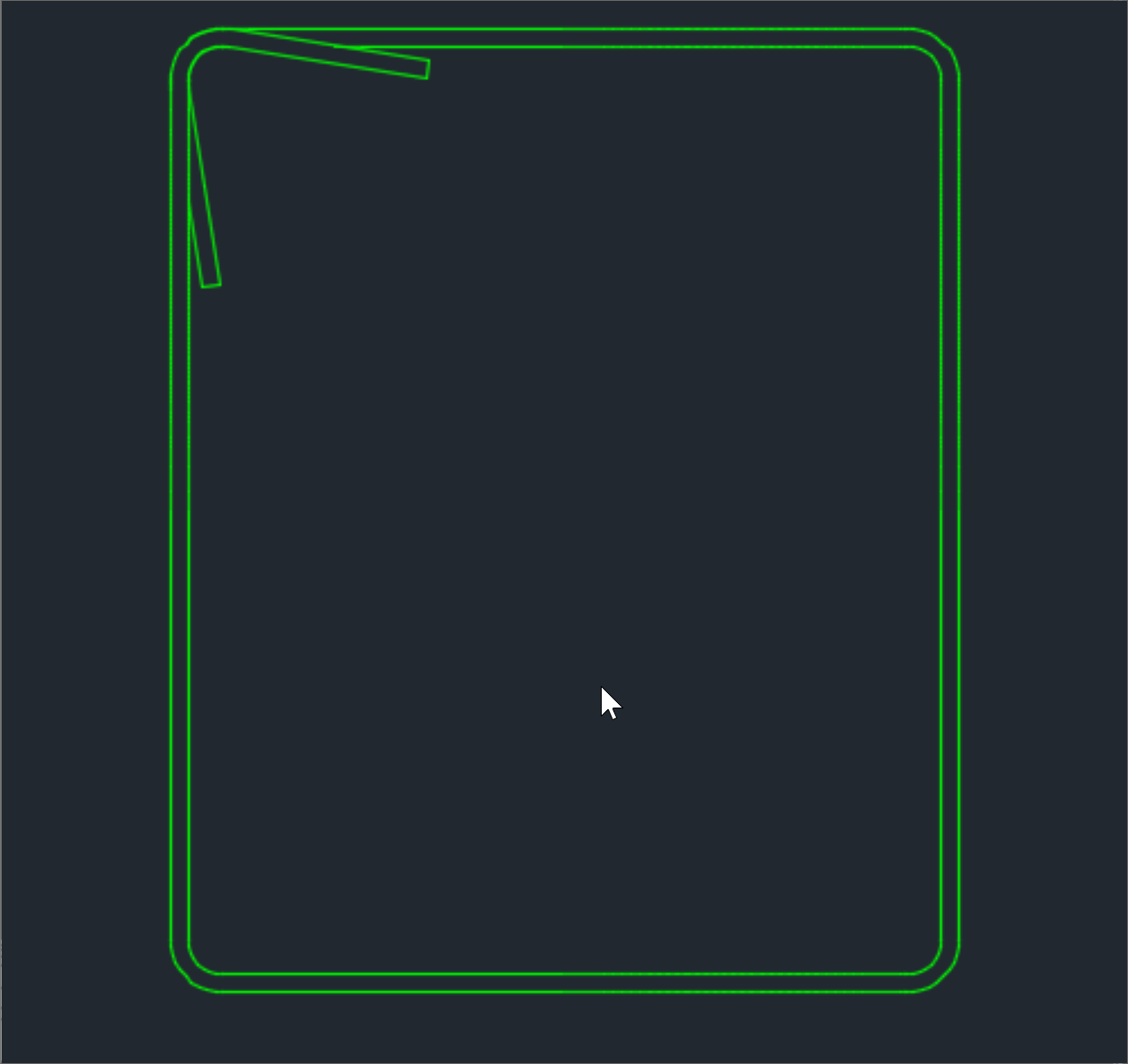

2. Use arrows to change dimensions of the rebar.

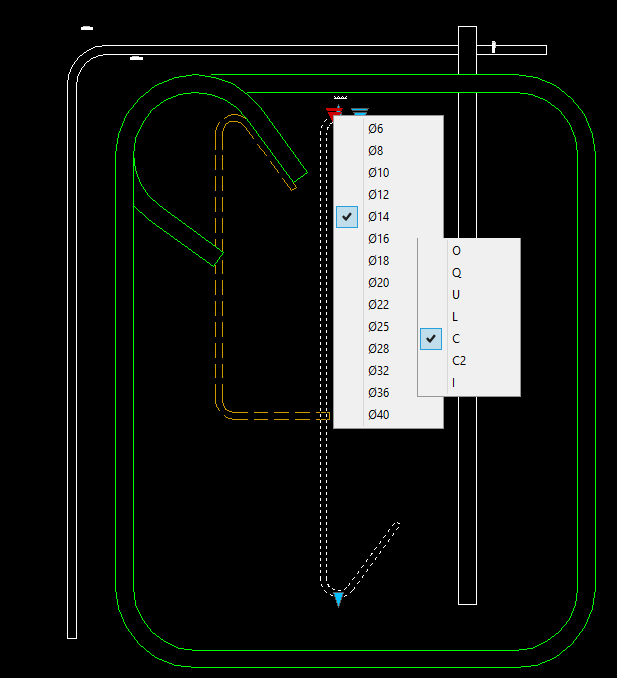

3. Use type Lookup to change the type of the rebar.

4. Use diameter lookup to change the diameter of the rebar.
