Helmert Transformation

Helmert Transformation

Win32 and 64, English

CADsys GmbH
Transformation of drawing elements by coordinate transformation according to Helmert.

General Usage Instructions

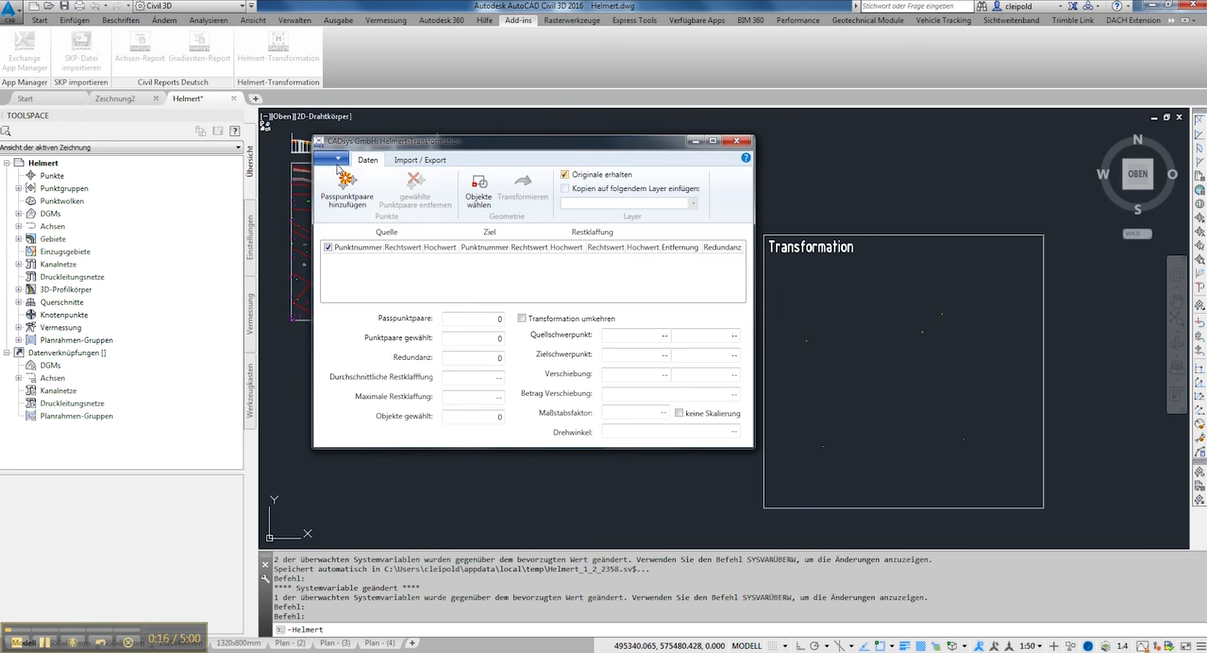

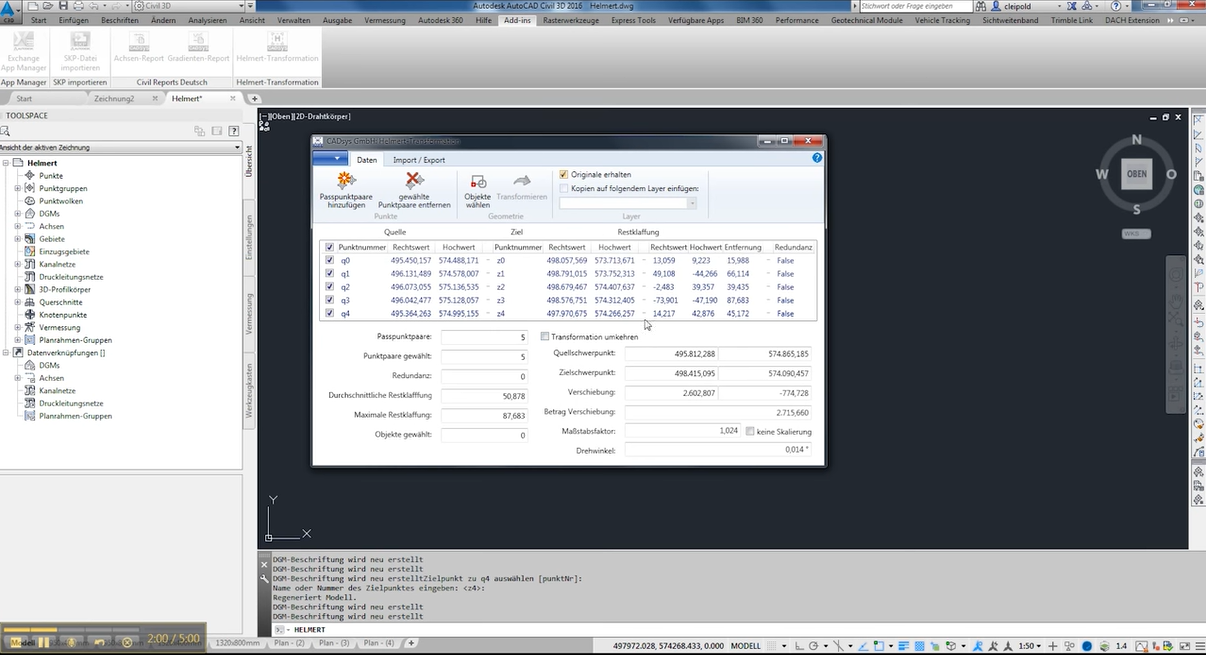

Workflow: open the drawing -> start application -> define point pairs -> select objects for transformation -> transform.



Ribbon/Toolbar Icon Command Command Description


Helmert Transformation


The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.

Additional Information

The file …\help\helmert.pdf contains a functional description of the application.

Known Issues


Company Name: CADsys GmbH
Support Contact: apps@cadsys.de

Author/Company Information

CADsys GmbH

Support Information

Version History

Version Number Version Description


- Version for Autodesk® AutoCAD® 2021 - Option for creation of labels of picked points - Bugfix of our Licensing for AutoCAD 2018 or lower


- Version for Autodesk® AutoCAD® 2020 - reimplementation of the point picking


  • Bugfix: DllNotFoundException on start
  • internal changes


  • Number of fractional digits setable
  • Report exports details about transformed objects
