SPCAD

SPCAD

Win64, English

CADOMATION
SPCAD is a useful aid for the general workflow of engineers, geospatial professionals, architects, town planners, and manufacturers.

General Usage Instructions

Our comprehensive software package offers an extensive collection of over 150 meticulously designed tools that cater to the complex demands of various industries, notably including the Geospatial sector, urban developers, and engineering professionals. With a strong emphasis on data interoperability, our software allows users to seamlessly import and export crucial geospatial file formats, including shapefile, KML, KMZ, txt, and LAS, ensuring smooth data integration.

Additionally, our software facilitates the intricate process of transforming point data coordinates, enabling users to insert location-based QR codes into drawings and utilize a location-based callout tool that dynamically displays coordinates at the user's requested place on the drawing.

Our software also provides sets of tools that are valuable for spatial analysis, independent of the field, such as the shrinkwrap tool and the ability to draw convex hulls.

Moreover, for Geo-spatial experts, our software provides the unique feature of calling Bing Maps directly into the drawing environment, while allowing for a user-defined coordinate system to ensure seamless integration with their existing spatial data.

These capabilities, coupled with the software's ability to conduct comprehensive 3D surface assessments and create detailed TIN and contour analyses, provide a powerful suite of tools for spatial analysis and documentation.

Furthermore, our tools offer a streamlined platform for the insertion of intricate CAD map elements and the efficient generation of map atlases through data-driven pages.

For urban developers, our intuitive tools expedite the subdivision of land parcels, offering multiple precision-driven methods for seamless division, along with the capability to include annotations and simplified exports to various formats like KML. By seamlessly integrating into the existing workflows of Geospatial professionals and engineers, our software empowers users to enhance their efficiency and precision in a diverse range of specialized tasks, thereby fostering innovation and progress within their respective fields.

Commands

Ribbon/Toolbar Icon Command Command Description

IKML_SP

Imports KML file into Autodesk® AutoCAD®.

ISHP_SP

Imports ESRI Shapefile into AutoCAD.

OGPX_SP

Exports AutoCAD Drawing Objects into GPX file format.

OSHP_SP

Exports AutoCAD Drawing Objects into ESRI Shapefile.

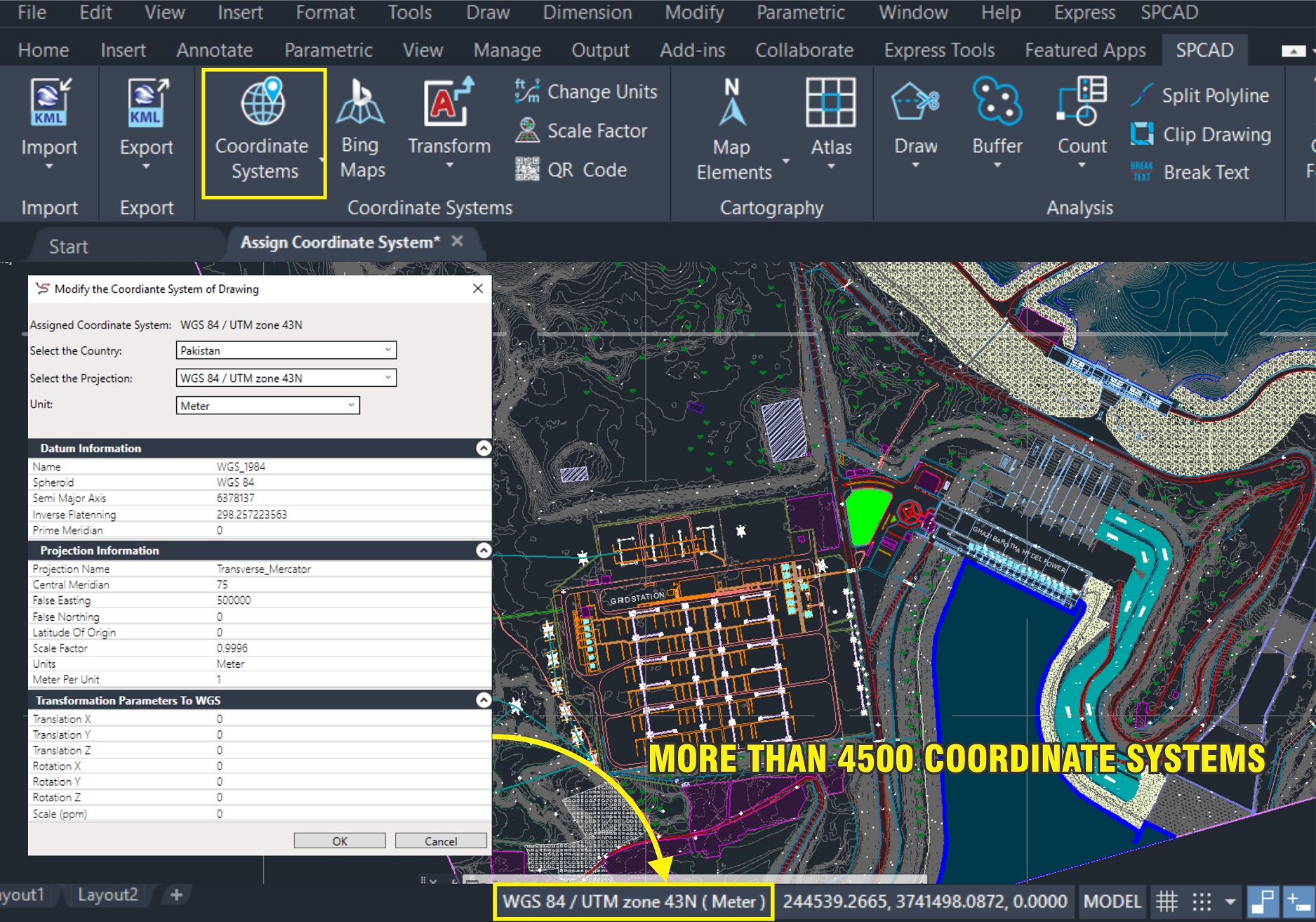

ACS_SP

Assign Coordinate System to AutoCAD Drawing File.

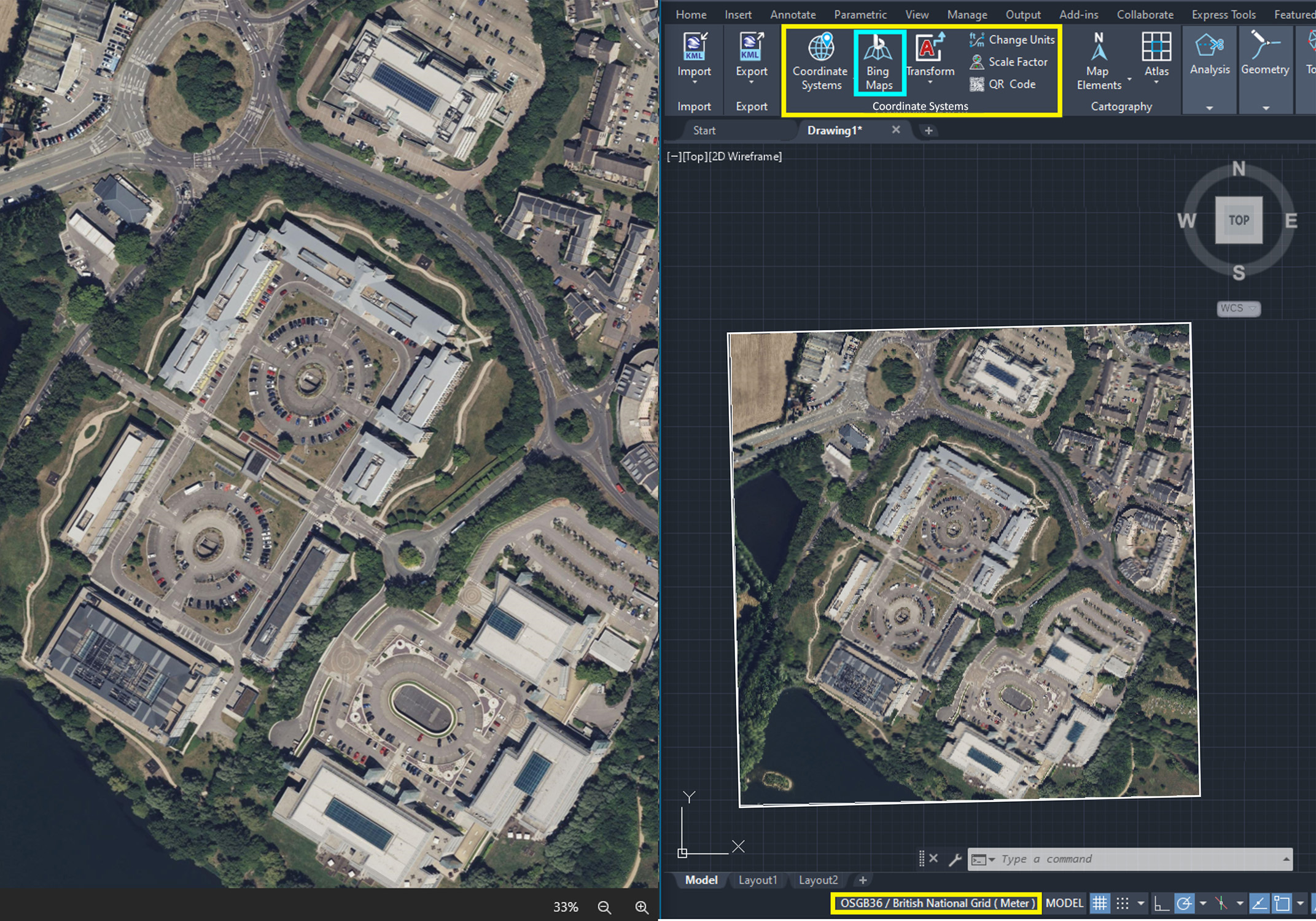

BNM_SP

Downloads BING Images and Inserts as Raster Image into AutoCAD Drawing.

QRC_SP

Generates & Inserts a QR Code Image at a user-specified location with a Google Maps URL containing a Geo-Spatial Location.

LEGEND_SP

Creates a legend and inserts into AutoCAD Drawing based on unique drawing objects (Blocks, Lintypes. Layers, Linetype Scale, Hatches etc).

SBAR_SP

Inserts a scale bar based on Coordinate System and Units assigned to AutoCAD drawing.

BFL_SP

Create buffers around the line or polyline objects at a defined distance.

SHRINKWRAP_SP

Creates a concave polygon whose shrink can be adjusted.

PLDD_SP

Reduces nodes from a polyline object.

CTC_SP

Converts coordinate values for a single point location of known Easting and Northing values from the coordinate system to another.

TCR_SP

Generates a TIN surface from the selected point objects.

CNTR_SP

Generates contour lines from a TIN surface.

AVC_SP

Generates an area-capacity curve from a TIN surface.

DFA_SP

Defines an alignment by selecting a Polyline object.

TCX_SP

Creates cross sections from a TIN surface.

LPT_SP

Creates longitudinal profile from a TIN surface.

LPC_SP

Creates longitudinal profile from contours.

DDX_SP

Divides a lot into parcels Perpendicular at mid of the side Lot line. The user creates the cutting edge along the side of Lot line.

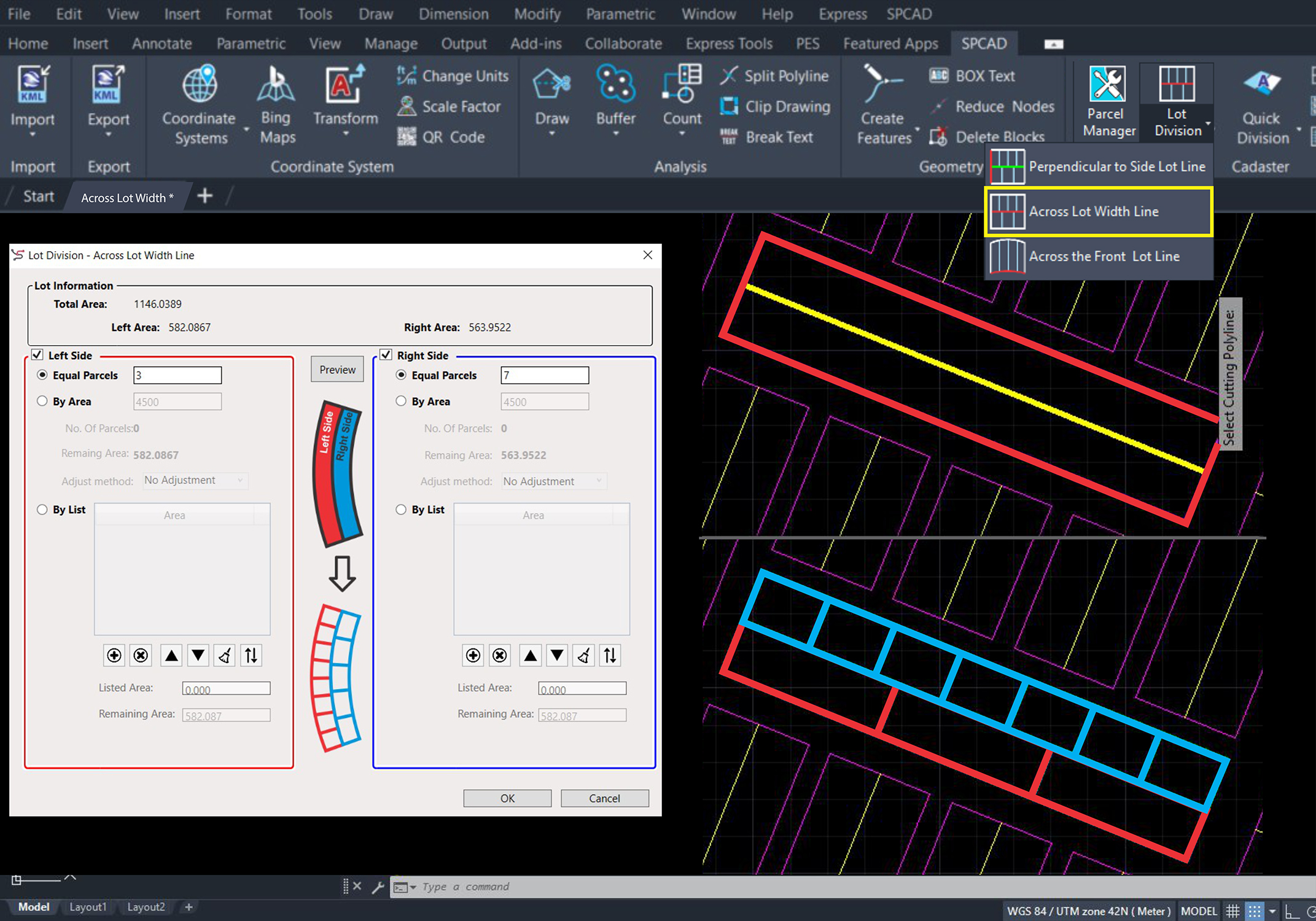

DDY_SP

Divides a lot into parcels on both sides of the plot Width Line.The user selects the plot Width Line already created in the drawing.

DDZ_SP

Divides a lot into n number of parcels perpendicular to the selected cutting edge (Front Lot Line).

DLP_SP

Auto labels parcels.

DPPF_SP

Creates parcels from polylines.

DDFF_SP

Parallel Area to Front Lot Line: Quickly partition and mark the front yard by selecting the front lot line and specifying the yard area.

GEODIST_SP

Geo Distance: Measure ground distances effortlessly with cursor clicks.

GRF_SP

Georeference Image: Raster georeferencing is now available, allowing for more accurate spatial data management.

IDEM_SP

Import DEM: Now, you can import digital elevation rasters as points, TIN (Triangulated Irregular Network), and contours for enhanced terrain analysis.

ILXML_SP

Import LandXML: Seamlessly import LandXML files into DWG.

LBLP_SP

Label Polylines: Efficiently label the length and bearing of line segments, streamlining your workflow.

ODEM_SP

Export DEM: TINs can be easily exported as raster DEMs for flexible data management.

OLXML_SP

Export LandXML: Export DWG features to the LandXML format for easy sharing.

POLYGONIZE_SP

Polygonize: Convert intersecting features into polygons for better data organization.

QCNTR_SP

Quick Contours: Generate terrain contours instantly for a clear understanding of the landscape.

THS_SP

Voronoi Polygons: Create areas of influence around points using Thiessen polygons, perfect for spatial analysis.

TRCRS_SP

Track Coordinates: Display the cursor’s coordinates in two different coordinate systems, making it easier to work with complex data.

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from the Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.
After installing SPCAD, make sure you have an active internet connection.

For activation of the trial, watch the video: https://youtu.be/ORxKaQILl8E

A registration form will appear on the first run, requiring the Name, Email, Country, and Organization.

Fill out the form, click on "Register," and you will be sent a 5-digit code by CADOMATION on the provided email.

Enter the activation code to activate a fully functional trial for 30 days!

Additional Information

Known Issues

Contact

Company Name: CADOMATION
Support Contact: support@cadomation.com

Author/Company Information

CADOMATION

Support Information

Version History

Version Number Version Description

24.1 (Build 24.10.4.1209)

Oct 04, 2024 Several new tools have been introduced in the latest version of the application to improve the workflow and user efficiency -Import DEM: Digital elevation raster can be imported as point, TIN and contours -Export DEM: TIN can be exported as raster DEM -Georeference Image: Raster georeferencing is now available in SPCAD -Voronoi Polygons: Area of influence can be created around the points using Thiessen polygons -Parallel area to Front lot line: Marking the front yard is now very easy with partitioning the lot by selecting the front lot line and stating the yard area. -Label Polylines: The length and bearing of line segments can be labeled efficiently. -Polygonize: Convert intersecting features into polygons. -Import LandXML: SPCAD is not importing the LandXML format to DWG -Export LandXML: Export the features from DWG to LandXML. -Geo distance: Measure the ground distance using cursor clicks. -Quick contours: For terrain understanding contours can be created quickly -Track Coordinates: displays the cursor’s coordinates in a separate palette For some of the tools bugs are fixed or their implementation has been changed. -Shrinkwrap: improve/change implementation -Create polyline/polygon from points: improve/change implementation -Import shapefile: improve/change implementation -Custom Transformation: improve/change implementation -Bing Maps: improve/change implementation -Import CSV: improve/change implementation -Create Tin: Bug fixes -Cut Polygon: Bug fixes -Create Contours: Bug fixes

1.0.0.3 (Build 24.5.29.554)

June 10, 2024 In the latest version of SPCAD, we have addressed several bugs related to workflows and the inadvertent inclusion of special characters in annotations. Additionally, the new version features the inclusion of the Spanish language. All graphical user interfaces (GUIs) have been updated, now incorporating Spanish captions. Moreover, the release introduces a new tool to Import Digital Elevation Model (DEM) in 16-bit and 32 Bit GeoTiff Files.

1.0.0.3

March 04, 2024 In the latest version of SPCAD, we have addressed several bugs related to workflows and the inadvertent inclusion of special characters in annotations. Additionally, the new version features the inclusion of the Spanish language. All graphical user interfaces (GUIs) have been updated, now incorporating Spanish captions. Moreover, the release introduces several new tools to enhance the user experience: 1. Elevate Points from TIN: This tool allows users to elevate points from a Triangulated Irregular Network (TIN), providing advanced functionality for terrain modeling. 2. Import GeoJSON: Users can now seamlessly import GeoJSON files, facilitating the integration of geographic data into the SPCAD platform. 3. Export GeoJSON: This tool enables users to export data in GeoJSON format, enhancing interoperability with other geographic information systems. 4. Quick LOT Subdivision: Users can perform rapid LOT subdivision based on specified criteria, including area, number of parcels, and percentage area. 5. Create Layer from Code: This feature allows for the creation of layers based on codes associated with points imported from CSV files. 6. Cut/Fill Analysis: The Cut/Fill analysis tool provides insights into earthwork volumes, assisting in project planning and design. 7. Import CSV and project lat/long as X/Y: Project latitude and longitude data to any coordinate system before importing CSV data into the drawing. 8. Parcel manager: Within the Cadaster panel, you'll find a parcel manager tool that enhances the interactivity of parcel annotation and management. 9. Online Help: Now, online help is available. If you are connected to the internet, pressing F1 will take you to the online help page.

1.0.0.2

Initial release
