Connect Autodesk® BIM 360® accounts to HoloBuilder. Use BIM 360 Docs to import floorplans, 360° images, and other assets. BIM 360 Field Next Gen issues within your HoloBuilder project

General Usage Instructions

BIM 360 Docs & HoloBuilder: With HoloBuilder and an existing Autodesk BIM 360 account, you can log in to access your BIM 360 Docs assets/files and import them to be used inside your HoloBuilder projects. Floor plans, pictures and .dae/.obj files which have been stored and managed in BIM 360 Docs can be attached to any HoloBuilder project. For instance, a PDF floor plan residing in BIM 360 Docs can be used within HoloBuilder as a sheet.

BIM 360 Field Next Gen & HoloBuilder: Create issues directly in the 360 screens within your HoloBuilder project and sync them with BIM 360 Field. Manage and share the BIM 360 Field issue markups directly with your 360 project.



Note: Make sure to switch your BIM 360 Field account to the Next Gen version in order to integrate it with HoloBuilder.

Getting started

In order to work with integration, you must first authorize the HoloBuilder app (Step 1), then go to HoloBuilder and authorize access to your BIM 360 account (Step 2) and connect a HoloBuilder project with a BIM 360 project (Step 3).

Step 1) Authorize the HoloBuilder app

  1. Log in to your BIM 360 account
  2. Go to "Account Admin"
  3. Select the "Apps" tab
  4. Find the HoloBuilder app and click on it
  5. Click on "Add to BIM 360"
  6. Once the app is authorized, click "Open" to open up HoloBuilder

Learn more.



Step 2) Add Autodesk Integration:

  1. Complete Step 1).
  2. Log into the HoloBuilder account with the credentials used for the signup (e.g. your Autodesk sign in).
  3. Click on the User Dropdown in the upper right corner and go to "Account".

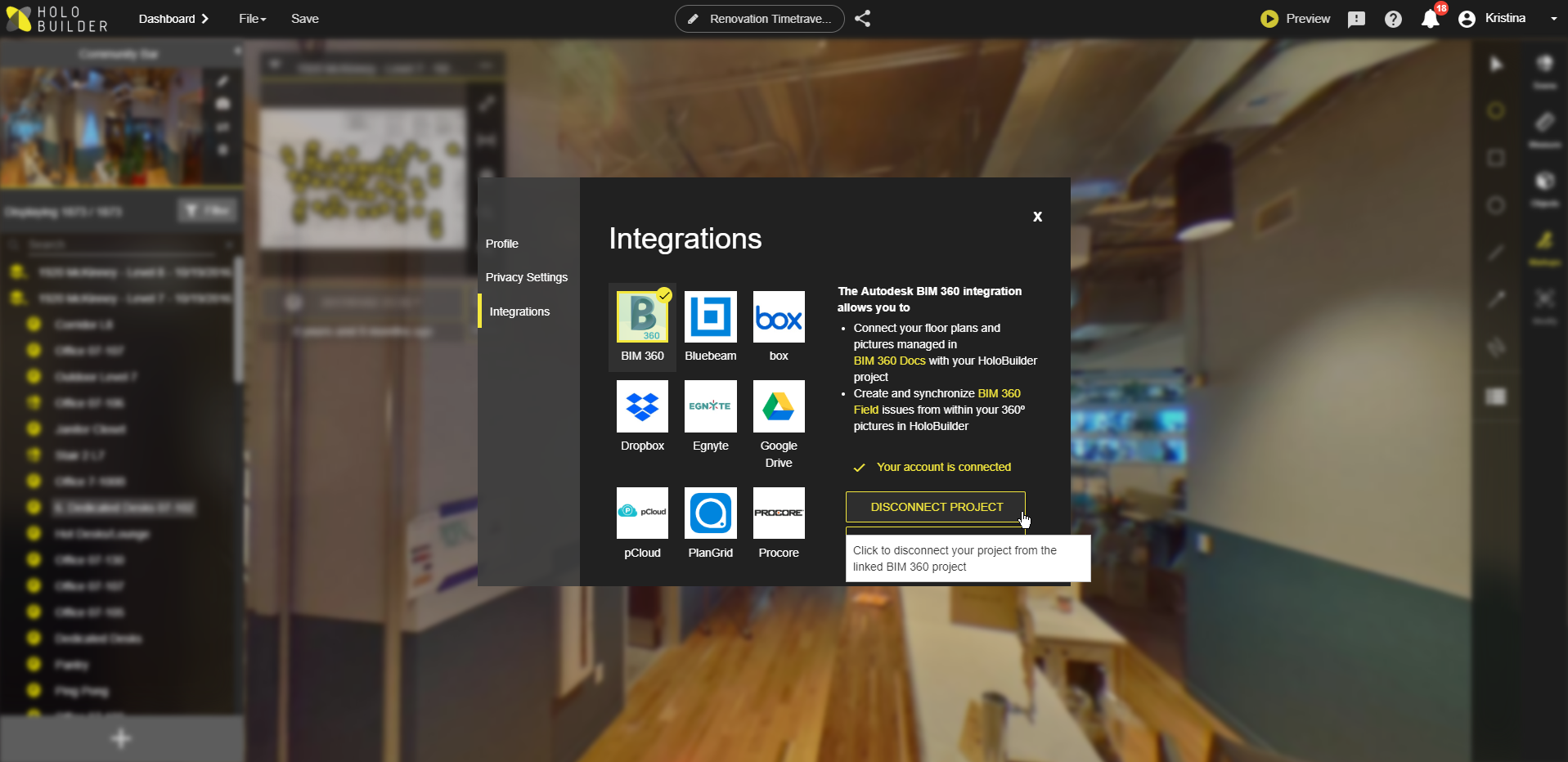

  4. Select the tab ‘Integrations’.
  5. Click the Autodesk icon to select the integration to be added to your HoloBuilder account.
  6. Follow the instructions and authorize the connection to log in to your Autodesk account.
  7. Now that HoloBuilder can access your data, you need to load the HoloBuilder project you want to use to the BIM 360 project.

Learn more.



Step 3) Connecting a HoloBuilder project to a BIM 360 project

  1. Complete Step 1) and 2).
  2. Open the HoloBuilder project you want to connect to a BIM 360 project (can also be opened before connecting your accounts).

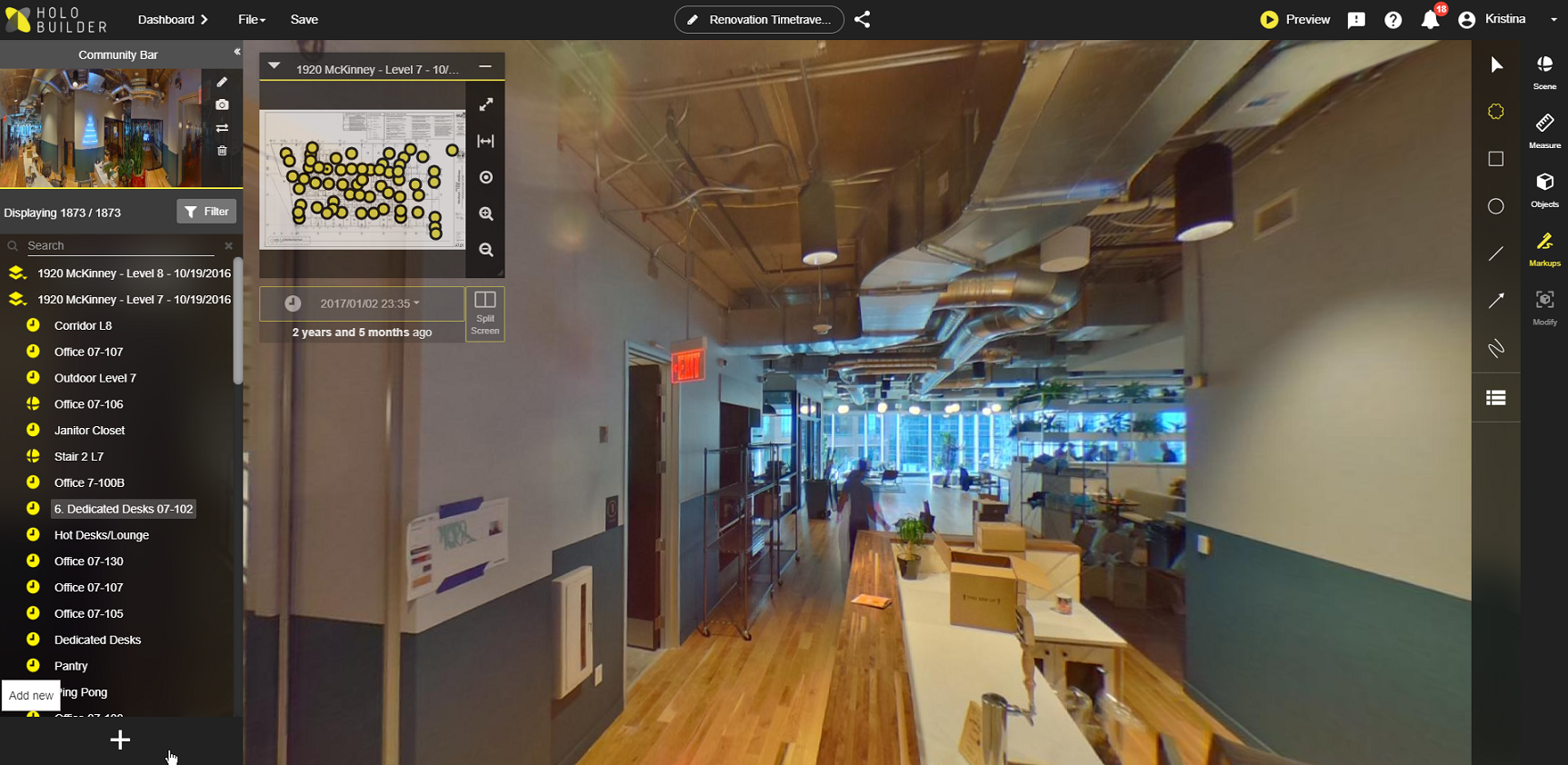

  3. Click the "+" Button in the lower left corner to access your integration.
  4. Select BIM 360 tab in the left-hand panel.

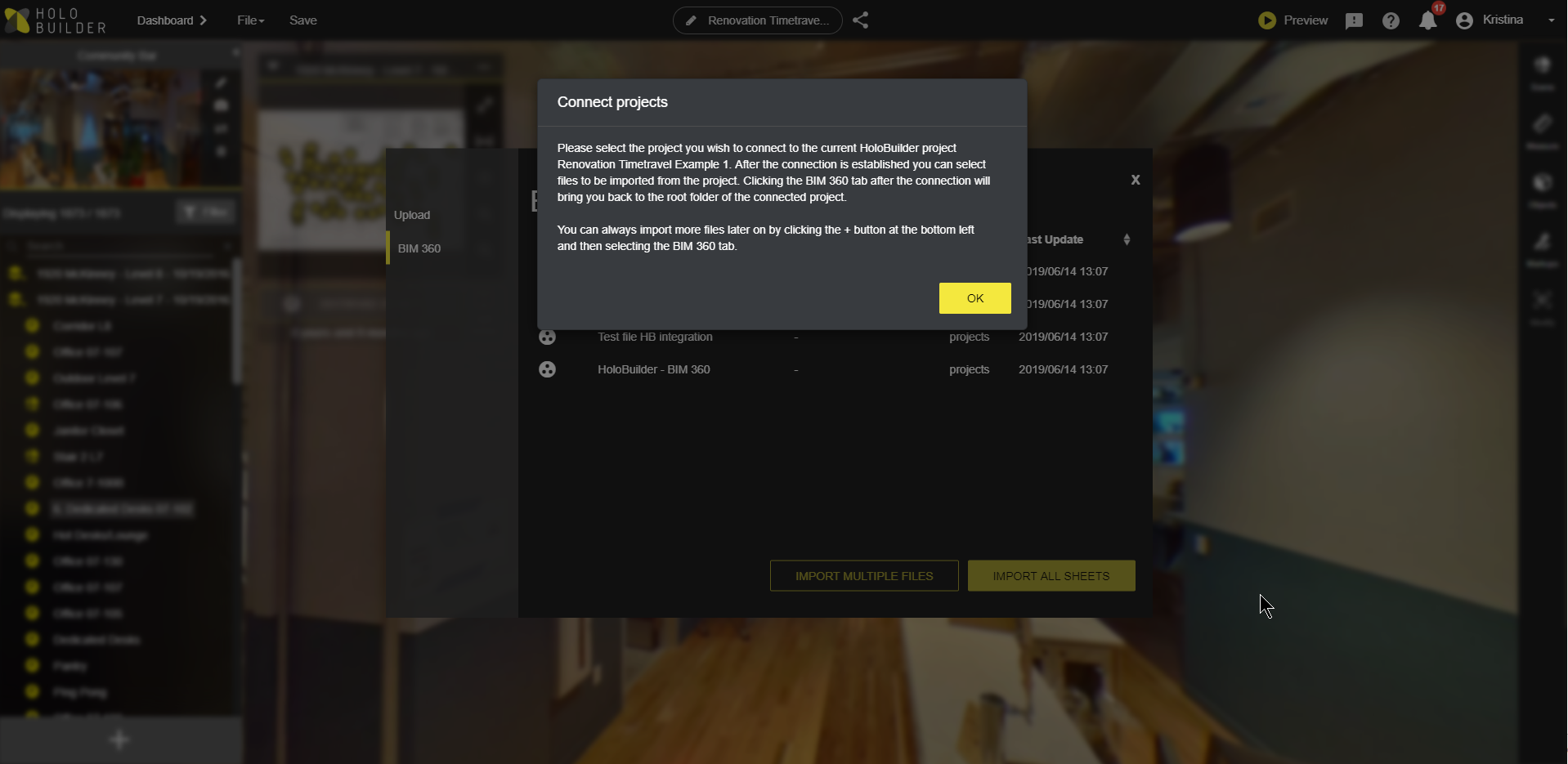

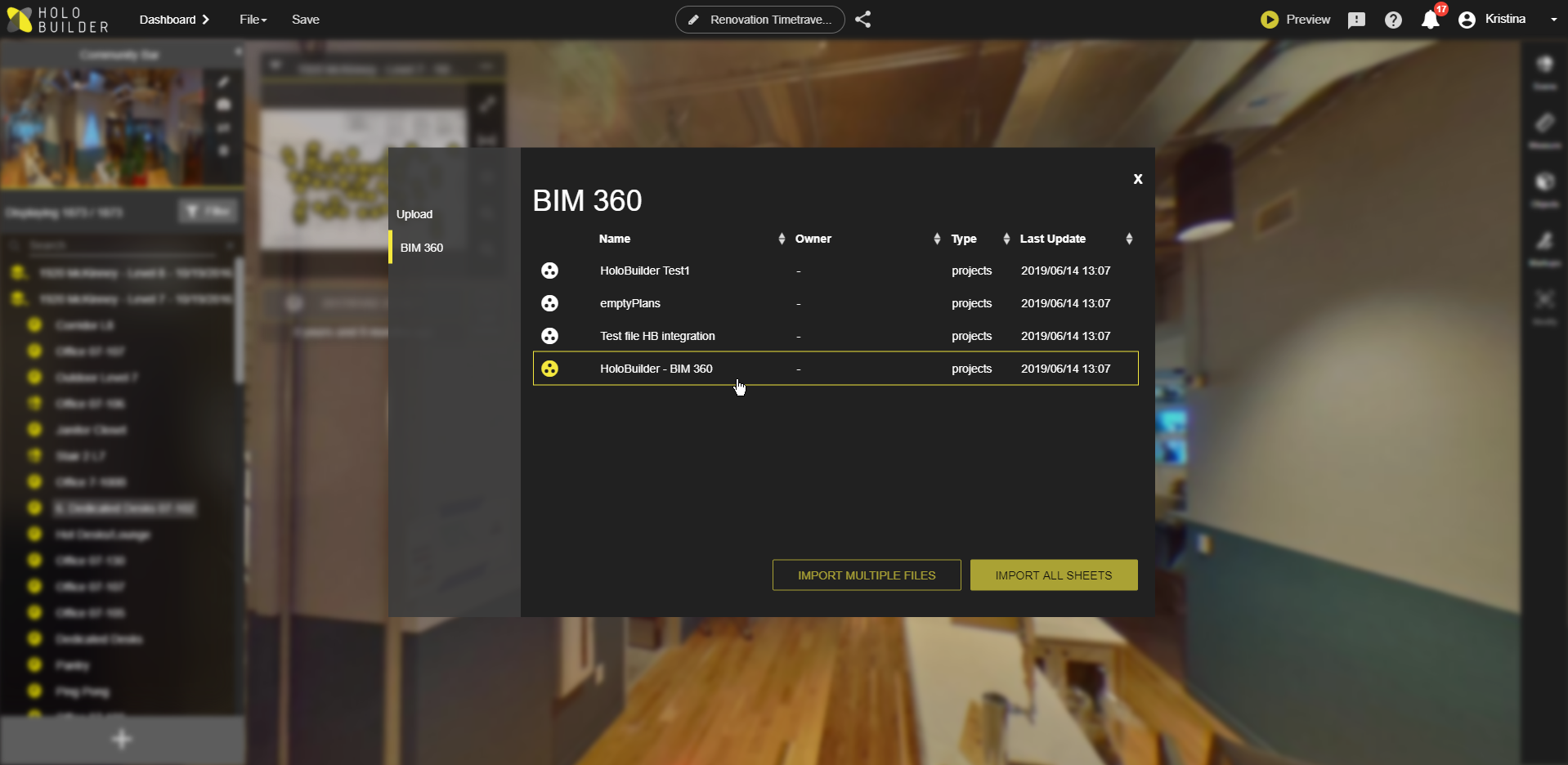

  5. Select the project you want to connect with.
  6. Once you selected a project a notification will appear to inform you about the successful connection.
  7. Now that the project is connected, you can add additional assets by using the "+" button to access your BIM 360 project.

Learn more.



Importing from BIM 360 Docs:

  1. Complete Step 1), 2) and 3).
  2. Open the HoloBuilder project you wish to add issues to.

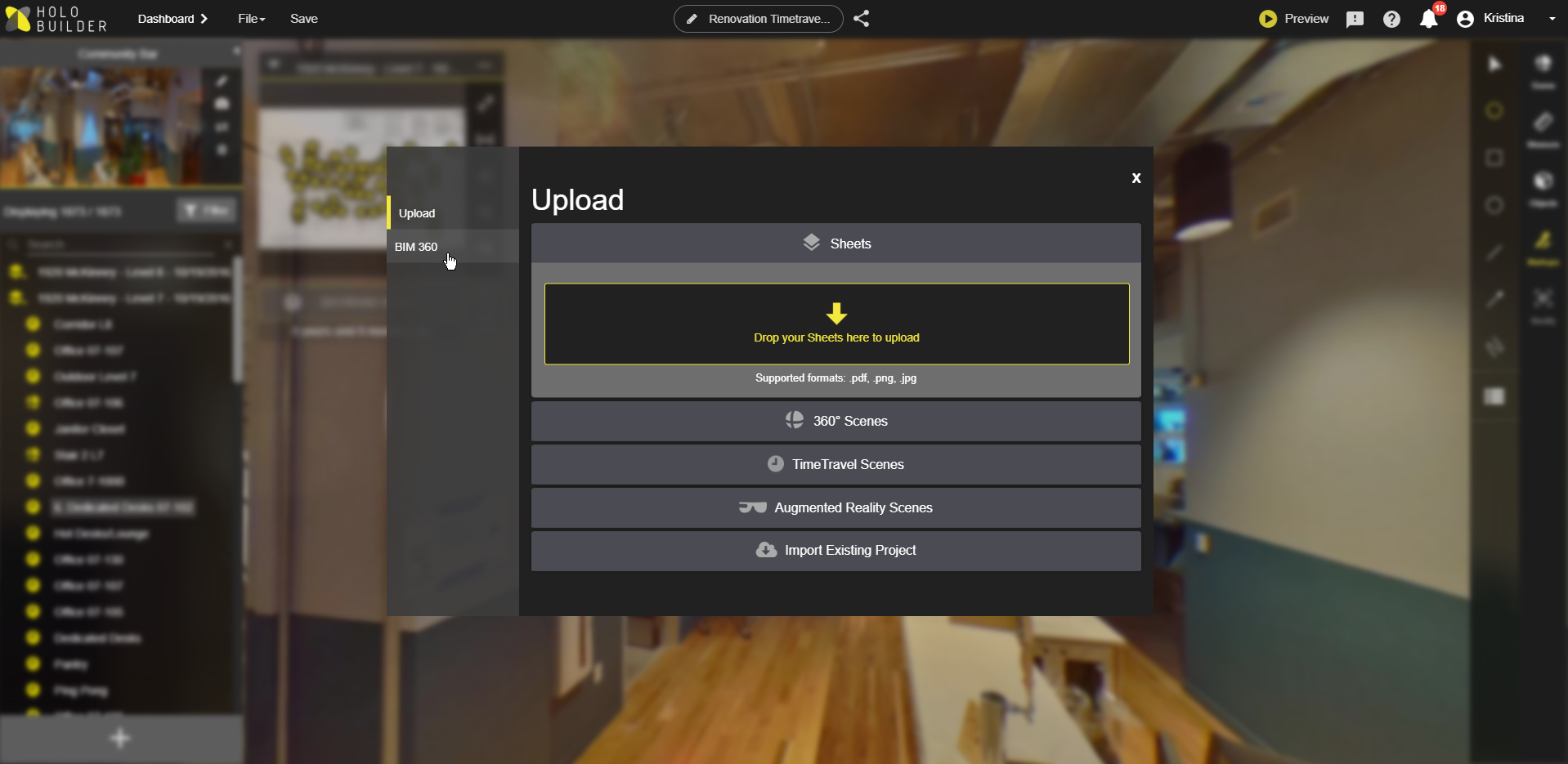

  3. Click the "+" button in the lower left corner.
  4. Select the "BIM 360" tab.
  5. Navigate to the "Plans" or "Project Files" folder

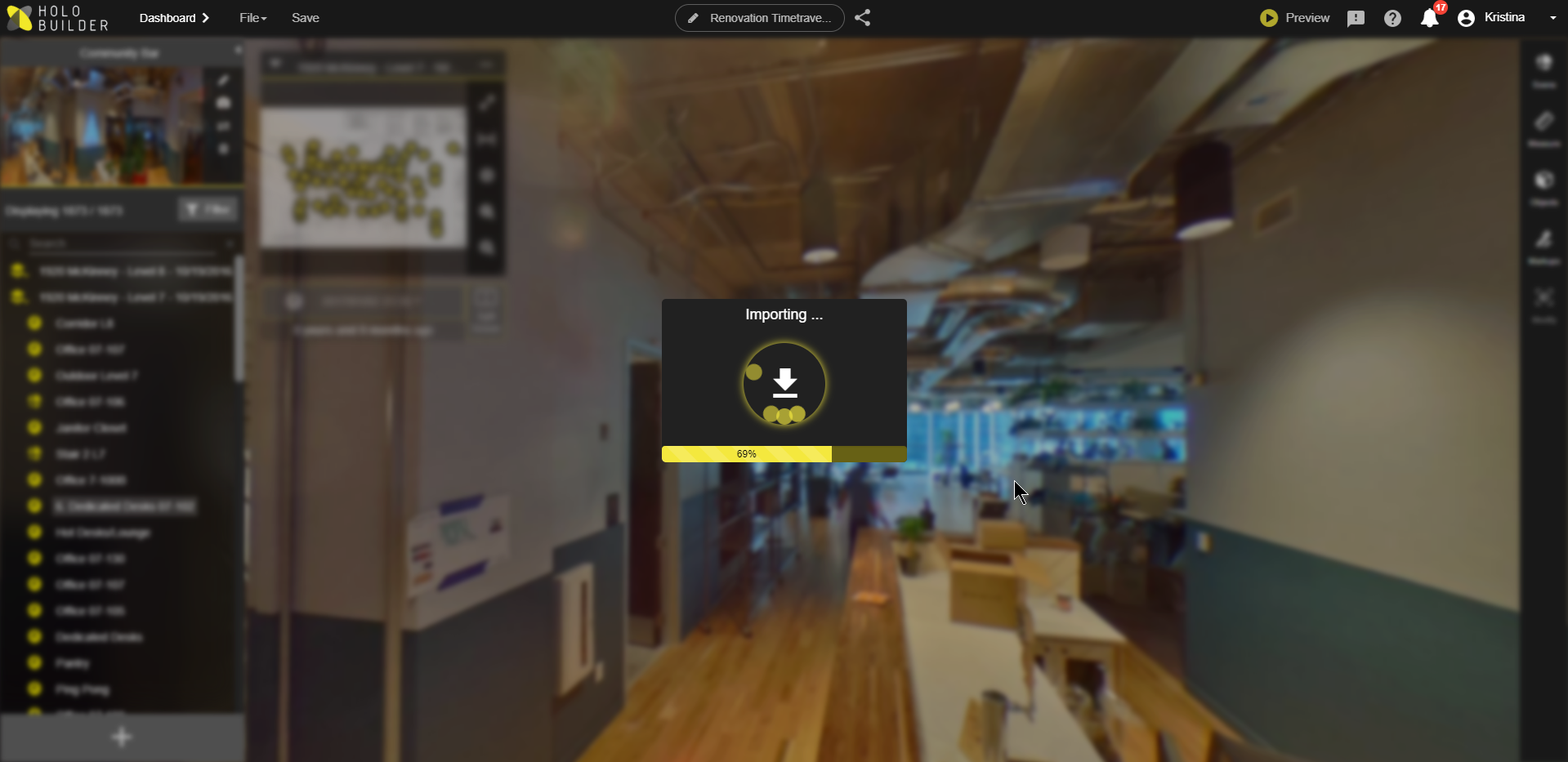

  6. Click on the file you want to import:

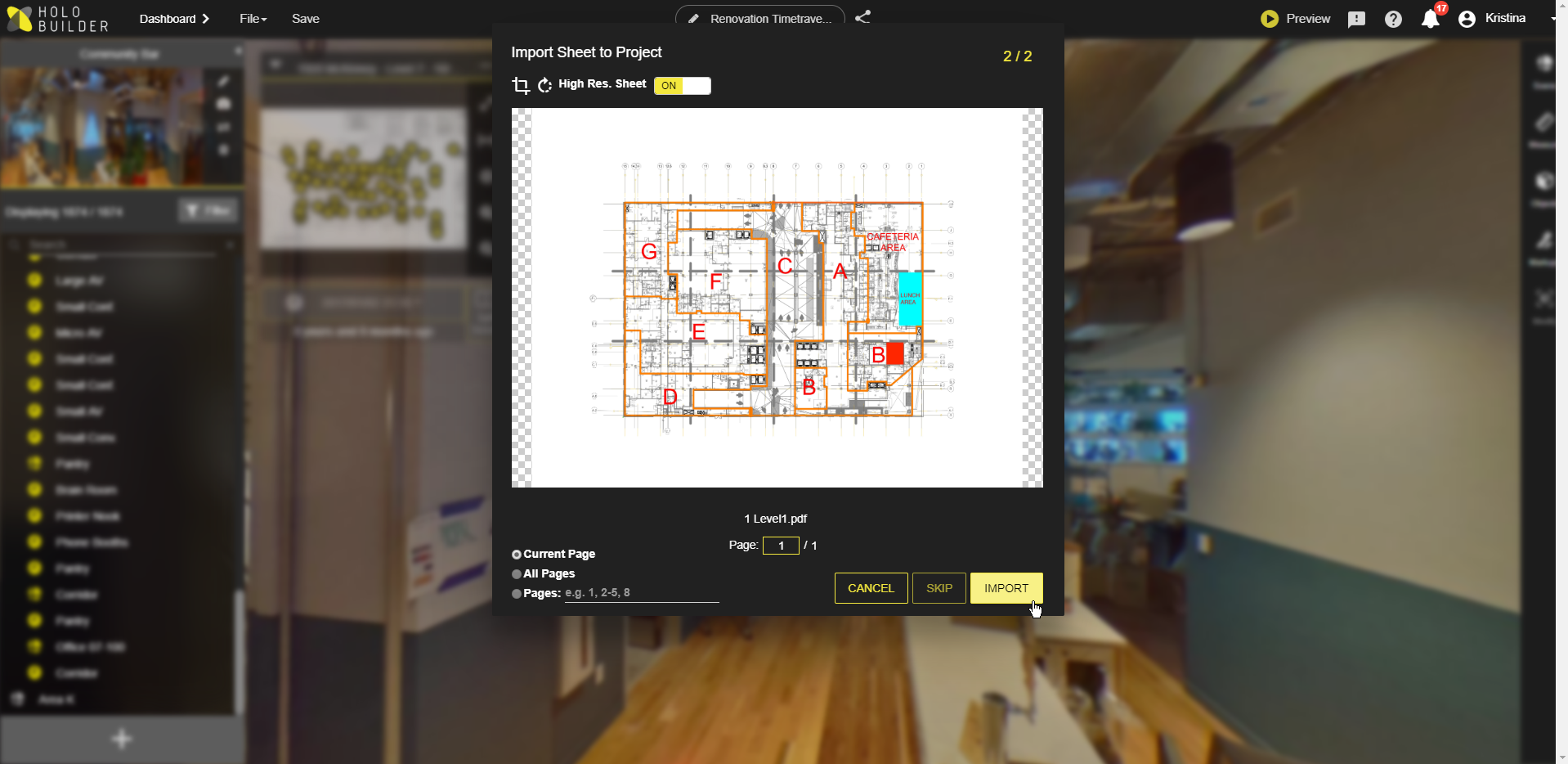

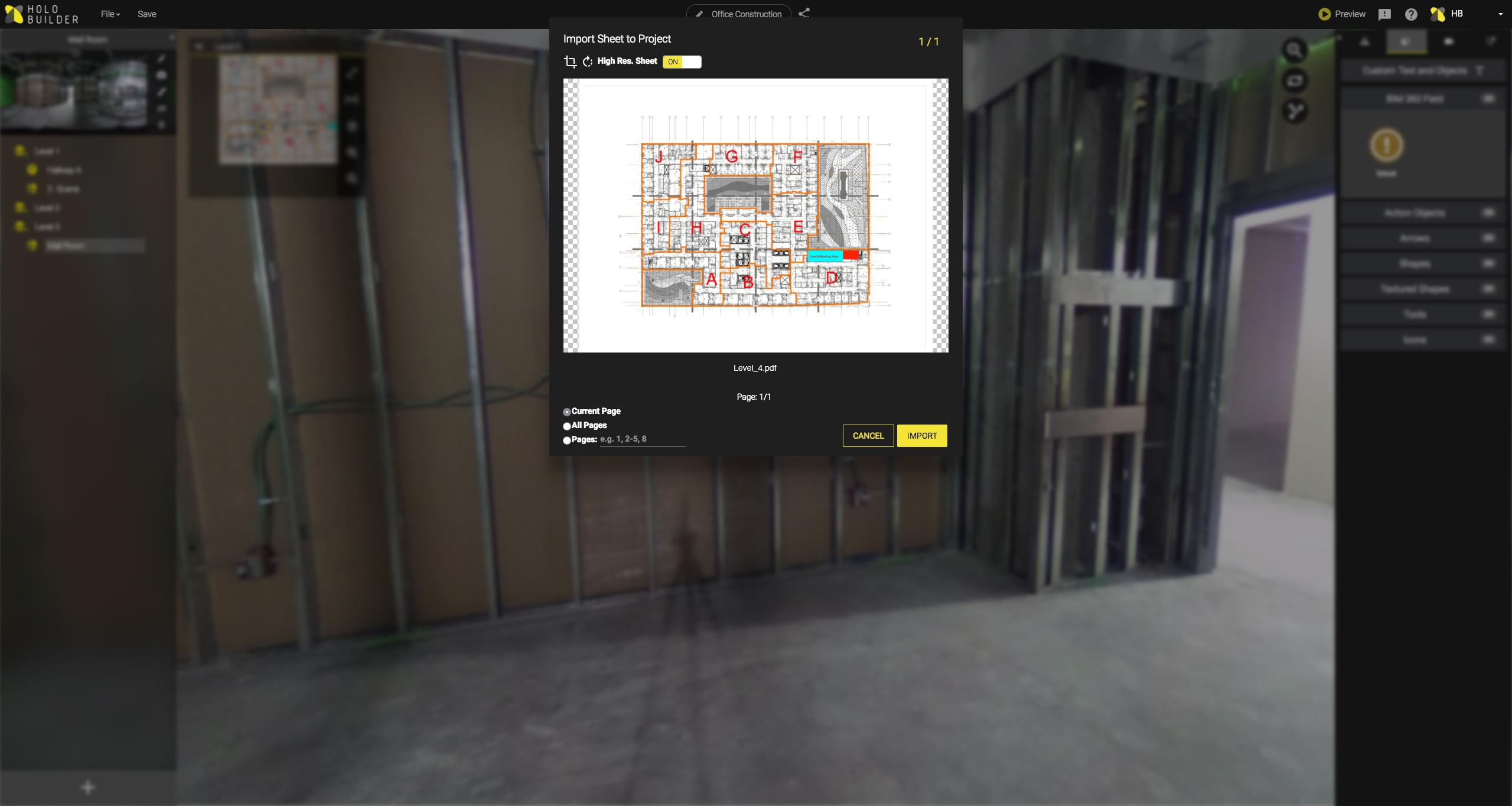

    If it is a PDF file, it will be downloaded and imported directly into HoloBuilder as a new floorplan. You can adjust your selection in the modal that shows up, e.g. choose specific pages from a multipage document.

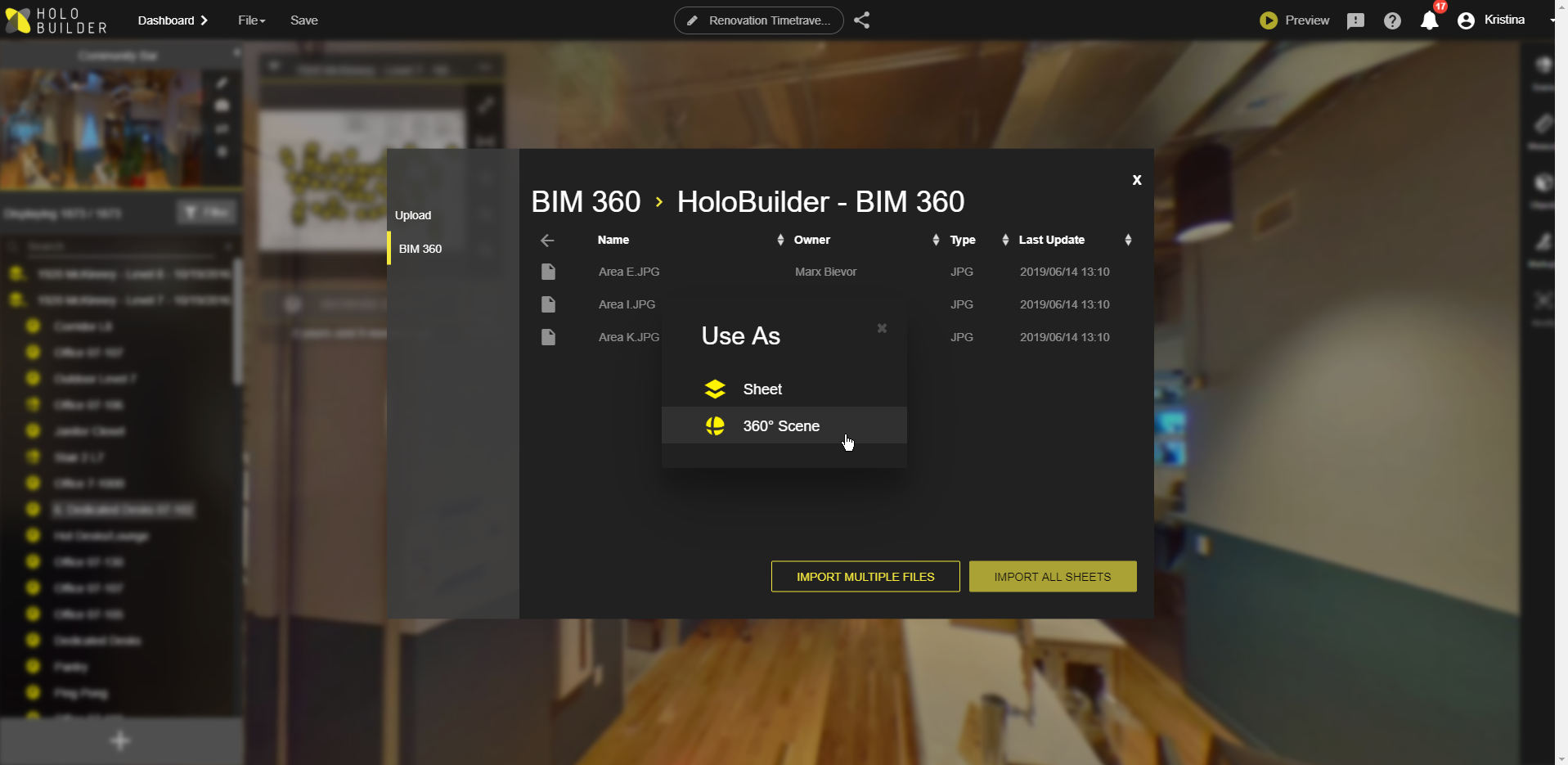

    For image files, you will be asked whether you would like to add them as 360 scenes or sheets. Follow the instructions accordingly.
    If you want to import .obj or .dae files, they must be packed as a .zip containing all the required assets (.mtl files etc.). The 3D object will be loaded into the currently opened 360 scene and can be edited accordingly.

 Learn more.



Creating BIM 360 Field Management Next Gen Issues:

  1. Complete Step 1), 2) and 3).
  2. Open the HoloBuilder project you wish to add issues to.
  3. Select the 360 scene where you identified the issue and rotate the scene to focus on the issue.
  4. In the right sidebar, click the "Markups" object from the menu to add a new issue.
  5. Choose the markup type you would like to use to highlight the issue.
  6. Draw around the issue in the 360 scene.

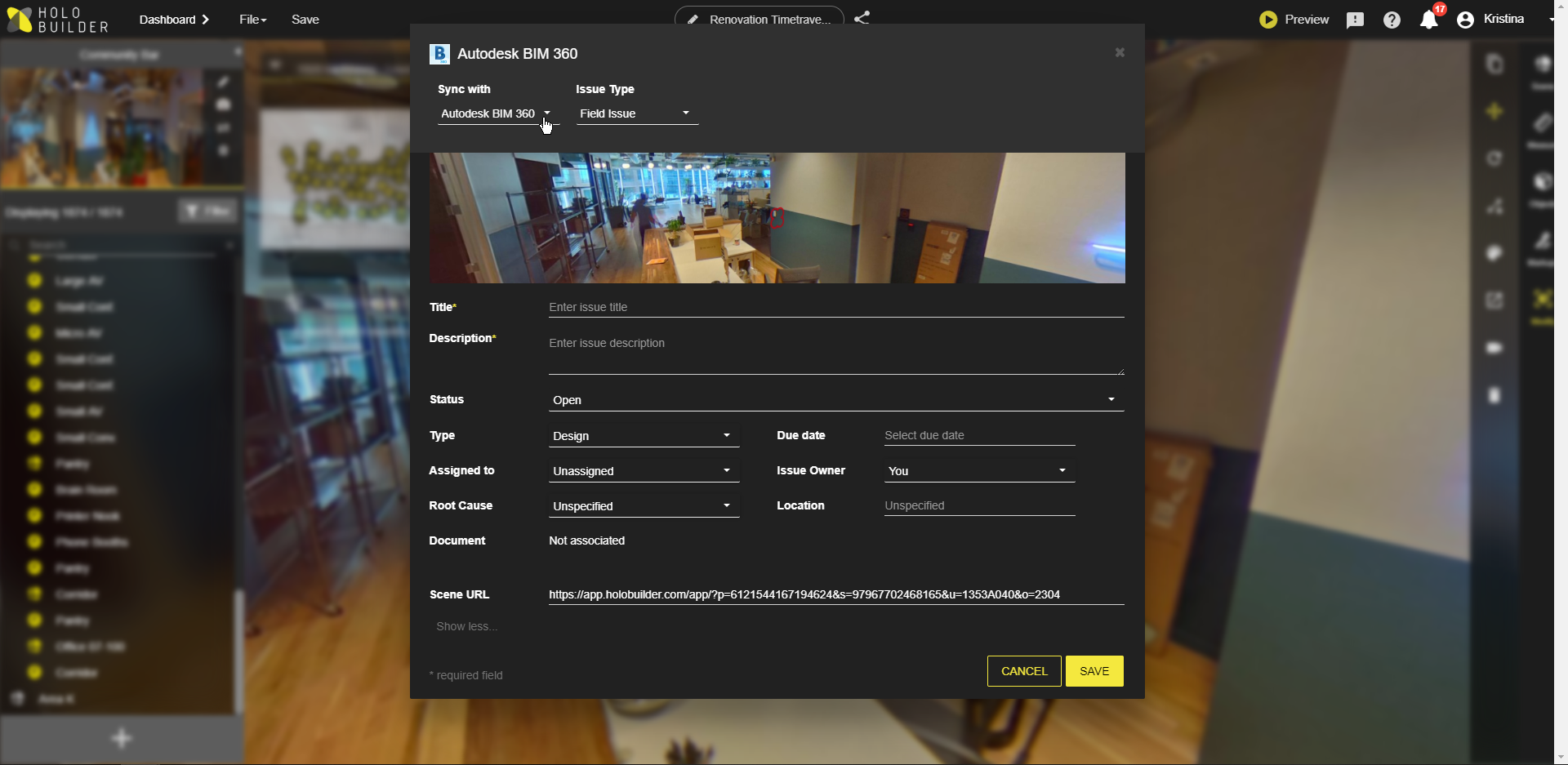

  7. When finished drawing, the form pops up. Choose "Autodesk BIM 360" from the "Sync with" drop-down menu.
  8. Fill out the form with all the necessary information and save it. The issue will be synchronized with BIM 360 Field.
  9. Optionally, move or scale the markup in the 360° scene to fit the right location.
  10. Check your created issues in Autodesk BIM 360. It is now possible to access and manage the issue from within Autodesk BIM 360 Field Management. You will find a back link within the issue in BIM 360 Field Management to the related scene in HoloBuilder and a link to the issue within the issues information in the markups list in HoloBuilder.

Learn more.

Commands

Installation/Uninstallation

Additional Information

Visit https://www.holobuilder.com/getstarted/ to get more information about how to get started with HoloBuilder or sign up for the 21-day free trial at https://success.holobuilder.com/free-trial.

System Requirements: the general requirements to use HoloBuilder apply (up to date browser with WebGL support: IE10 and higher, Edge, Firefox, Google Chrome)

Known Issues

Importing Revit models from BIM 360 is only supported as .obj or .dae files.
Note: We recommend using our Revit or Navisworks plug-in to import your models as 360 renderings in your HoloBuilder project instead of the complete 3D model.
