SmartDraft: Text Tools provide an excellent set of productivity tool to add, edit, and manager text and mtext.

General Usage Instructions

Productivity tools for text, mtext, arc text, attributes, and dimensions.


Ribbon/Toolbar Icon Command Command Description


Modify text created with text, mtext, attributes, and arc text.


Create text parallel to a selected line segment


Add the prefix "{" and the suffix "}" to selected text.


Add, Subtract, Multiply, and/or divide numeric values of selected text, mtext, or attribute objects.


Add a prefix and/or a suffix to text and attributes.


Rotate text horizontal to the bottom of the screen.


Add the prefix "[" and the suffix "]" to selected text.


Rotate text vertical to the bottom of the screen.


Add the prefix "(" and the suffix ")" to selected text.

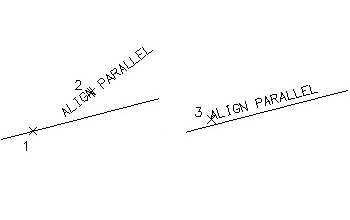

Align text parallel to a line segment


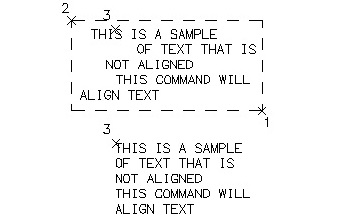

Modify the horizontal alignment point of text along the vertical axis determined by the angle of the first selected text.


Create arc text from a selected curve


Swap one text string for another.


Create or replace text with sequential numbers or letters. Optional prefix and/or suffix.


Add the prefix "<" and the suffix ">" to selected text.


Adjust or round the number(s) within text strings.


Copy / Match the source text string to target text string(s).


Create text with the same style, rotation, layer and standard spacing as selected text.


The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

NOTE: If you previously installed the Paid version of this software, then you must uninstall it for the Trial version to work properly.
