Kobi Toolkit for Autodesk® Civil 3D®
Win64, EnglishGeneral Usage Instructions
After the setup, all the tools will be available from the Kobi Toolkit tab on the Autodesk® Civil 3D® ribbon.
All commands are also accessible through the Kobi Toolkit menus and toolbars.
With the "About" KobiLabs button from the Kobi Toolkit panel, you can check the version number and activate your license.
You can install the latest version with the "Check for new version" button.
On the Kobi Toolkit panel, you can find the Help button, where you can read the User manual with all descriptions of commands.
For more information, please visit our webpage: kobilabs.com
Screenshots
Commands
| Ribbon/Toolbar Icon | Command | Command Description |
|---|---|---|
|
Add/Subtract Surface |
The Add/Subtract Surface tool calculates new surfaces by adding/subtracting elevation values of selected surfaces. |
|
Create Grading |

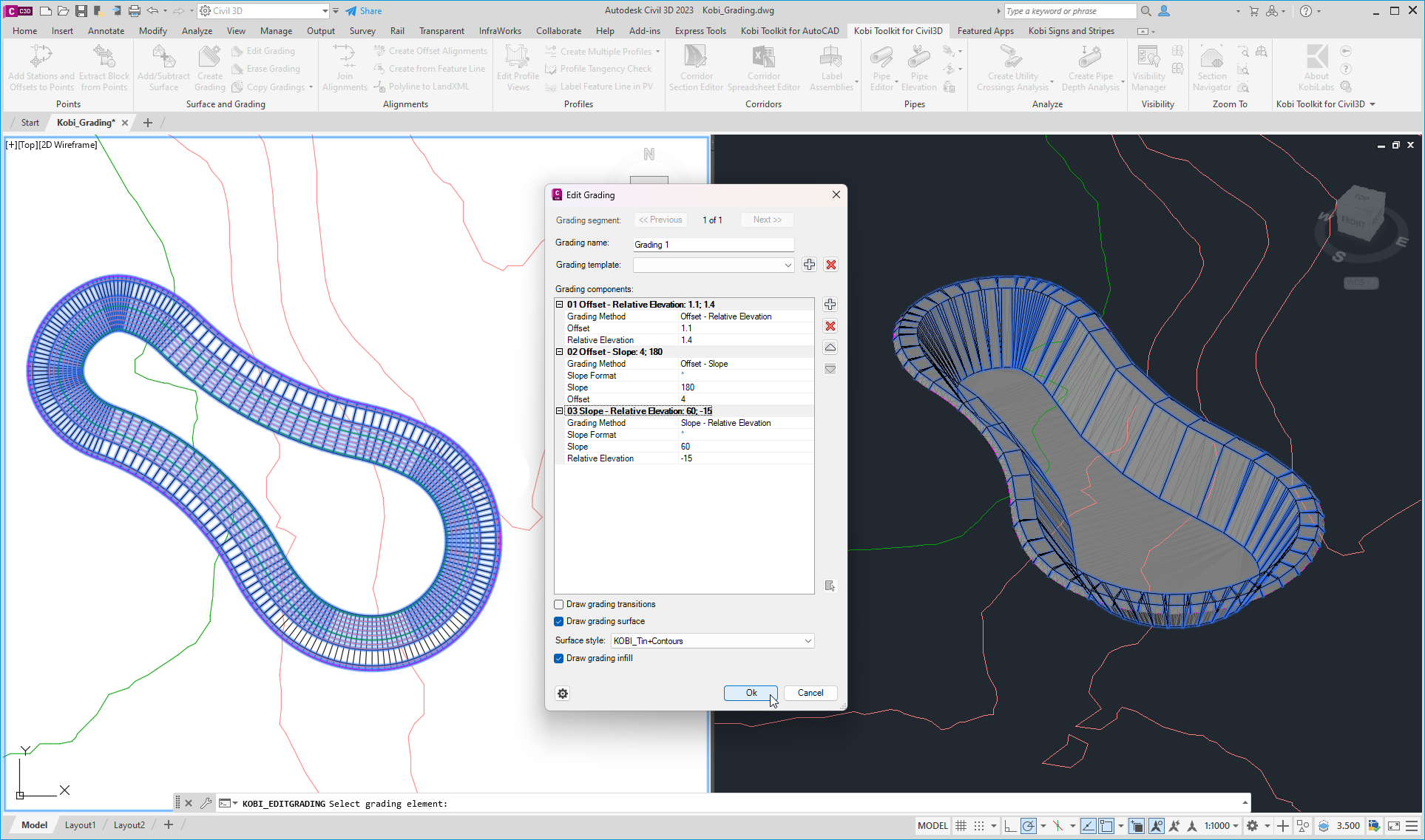

This powerful grading functionality lets you design various spatial entities with different grading criteria, allowing you to save the templates. Edit the source geometry and review the results in real time. |
|
Join Alignments |
The Join Alignments command will join selected alignments and optionally alignment profiles. |
|
Create Multiple Profiles |
This command creates profiles and profile views for multiple alignments. You can select alignments on a single surface that will be used in all profiles as a reference surface for profile creation. |
|
Create Reverse Profile |
Civil 3D already has a function to reverse the direction and stationing of an alignment, but not the profile. The Create Reverse Profile command allows you to reverse the direction of the Finished Ground Profile after the alignment direction is reversed. |
|
Create Multiple Corridors |
With Create Multiple Corridors you can select multiple alignments, set your corridor style, and target surface to create multiple corridors at once. The tool also allows you to join them into a single corridor. |
|
Pipe Editor |

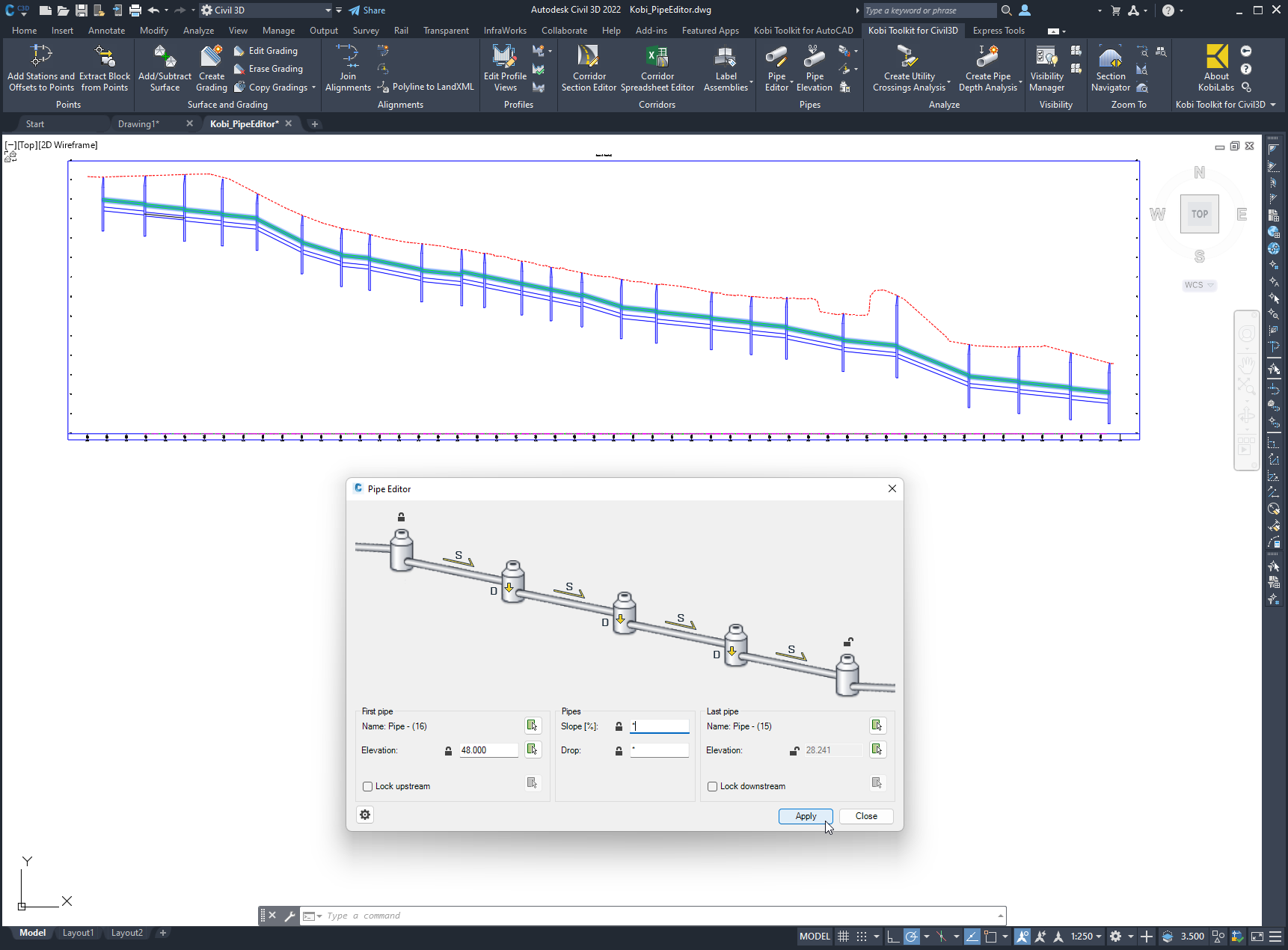

This tool enables you to edit multiple pipes. Use the intuitive user interface to define how pipes should behave and apply changes to the whole pipe set. |
|
Create Offset Profile |
With our tool, you can create a Civil 3D profile offset polyline by defining the offset value or through point. |
Installation/Uninstallation
After selecting the Download button from the Autodesk App Store, the Kobi_Toolkit_for_Civil_3D.exe file will be saved in your Downloads folder. You can start the installation process by double clicking on the file. After installation, you might need to restart your Autodesk product to activate the app/plugin.
To uninstall the plug-in, first, close the Autodesk product if it's running. Then, you can either rerun the installer and choose the "Uninstall" option, or go to the Control Panel, select "Programs and Features" (for Windows 7/8.1/10/11), and uninstall the plugin as you would with any other application.
Additional Information
Known Issues
Contact
Author/Company Information
Support Information
Please check our webpage FAQ. For other questions, please email technical support: at support@kobilabs.com.
Version History
| Version Number | Version Description |
|---|---|
|
2025.1.164 |
Supported platforms: Civil 3D 2020 – 2025 New tools added to Kobi Toolkit: - COGO Points Legend: Allows you to create a legend of COGO point markers (symbols) from the drawing. You can define the order of points in the legend and edit their descriptions. - Points Along Alignment: With this command, you can create COGO points on the selected polyline, based on the specified interval along the selected alignment. - New Grading Functionalities: New Grading components and workflows. The updated workflow allows the creation of complex grading surfaces using multiple components. - Create Multiple Corridors: You can select multiple alignments, set your corridor style, and target surface to create multiple corridors at once. The tool also allows you to join them in a single corridor. - Create Reverse Profile: The Finished Ground Profile is not automatically updated when you reverse the direction and stationing of an Alignment, but it retains the original direction. This tool allows you to reverse the Finished Ground Profile direction after the Alignment direction is reversed. - Profile Tangency Check: This command analyses the selected alignment or profile and detects and labels tangents without curves. Updated tools: - Set Multiple Part Properties: It now works on both structures and pipes. You can also define sump depth for multiple structures. |
