Quick Field Link

Quick Field Link

Win64, English

Thien Thanh
Create a quick connection between an existing field and a new entity.

General Usage Instructions

1. Run the command QUICKFIELDLINK to begin.

Step 1: Select a field first.

Step 2: Select an Entity to link.

2. Run the command SHOWFIELDLINK - show the link between fields and Entities.

Step 1: Select the fields => enter.

3. Run the command CLEARFIELDLINK - clear up the shown link between the fields and the Entities.

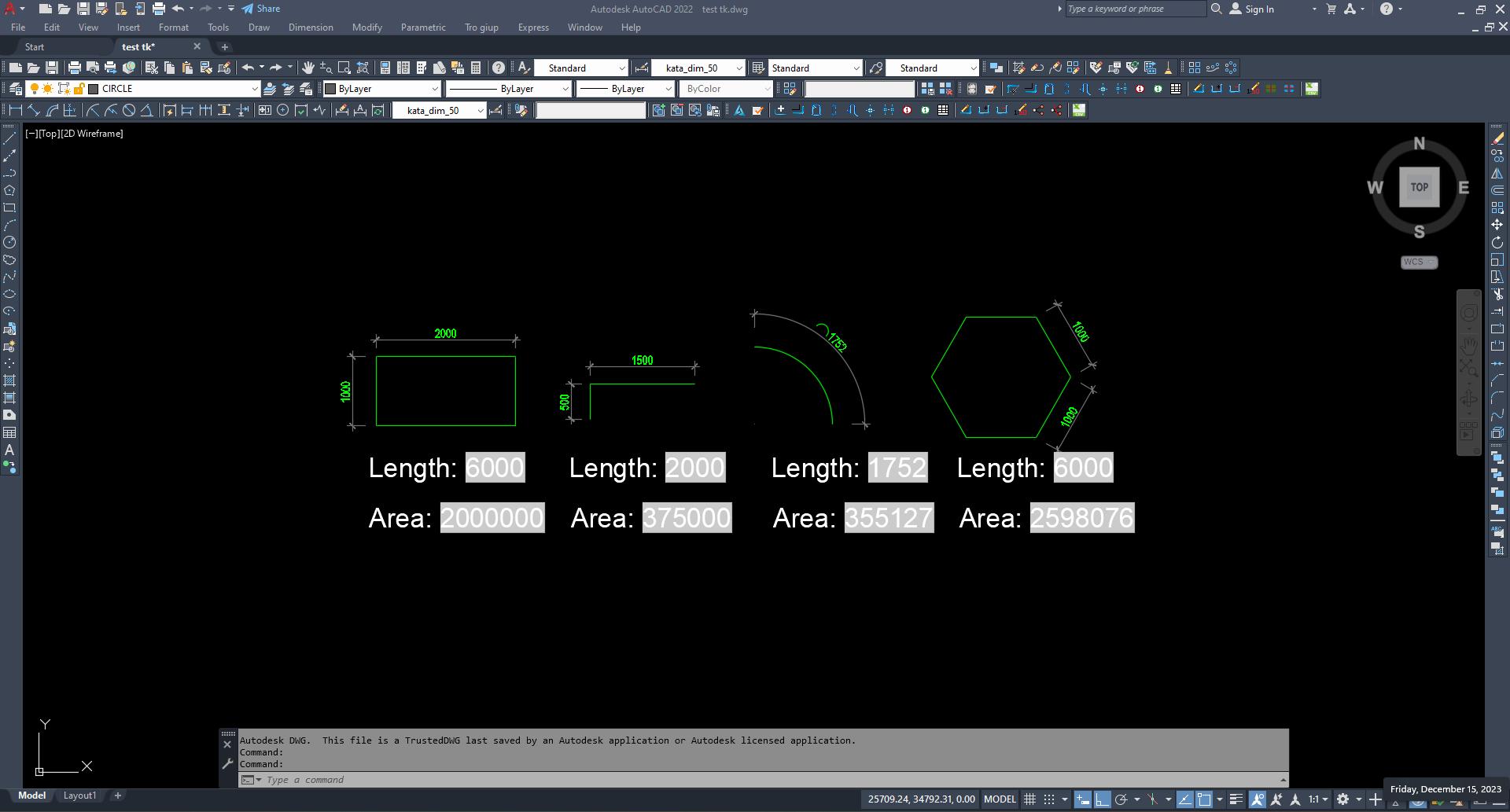

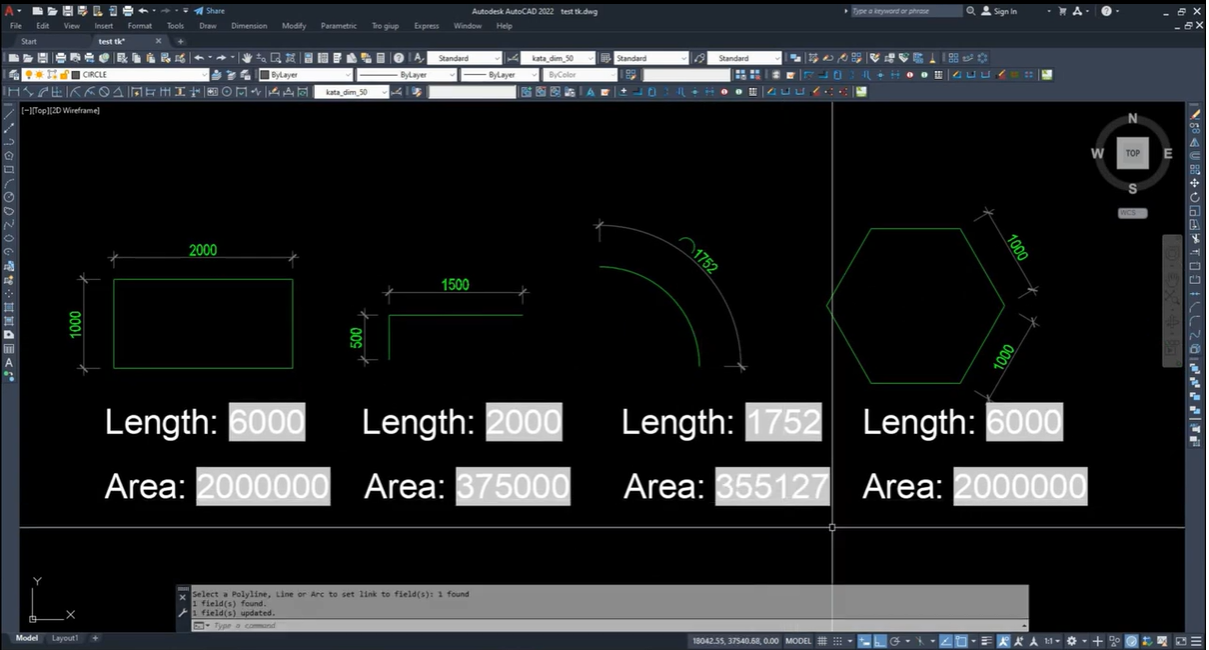

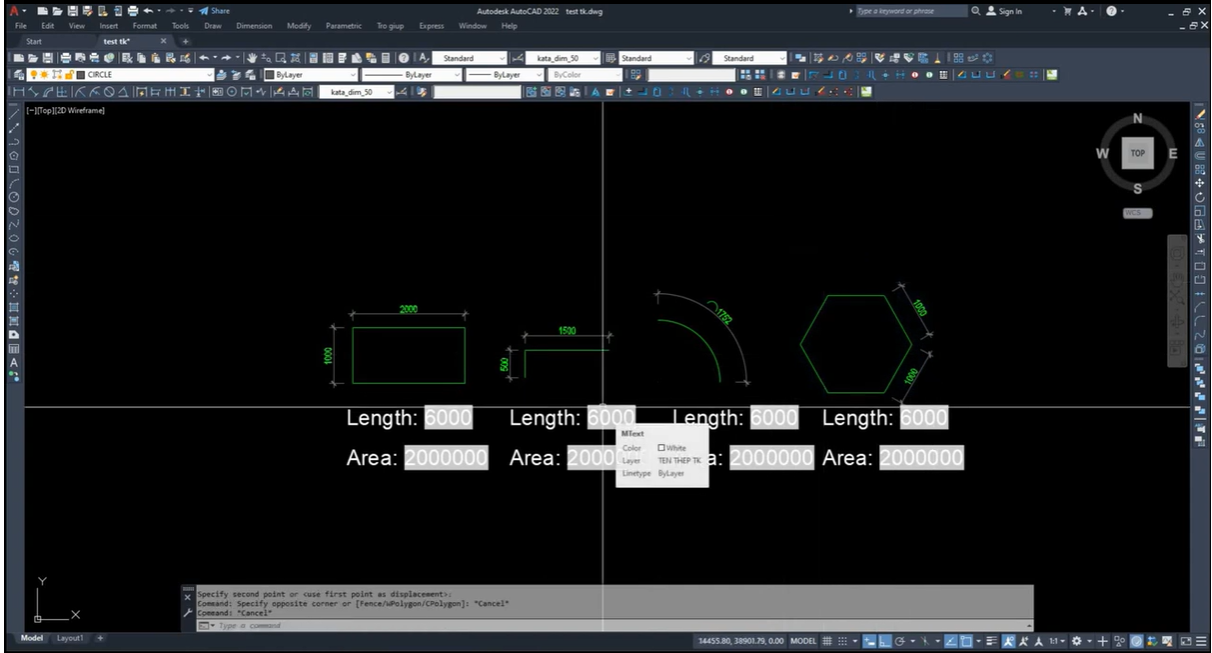

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

QUICKFIELDLINK

Select a Mtext object containing field(s).

ClearFieldLink

Clear the field link shown.

ShowFieldLink

Show link of field to the entity.

Installation/Uninstallation

The installer that ran when you downloaded this plug-in from the Autodesk App Store has already installed the plug-in. You may need to restart the Autodesk product to activate the plug-in. To uninstall this plug-in, click Control Panel > Programs > Programs and Features (Windows 8.1/10/11) or Control Panel > Add or Remove Programs, and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Company Name: Thien Thanh
Support Contact: Hung_tthanh@yahoo.com

Author/Company Information

Thien Thanh

Support Information

When you have any problem, Please contact me via email: Hung_tthanh@yahoo.com

https://www.facebook.com/thienthanhsoft

Version History

Version Number Version Description

1.0.0

Added support for AutoCAD 2024.
