Section view Elevation range and QTO Table tool

Section view Elevation range and QTO Table tool

Win64, English

NTCL Soft
Batch adjust elevation range, export Section view QTO material table of multi section views to Excel. Metric and Imperial drawings supported.

General Usage Instructions

A. The procedure of adjusting section view elevation range:

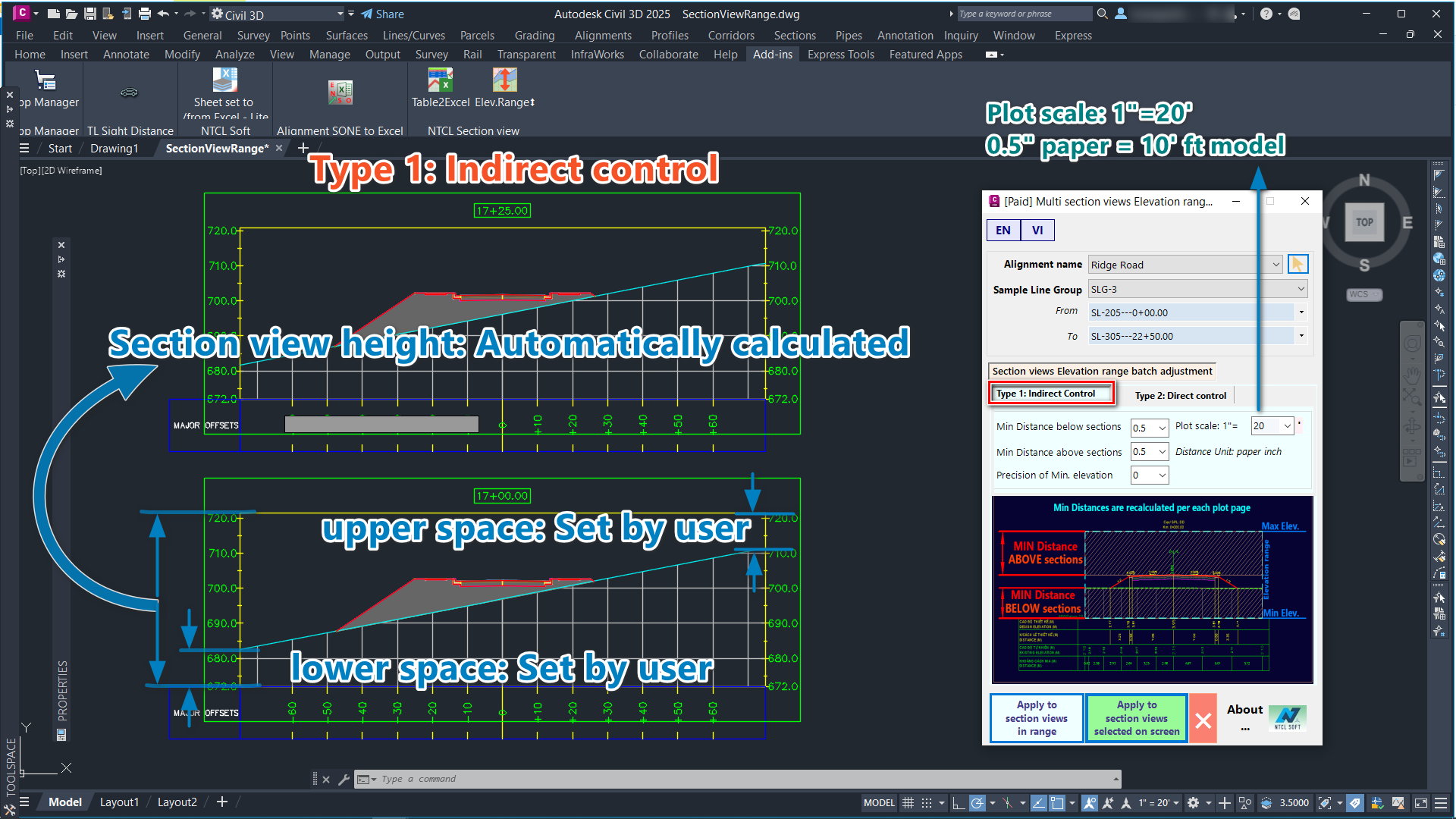

- Determine the vertical distance (space) below the lowest point of all visible sections of a section view;

- Determine the vertical distance (space) above the highest point of all visible sections of a section view;

- Choose a precision for the minimum elevation (datum) value

- Click “Apply to section views in-range” button to process all section views selected by Alignment, sample line group and station range, or

Click “Apply to section views selected on screen” button to process any section views selected on screen;

B. The procedure of adjusting export Sectionview Quantity TakeOff tables (QTO tables) to Excel:

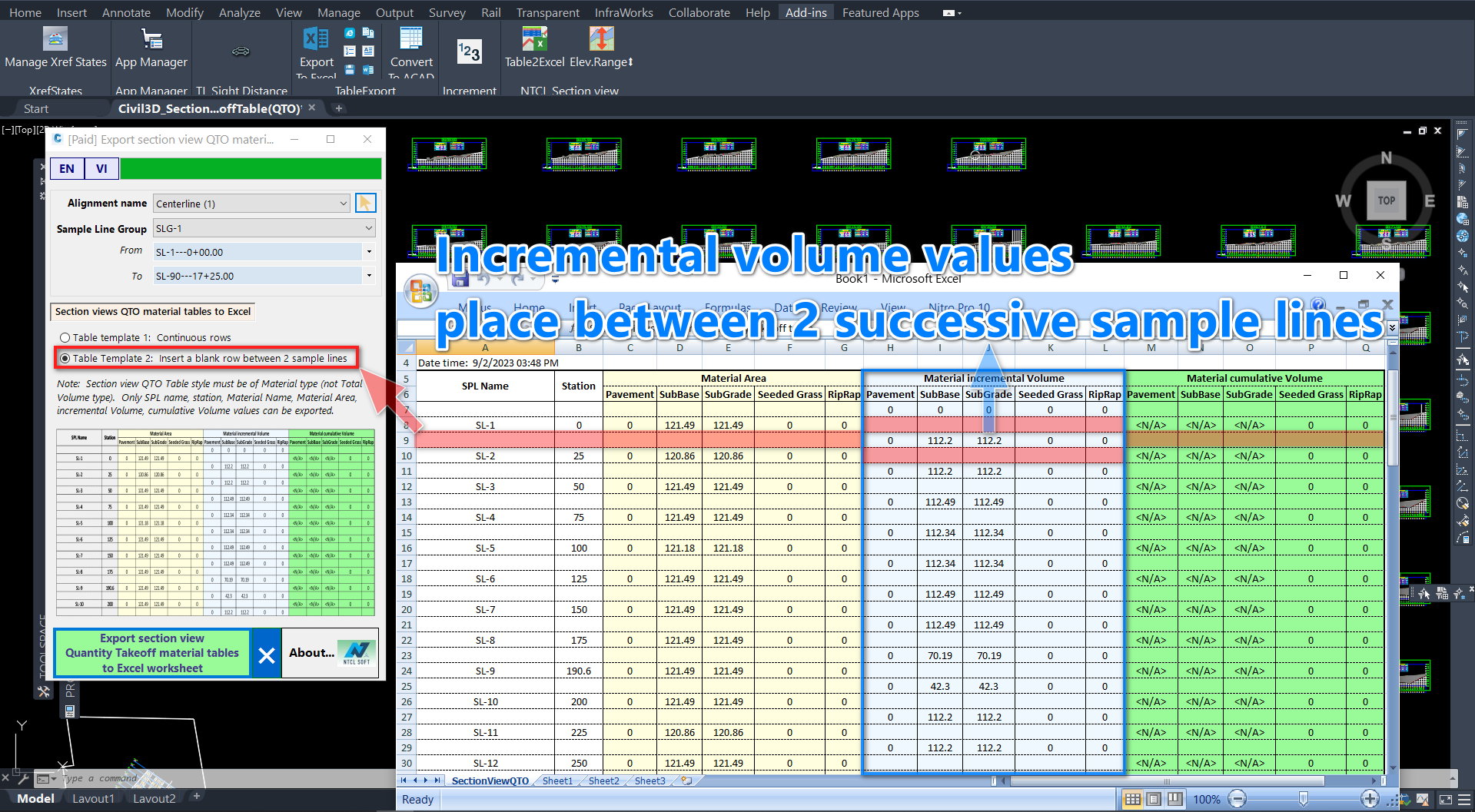

- Choose a template for Excel summary table

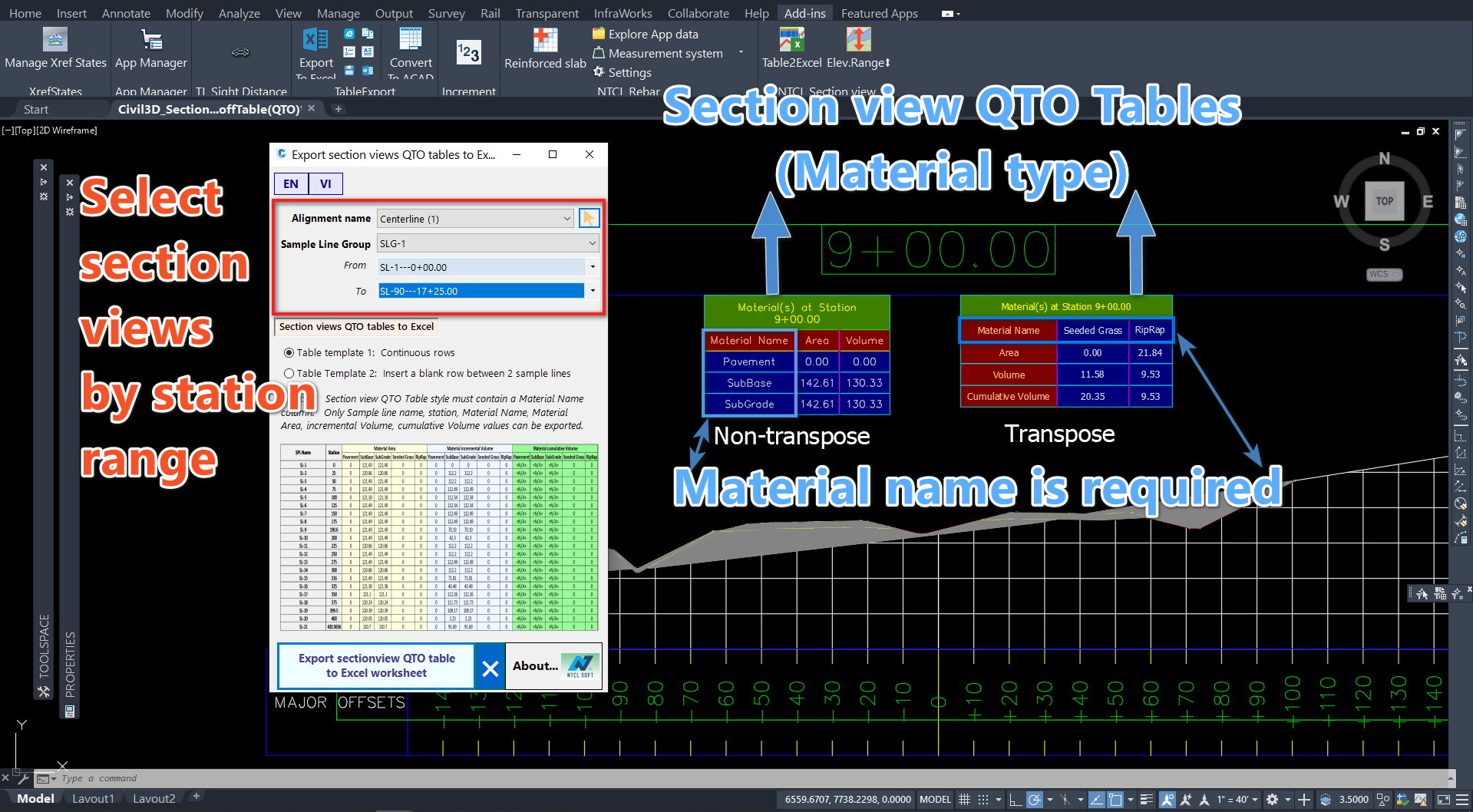

- Click “Export section views QTO tables to Excel” button to export volume tables of all section views selected by Alignment, sample line group and station range

Commands

Ribbon/Toolbar Icon Command Command Description

NTCL_SectionviewTableExport

Export multi section views' Quantity TakeOff (QTO) tables to Excel. Only Sample line name, station, Material Name, Material Area, incremental Volume, cumulative Volume values can be exported. Do not confuse section view QTO tables with "Material Volume Table" or "Total Volume Table". The latter does NOT appear in each section view.

NTCL_SectionviewElevationRange

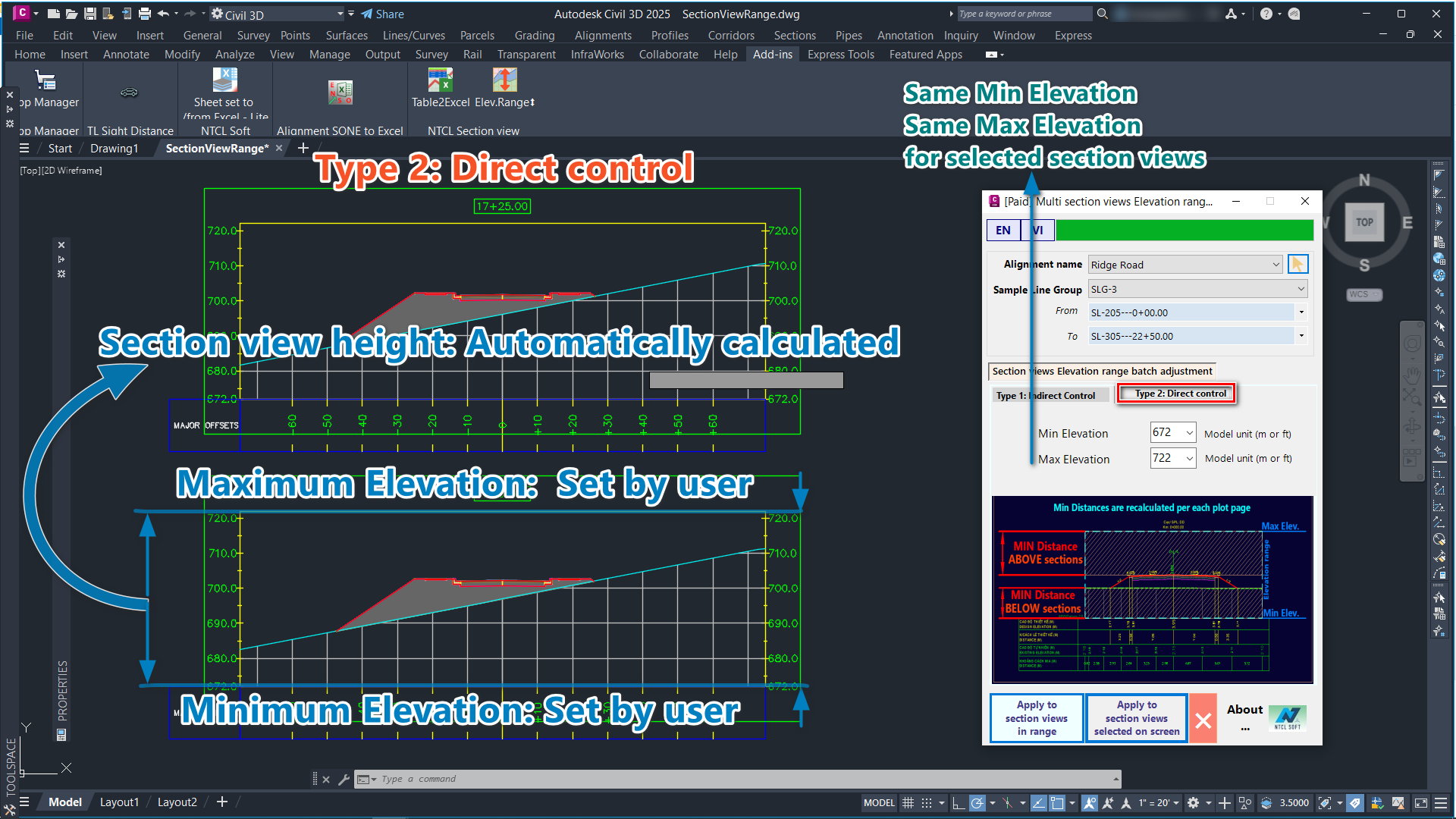

Multi section views elevation range adjustment by (1) providing the vertical distance below and above sections or (2) input universal minimum, maximum elevation values

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.  You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.

Additional Information

- Section view QTO tableSection view Quantity takeoff table

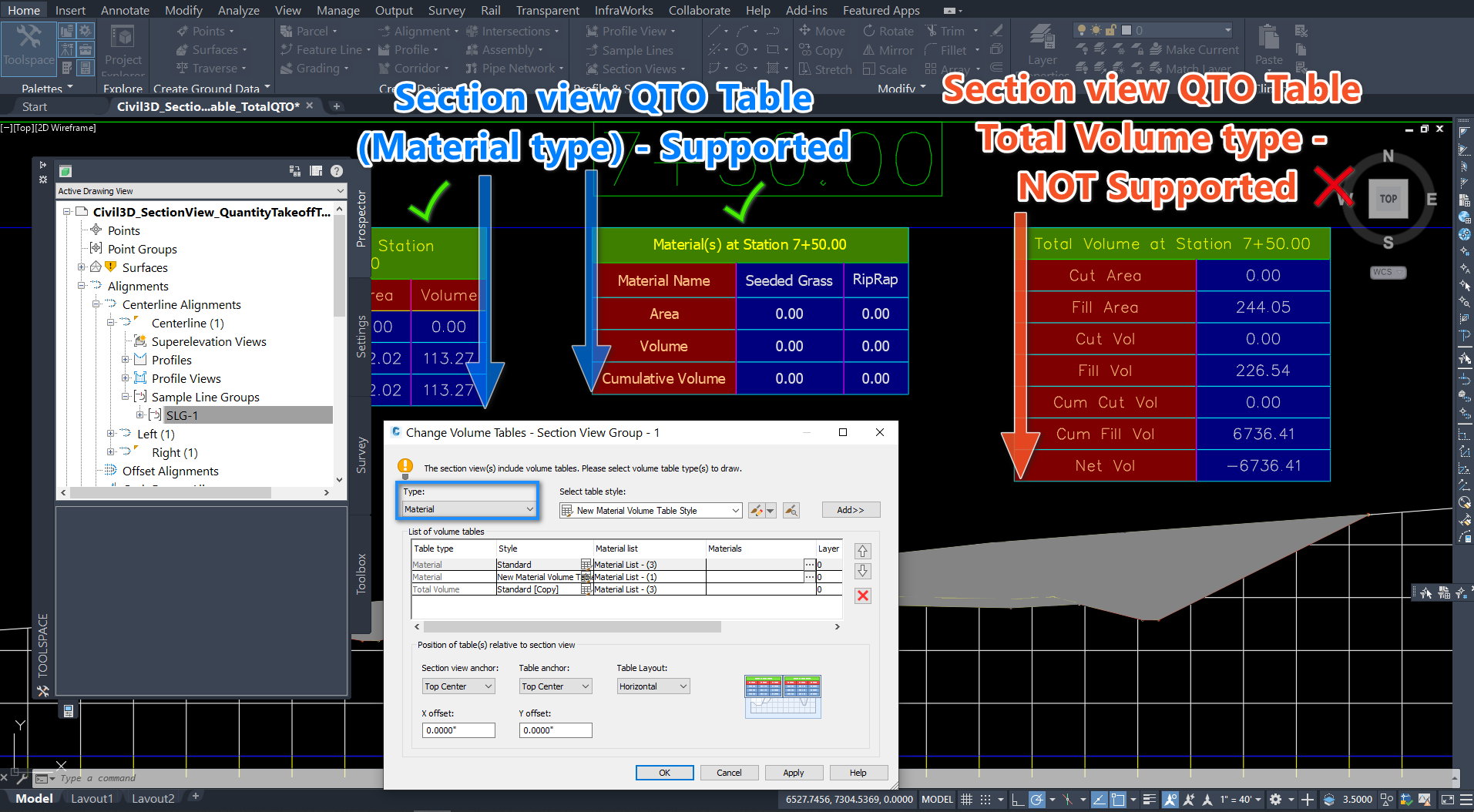

- Do not confuse Section view QTO MATERIAL table with Section view QTO TOTAL VOLUME table. Both can be inserted from the Sample line group properties dialog and appear in section views, but the latter do NOT show separate name, area, volume for each material.

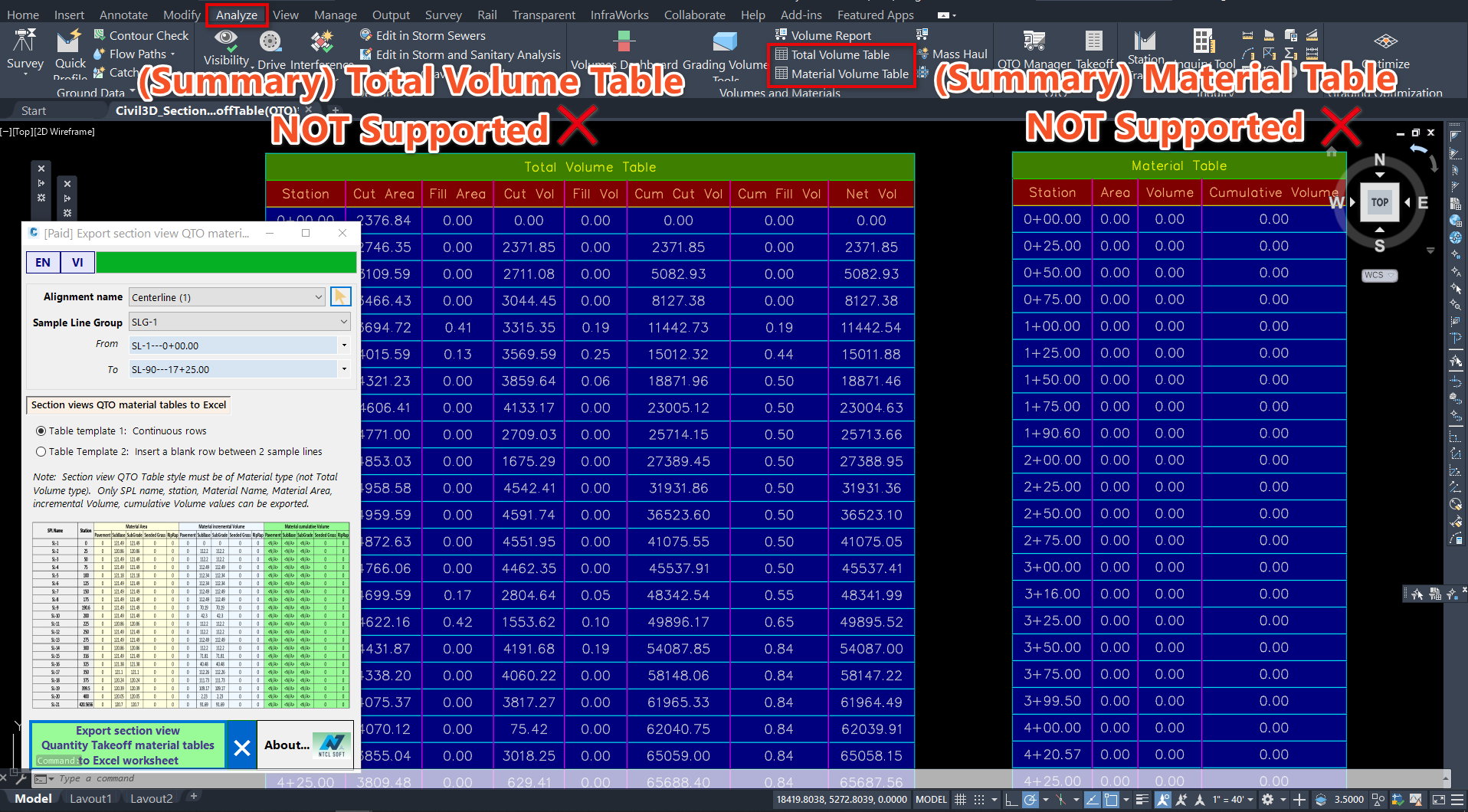

- Also Do not confuse Section view QTO tables with "Material Volume Table" or "Total Volume Table" (the two buttons on Analyze ribbon tab).  The latter does NOT appear in each section view.  "Material Volume Table"  provides a summary for only ONE material; while "Total Volume Table" provides summary for a mixture of all materials in the form of combined cut, fill;

- Values exported from section views' QTO table are read directly from the "Section view Quantity TakeOff table" (Material type).  To increase the precision of decimal values, table style needs editing and Section view Quantity TakeOff tables (Material type) need updating/ inserting again;

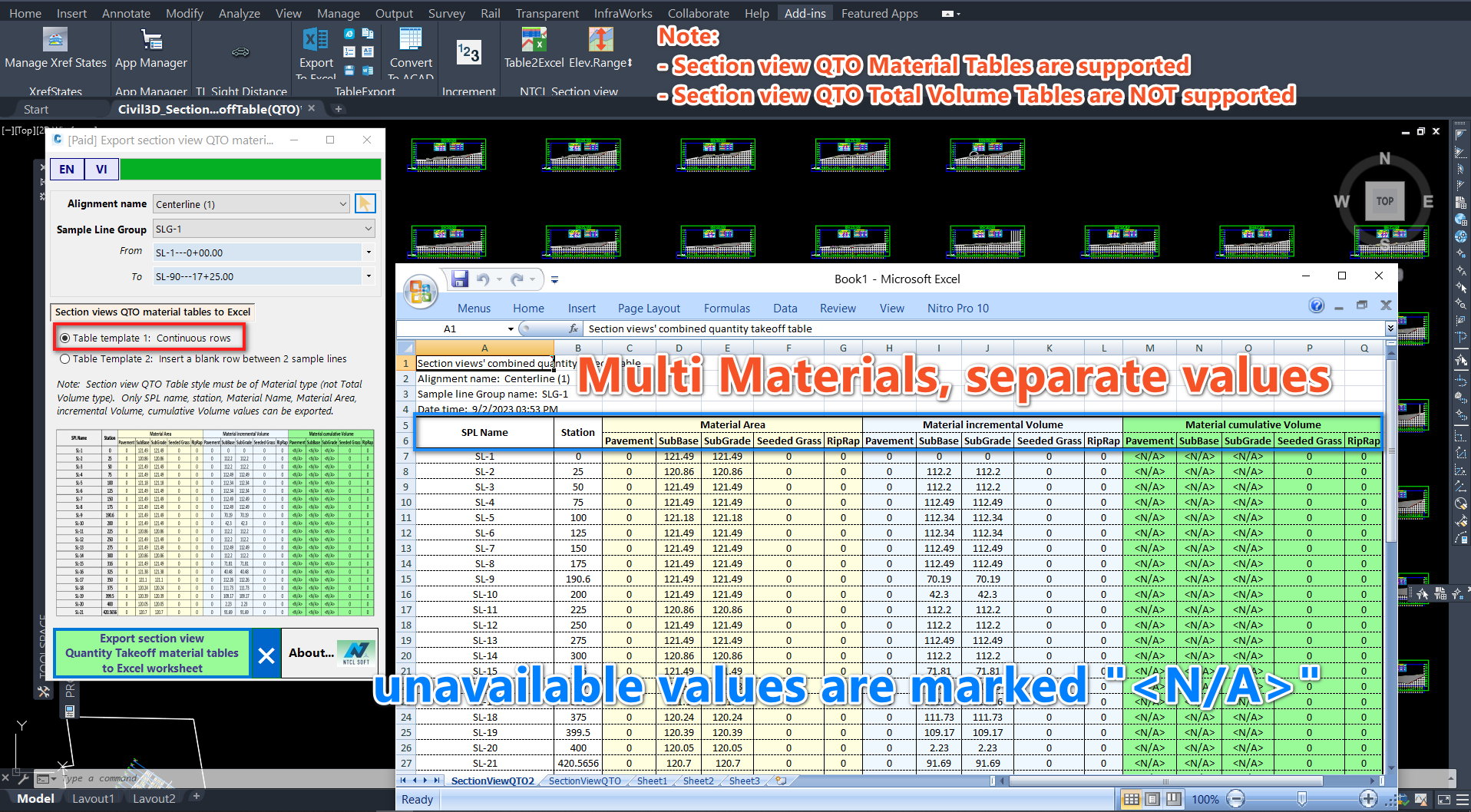

- Unavailable values are marked with "<N/A>" string;

- App provides different interface for Metric and Imperial mode of Autodesk® Civil 3D®.

Known Issues

In some case, this App cannot connect Excel® in Microsoft® 365 (Office® 365).  The NTCL Error message: "Cannot open Microsoft® Excel®" appears right after App is called.

This error can be fixed by running "Quick repair" on Microsoft® 365 (Office® 365). For more information, please refer to: https://www.NTCLSoft.com/home/troubleshooting

Contact

Company Name: NTCL Soft
Support Contact: NTCLApp1@gmail.com

Author/Company Information

NTCL Soft

Support Information

For questions/comments/suggestions/bug reports etc please send an email to NTCLApp1@gmail.com

For more information about the license, please visit: https://www.ntclsoft.com/home/license-registration-guide.

Version History

Version Number Version Description

1.1.0

Improvements: - Directly set section view elevation range by input min and max elevation values

1.0.5.0

Add support for Civil 3D 2025

1.0.0.0

Initial version.
