TA Solids Extractor

Win64, English

TA Solutions

Turn Civil 3D TIN surfaces and corridors into 3D solids in one run. Batch selection, control of depth, layer and color, and export to a separate DWG that leaves your working drawing untouched.

Version History

General Usage Instructions

After installation a TA Solids Extractor panel is added to the shared TA Solutions ribbon tab, with two buttons: Surface Solids and Corridor Solids.

Pick the surfaces or corridors to convert from the list, or select them in the drawing. Set the depth, layer, and color for the solids, choose whether to write into the current drawing or out to a separate DWG, then run. Solids are generated across the whole selection in one pass.

A typical use is the coordination model. Extract corridor and surface solids to an external DWG, which can then be linked into Navisworks or issued to another discipline without sharing the working Civil 3D drawing. Because the current drawing is rolled back afterwards, the same file can be re-exported on every design cycle without accumulating anything.

Each ribbon button carries its own Help link to the product page.

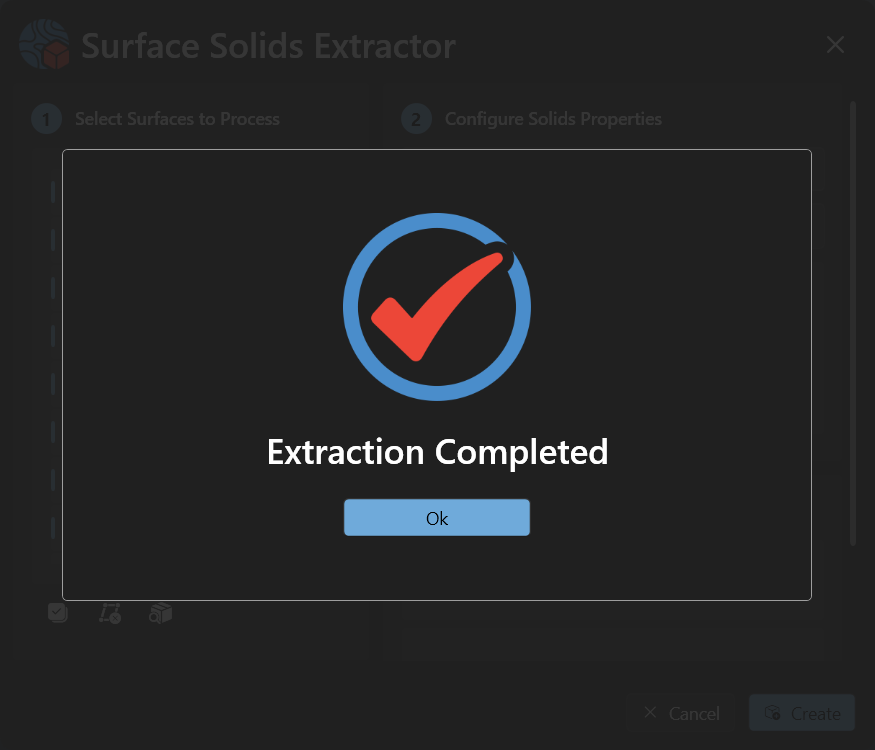

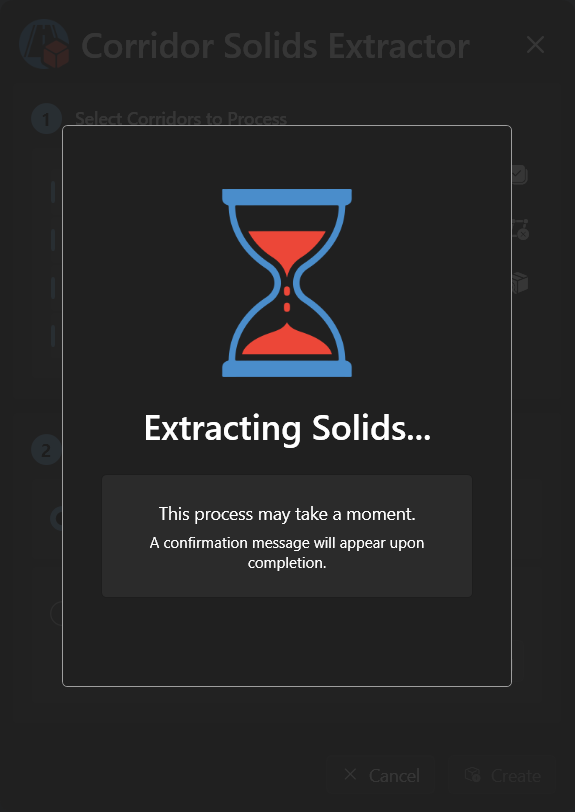

Screenshots

Commands

Ribbon/Toolbar Icon	Command	Command Description

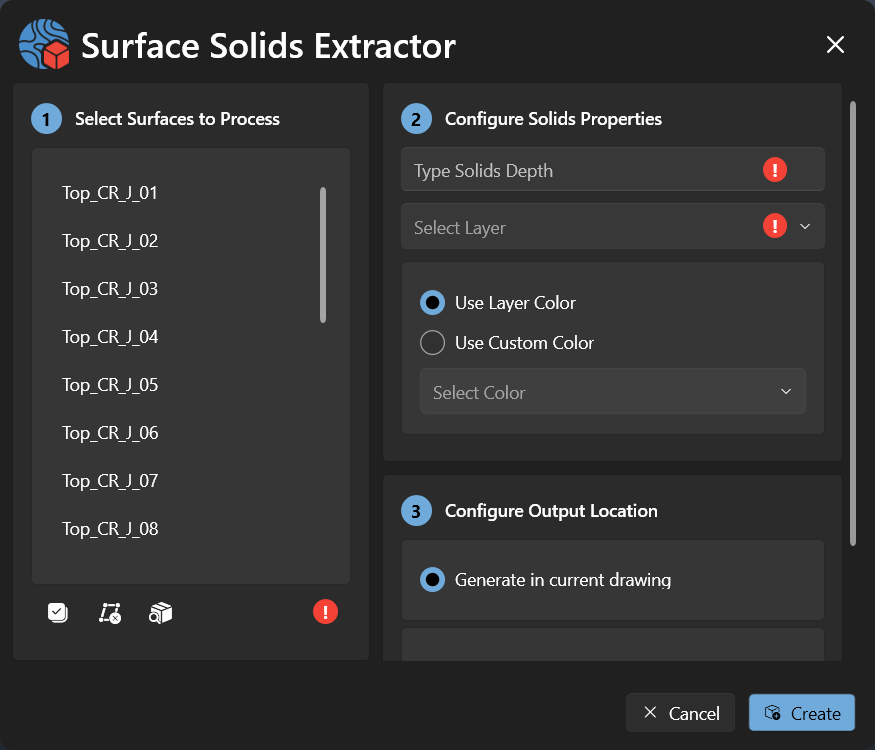

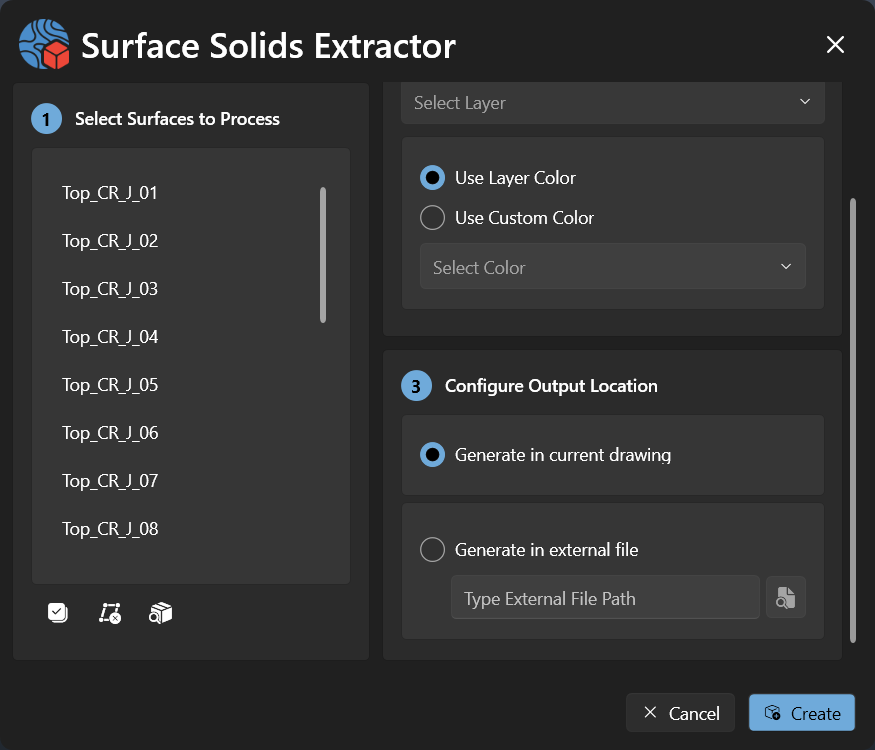

	TA_SE_ExtractSurfaceSolids	Convert selected Civil 3D TIN surfaces into 3D solids with control over depth, layer and colour. Write them into the current drawing, or out to a separate DWG that is created if missing while the current drawing is rolled back to exactly how you left it.

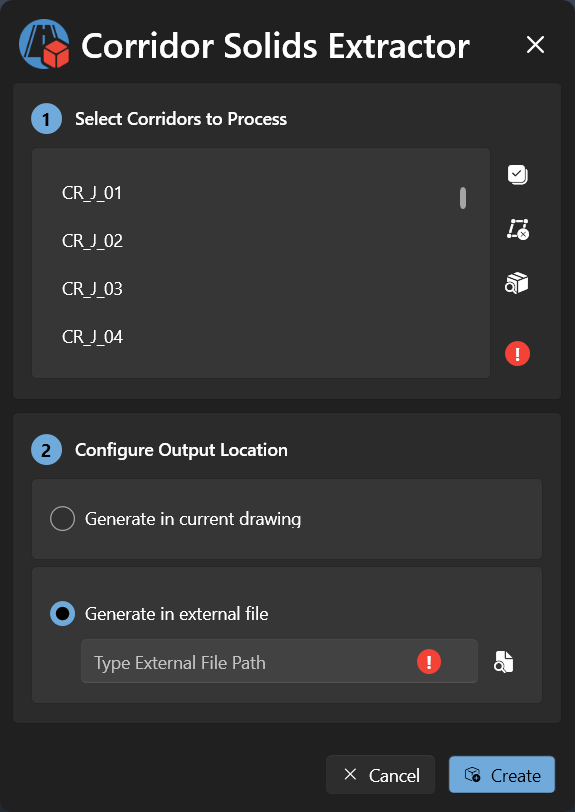

	TA_SE_ExtractCorridorSolids	Extract 3D solids from selected corridor models in a single operation, writing to the current drawing or to a separate DWG. A corridor that cannot be processed is skipped with the reason printed, and the rest of the selection still completes.

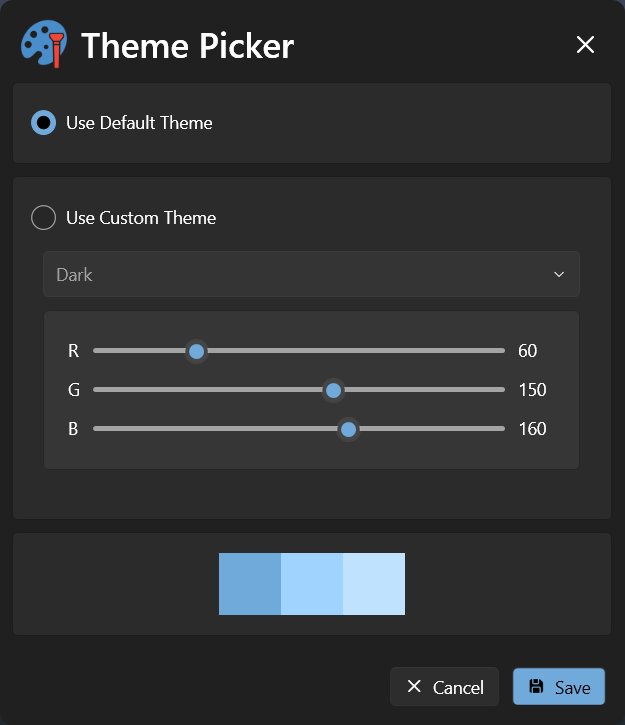

	TA_SE_PickTheme	Choose how every dialog in the plugin looks: the default theme, or a custom one with light or dark mode and an accent colour you set from red, green and blue sliders, previewed live as you drag them. The choice is saved and applied the next time you open any dialog.

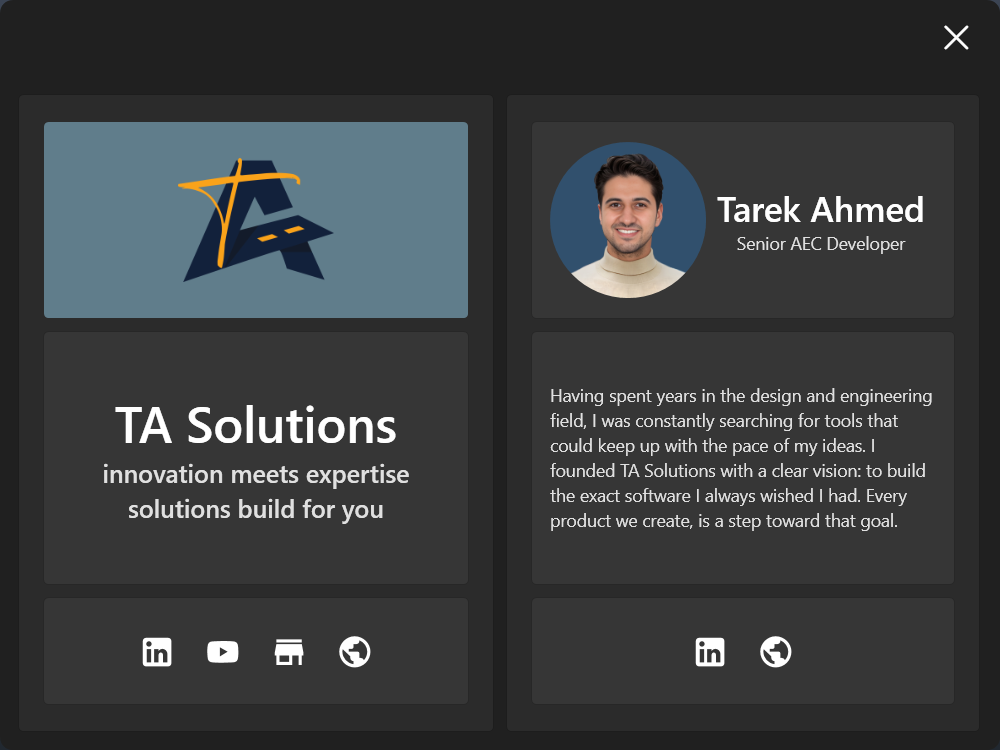

	TA_SE_About	Show the About window: the product and version you are running, your licence status, and links to support, the documentation and the rest of the TA Solutions range.

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from the Autodesk App Store will start installing it. OR, simply double-click the downloaded installer to install the app/plug-in.

You may need to restart the Autodesk product to activate the app/plug-in. To uninstall, exit the Autodesk product if it is running, then either rerun the installer and select the "Uninstall" button, OR go to Control Panel > Programs > Programs and Features (Windows 10/11) and uninstall it as you would any other application.

Additional Information

Product page: tasolutionstech.com/products/ta-solids-extractor

Requirements: Civil 3D 2025, 2026, or 2027, 64-bit Windows. Solids are produced through Civil 3D's own extraction, so the result is ordinary AutoCAD 3D solid geometry that any downstream tool can read.

Exporting onward. The external DWG is a normal drawing file, so it links into Navisworks, attaches as an xref, or converts to IFC through your usual route with no extra step.

Part of the TA Solutions range of Civil 3D productivity plugins. If you also work with alignments, profiles, corridors, and cross sections, TA Roads Toolkit automates the full design workflow that produces the corridors this extracts from.

Known Issues

Contact

Company Name: TA Solutions

Company URL: https://tasolutionstech.com/

Support Contact: support@tasolutionstech.com

Author/Company Information

TA Solutions

Support Information

For support, feature requests, or bug reports, email support@tasolutionstech.com. We usually reply within one business day.

Please include your Civil 3D version and, where you can, a description of the surface or corridor involved and the depth setting you used. For an export that failed, the target path and whether that file was open at the time tell us most of what we need.

Version History

Version Number	Version Description

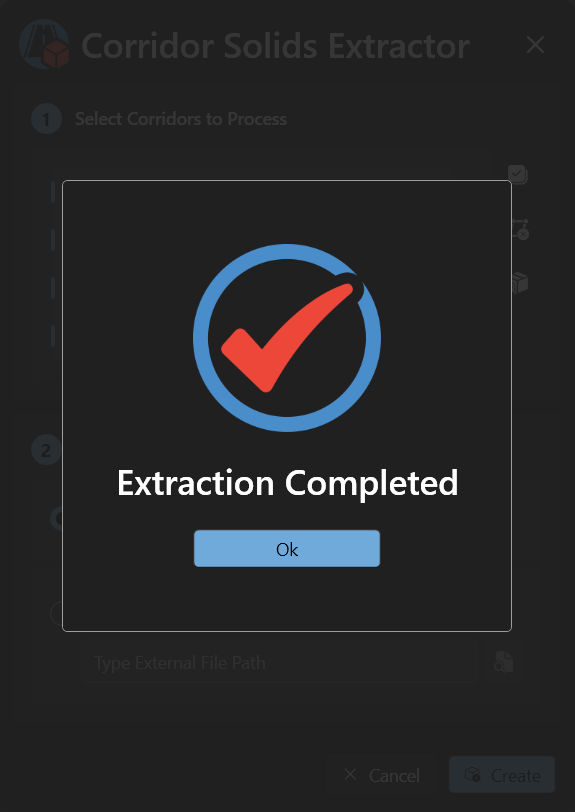

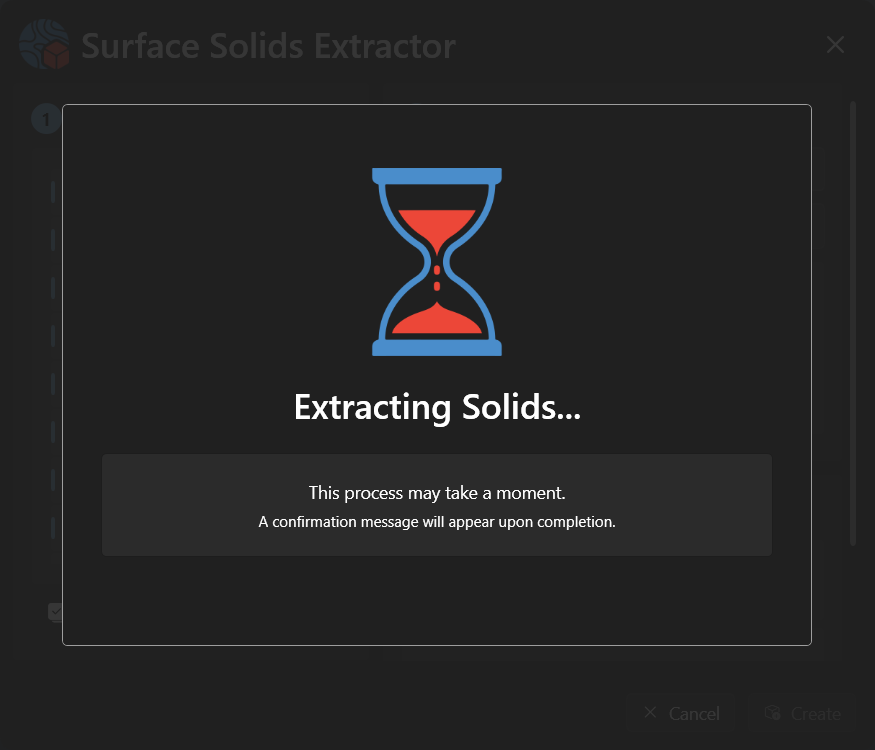

3.0.0	New in version 3 Safer external export. Writing solids to a separate DWG now builds them in the current drawing, clones them out, and rolls the current drawing back to its original state, so your working file is left unchanged. The target file is created if it does not exist. Errors you can act on. A target DWG that is already open, an invalid path or a failed save is now reported with a clear message, and the loading overlay always clears rather than leaving a stuck spinner. A rebuilt interface. Dialogs show progress with an entity count and a working cancel, close on a clean run, and stay open with a summary when a source was skipped. Selection lists gain select all, deselect all, and pick-from-drawing. Civil 3D 2025, 2026, and 2027.
2.0.0	What's New in Version 2.0: Complete Rebuild on .NET 8: The entire plugin has been re-architected and migrated from .NET Framework 4.8 to .NET 8, resulting in significant performance gains and enhanced stability. Modern UI/UX Overhaul: A completely redesigned user interface that is cleaner, more intuitive, and easier to use. Improved Code Quality: Refactored for better maintainability and reliability, ensuring a more robust tool for your workflow.
1.0.0	Initial release.
