Pipe Network Alignments and Profile View Generator

Pipe Network Alignments and Profile View Generator

Win64, English

Pipe Network Alignments, Profiles, and Profile Views will be generated from Excel inputs (Start structure, End structure, and Alignment name).

General Usage Instructions

Please find below the workflow instructions for the app:

  1. Ensure that the pipe network already exists in your Autodesk® Civil 3D® document.
  2. Create an Excel file with three columns: start structure, end structure, and alignment names. If needed, refer to the test Excel sheet provided. Make sure that the start structure and end structure names match the Civil 3D document.

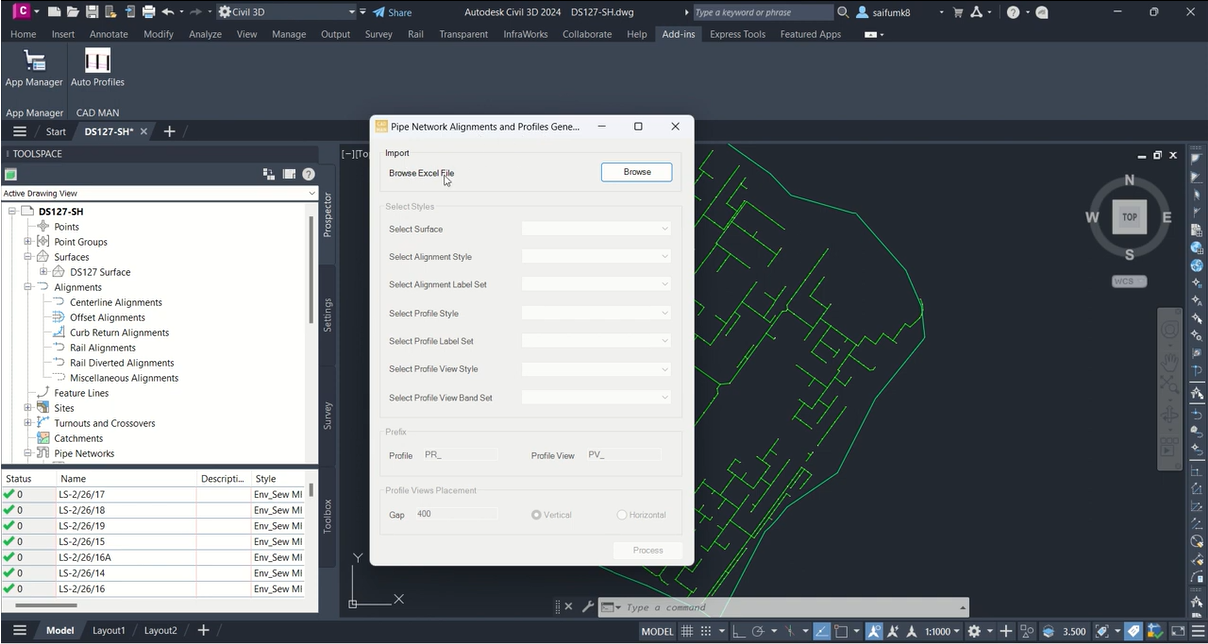

  3. Run the program and browse the Excel file.

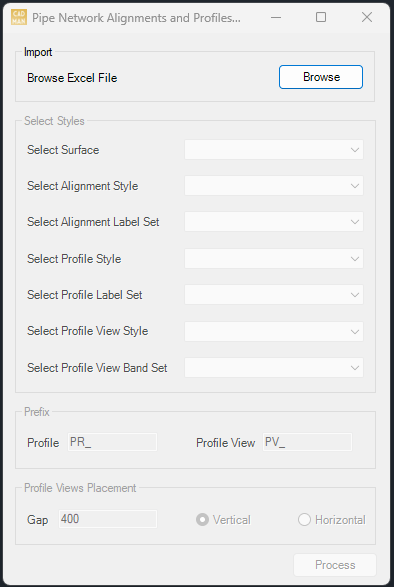

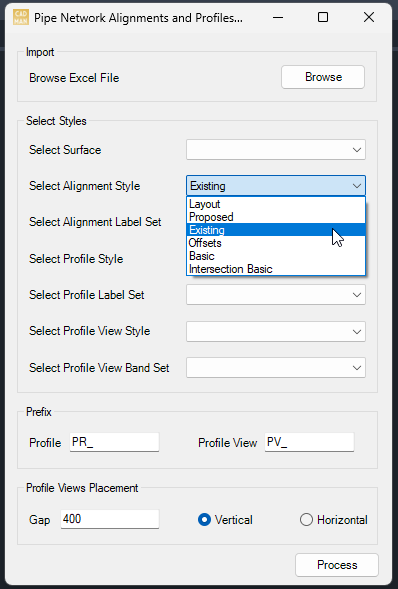

  4. Select the desired styles and click on the 'Process' button.
  5. Pick the point to insert the profile



Ribbon/Toolbar Icon Command Command Description


Pipe Network Alignments, Profiles and Profile Views will be generated from Excel inputs (Start structure, End structure and Alingmane name)


The installer that ran when you downloaded this app/plug-in from the Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.
