Shallow Foundation (Basic)
Win64, EnglishGeneral Usage Instructions
Set general properties in the Setting form.
Draw land boundary by polyline to create footings inside.

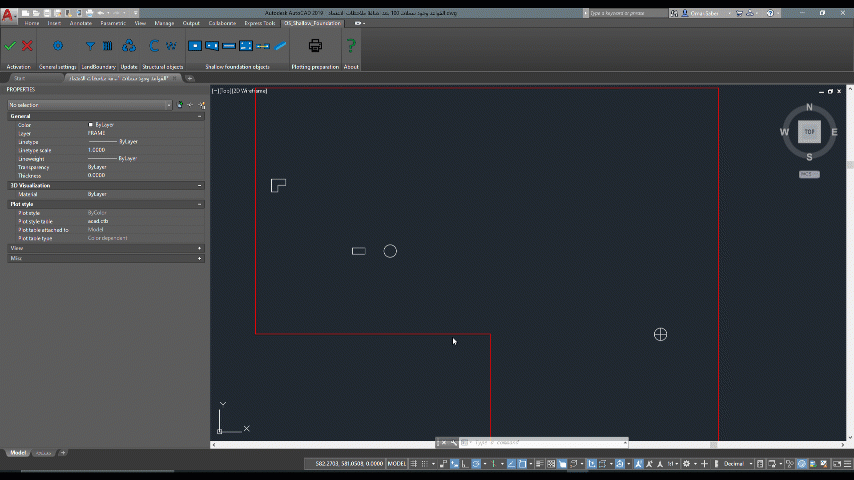

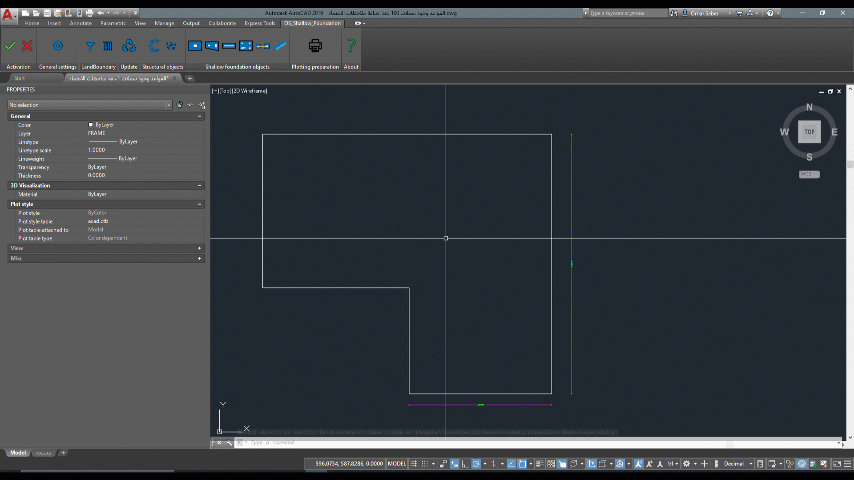

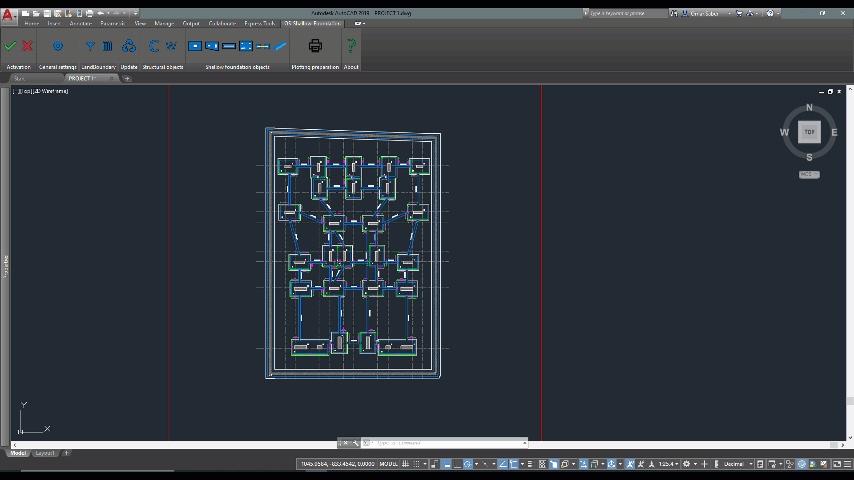

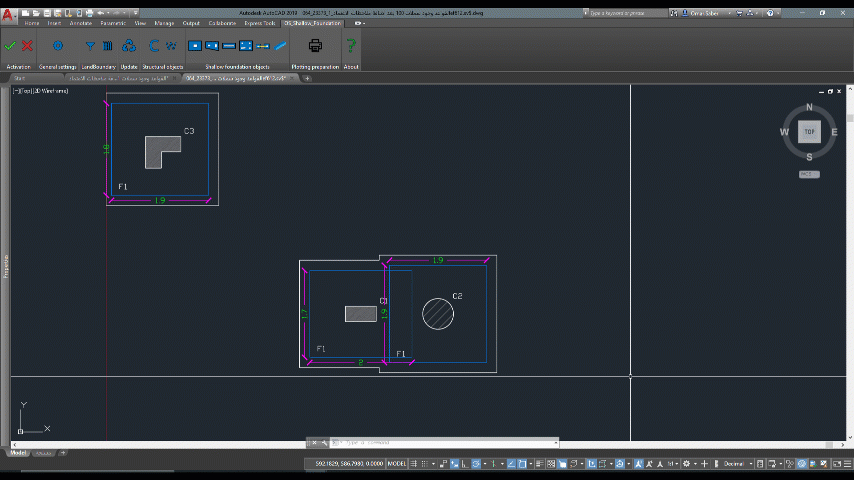

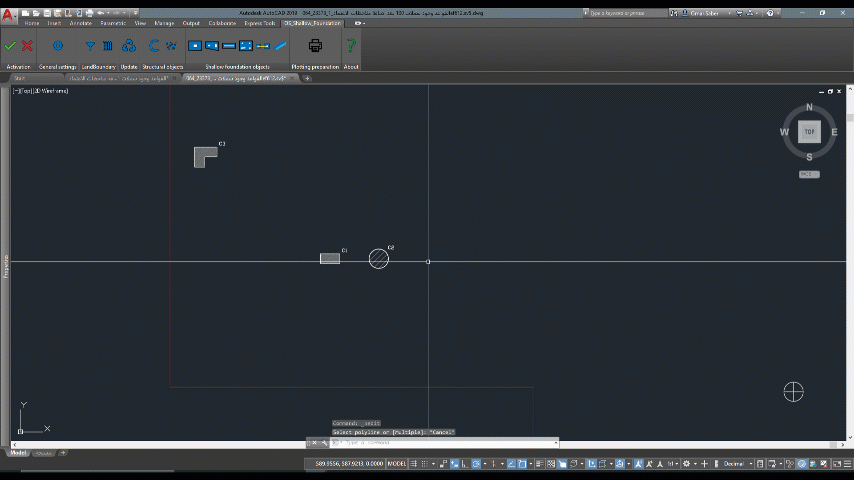

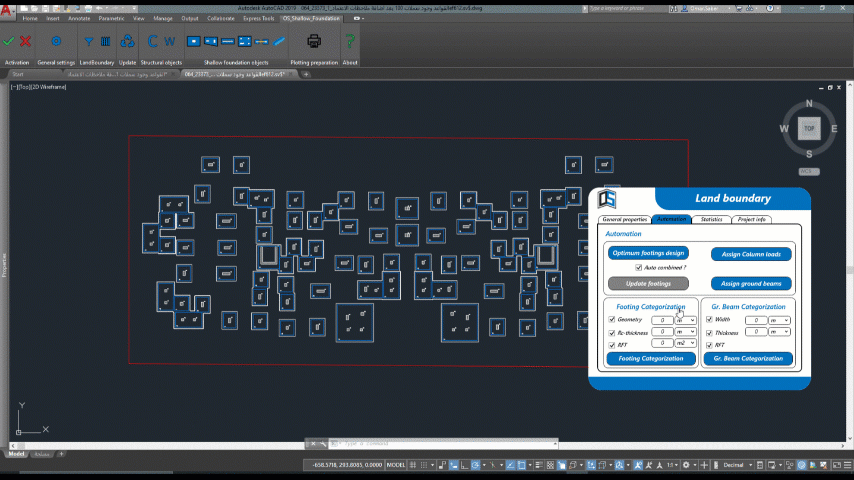

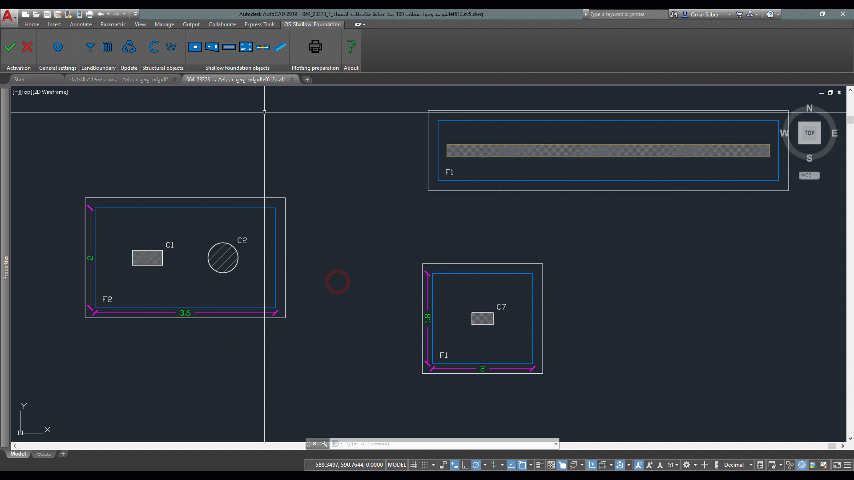

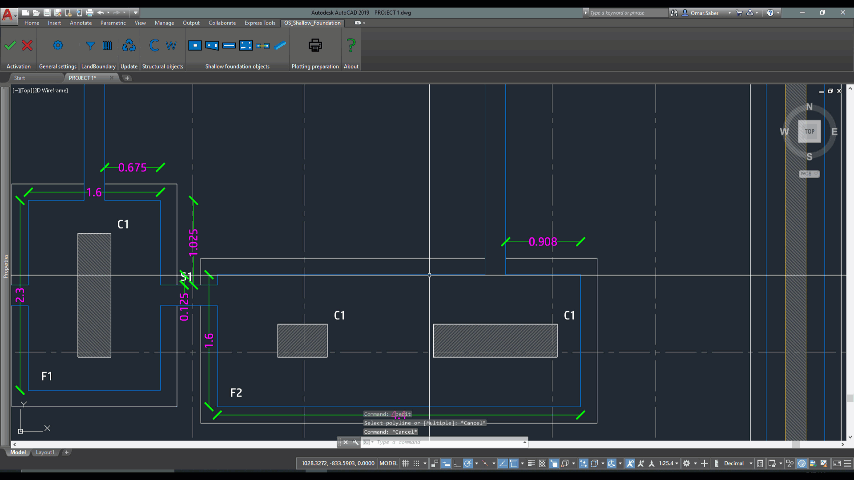

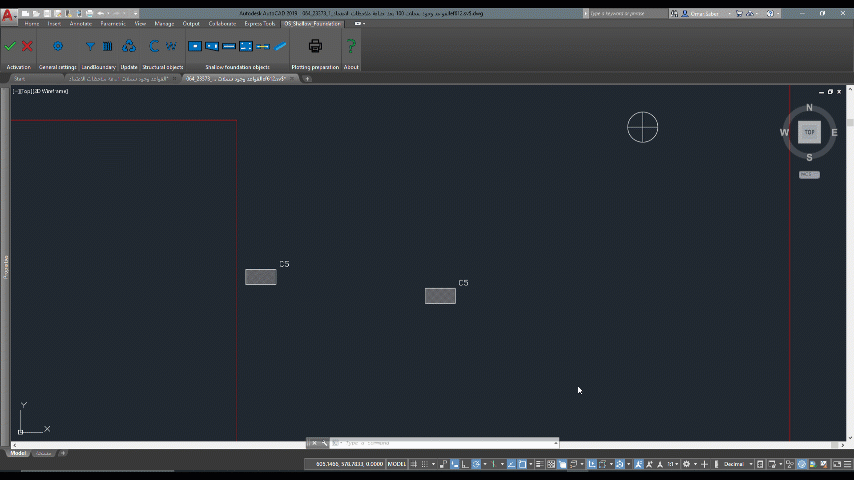

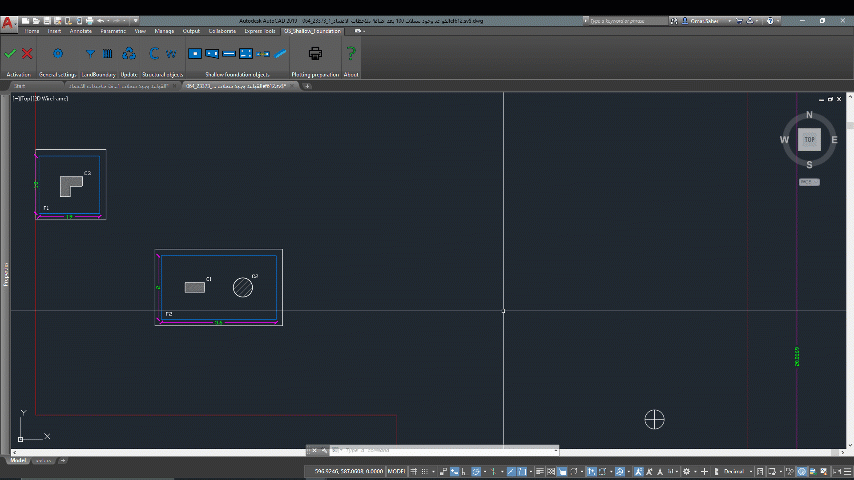

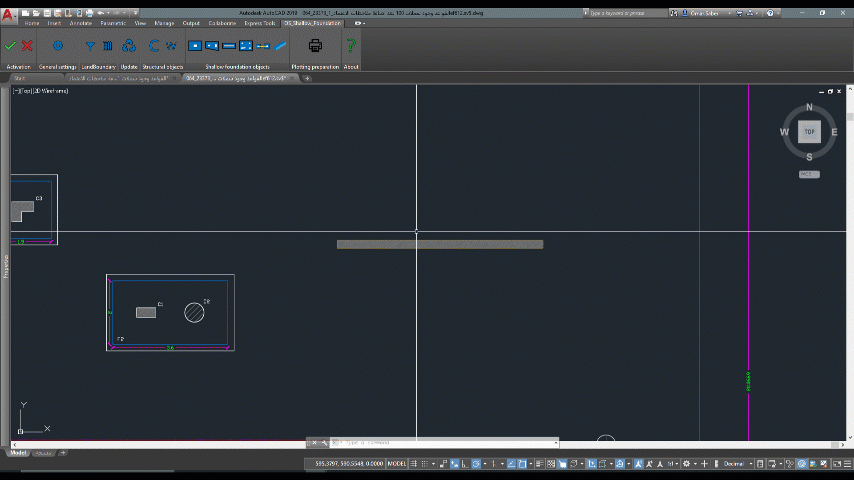

Screenshots
Commands
| Ribbon/Toolbar Icon | Command | Command Description |
|---|---|---|
|
Activate_OsObjects |
Activate Os Objects |
|
OS_Settings |
Set the general settings for the entire file. |
|
OS_Update |
Update drafting (Auto trimming & Auto dimensioning) |
|
OS_ColCreations |
Converting Polylines/Circle of Column's layer to Column object, Also Converting Curves of Structural wall's layer to Strucutural wall object and Create automatic land boundary. |
Installation/Uninstallation
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.
Additional Information
To close any form you can simply click the ESC button.
You can check the following pages for more videos and posts:
Facebook page: https://web.facebook.com/Os-solutions-107847888068740/?ref=pages_you_manage
Known Issues
- Don't trim Footings, it will be trimmed automatically, to trim it you can execute "OSPlotPreparation" then start your own trimming.
- Footing objects shouldn't be copied, it should only be created from the columns or structural wall in case of strip footings.
Contact
Author/Company Information
Support Information
Plugin E-mail: osasdkinfo@gmail.com
Developer E-mail: omarsaber466@gmail.com
Facebook page: https://www.facebook.com/Os-solutions-107847888068740/
Version History
| Version Number | Version Description |
|---|---|
|
1.0.0 |
Initial release |
