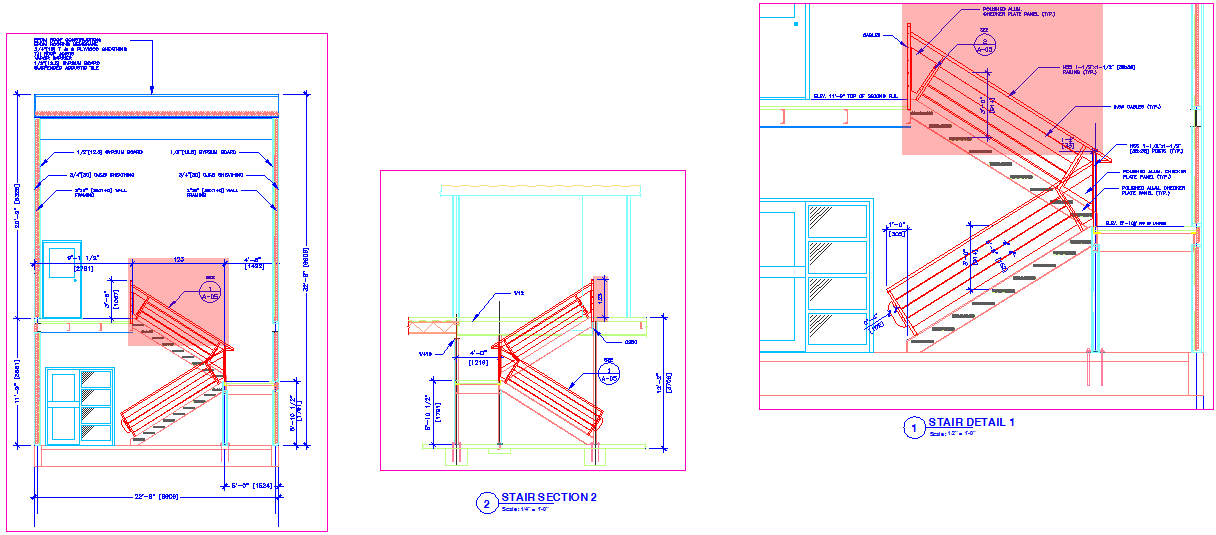

This app highlights dimensions in a drawing for which the user has customized the dimension text.

General Usage Instructions

Once loaded, the DIMPATROL command can be used to turn on (and off) the highlighting of potentially problematic dimensions: dimensions whose text has been overridden and therefore may not match the actual dimension. To change the color used to highlight the dimension, use the DIMPATROLCOLOR command or for command line usage -DIMPATROLCOLOR. To change the transparency used, use the DIMPATROLTRANSPARENCY command.



Ribbon/Toolbar Icon Command Command Description


Sets the color used to highlight the detected dimensions.


Sets the transparency used to highlight the detected dimensions.


Checks the drawing for dimensions with overridden text.


The installer that ran when you downloaded this app from Autodesk App Store will start installing the app. Or, double-click the downloaded installer to install the app. You may need to restart the Autodesk product to be able to run the app.

To uninstall this app, exit the Autodesk product if you are currently running it.

On Windows 11 and 10 version 1703 or later press Windows+I on the keyboard to access Settings or click or right-click the Windows Start button and then select Settings. Click on Apps (optionally followed by Apps & features). On older Window versions click Control Panel > Programs > Programs and Features or Control Panel > Add.

Additional Information

For more and up-to-date information see our app page at https://jtbworld.com/dimensionpatrol.

Known Issues


Company Name: JTB World Inc.
Support Contact: info@jtbworld.com

Author/Company Information

JTB World Inc.

Support Information

For support visit our Contact page.

Version History

Version Number Version Description


Added support for AutoCAD 2024.


Added support for AutoCAD 2023.


Added support for AutoCAD 2022. Upgraded the licensing procedure.


Added Autodesk® AutoCAD® 2021 support. No change in version number.


Added support to AutoCAD® 2015 (No change in version number)
