3DPolyToProfile

3DPolyToProfile

Win64, English

Civil Reminders
This will help in creating an Autodesk® Civil 3D® Profile based on the vertices of the 3DPolyline.

General Usage Instructions

Type the command and follow the command line prompts.

Select a 3DPolyline and then an alignment.

Enter in the profile name and then the profile will be created based on the vertices of the 3DPolyline

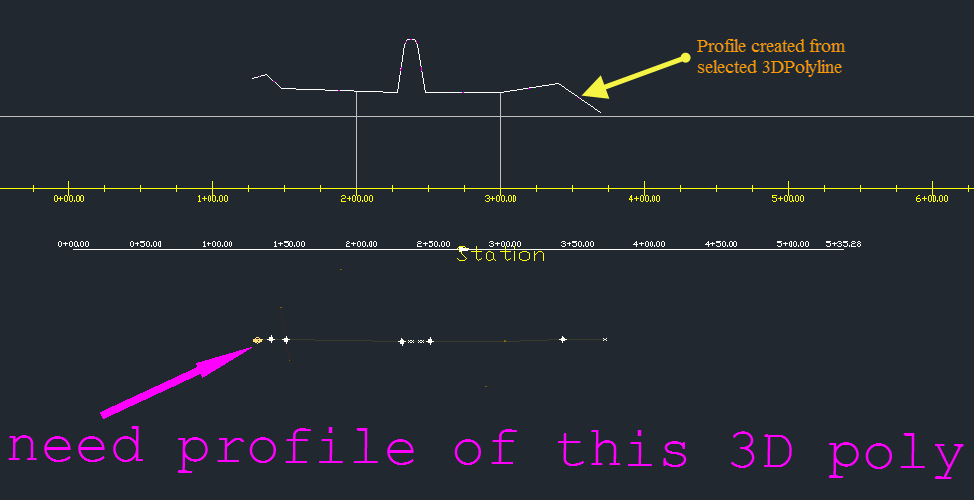

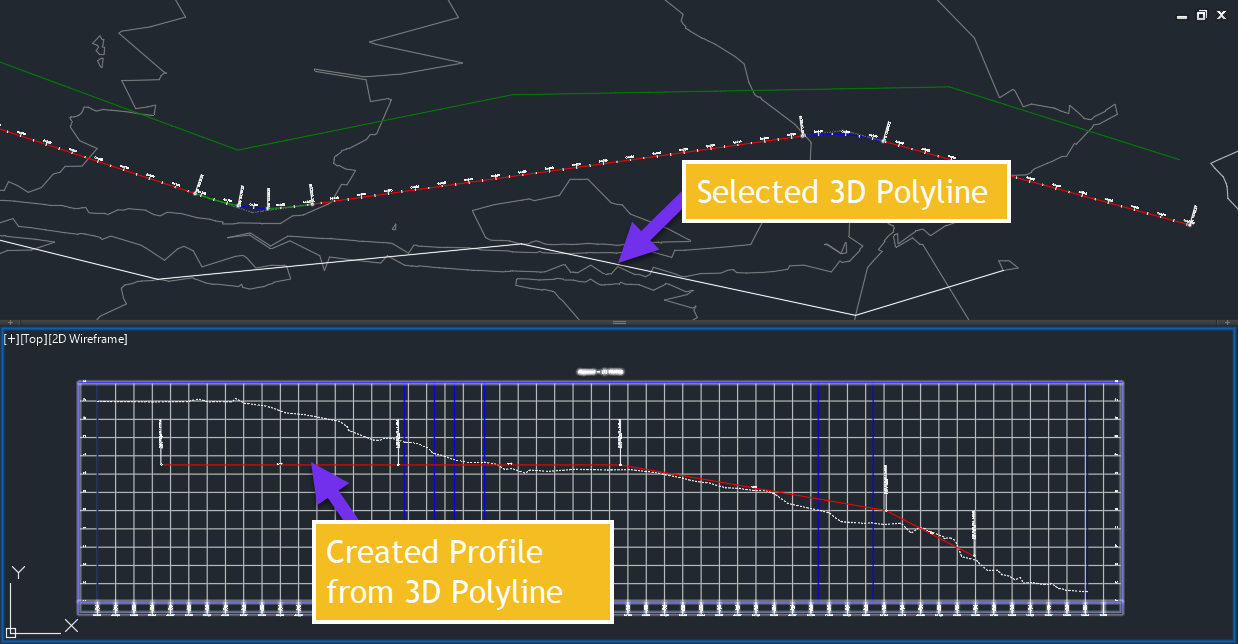

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

S-3DToProf

Creates a Civil 3D Profile based on the vertices of the 3DPolyline.

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

None

Contact

Company Name: Civil Reminders

Author/Company Information

Civil Reminders

Support Information

Version History

Version Number Version Description

1.1.0

Upgrade to 2019 version (No change in version number).
