ExtractC3DSurfBoundaries

ExtractC3DSurfBoundaries

Win64, English

Civil Reminders
Extracts all of the boundaries from surfaces in the drawing.

General Usage Instructions

This ExtractC3DSurfBoundaries will extract all of the boundaries from the surfaces contained within a drawing.

The user selects the command by either typing it or pressing the command on the Add-In Tab on the ribbon.

This command is useful if you have multiple surfaces in a drawing and are going to paste them together.

By using this command you then have a collection of 3Dpolylines that you can then combine to create an outer boundary for your new surface.

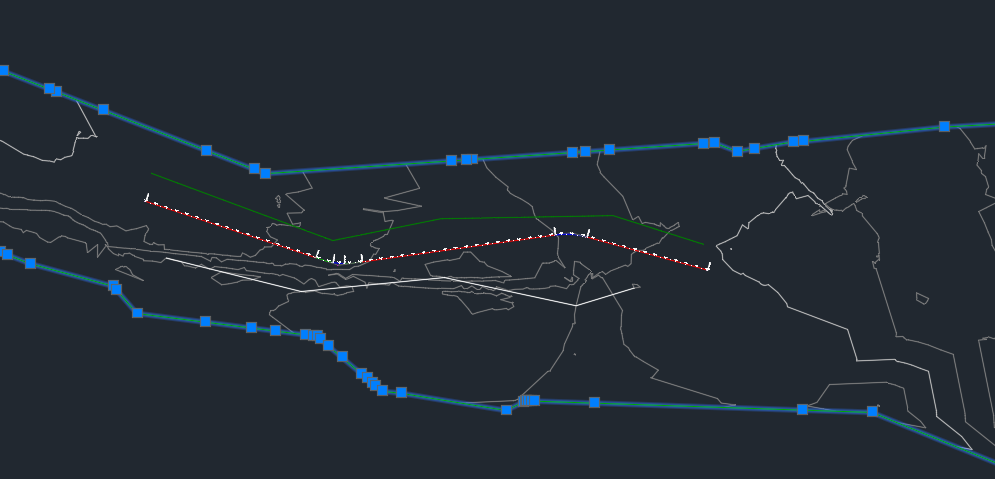

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

ExtractC3DSurfBoundaries

This command will extract the boundaries from the surfaces

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

This plug-in was written by Christopher Fugitt from Civil Reminders.

Known Issues

None.
