3D Print Pro

3D Print Pro

Mac OS, English

Jerome Briot
An extended version of the 3D Print utility shipped with Autodesk® Fusion 360™.

General Usage Instructions



After installing the add-in, select "3D Print Pro" under the MAKE menu.
Click on the information icon at the bottom of the dialog to view the help file.

Step 1: set the global settings
First, you have to set the global settings:
  •     Units
  •     File
  •     Output
  •     Graphics
These settings are saved so you don't have to edit them every time you export an object.

Step 2: set the object settings
Next, you have to set the settings for each object to export on a design.
  •     Selection
  •     Orientation
  •     Scale
  •     Mesh
  •     Information
These settings are saved so you don't have to edit them every time you export an object.

Step 3: export to STL file or to 3D print utility
For the last step, just click on "Export to STL File". This will use the global settings and export all objects that have settings linked to them.
Note that if the global and the object settings are already set, this is the only action you have to perform.

Screenshots

Commands

Installation/Uninstallation

Install:

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. Or, simply double-click the downloaded installer to install the app/plugin.



Uninstall:

You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.

Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Autodesk® Fusion 360™.

- Navigate to ./ApplicationsPlugins folder and select the app bundle you want to uninstall

- Either drag the app bundle to the Trash, or right-click and select “Move to Trash”

- Right-click on the Trash-Can and select “Empty Trash”

- If you prefer keystrokes, you can also just select the app bundle and then hit Command+Delete to move the app to Trash, then empty the Trash and the app will be removed.

Additional Information

Known Issues

Some 3D print utilities are partially supported. More information on the Fusion 360 forum.

Contact

Company Name: Jerome Briot
Support Contact: jbtechlab@gmail.com

Author/Company Information

Jerome Briot

Support Information

Email me at jbtechlab@gmail.com with feedback or questions.

Write an explicit subject to your email (i.e. "3D Print Pro" + your problem).

Version History

Version Number Version Description

1.2.0

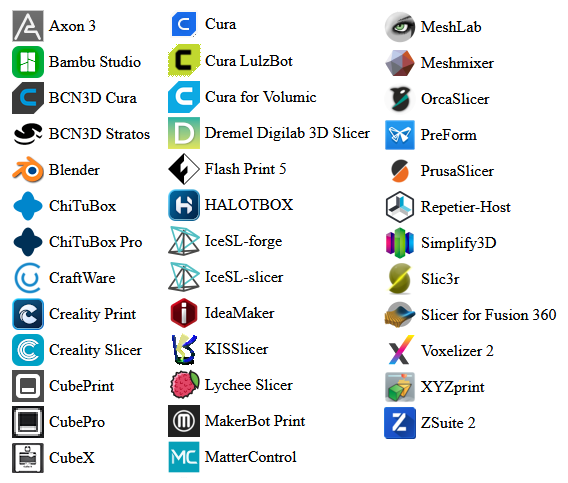

Fix .app selection on Mac (custom 3D print utility) Fix export with null area triangles (meshbody) Fix lost custom utility when another one is selected Increase line weight of coordinate frame Add support for Simplify3D Add support for BCN3D Cura Add support for CraftWare Add support for KISSlicer
