MachiningCloud
Retrieve feeds and speed data for your tools through MachiningCloud's comprehensive database.

General Usage Instructions

To get Feeds and Speeds data from MachiningCloud:

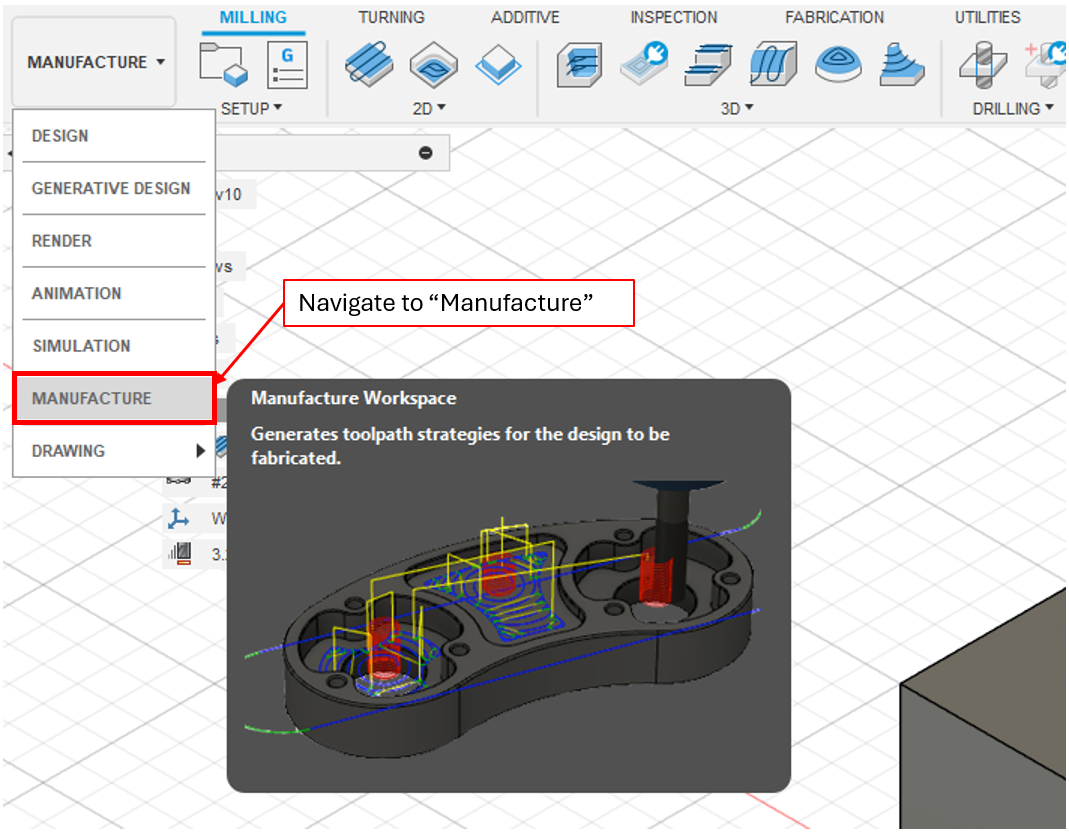

  1. In Autodesk® Fusion®, Go to the "Manufacture" workspace.

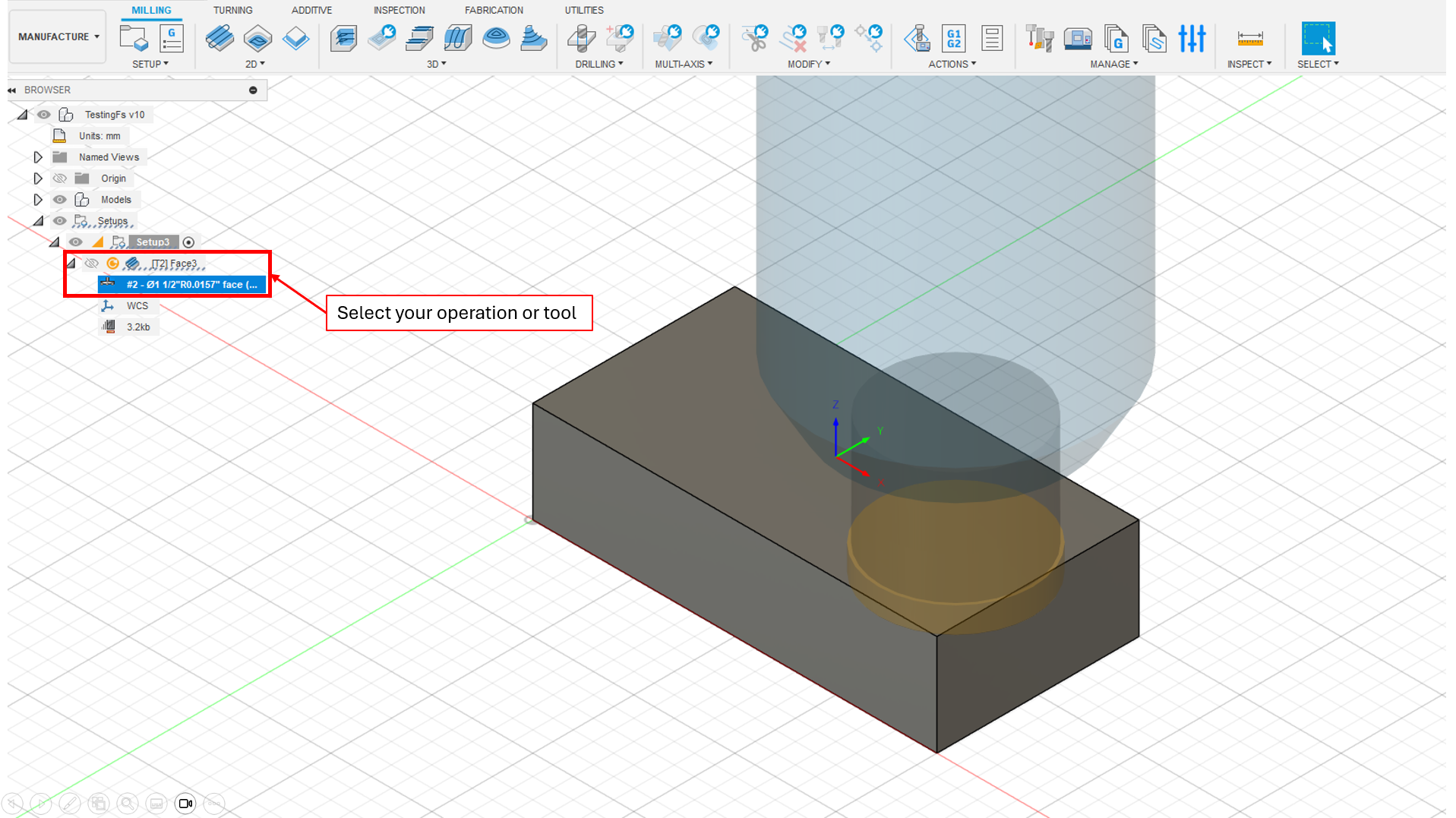

  2. Select your operation or tool

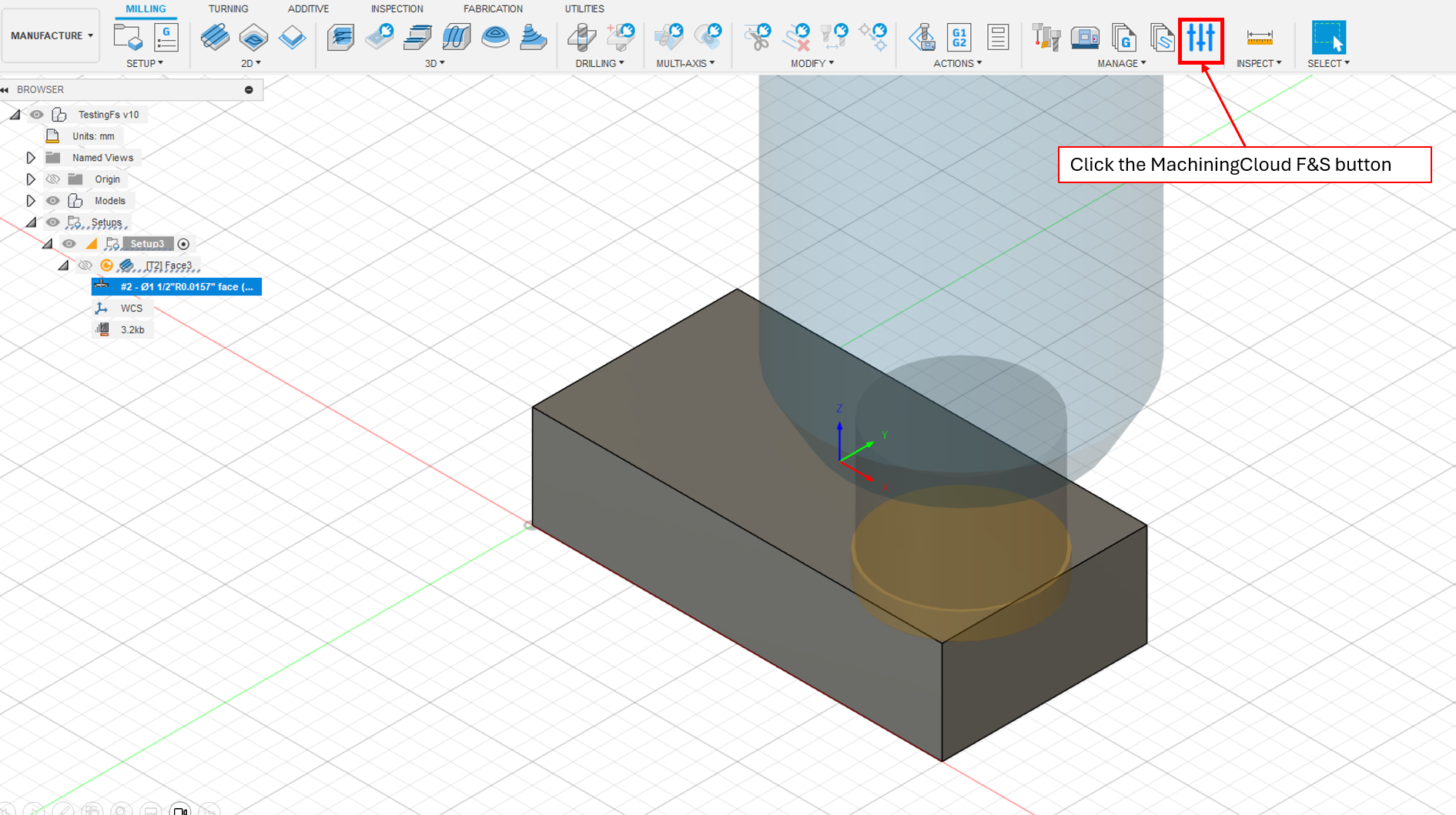

  3. Click the MachiningCloud F&S button

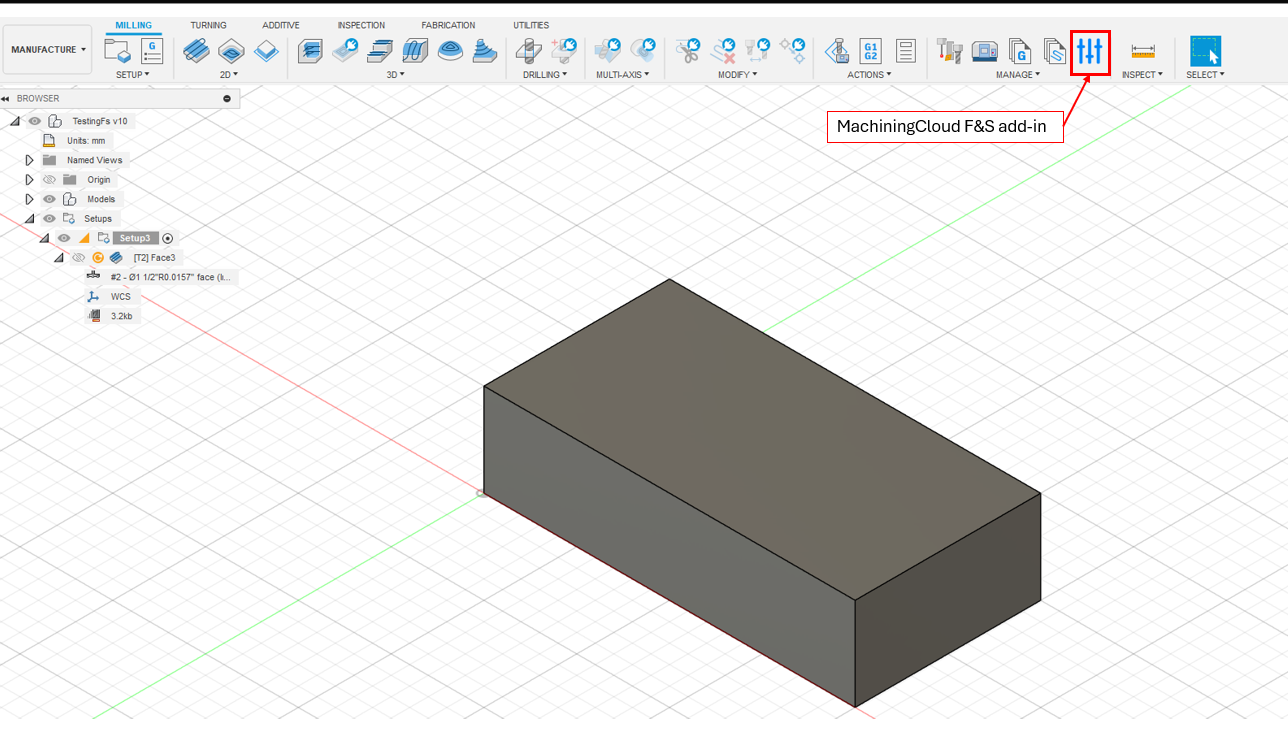

    1. the button is available under the Manage ribbon, within the "Milling"," "Turning", and "Utilities" tabs
  4. If prompted, please sign in using your MachiningCloud account

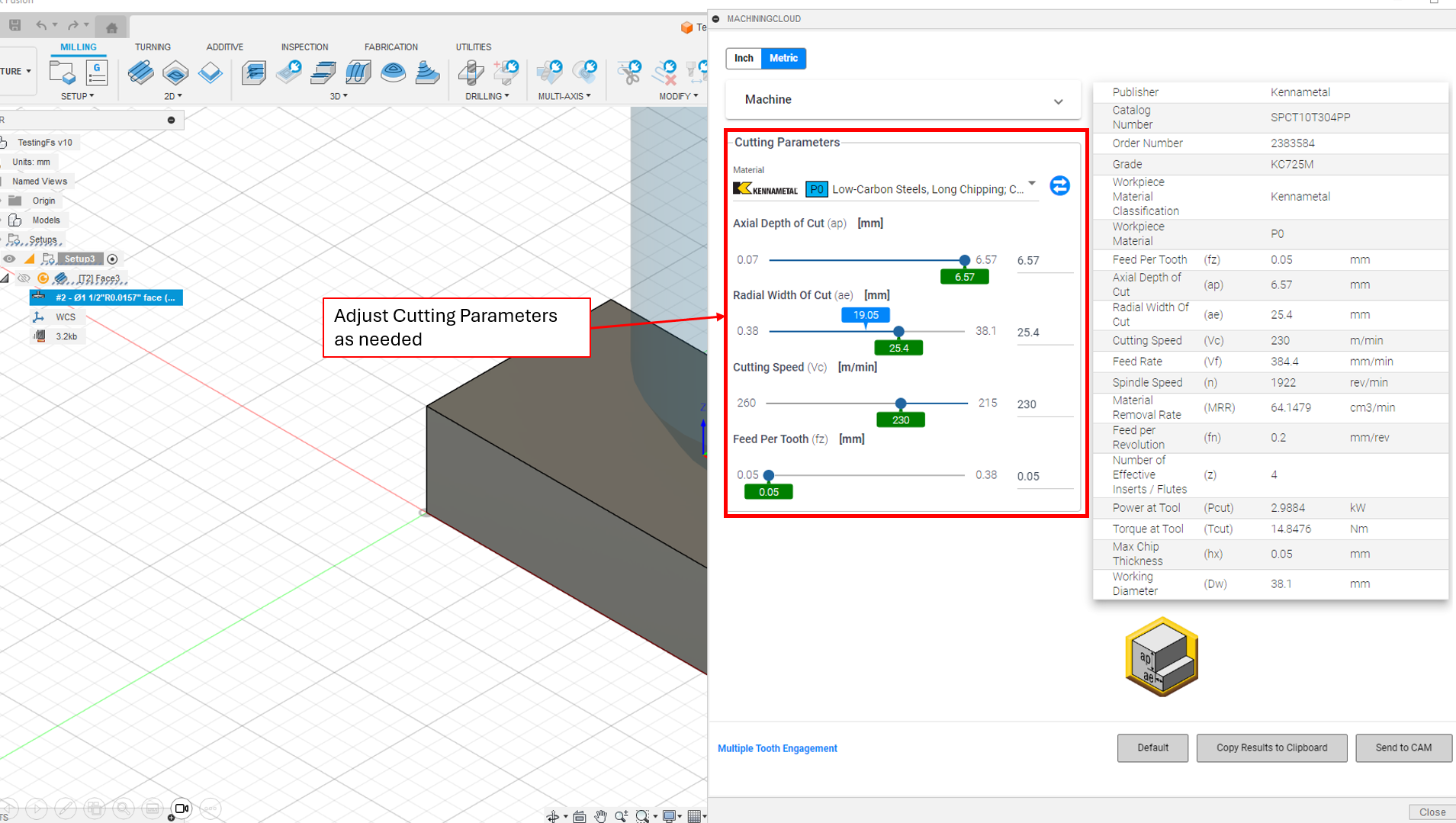

  5. Adjust cutting parameters as needed

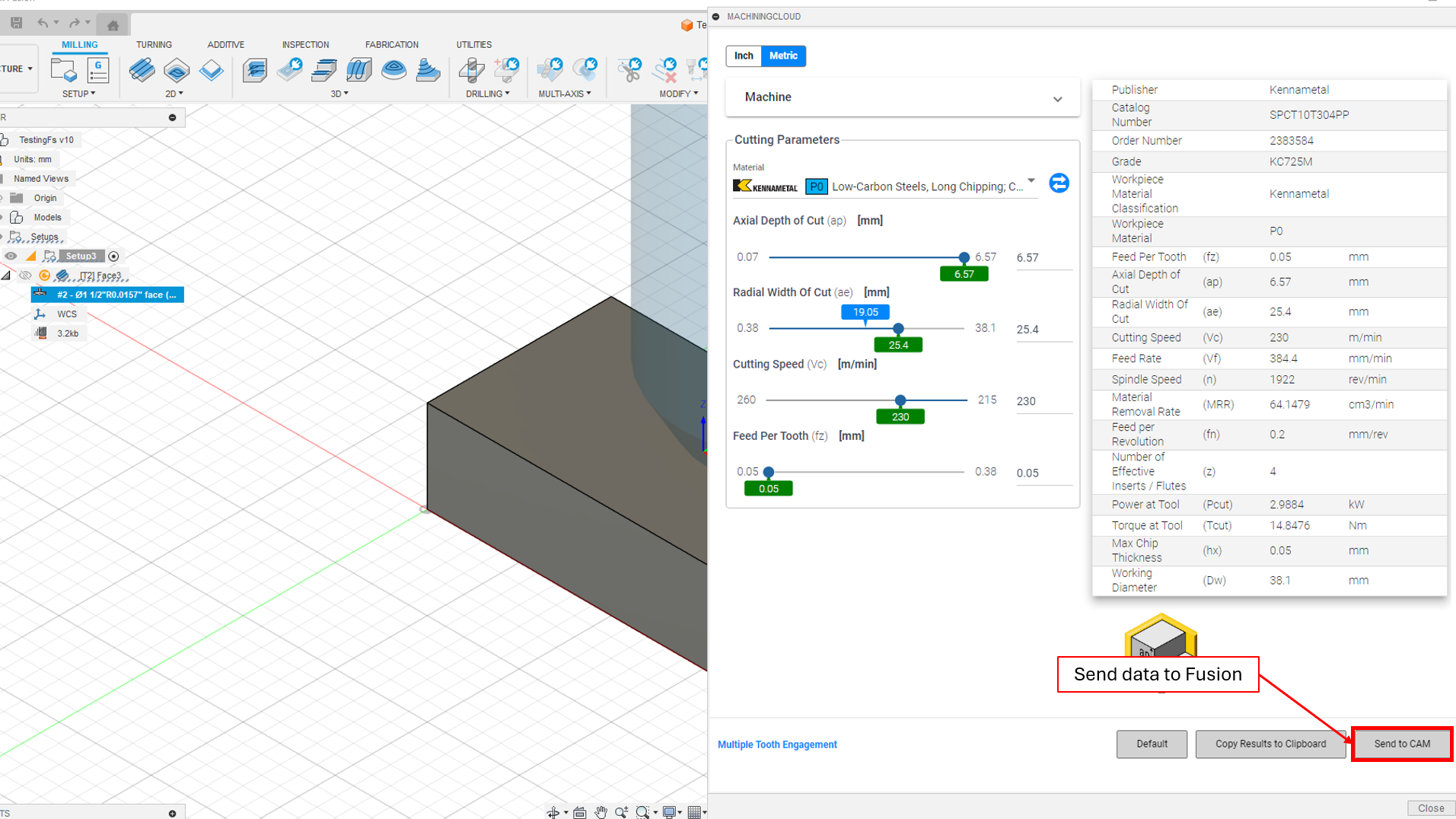

  6. At the bottom of the page, click "Send to CAM"

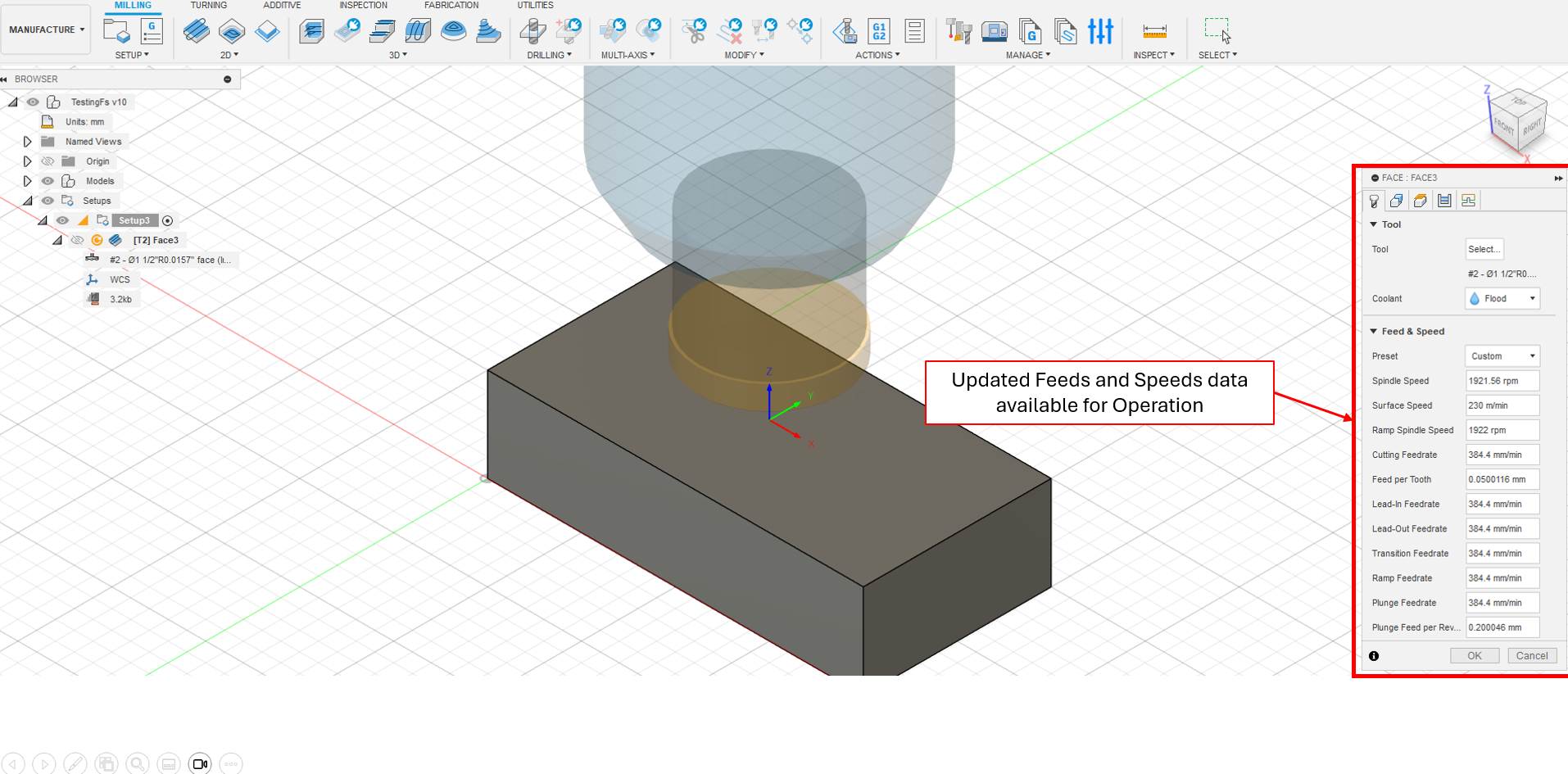

  7. Data is available under the operation

Commands

Installation/Uninstallation

Install:
1. Download the installer from the Autodesk App Store.
2. Right-click on the "Downloads" folder and select "Open in Finder".
3. Right-click on the "MachiningCloudFS_macos.pkg" -> "Open With" -> "Installer".


Uninstall:
You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.
Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Fusion.
- Navigate to the ./ApplicationsPlugins folder and select the app bundle you want to uninstall
- Either drag the app bundle to the Trash or right-click and select “Move to Trash”
- Right-click on the Trash-Can and select “Empty Trash”
- If you prefer keystrokes, you can also just select the app bundle and then hit Command+Delete to move the app to Trash, then empty the Trash and the app will be removed.

Additional Information

Known Issues

Contact

Company Name: MachiningCloud

Author/Company Information

MachiningCloud

Support Information

For questions or feedback, please reach out to us at support@machiningcloud.com

Version History

Version Number Version Description

1.0.001

Initial release
