Parameter I/OWin64, English
General Usage Instructions
Once installed, the "Parameter I/O" add-in will create a new button in the menu of the "Model" workspace's "Modify" panel.

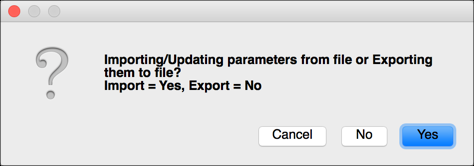

When clicking this button a dialog will pop up where you can choose if you want to import/update parameters inside the model from the CSV (Comma Separated Values) file or Export them to a CSV file.
Then another dialog will show asking you to select the file location and name to use.
When importing parameters from a file: if a given parameter already exists then its unit, value and comment will get updated, otherwise, a new user parameter will be created with the provided values.

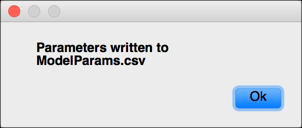

When exporting parameters to a file: all the parameters inside the model will be written to the given CSV file.

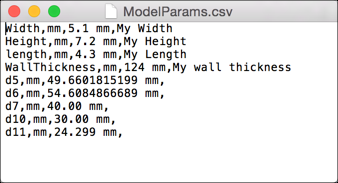

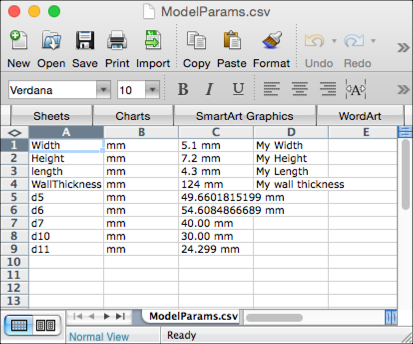

You can see in one of the below screenshots the CSV format required for importing, but you can also examine a CSV file created when exporting parameters using this add-in.
You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.
Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Autodesk® Fusion 360®.
The installer that ran when you downloaded this app/plug-in from Autodesk Exchange Store has already installed the app/plug-in.
To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.
OR, you can uninstall it from 'Control Panel\Programs\Programs and Features' (Windows 7/8/8.1) or Add/Remove Programs (Windows XP), just as you would uninstall any other application from your system.
(C) Copyright 2015 by Autodesk, Inc.
Permission to use, copy, modify, and distribute this software in object code form for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both that copyright notice and the limited warranty and restricted rights notice below appear in all supporting documentation.
AUTODESK PROVIDES THIS PROGRAM "AS IS" AND WITH ALL FAULTS. AUTODESK SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. AUTODESK, INC. DOES NOT WARRANT THAT THE OPERATION OF THE PROGRAM WILL BE UNINTERRUPTED OR ERROR-FREE.
|Version Number||Version Description|
|Added support for inch values like 3' 3" In case of parameters referencing other parameters that do not yet exist, it will keep trying to add them until all are done.|
|Added support for inch values like 3' 3" In case of parameters referencing other parameters that do not yet exist, it will keep trying to add them until all are done|
