AMAIZE for Autodesk® Fusion®

AMAIZE for Autodesk® Fusion®

Win64, English

1000 Kelvin
AMAIZE for Autodesk® Fusion® is your gateway to 1000 Kelvin AI copilot for Additive Manufacturing.

General Usage Instructions

  • Download and install Fusion software. (
  • Run Fusion
  • Go to the Extensions dialog and gain access to the “Manufacturing Build” extension.
  • If you do not already have AMAIZE tokens, contact to gain access to tokens. You can use the AMAIZE tokens to predict and optimize projects or download corrected print files from AMAIZE.
  • Load this AddIn (see "Additional Information" section)
  • Create a component in the “Design” Workspace or open a design that was previously created.
  • Switch to the "Manufacture" workspace and switch to the "Additive" Tab
  • Open the "Setup" Dialog
  • Create a new Setup (Operation type = Additive) with any SLM Solutions Metal System. Metal powder bed fusion 3D printers from SLM Solutions are listed in the "Fusion library".
  • Select an “Inconel 718” or “Ti6Al4V” print setting associated with the selected printer from the Fusion library of print settings.

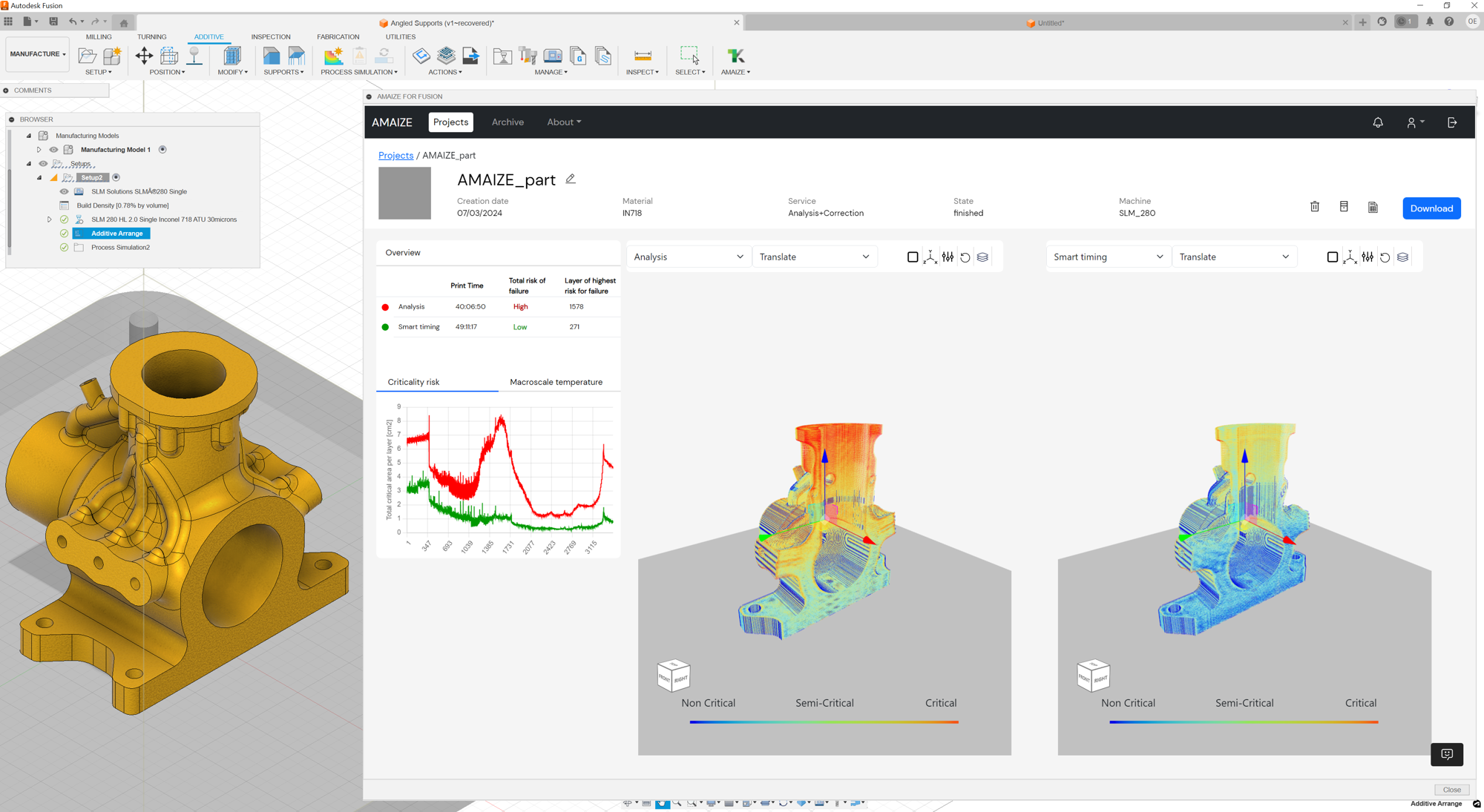

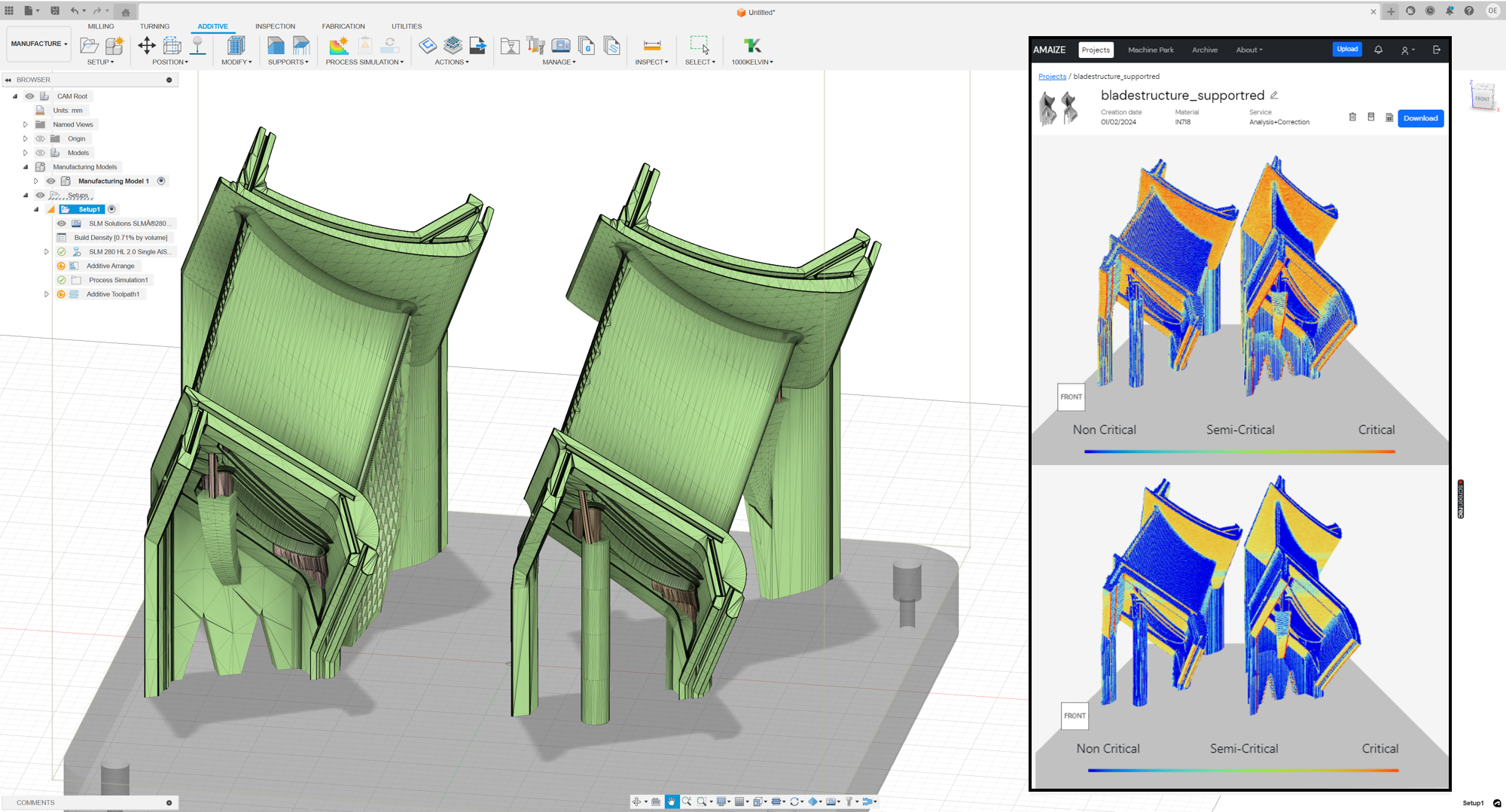

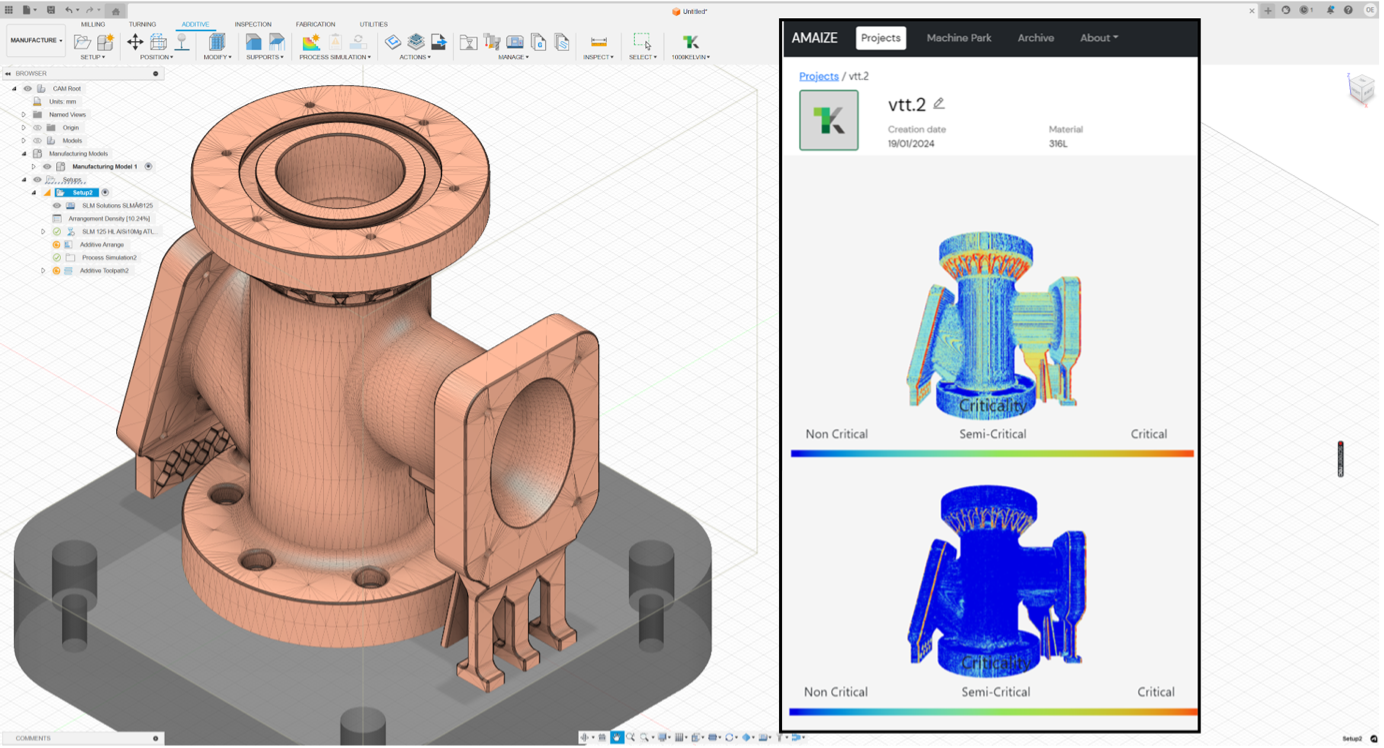

Once an Additive Setup is created and the Additive Arrange actions are complete, you will see a new panel named “1000Kelvin” on the Additive tab with a command named “1000Kelvin Copilot”





Double-click the downloaded installer from the Autodesk App Store to install the app/plug-in.



You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.

Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Fusion.

Then, Go to 'Control Panel\Programs\Programs and Features' (Windows 10/11), just as you would uninstall any other application from your system.

Additional Information

Starting the Add-In:

The AMAIZE for Fusion Add-In can be started manually in the "Add-Ins" tab of the "Scripts and Add-Ins" dialog after installation by selecting the "AMAIZE For Fusion" Add-In and clicking the "Run" button. It is also possible to always start the Add-In on the startup of Fusion by checking the "Run on Startup" checkbox.

Known Issues


Company Name: 1000 Kelvin
Support Contact:

Author/Company Information

1000 Kelvin

Support Information

Version History

Version Number Version Description

Initial release
