Serial to CNC

Serial to CNC

Win64, English

Chad Krause
Send Autodesk® Fusion 360™ CNC programs to the machine via RS-232 serial.

General Usage Instructions

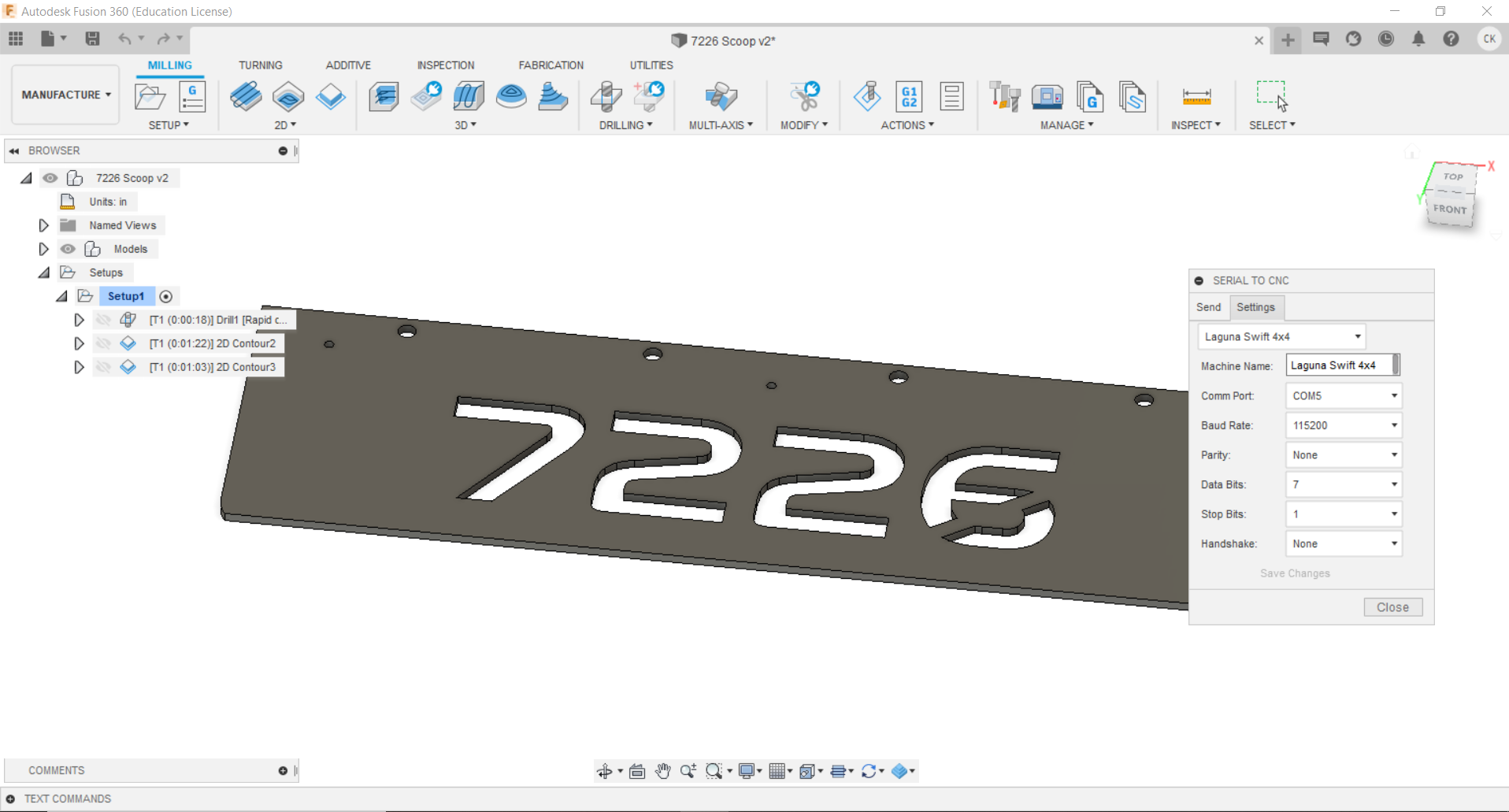

Initial Setup:

  1. Add/edit the default machine
  2. Add additional machines you need



To send the program to the machine:

  1. Post Process the CNC Program

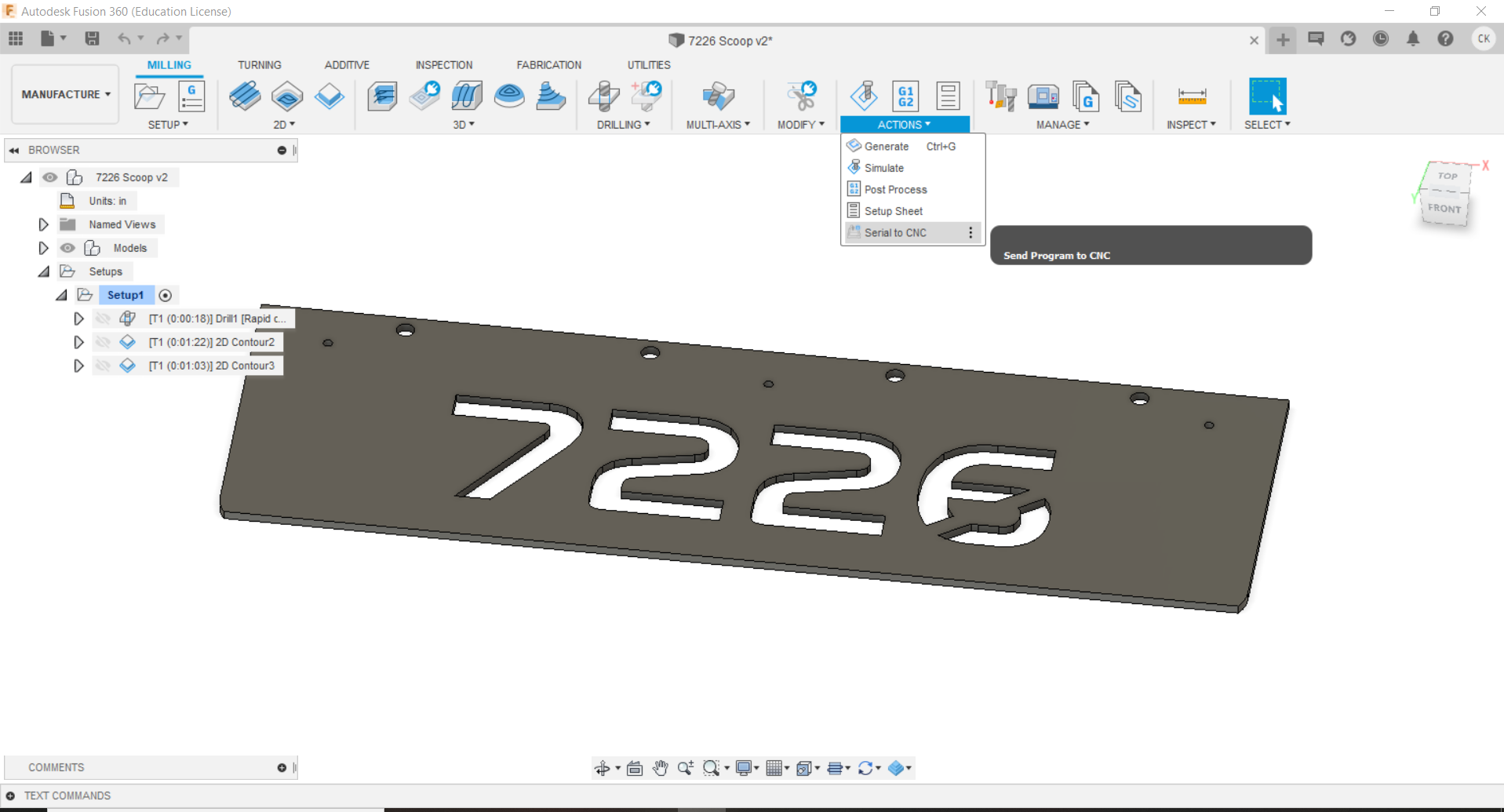

  2. Open the Serial to CNC interface

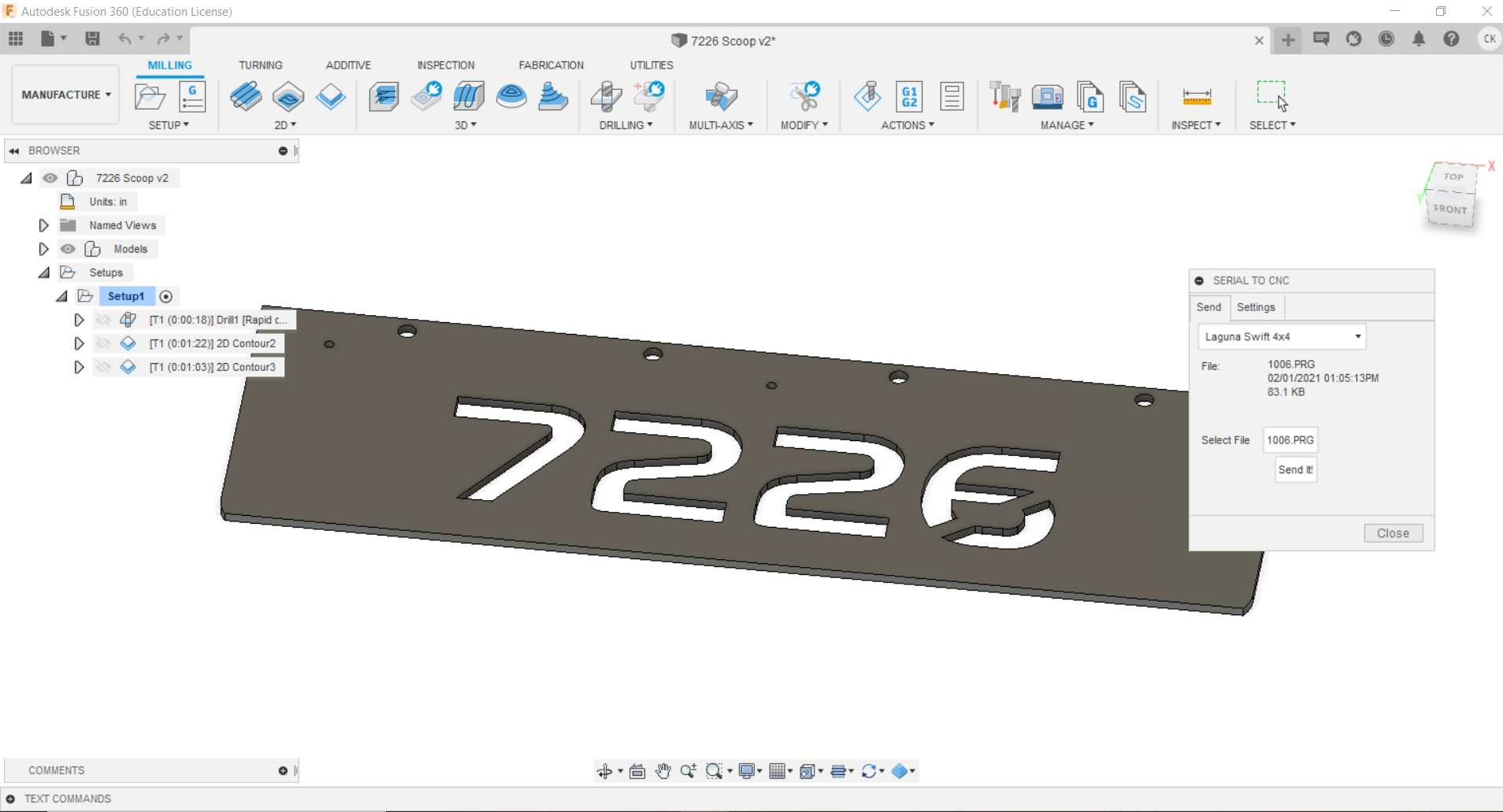

  3. Open the post-processed file
  4. Select the machine settings
  5. Click Send It!

Screenshots

Commands

Installation/Uninstallation

Install:

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

Uninstall:

You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.

Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Autodesk® Fusion 360™.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.

OR, you can uninstall it from 'Control Panel/Programs and Features' (Windows 7/8.1/10), just as you would uninstall any other application from your system.

Additional Information

Questions? Comments? Feature request? Email me at chad@chadkrause.com

Known Issues

The settings may not migrate when Fusion 360 update. Fix for that coming in the next release.

Contact

Company Name: Chad Krause
Support Contact: chad@chadkrause.com

Author/Company Information

Chad Krause

Support Information

Contact me at chad@chadkrause.com for support.

Version History

Version Number Version Description

1.1.2

Initial Release
