DXF Converter Pro for Autodesk® Fusion 360™

DXF Converter Pro for Autodesk® Fusion 360™

Win64, English

Visionworkplace Software Solutions
The plugin allows you to convert Autodesk® Fusion 360™ models to a DXF format.

General Usage Instructions

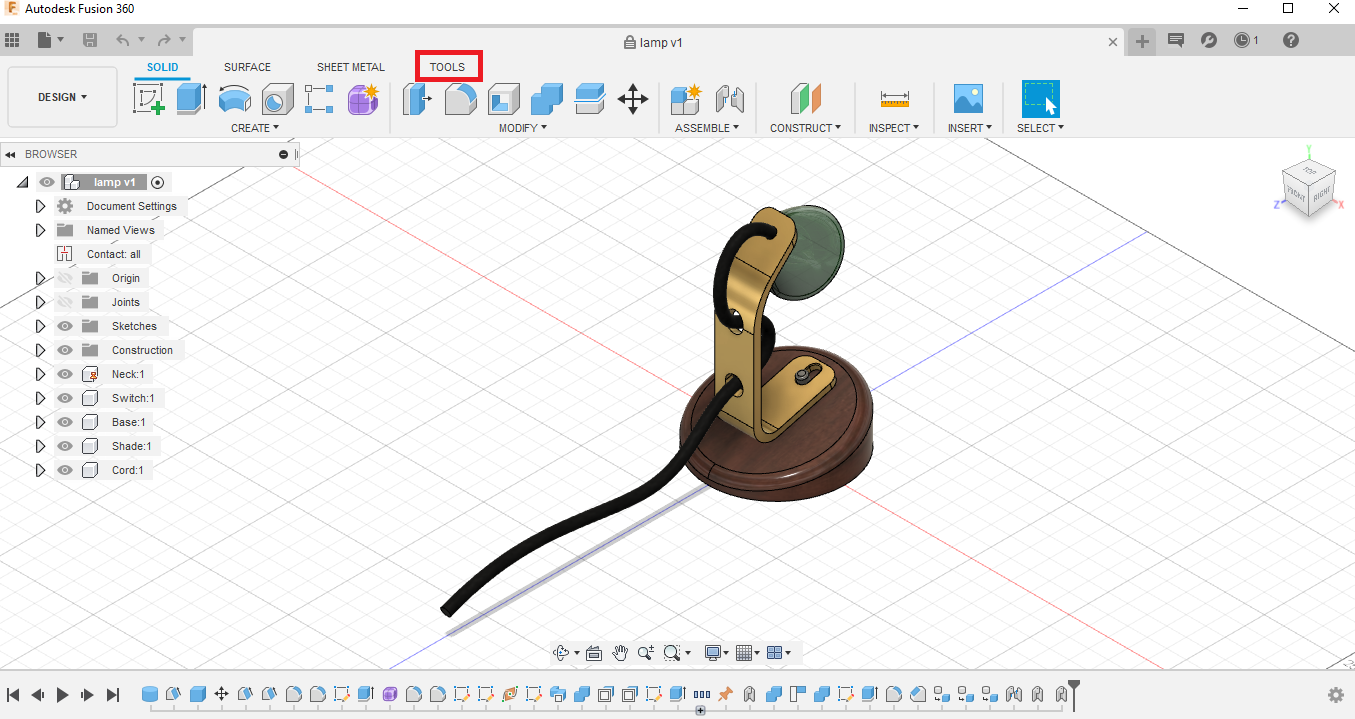

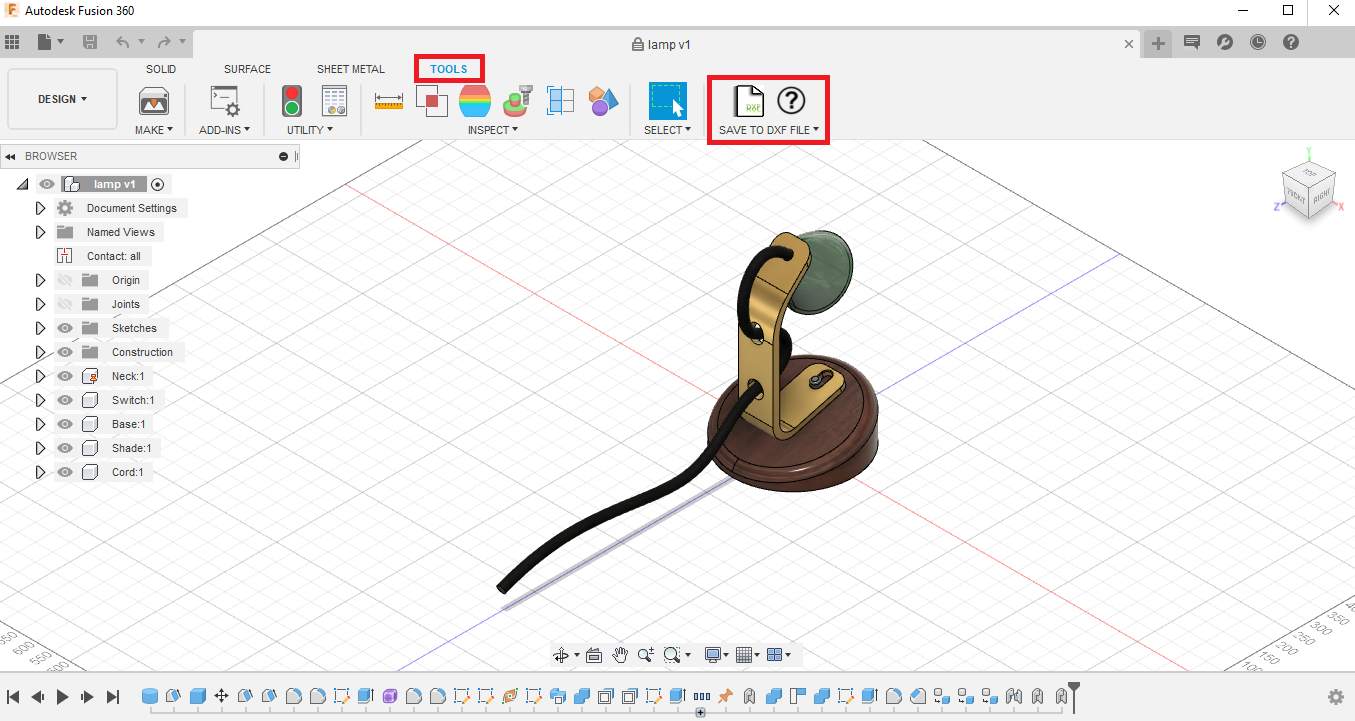

The Ribbon bar will have a tab for DXF.

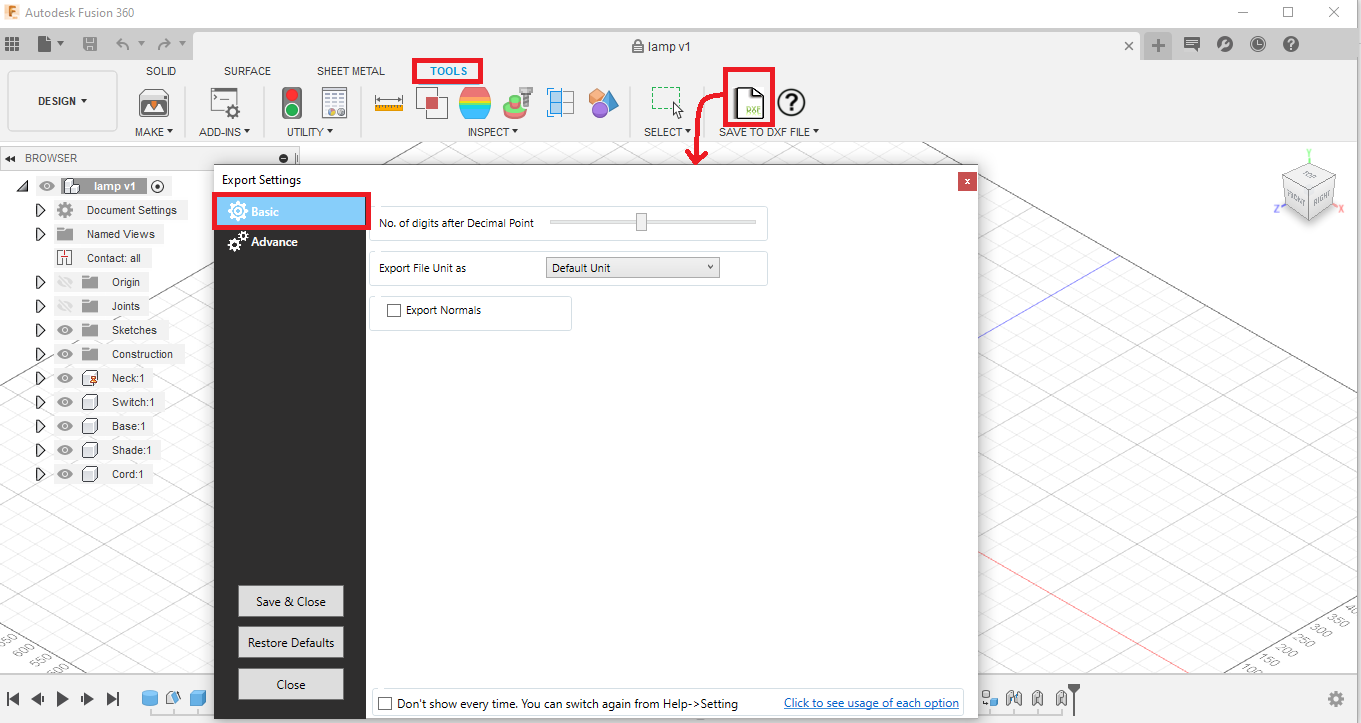

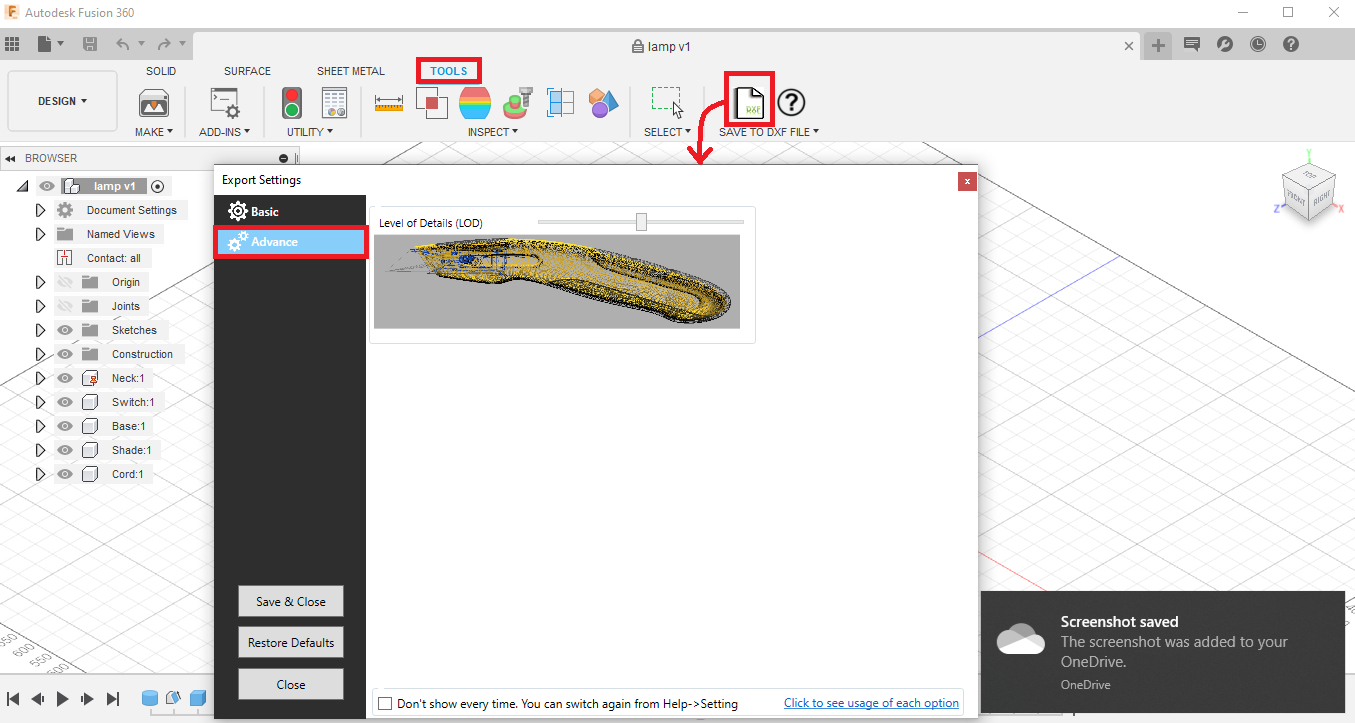

Click on Convert to DXF button to convert the files to DXF format.

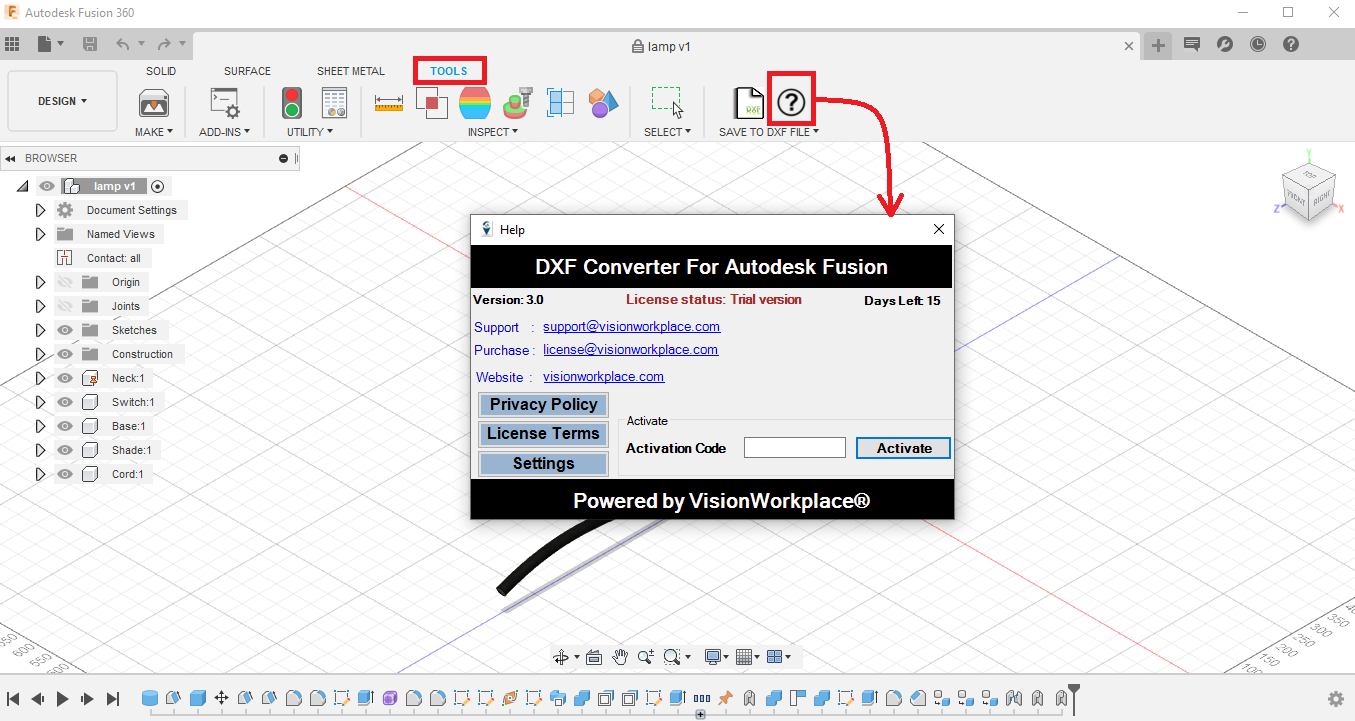

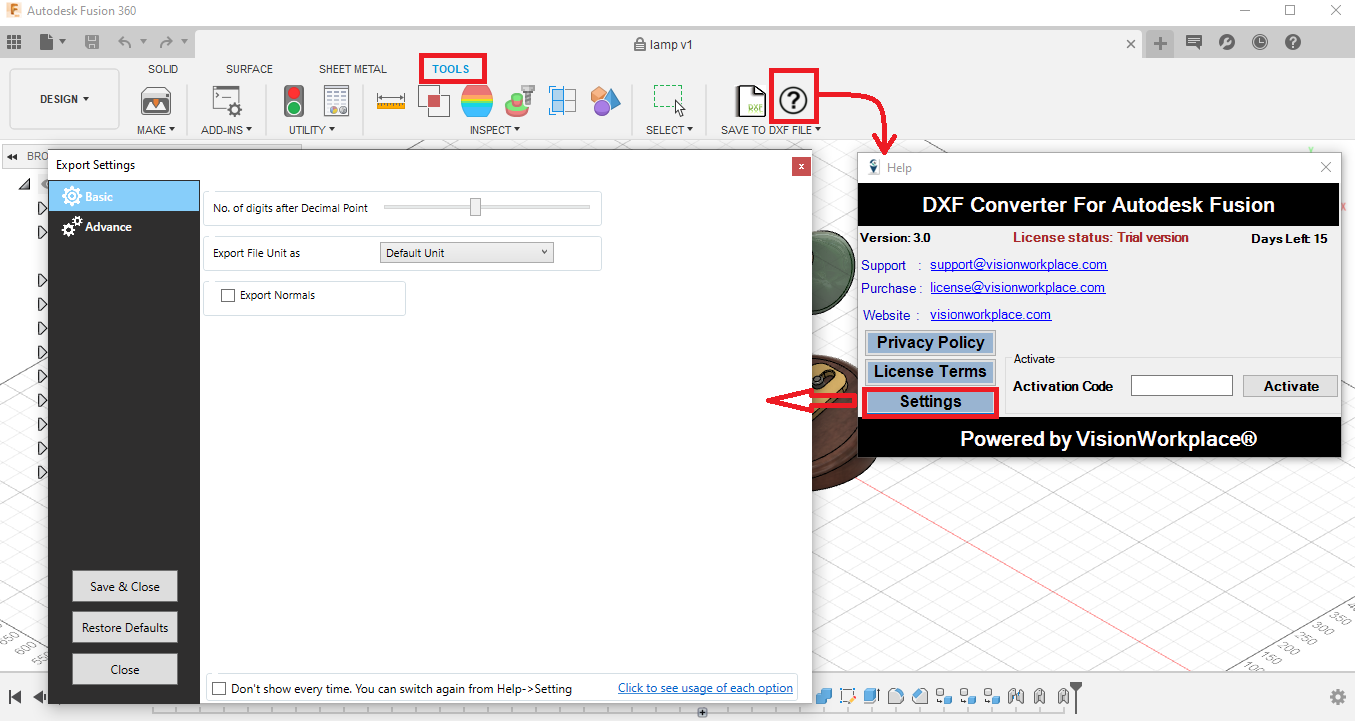

Click on the Help button to access help and activation details.

Screenshots

Commands

Installation/Uninstallation

Install:

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

Uninstall:

You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.

Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Fusion 360.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.

OR, you can uninstall it from 'Control Panel/Programs and Features' (Windows 7/8.1/10), just as you would uninstall any other application from your system.

Additional Information

Known Issues

Contact

Company Name: Visionworkplace Software Solutions

Author/Company Information

Visionworkplace Software Solutions

Support Information

Version History

Version Number Version Description

2.0.0

1. Linked entity issue solved. 2. Per face color supported.

1.0.0

Convert Fusion design to DXF file format
