Dowel Joint add-in creates a dowel joint between two boards.

General Usage Instructions

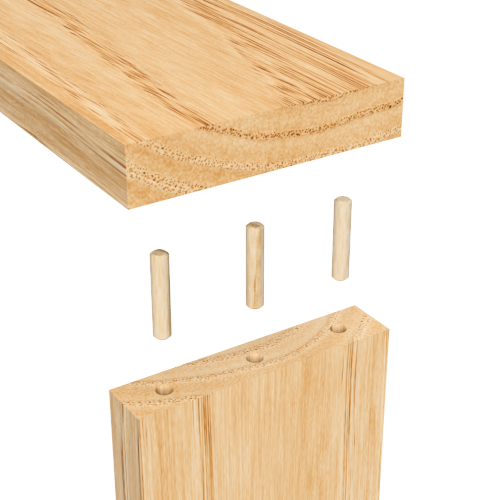

Dowel Joint add-in creates a dowel joint between two boards. This add-in allows you to specify dimensions of the joint and quantity of dowels or spacing. It is particularly useful in woodworking.

Steps:

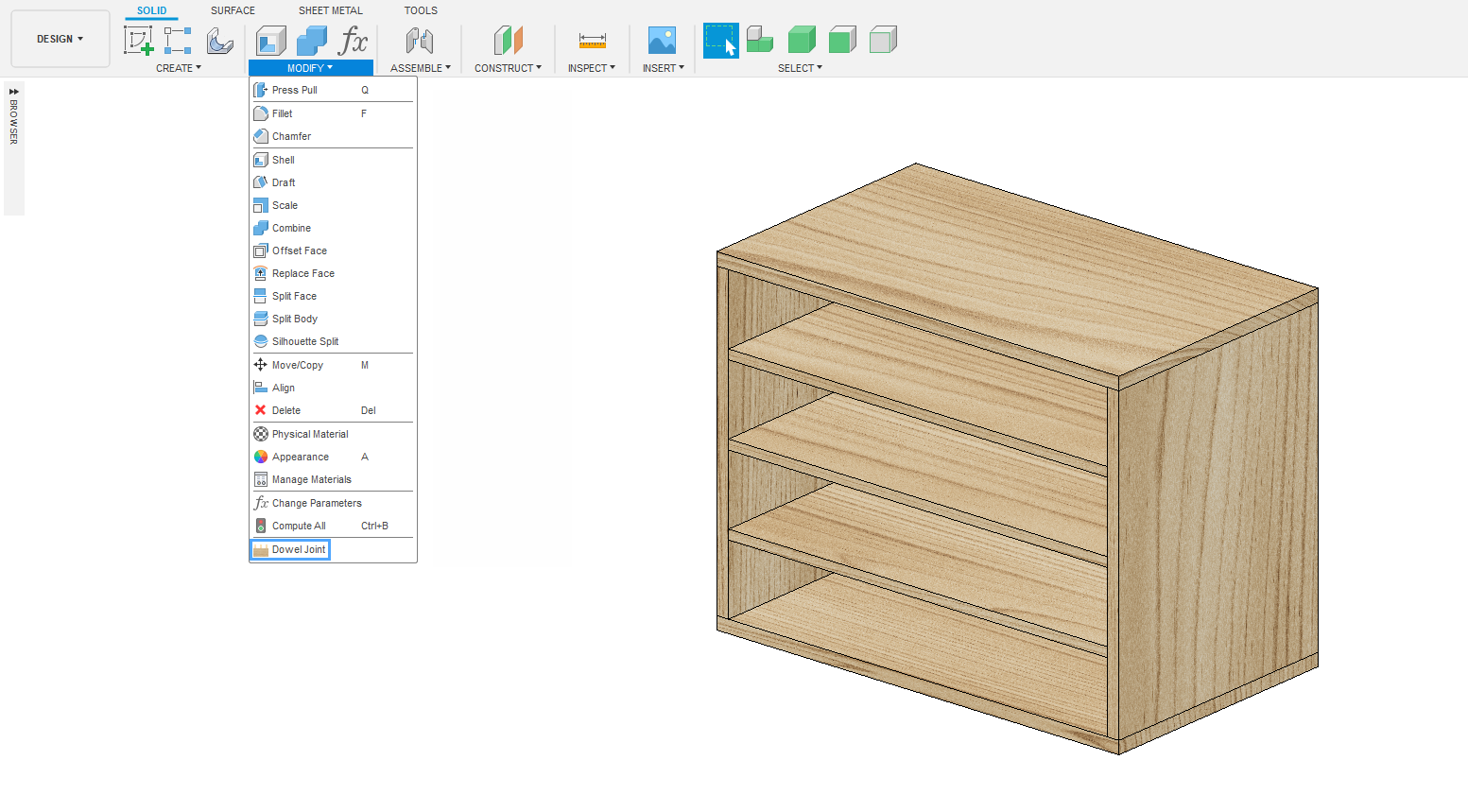

  1. Press the "Dowel Joint" button in the "Modify" panel.

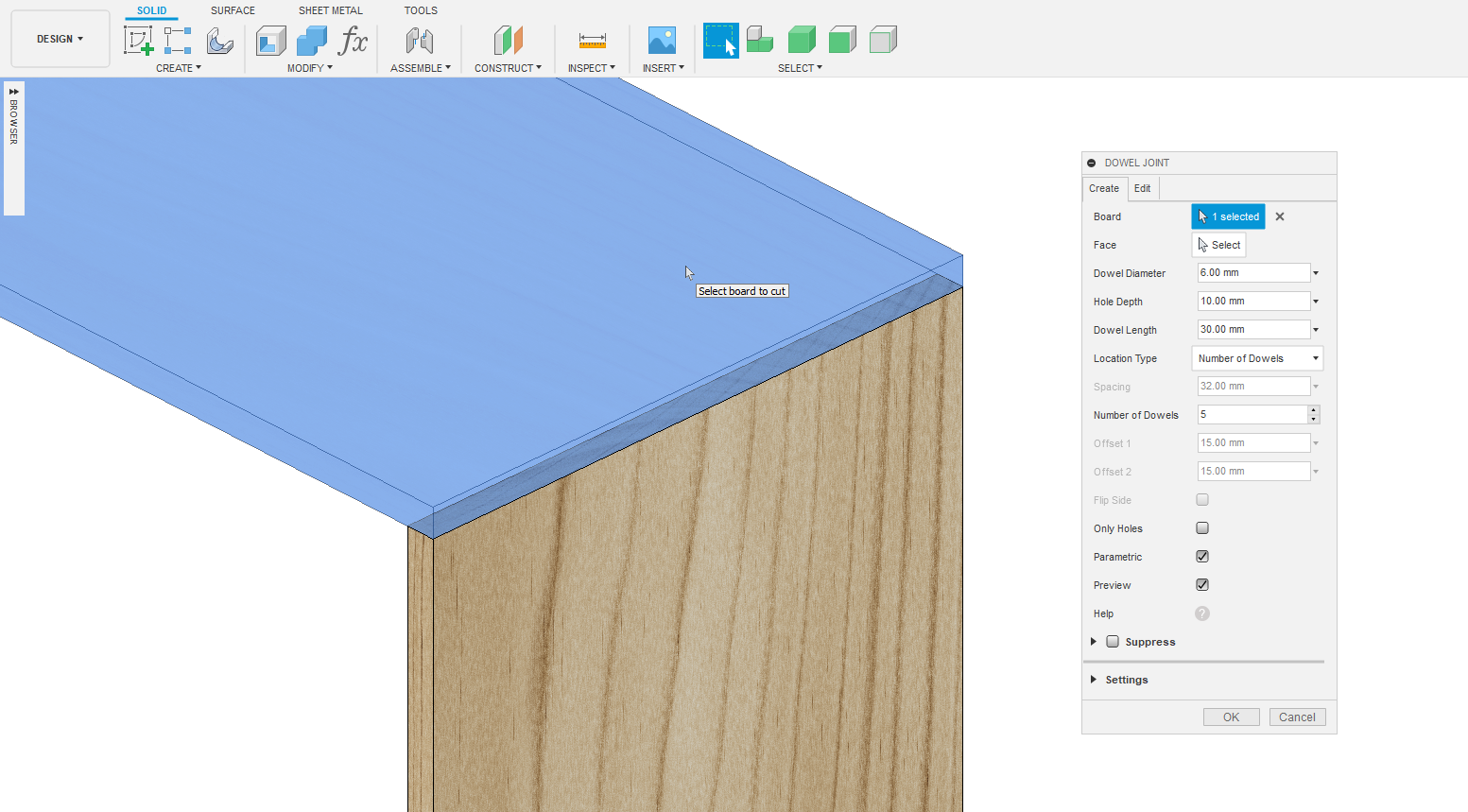

  2. Select a board to cut holes for dowels.
  3. Select a face to cut holes.

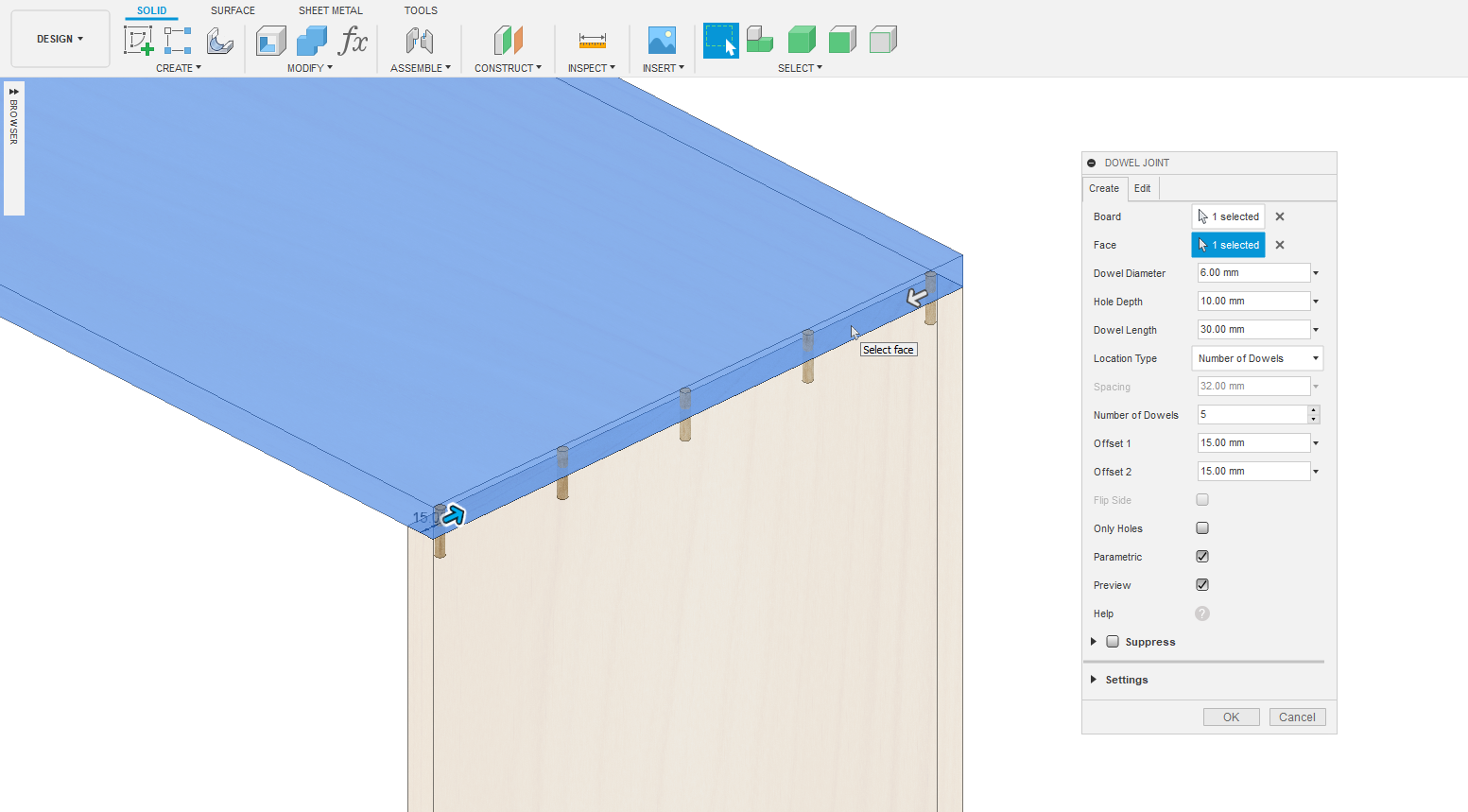

  4. Specify dowel diameter, hole depth, dowel length, location type, spacing or number of dowels and offsets.
  5. Press the "OK" button.

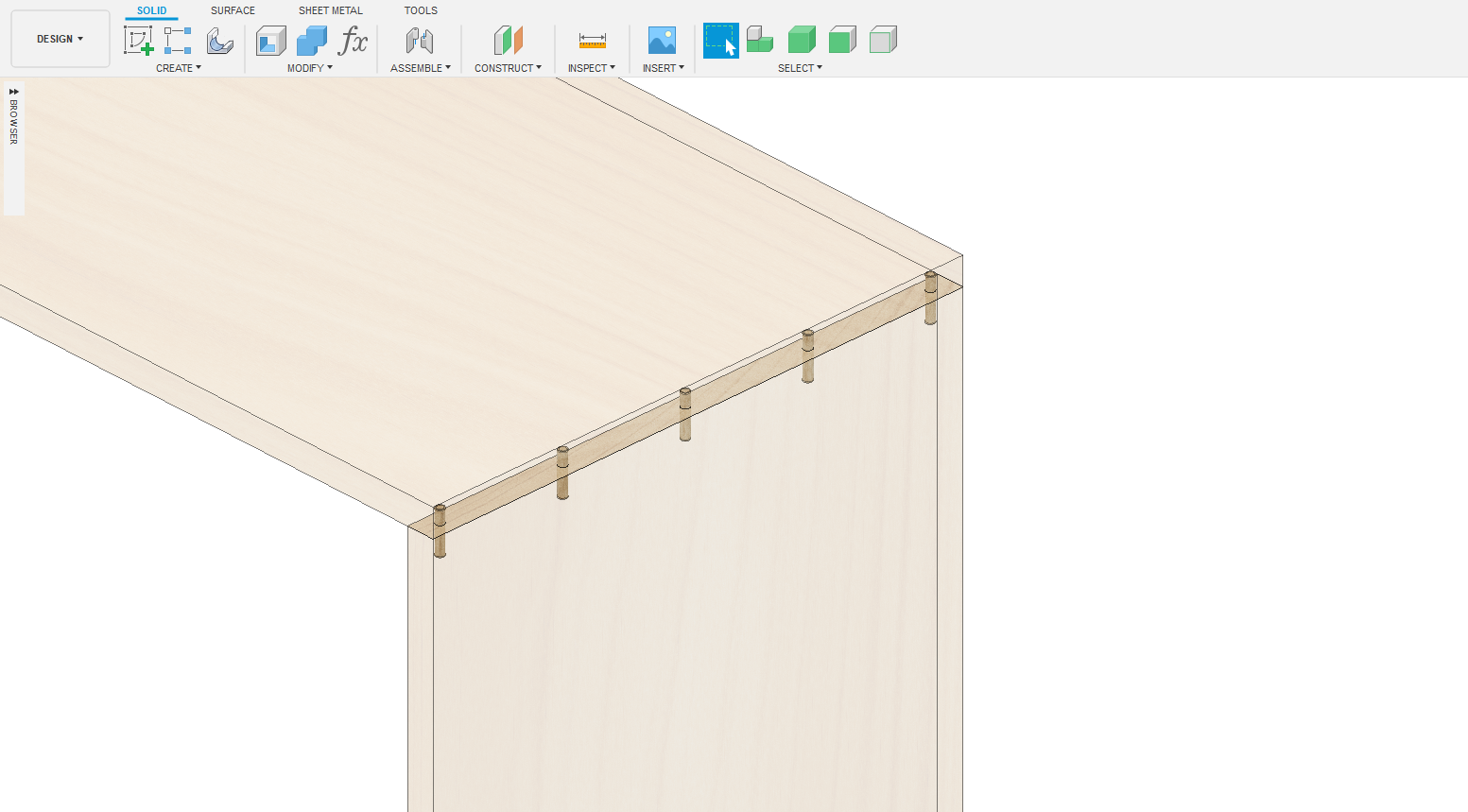

Screenshots

Commands

Installation/Uninstallation

Install:
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. Or, simply double-click the downloaded installer to install the app/plugin.

Uninstall:
You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.
Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Autodesk® Fusion 360™.
To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.
Or, you can uninstall it from 'Control Panel/Programs and Features' (Windows 7/8.1/10), just as you would uninstall any other application from your system.

Additional Information

Known Issues

Contact

Company Name: Maciej Rogowski
Support Contact: info@maciejrogowski.com

Author/Company Information

Maciej Rogowski

Support Information

For support please email: info@maciejrogowski.com

Version History

Version Number Version Description

1.0.4

Added settings feature.

1.0.3

Added support for the new API.
