Self-Aligning Jig

Self-Aligning Jig

Win64, English

Maciej Rogowski
Creates sketch geometry for a self-aligning jig.

General Usage Instructions

Self-aligning jig add-in creates sketch geometry for a self-aligning jig for machining two-sided parts. This add-in allows you to specify the bottom left and top right corner of a rectangle and the tool diameter. It is particularly useful in woodworking.

Steps:

  1. Create Sketch and draw a rectangle.
  2. Change the rectangle to the construction geometry.

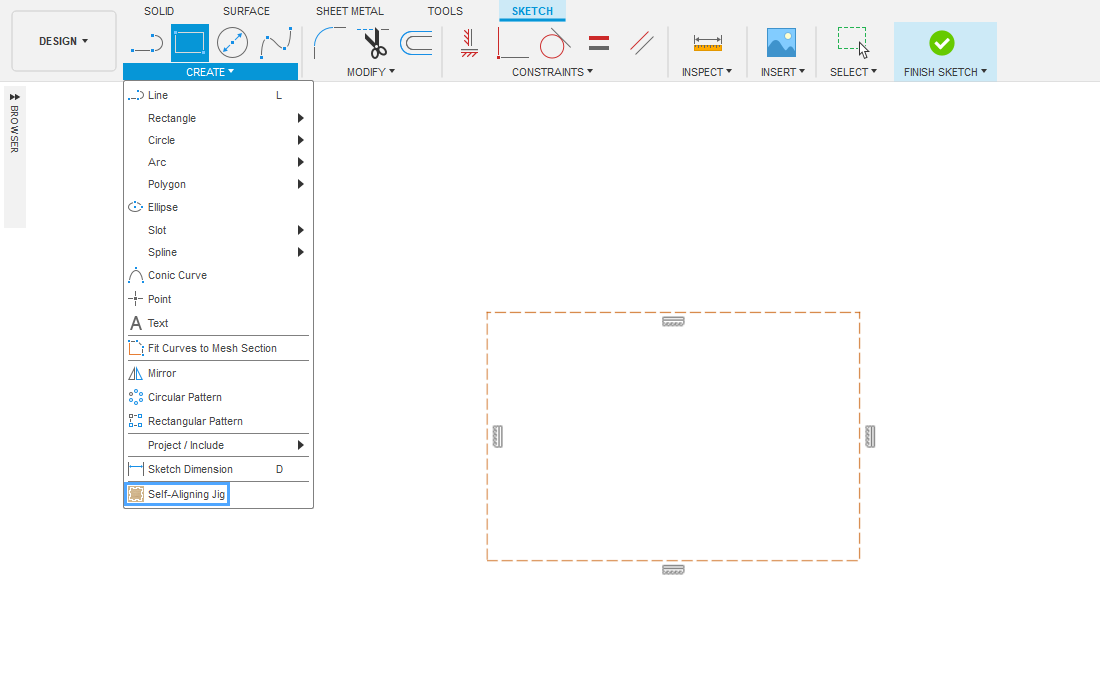

  3. Press the "Self-Aligning Jig" button in the 'Create' under "Sketch" panel.
  4. Select corners and the tool diameter.
  5. Jig geometry will be created automatically.
