BommerMac OS, English
General Usage Instructions
After launching Autodesk® Fusion 360™ you will find the Bommer panel on the Model workspace. You will need to go through a quick registration process, after which you can use Bommer. To register, click the button in the Bommer panel and follow the instructions.
Once registered, to get started with Bommer, you will need a design, and some property definitions. Bommer ships with some common-sense properties already defined, such as:
• Part number and description
• Make/Buy indicator
• A flag to exclude a part from the BOM export
• Vendor part number, price and availability

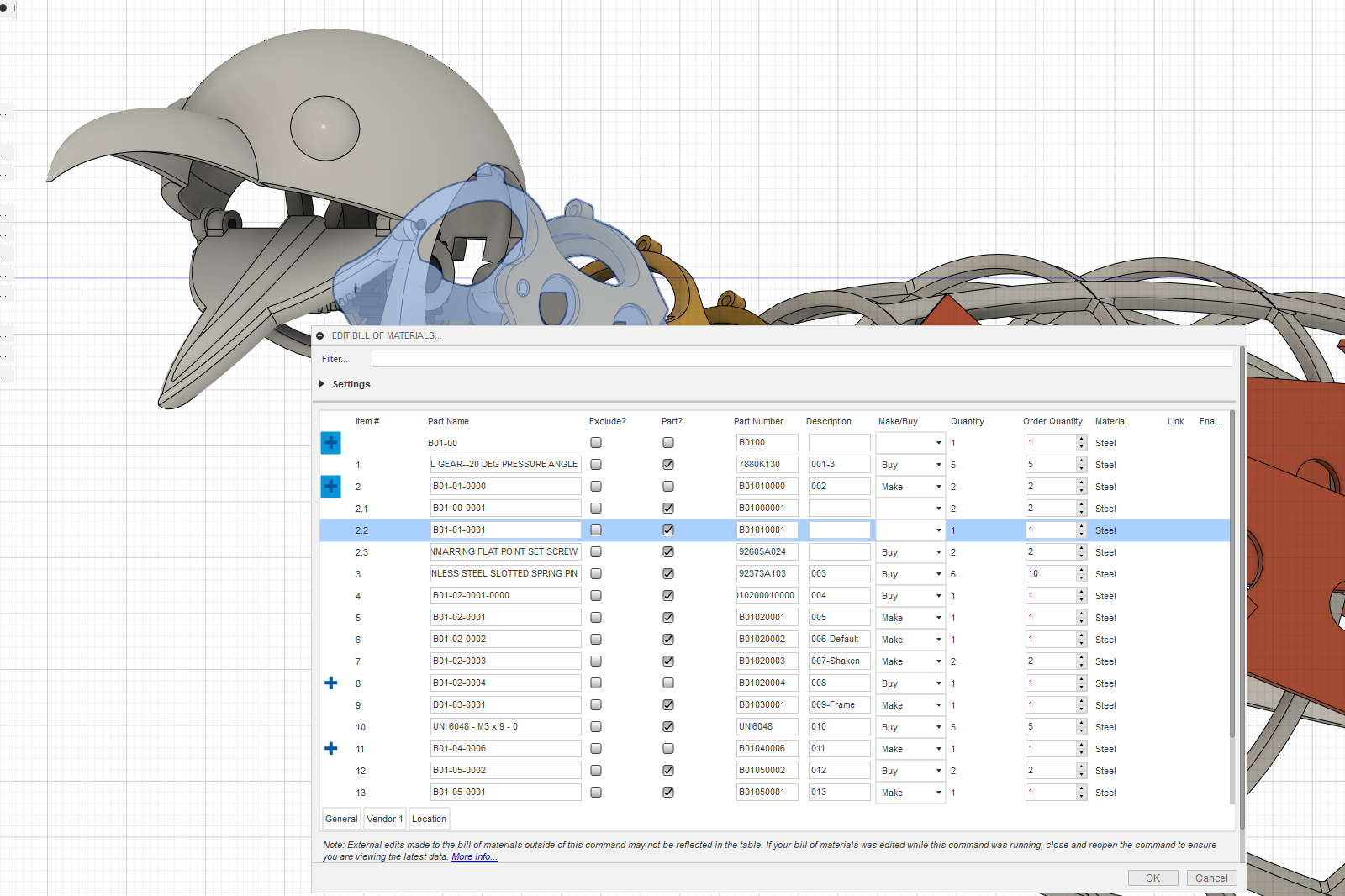

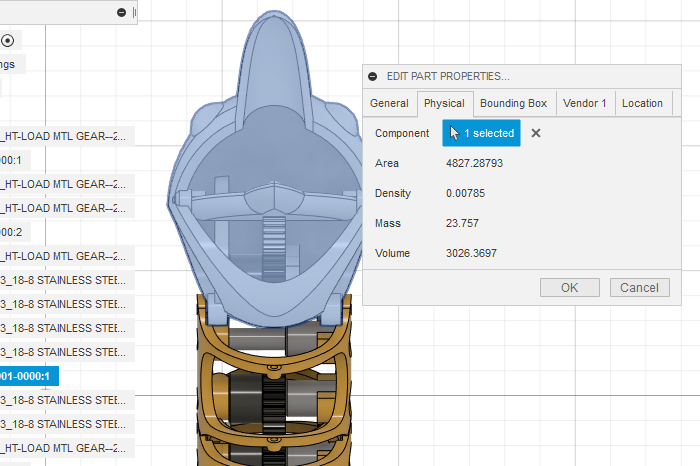

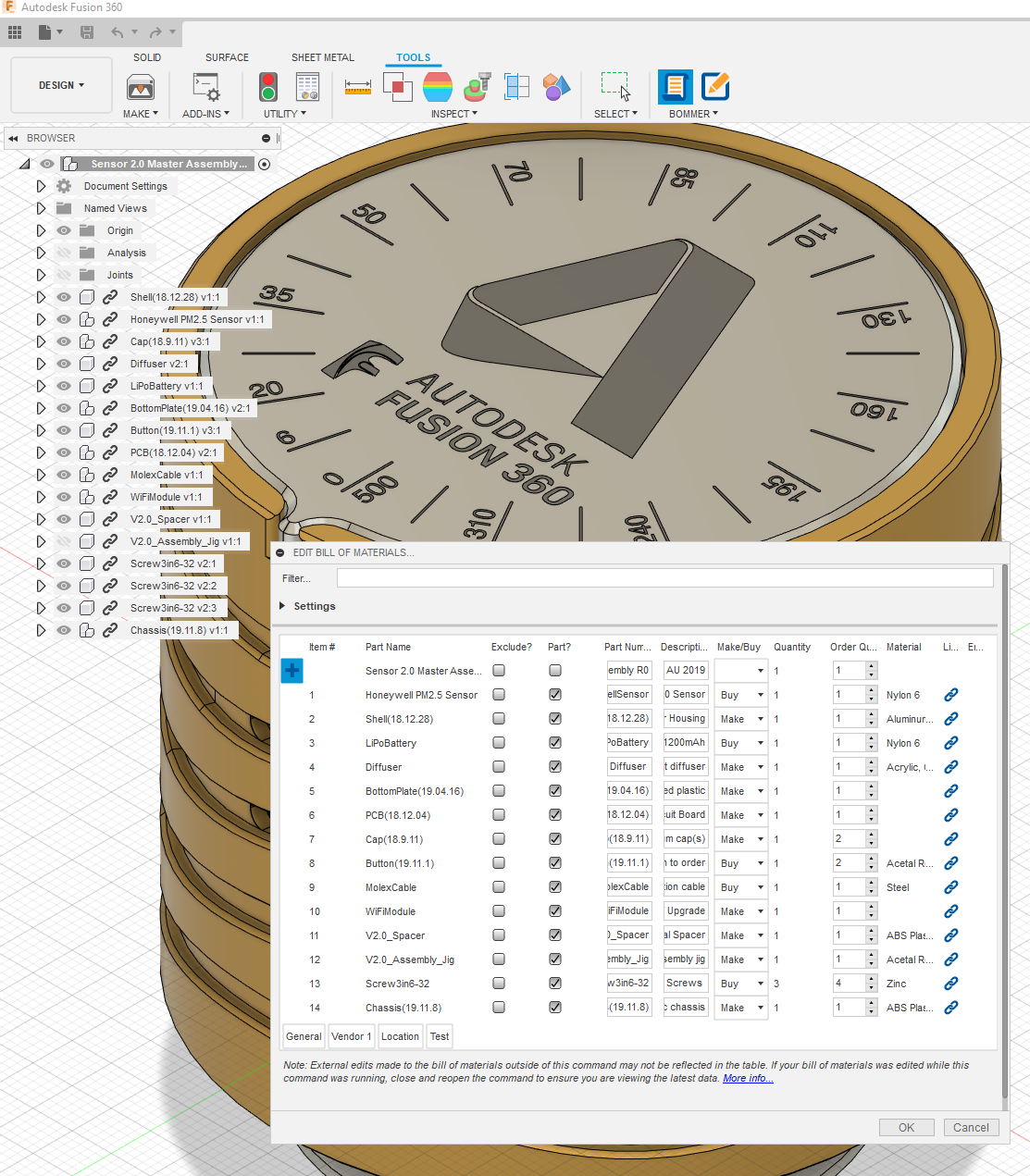

To use the shipped properties, open your design and click the "Edit bill of materials" or "Edit part properties" button on the Bommer panel. You can also right click on a part in the tree, or in the 3D space, and click "Edit part properties".

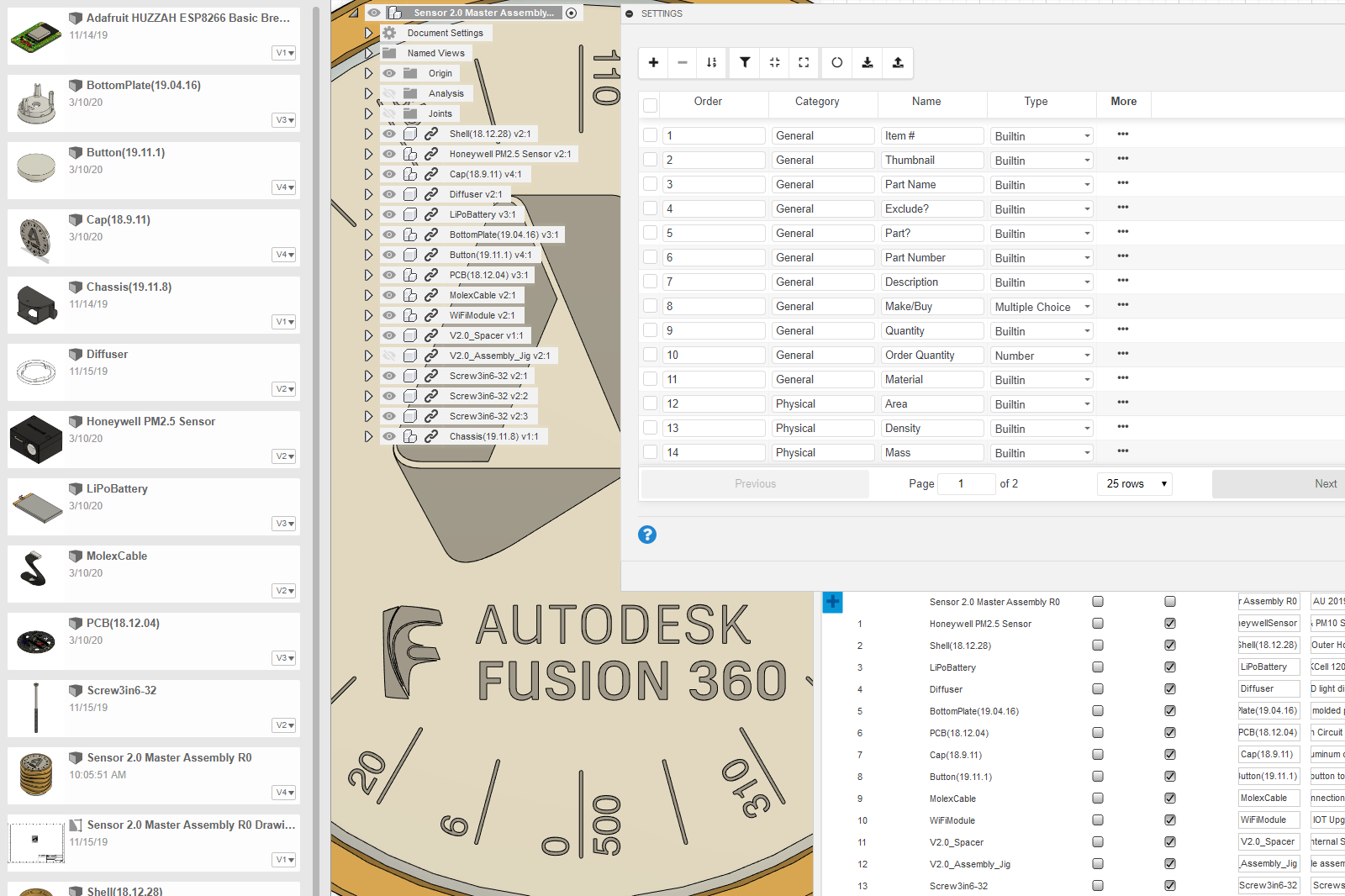

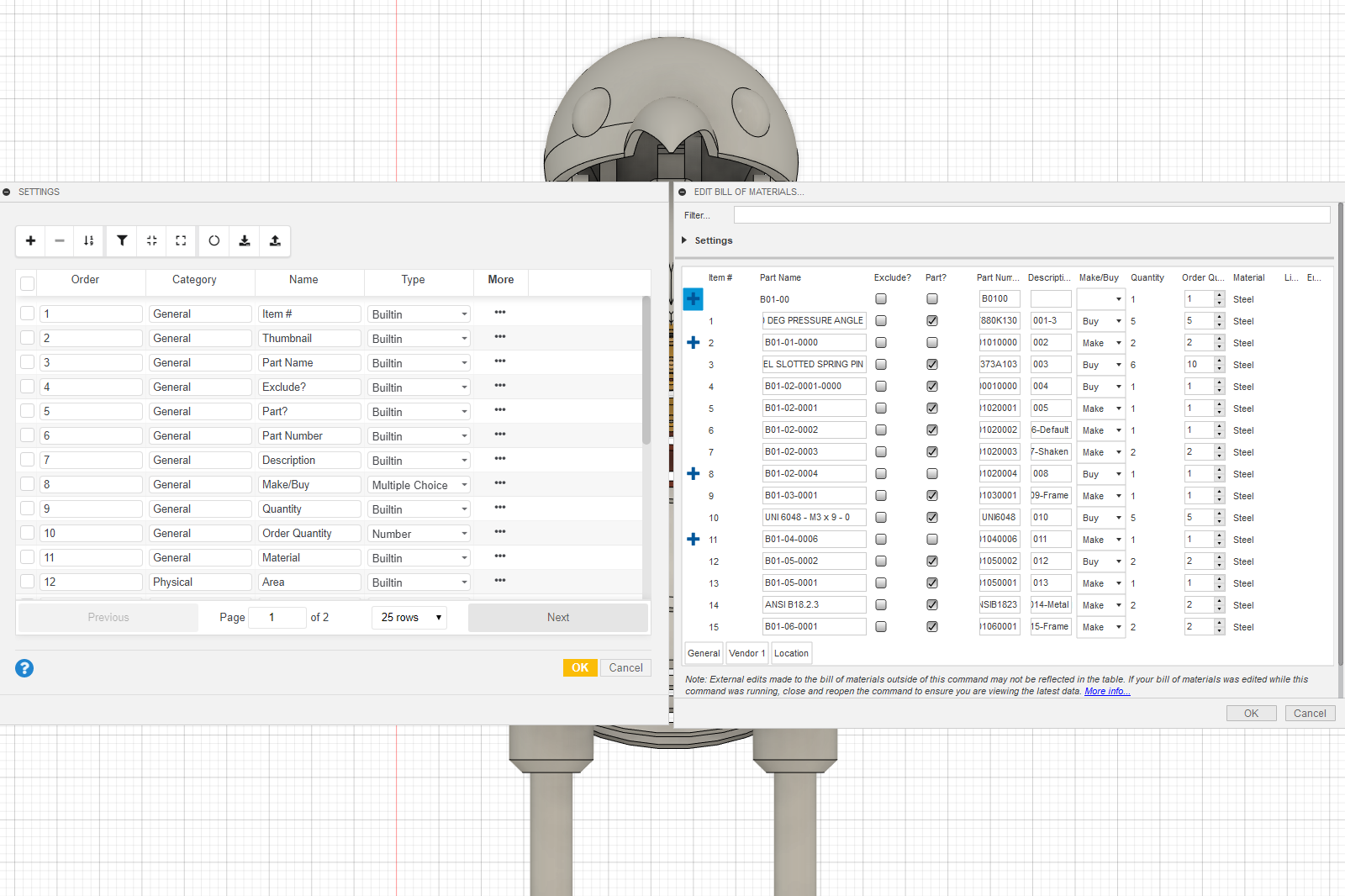

If you'd rather declare your own properties first, click on the Bommer panel, click on Settings, and use the table to add and remove properties. After you've finished editing your properties, you can use the "Edit bill of materials" or "Edit part properties" buttons to edit the property values.

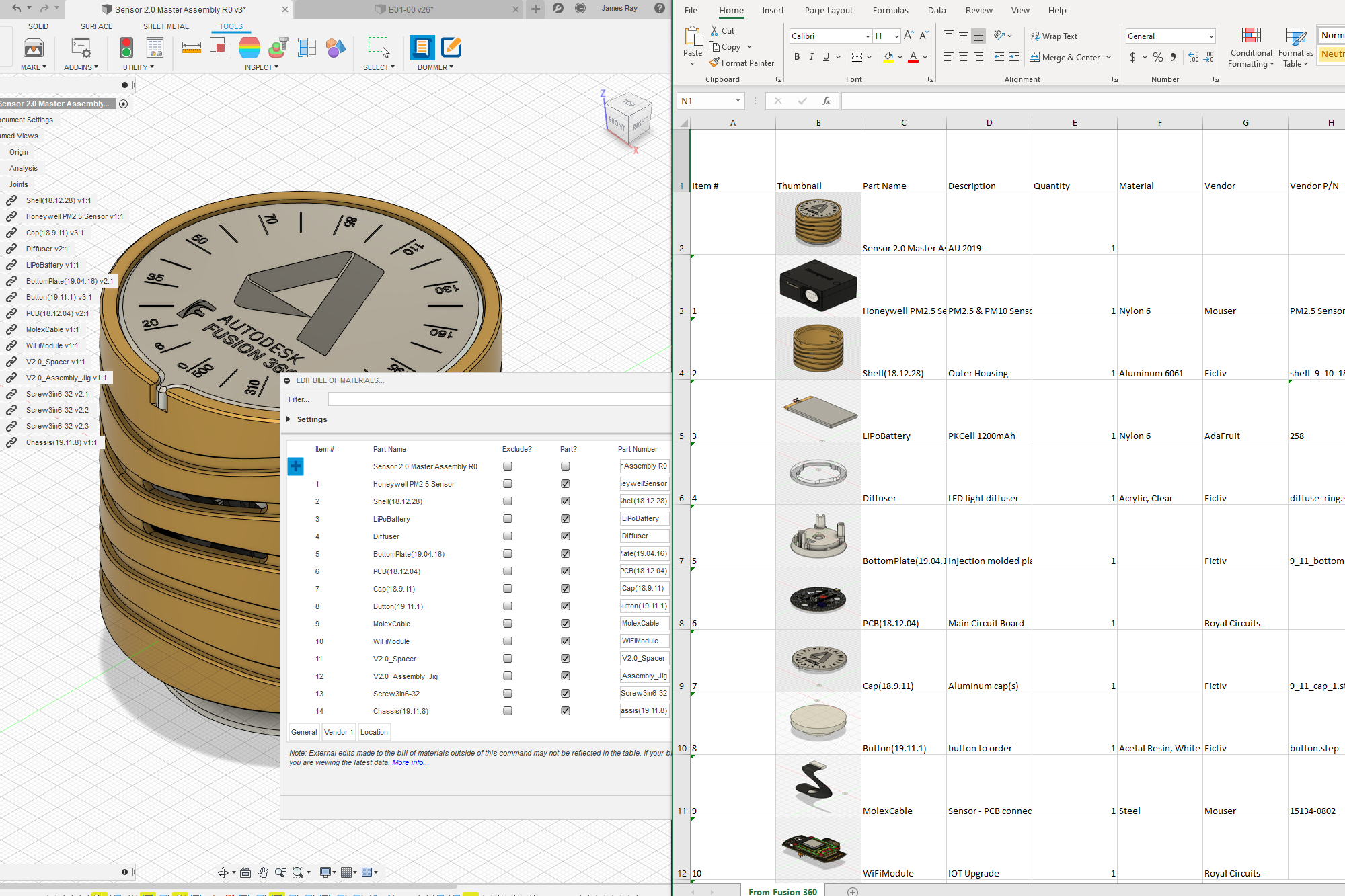

To export your bill of materials to Excel or CSV, use the "Export" button on the Bommer panel. You can choose which properties to export as columns in the file and where the exported file should go.

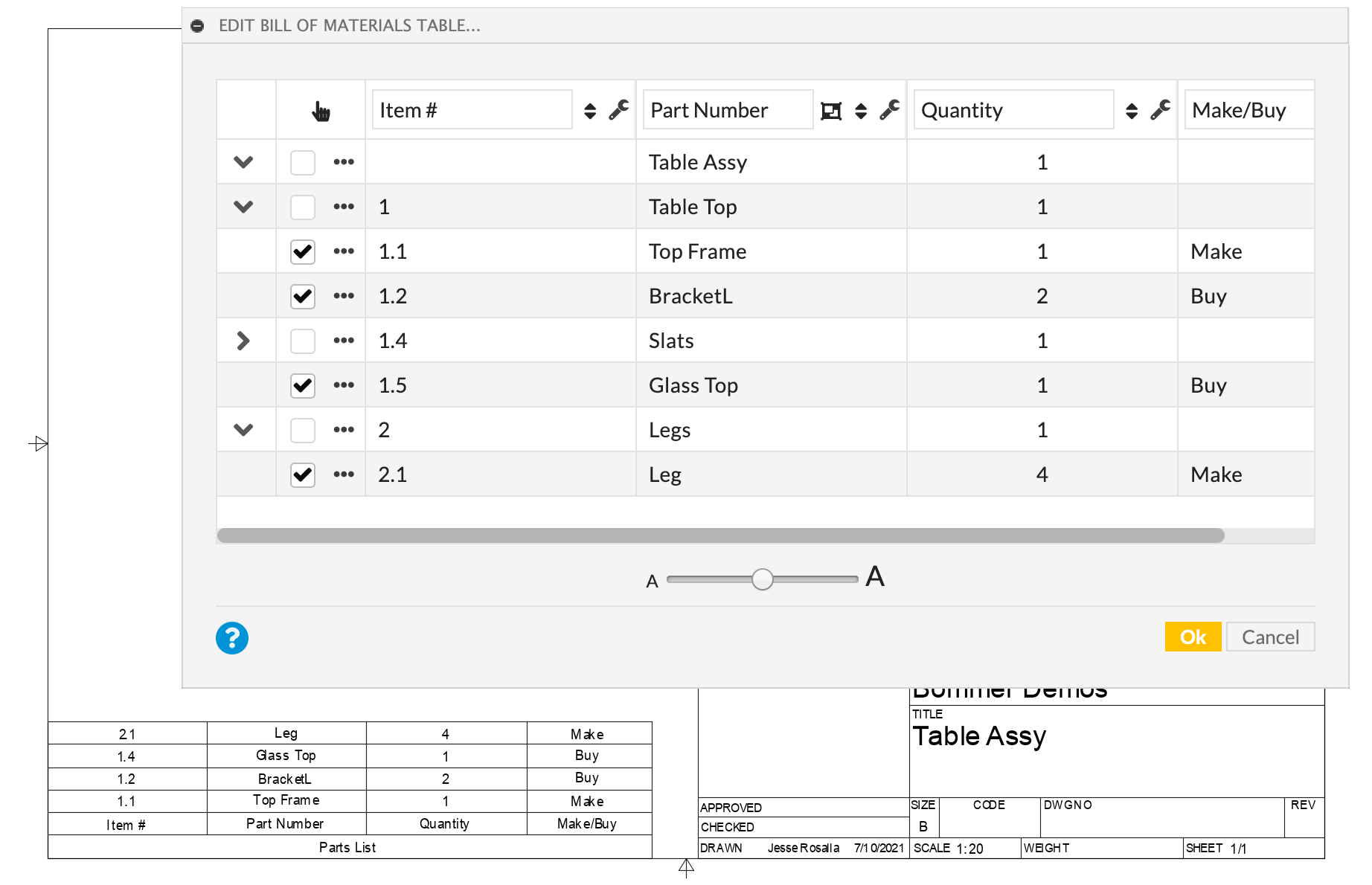

To export your bill of materials for inclusion on a drawing, open a drawing in Fusion 360 and click on the "Export table image" button in the Bommer panel. Choose your properties, select your rows, and format your table, then click OK to export a table image and insert it onto your drawing sheet!
Please see our knowledge base at https://help.getbommer.com/en/fusion360 for more guides and tips on how to use Bommer!
Double-click the downloaded installer from Autodesk App Store to install the app/plug-in.
You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.
Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Autodesk® Fusion 360™.
Please note: if you right click on Bommer in the "Add-Ins" tab of the "Scripts and Add-Ins" dialog, and select Remove, you will need to perform additional steps if you ever want to re-enable Bommer. Please see https://help.getbommer.com/en/article/i-cant-find-bommer-in-fusion-360 for more info.
To remove the Bommer program files from your system:
- Navigate to ./ApplicationsPlugins folder and select the app bundle you want to uninstall
- Either drag the app bundle to the Trash, or right-click and select “Move to Trash”
- Right-click on the Trash-Can and select “Empty Trash”
- If you prefer keystrokes, you can also just select the app bundle and then hit Command+Delete to move the app to Trash, then empty the Trash and the app will be removed.
Please see https://help.getbommer.com/en/troubleshooting/fusion-360 for an up-to-date list of known issues in Bommer
If you have questions, feedback, suggestions, or want our help in setting up, you can book time with the founders by clicking here; alternatively, you can send us a note at firstname.lastname@example.org. We're happy to help where we can!
For bugs and "How do I?" questions, you can also check our support center at https://help.getbommer.com, where you can search articles, browse troubleshooting guides, and email bugs and other issues to support.
|Version Number||Version Description|
|Added ability to export thumbnail images with new Thumbnail built-in property. Add this property using the Settings form, select it on export, and Bommer will automate framing and saving images of your parts and assemblies! Also: Added a setting to include or exclude parts hidden in Fusion (i.e. with their lightbulbs turned off) Added tooltips to export settings, to better explain what they do Fixed an issue where palette-based commands (e.g. update, settings, registration) would not display properly on older versions of Mac OS. For past version information, please click here.|
