Sam's Cookie Cutter Maker - Bella

Sam's Cookie Cutter Maker - Bella

Mac OS, English

Sam's Cookie Company
This Add-in for Autodesk® Fusion 360™ creates a print ready 3D cookie cutter from a 2D outline. The user can customize the “Bella” cutter cross section by entering key parameters.

General Usage Instructions

Click on the Add-in button (blue gingerbread man) in the Solid panel to launch the cookie cutter maker dialog.

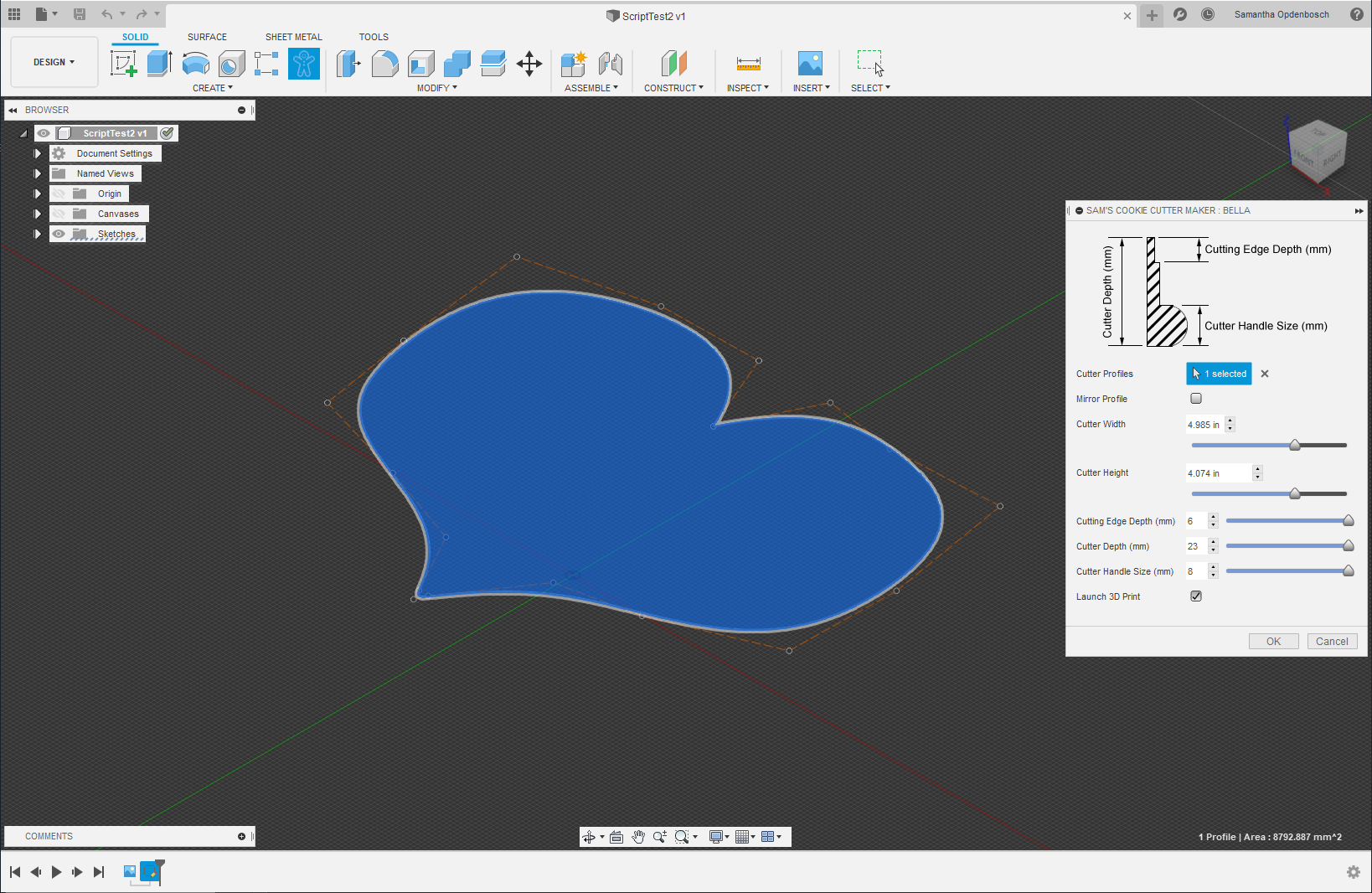

Select a sketch profile and adjust the cross-section parameters. When you click the "OK" button the command will generate the cookie cutter model.

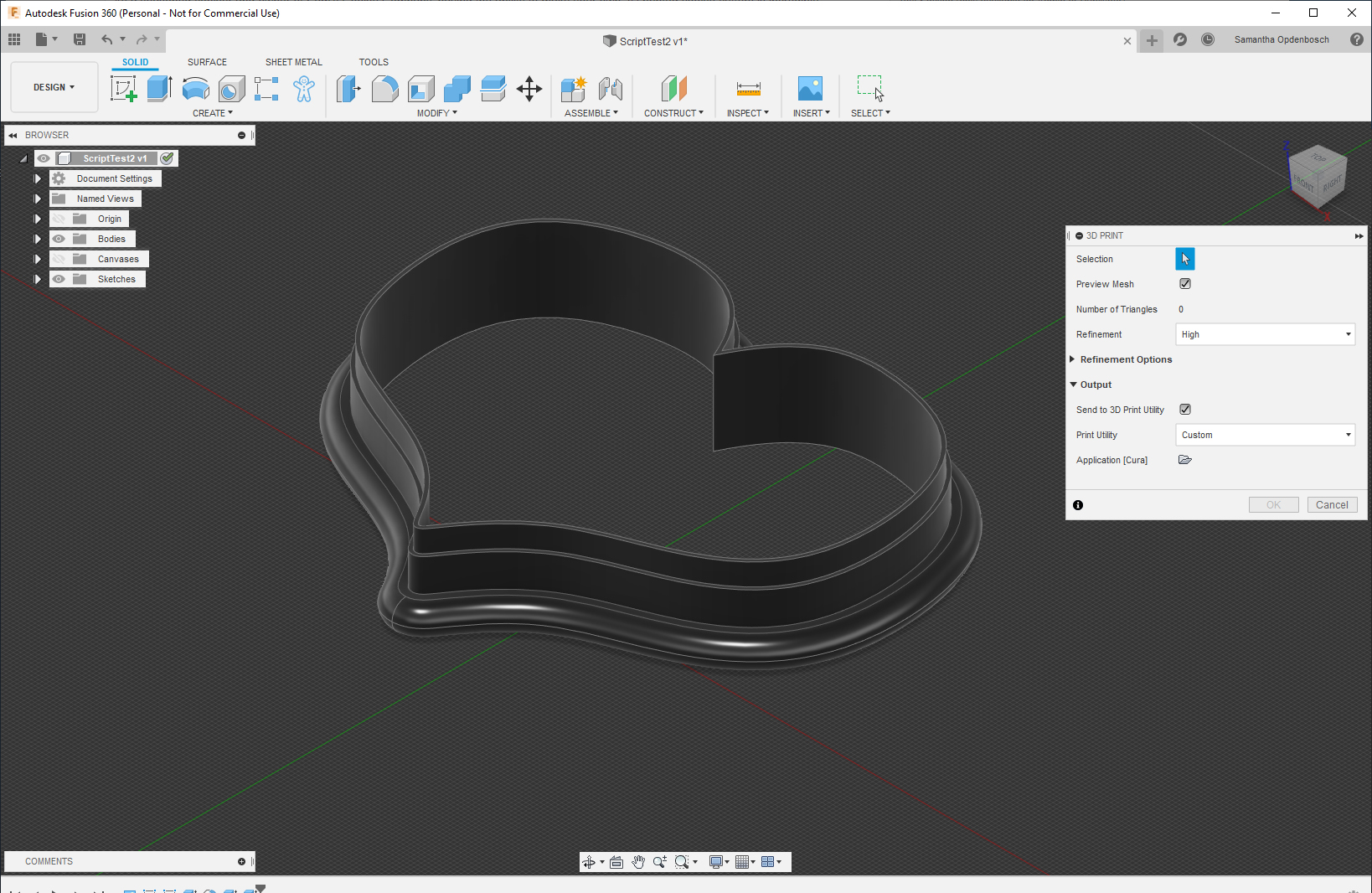

If you choose to launch the 3D print command then the 3D print dialog will appear and you can just select the 3D model that was just created and send it to your favorite print utility.

Please visit our tutorials page in our website: here

Screenshots

Commands

Installation/Uninstallation

Install:
You can download step by step instructions here


Double-click the downloaded installer from Autodesk App Store to install the app/plug-in.

Uninstall:
You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.
Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Autodesk® Fusion 360™.
- Navigate to ./ApplicationsPlugins folder and select the app bundle you want to uninstall
- Either drag the app bundle to the Trash or right-click and select “Move to Trash”
- Right-click on the Trash-Can and select “Empty Trash”
- If you prefer keystrokes, you can also just select the app bundle and then hit Command+Delete to move the app to Trash, then empty the Trash and the app will be removed.

Additional Information

Known Issues

Contact

Company Name: Sam's Cookie Company
Support Contact: support@opdenbosch.com

Author/Company Information

Sam's Cookie Company

Support Information

For support questions or issues you can reach us at: support@samscookiecompany.com at any time.

You will receive a response within 24 hours.

Version History

Version Number Version Description

1.1.0

Initial release +fixes
