WebGL Exporter for Autodesk® Fusion 360™

WebGL Exporter for Autodesk® Fusion 360™

Win64, English

ProtoTech Solutions
WebGL Exporter for Autodesk® Fusion 360™ exports your model to HTML file.

General Usage Instructions

1. Download and install WebGL Exporter plugin for Fusion 360.

2. Run Fusion 360 and load a model.

3. There’s a new tool bar panel named as 'WebGL Exporter'.

It contains three ribbon buttons as mentioned below.

A) Export

After selecting the Export option, a 'Save As' dialog box will display on the screen.

Click on the Save button to export the current model to HTML file.

B) Preferences

It contains the following options.

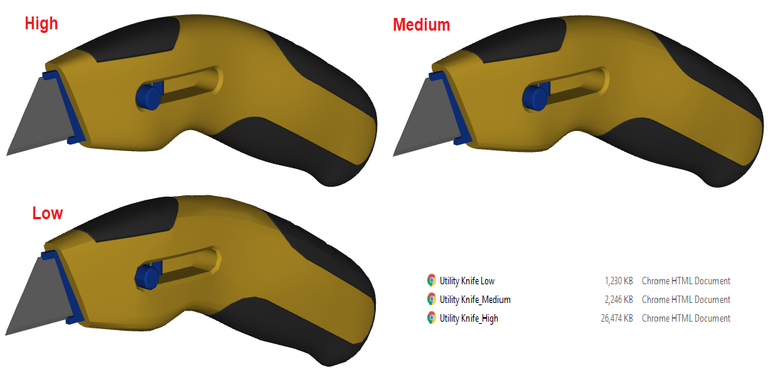

Precision: You can control how accurately your model needs to be exported. If you need fine representation of the model, just check the slider that will show the precision value. You can slide and select the values from 1 to 15. The higher the value, the finer the representation you will get and the larger the file size will be.

C) About

It displays the information about product. It provides the facility to activate your product license at any time.

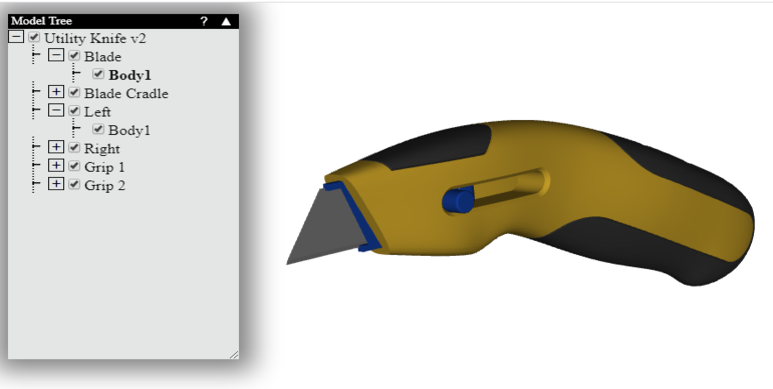

Screenshots

Commands

Installation/Uninstallation

Install:

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

Uninstall:

You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.

Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Autodesk® Fusion 360™.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.

OR, you can uninstall it from 'Control Panel/Programs and Features' (Windows 7/8.1/10), just as you would uninstall any other application from your system.

Additional Information

Known Issues

1. Text export is not supported

2. Texture export is not supported (due to limitations of Fusion API)

Contact

Company Name: ProtoTech Solutions

Author/Company Information

ProtoTech Solutions

Support Information

Version History

Version Number Version Description

4.4.19289.3141

1.Fixes: License issues

4.3.19151.3058

1. Enhancement: Upgraded licensing system.

4.2.0.0

1. Enhancement: Upgraded licensing system.

4.1.0.0

1. Enhancement: Added support to export model with default tessellation. 2. Fixed : Some colors were not exported from model.

4.0.0.0

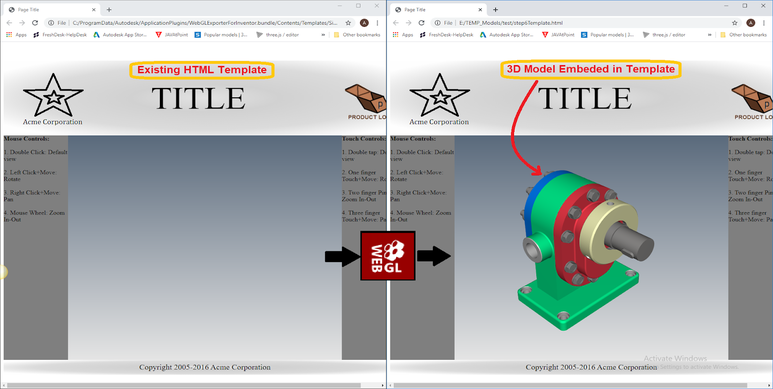

1.Fixed: Model was not exported with HTML Template.

3.1.0.0

1. Enhancement : Selected entities can be exported. 2. Enhancement : Added Progress bar for export operation. 3. Fixed: Unicode characters (other than English language) were not displayed correctly in Model tree.

3.0.0.0

Update: Updated technical support contact details.

1.0.0

1. Exports solid bodies to an HTML (.html) file. 2. Preference settings to adjust the file size and quality. 3. Option to add Navigation control and assembly tree to the HTML file. 4. Option for body level and face level tessellation is provided.
