Cadasio for Autodesk® Fusion 360™
Win64, EnglishGeneral Usage Instructions
- The app will be listed under the "Utilities" tab
- The user creates a product in Autodesk® Fusion 360™.
- Run the add-in to upload/update the product to Cadasio.
- Use Cadasio tools to create an interactive 3D manual.
- Publish the manual online.

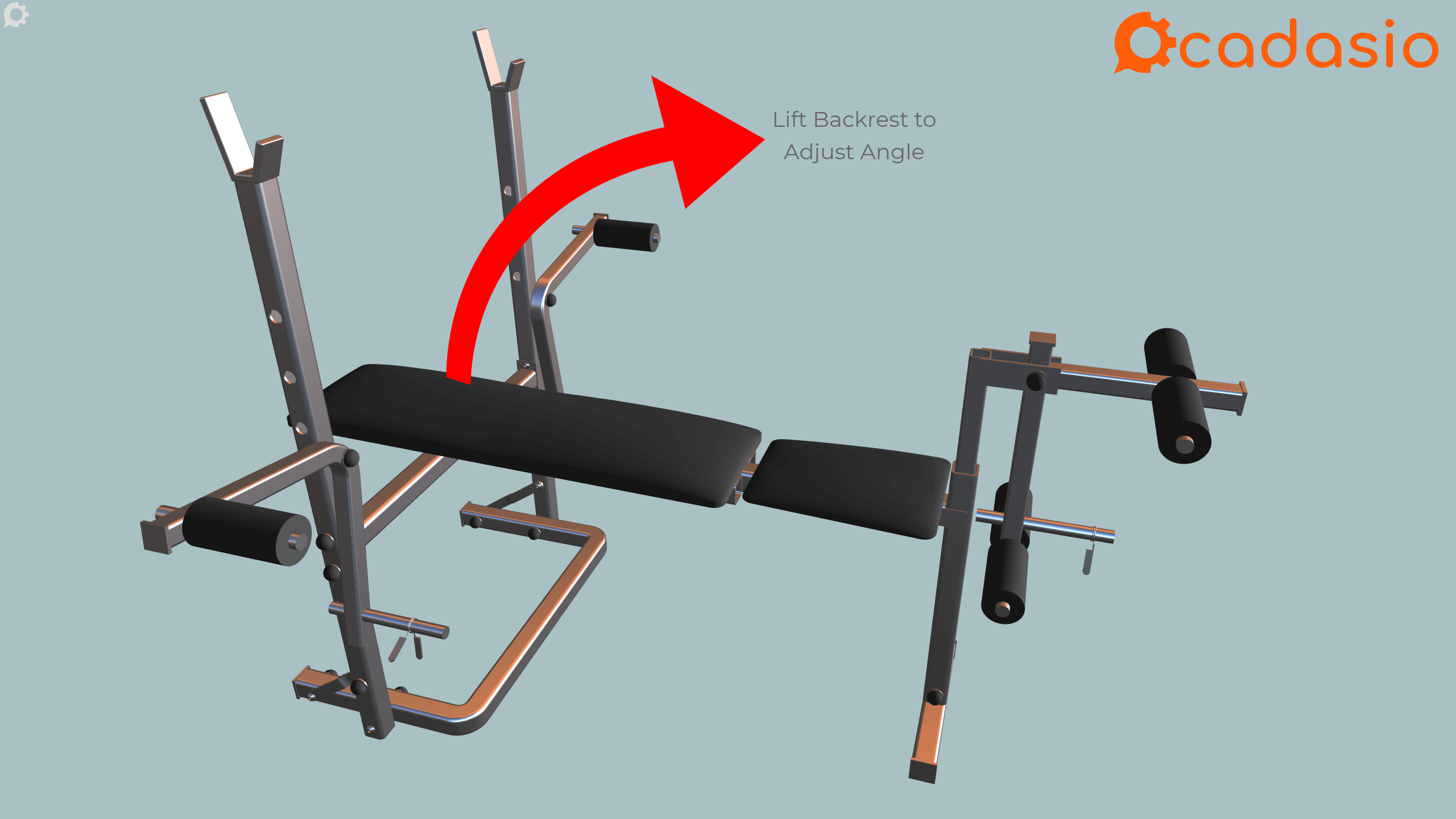

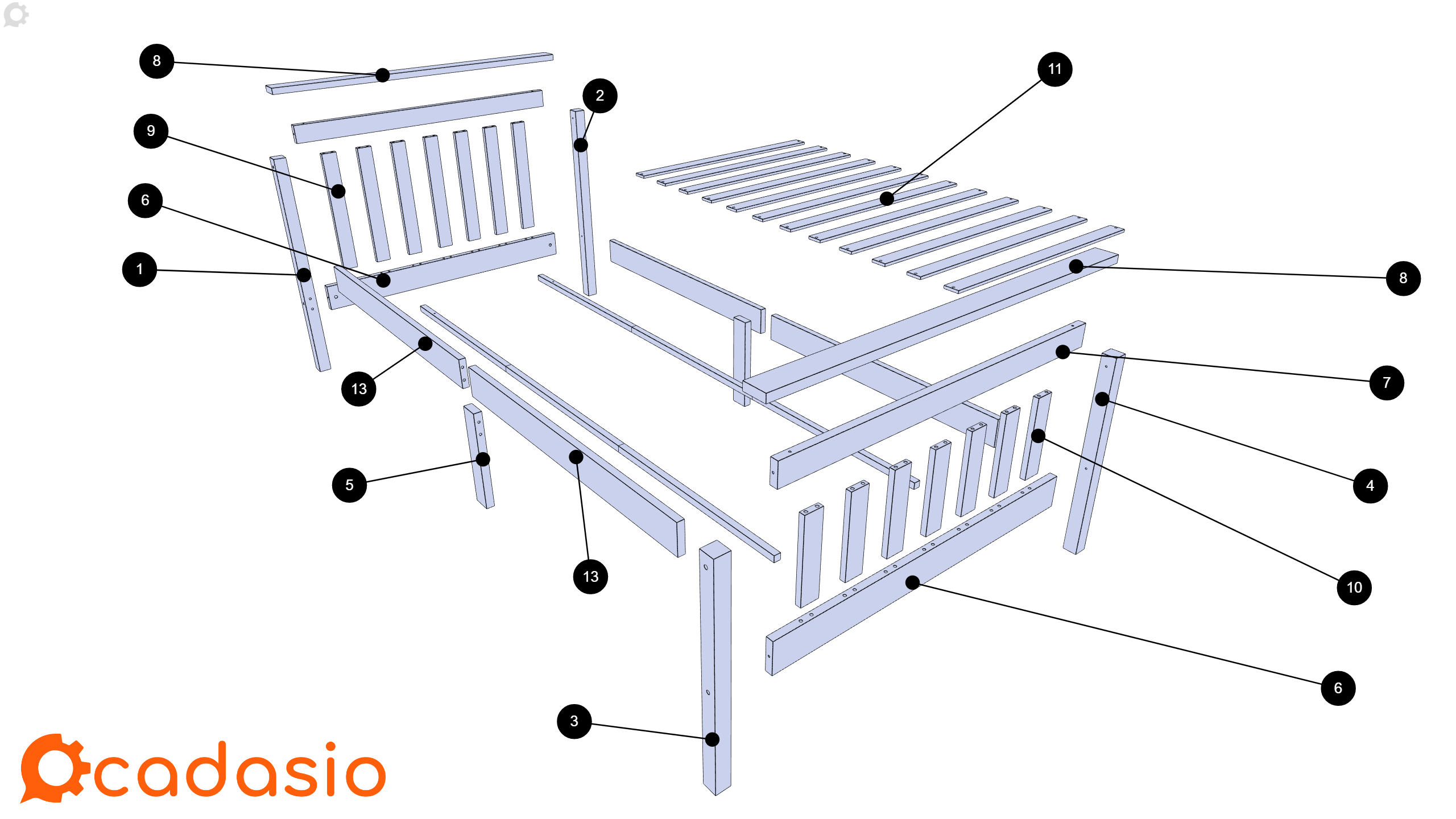

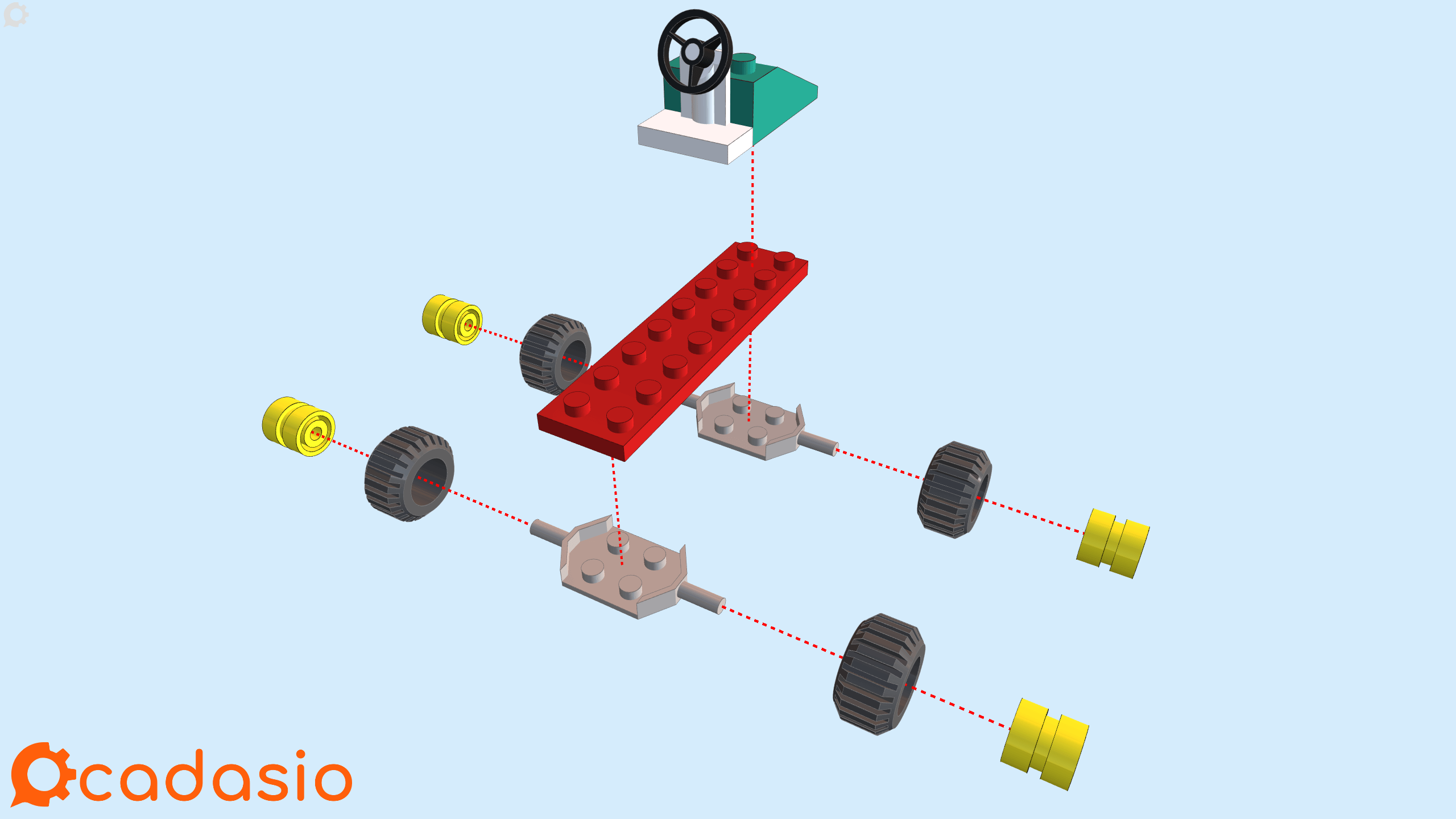

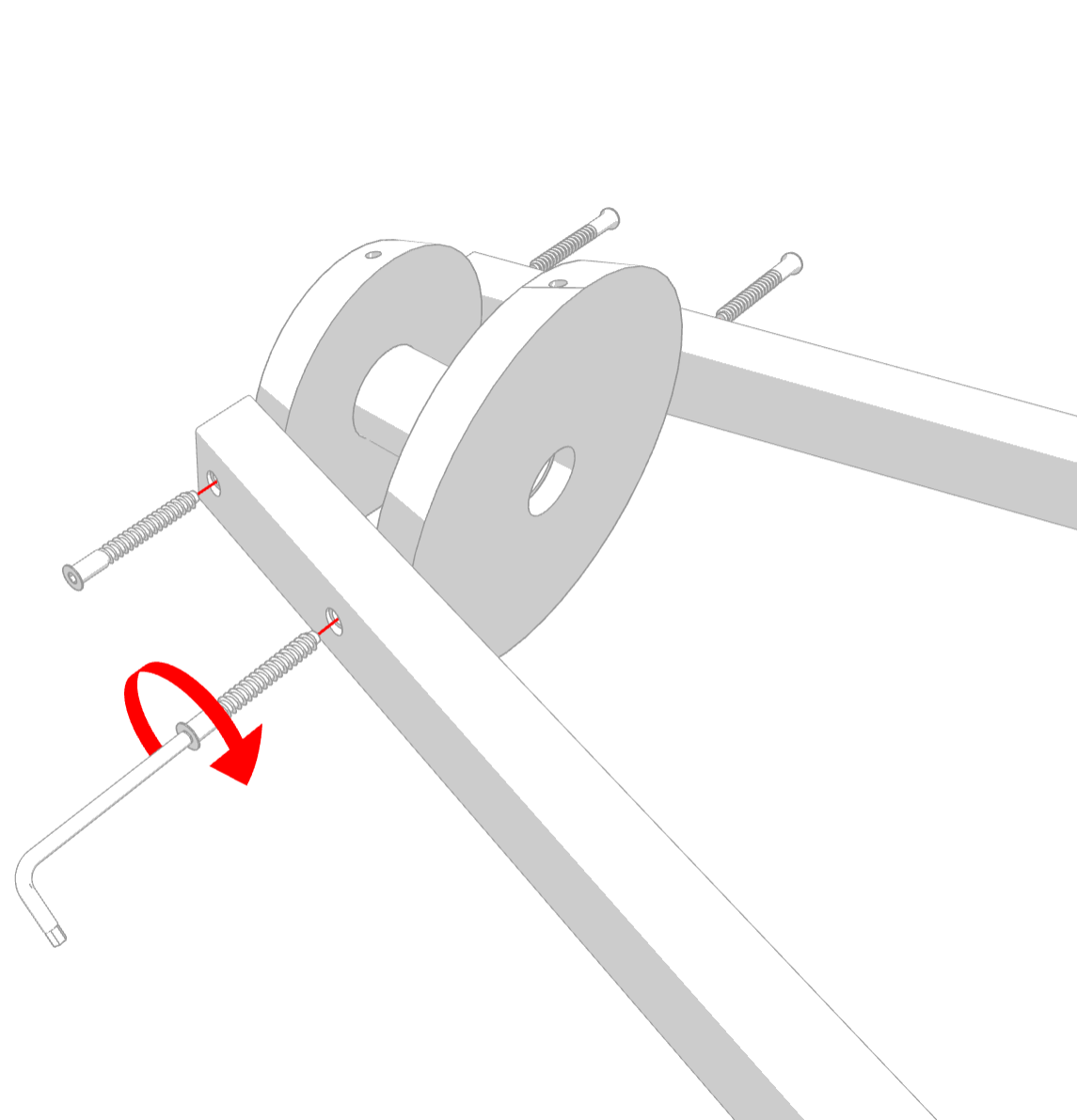

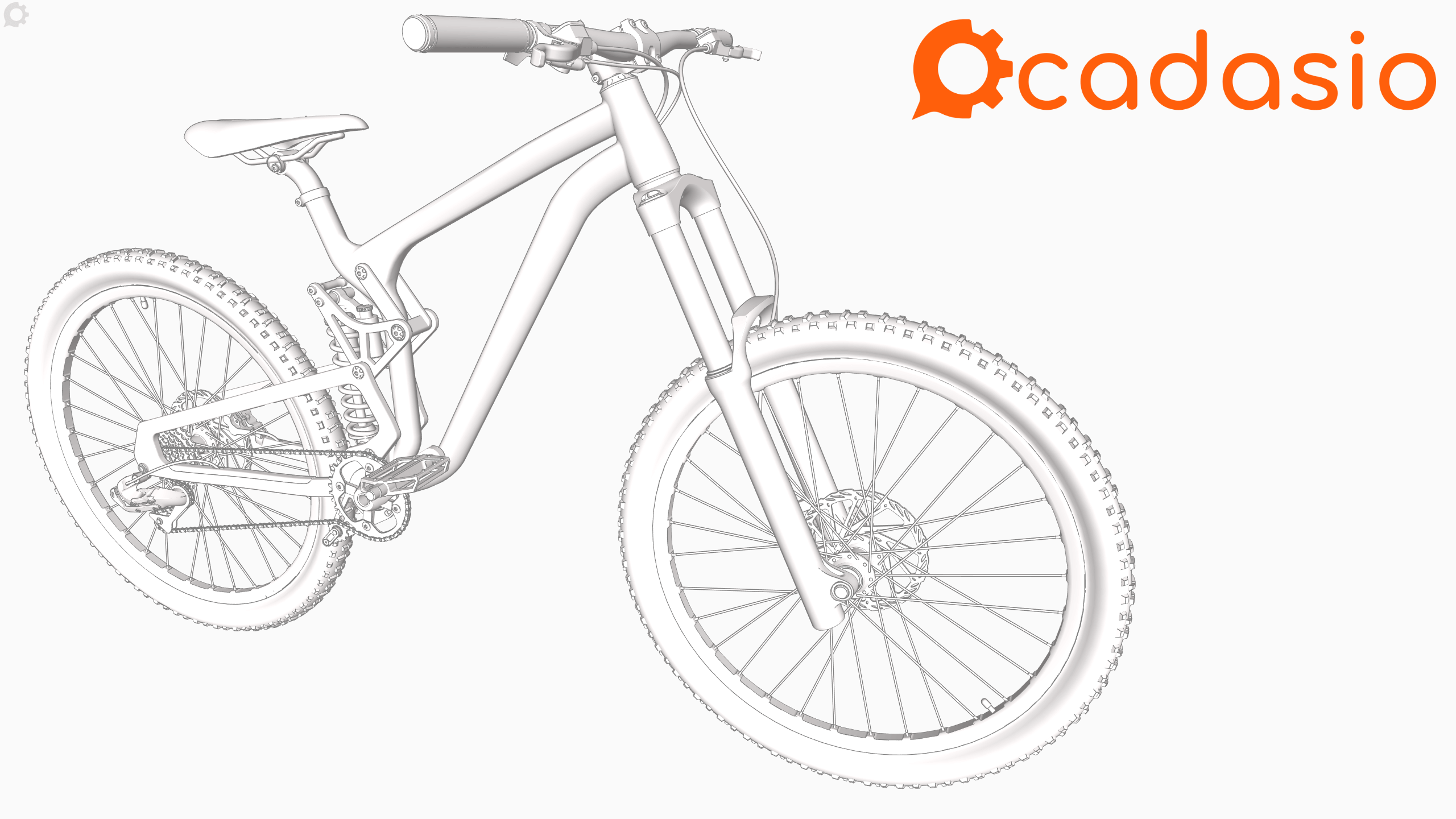

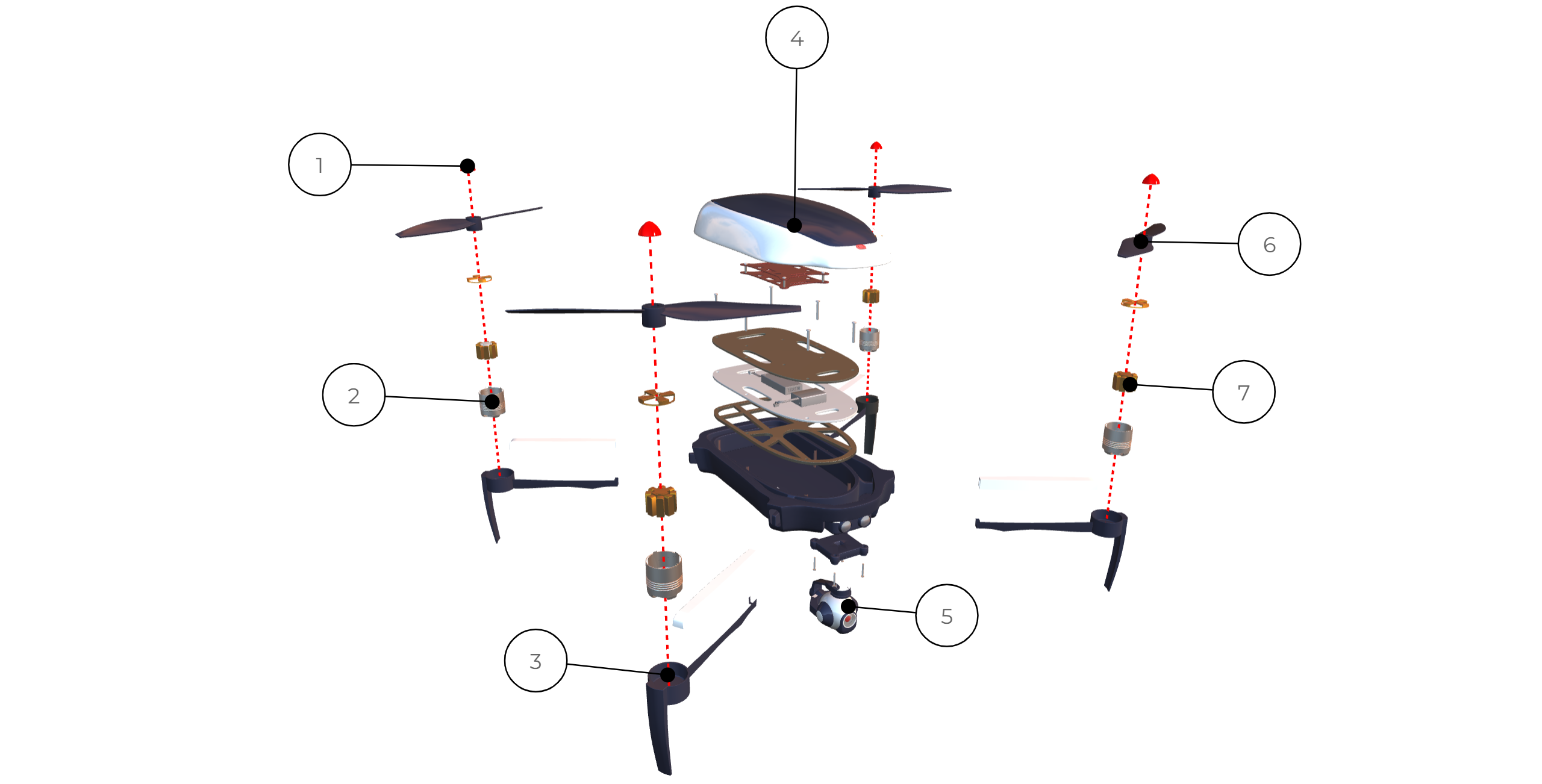

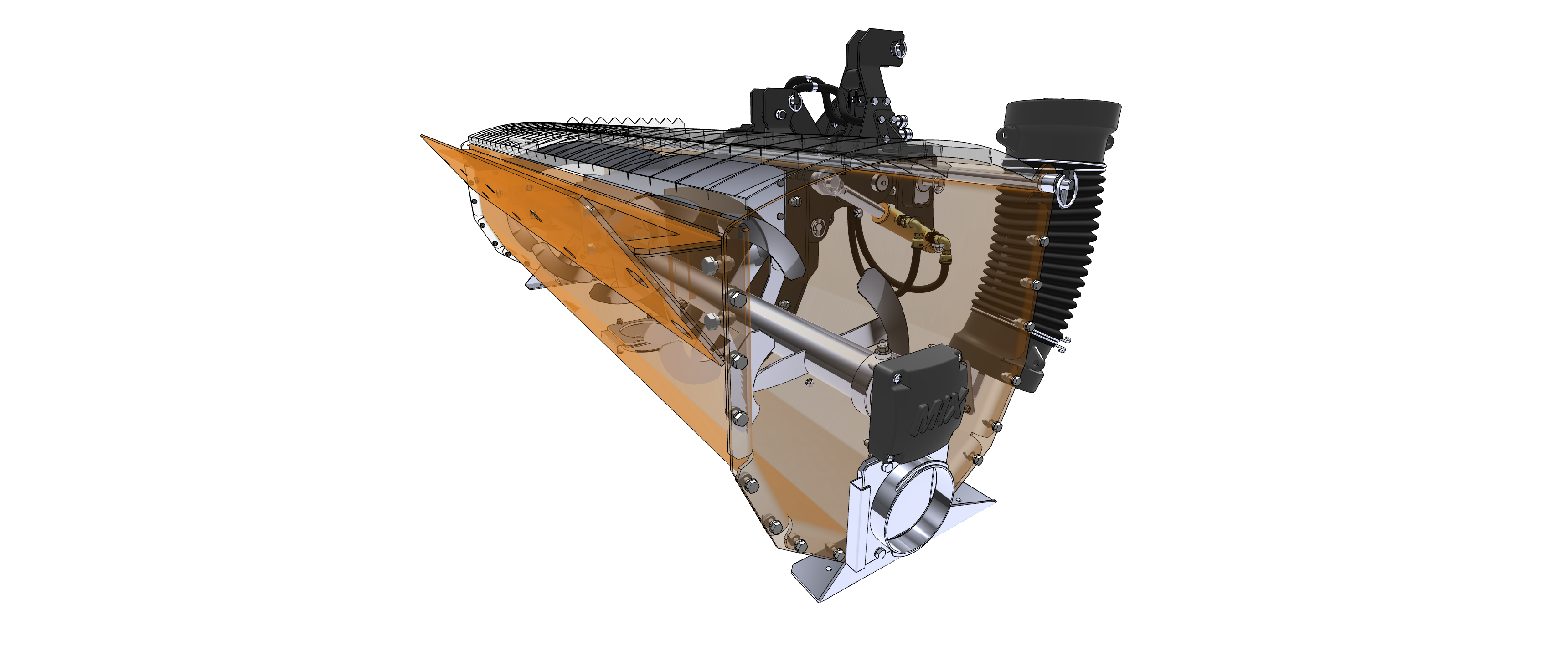

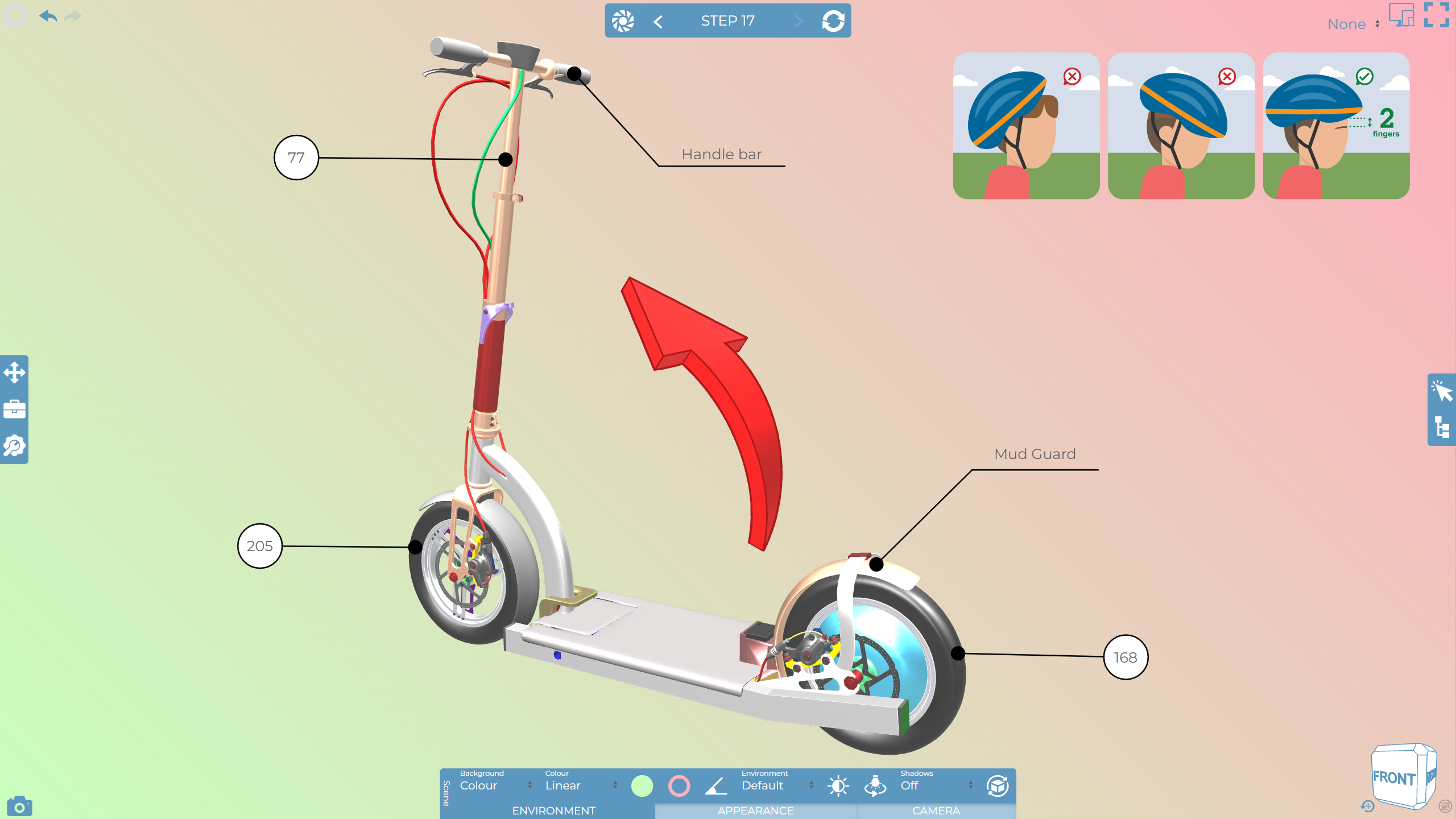

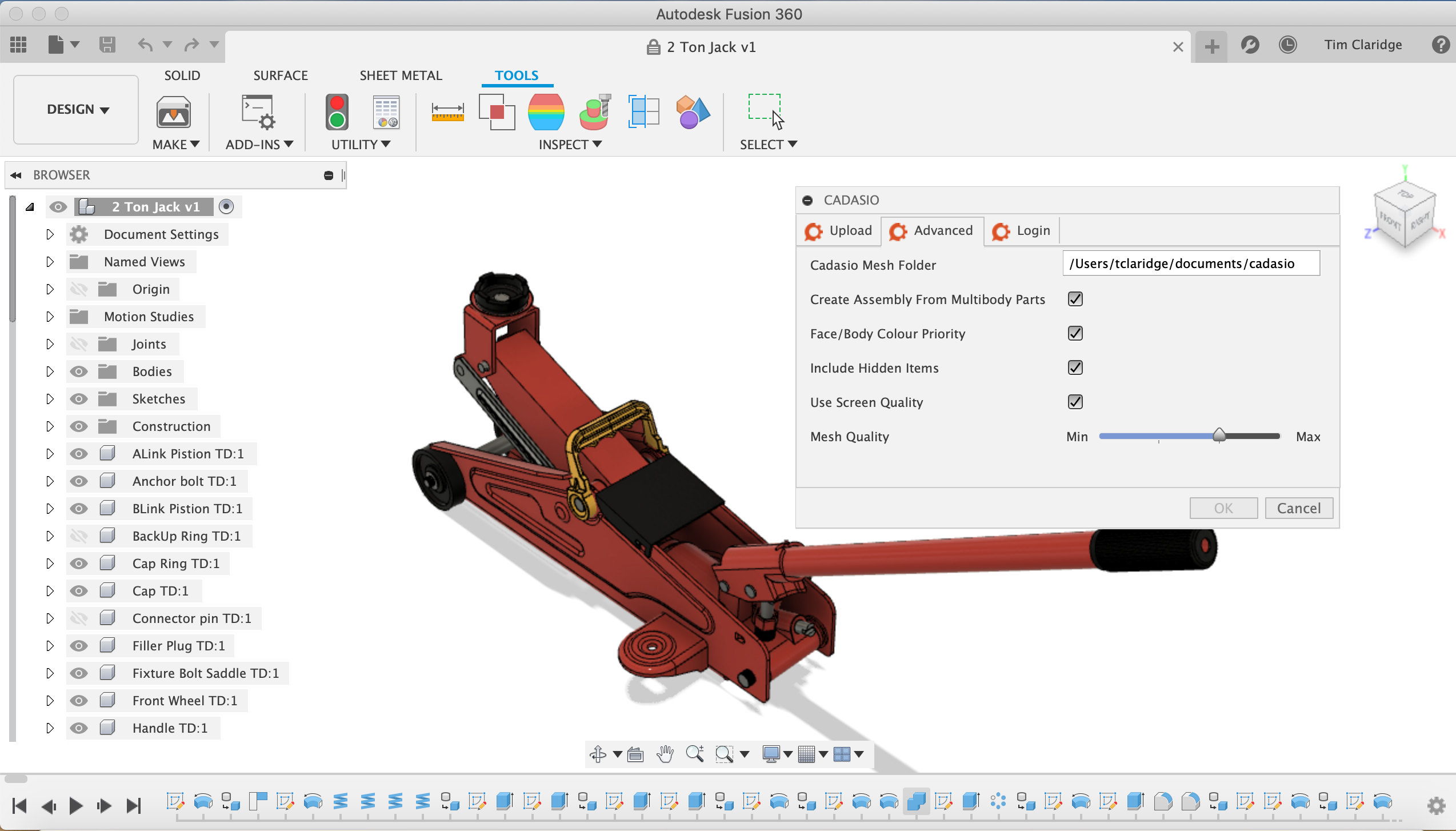

Screenshots
Commands
| Ribbon/Toolbar Icon | Command | Command Description |
|---|---|---|
|
Upload To Cadasio |

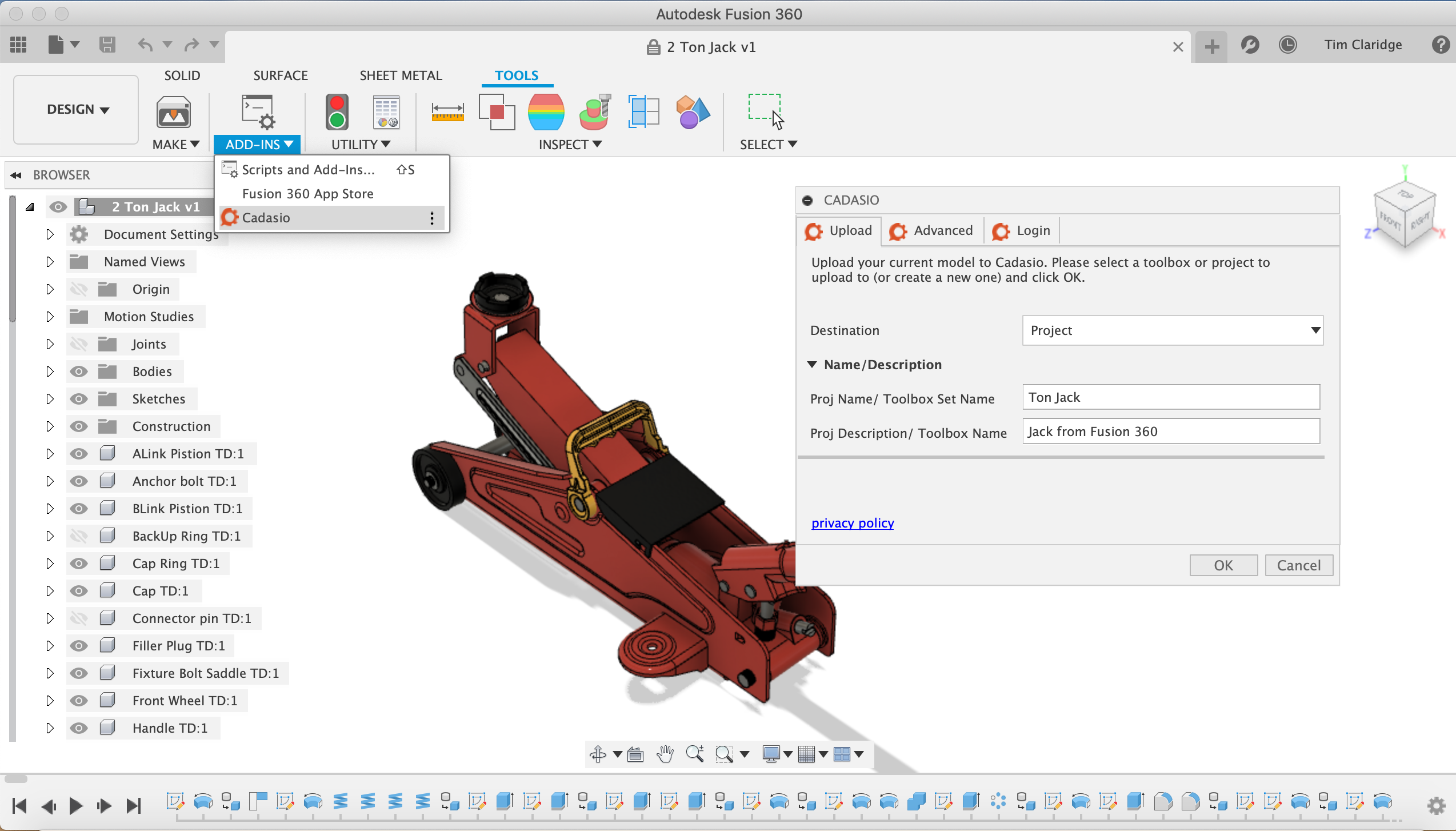

Opens the Cadasio dialog where options can be entered and the model uploaded to the website so fully interactive 3d instructions can be created. |
Installation/Uninstallation
Install:
Simply run the downloaded installer to install the app/plugin.
Uninstall:
You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.
Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Fusion 360.
To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.
Or, you can uninstall it from 'Control Panel/Programs and Features' (Windows 8.1/10/11), just as you would uninstall any other application from your system.
Additional Information
Plugin instructions can be found at https://www.cadasio.com/cad-addins/fusion-360-addin
Known Issues
Contact
Author/Company Information
Support Information
Support can be accessed via email. Please send an email to 'support@cadasio.com' with the title 'Fusion 360 Support'. Also, requests can be logged at 'https://forum.cadasio.com'. This is monitored and will be replied to. This can be done at any time and will be monitored from 9 am - 5 pm Weekdays GMT.
Version History
| Version Number | Version Description |
|---|---|
|
1.0.4.289 |
Cadasio for Autodesk® Fusion 360™ - Build 1.0.4.312 8th November 2022 Fix if Documents directory is not in User Directory Fix for x refed assemblies Fix for losing connection with server |
