Ultra Librarian
Search verified models & native reference designs without leaving Autodesk® Fusion® & place them directly into your design.

General Usage Instructions

The app will load in the TOOLS tab under New Electronics Design and New Electronics Library.

Search by keyword or part number to find CAD models for over 16 million parts. Download the models directly into your Autodesk library and place them into your design. Reference Designs are available from participating manufacturers to speed up your design with known circuitry.

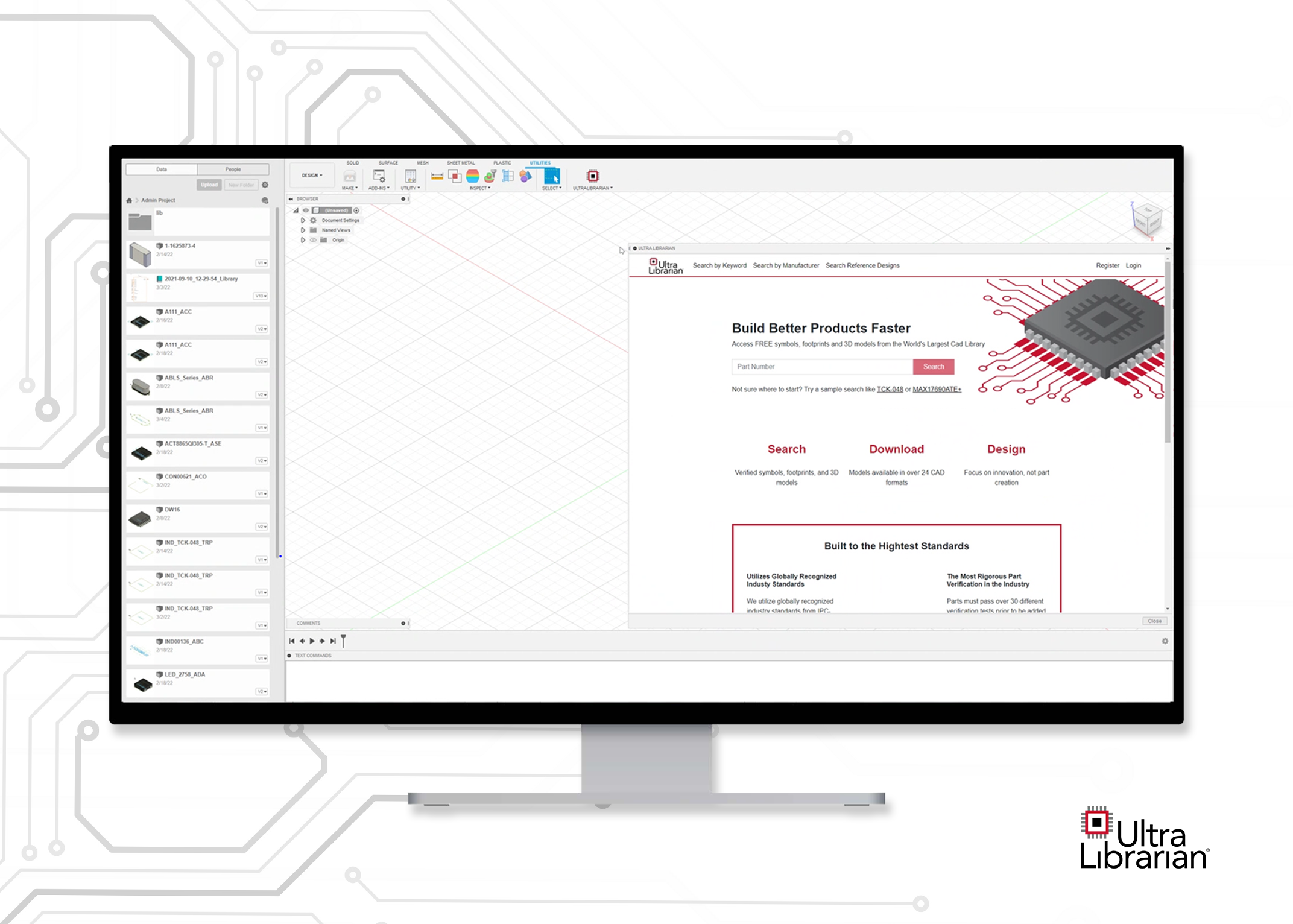

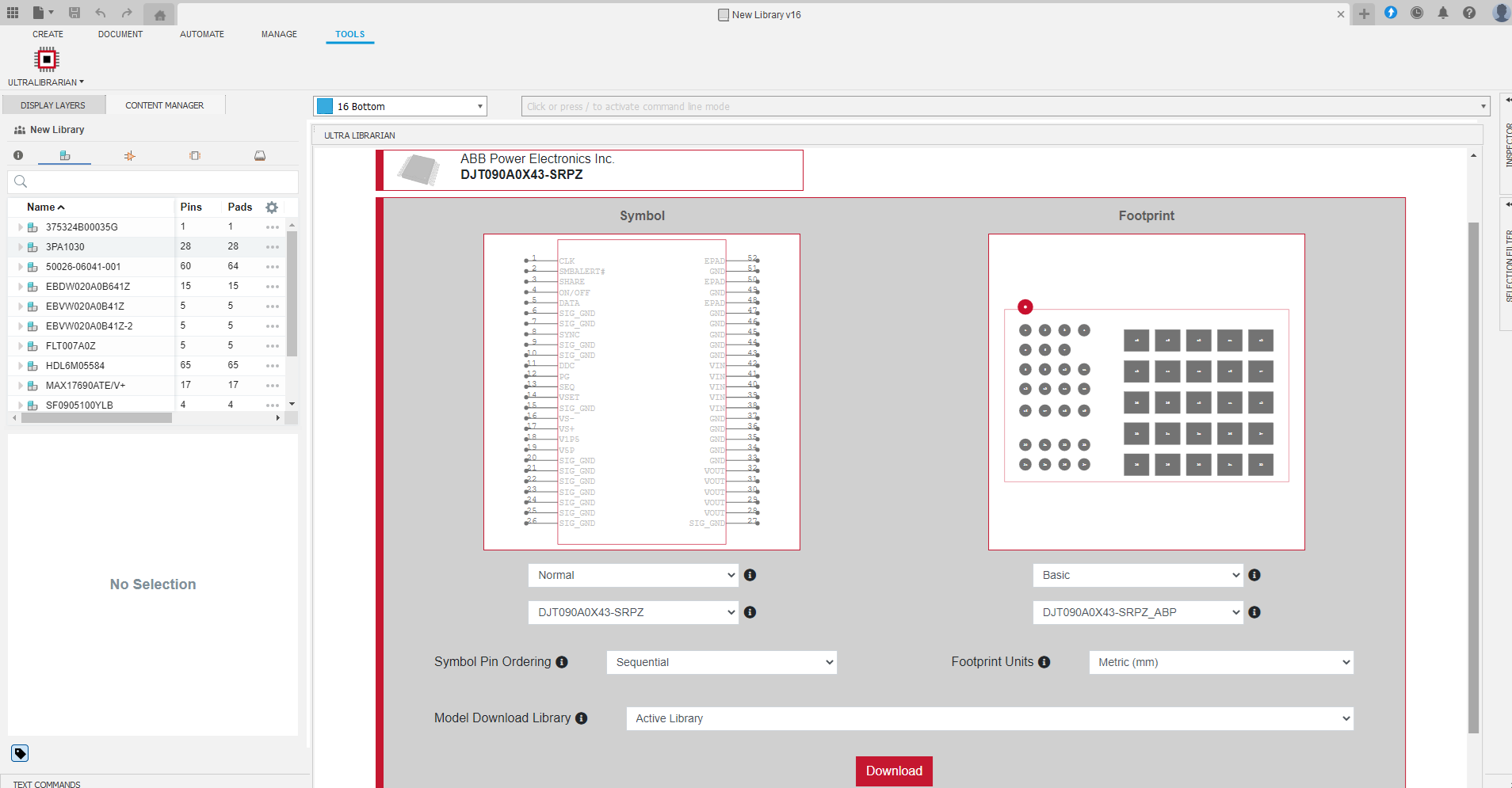

Screenshots

Commands

Installation/Uninstallation

Install:

The installer that ran when you downloaded this app/plug-in from Autodesk App Store has already installed the app/plug-in.

OR, simply double-click the MSI to install the app.

If you still recieve a notice an update is available after updating you can remove that by clearing the web cache. To do this go to Help > Support and Diagnostics > Clear cache Data and click Restart to clear cache when prompted

Uninstall:

You can unload the add-in without uninstalling it by clicking the "Stop" button when the add-in is selected in the list box on the "Add-Ins" tab of the "Scripts and Add-Ins" dialog.

Unchecking "Run on Startup" causes the add-in not to be loaded in future sessions of Fusion.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button.

OR, you can uninstall it from 'Control Panel\Programs\Programs and Features' (Windows 10/11), just as you would uninstall any other application from your system.

Additional Information

Known Issues

Contact

Company Name: Ultra Librarian

Author/Company Information

Ultra Librarian

Support Information

Questions or feedback? Please contact our support team at support@ultralibrarian.com.

Version History

Version Number Version Description

2.0.0

- Updated download Library selection to use Fusion API options - Fixed issues relating to UI freezes

1.0.0

Initial release
