QrCode application to dynamically link a Qr Code to Autodesk® Inventor® drawing view.

General Usage Instructions

From a drawing document,

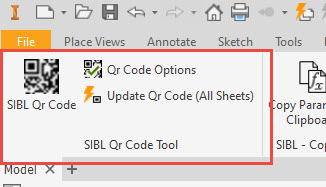

  1. Select the Addins ribbon tab
  2. Click the SIBL Qr Code button.

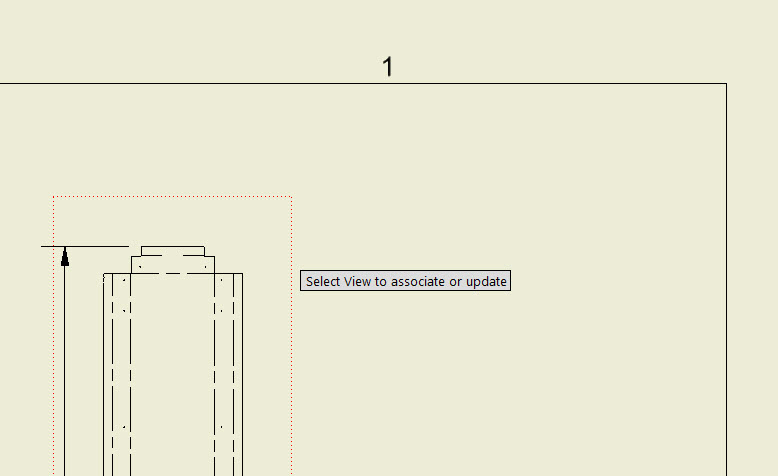

  3. Select the view to assign

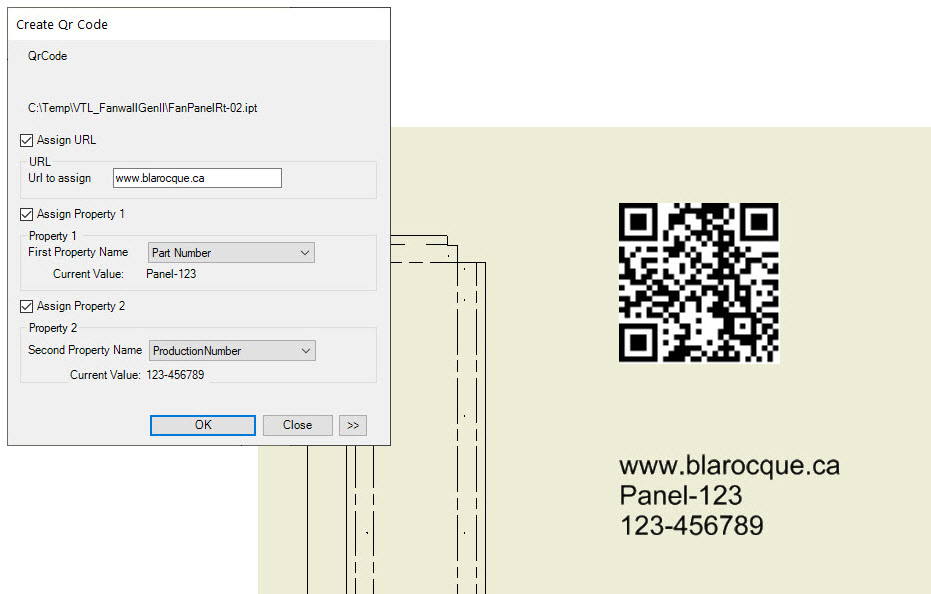

  4. From the dialog box, select the properties to include / display
  5. Click OK

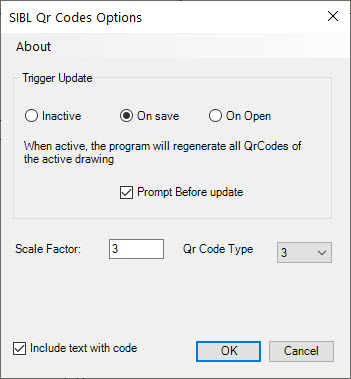

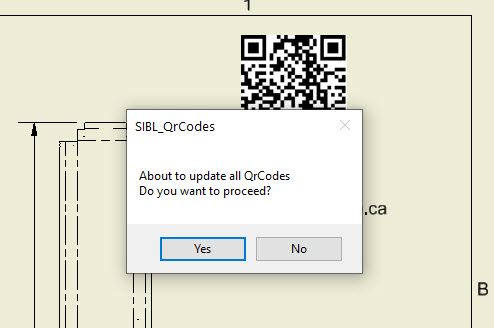

  6. Optionally, use the Update Qr Code (All Sheets)




The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You can unload the plugin without uninstalling it by unchecking the "Loaded/Unloaded" checkbox associated with the plugin in the Inventor Add-In Manager. You may have to restart Inventor to completely unload the application.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, you can uninstall it from 'Control Panel/Programs and Features' (Windows 7/8.1/10/11), just as you would uninstall any other application from your system.

Additional Information

This program doesn't collect or transmit any personal information.

Licensing additional information:

This program uses a 3rd-Party Libraries named ThoughtWorks QR Code Library

It is an open-source library for generating and scanning QR codes.

It is licensed under the Code Project Open License.

Known Issues

Code linked to a view of a presentation (ipn) file will link to the 1st assembly file found in the ipn file.

String Length Limitation to 122 char.


Company Name: Services Informatiques Benoit Larocque
Support Contact: bl@blarocque.ca

Author/Company Information

Services Informatiques Benoit Larocque

Support Information

Services Informatiques Benoit Larocque


Version History

Version Number Version Description


Added Inventor 2024 support Corrected expanded / collapse form. FullFilename property can be selected for 2nd and 3rd line of the Qr Code Corrected Text location for type 6 and 7 QrCodes.


Initial release.
