2D & 3D Spline Generator

2D & 3D Spline Generator

Win64, English

UnoTEAM Software Pvt Ltd

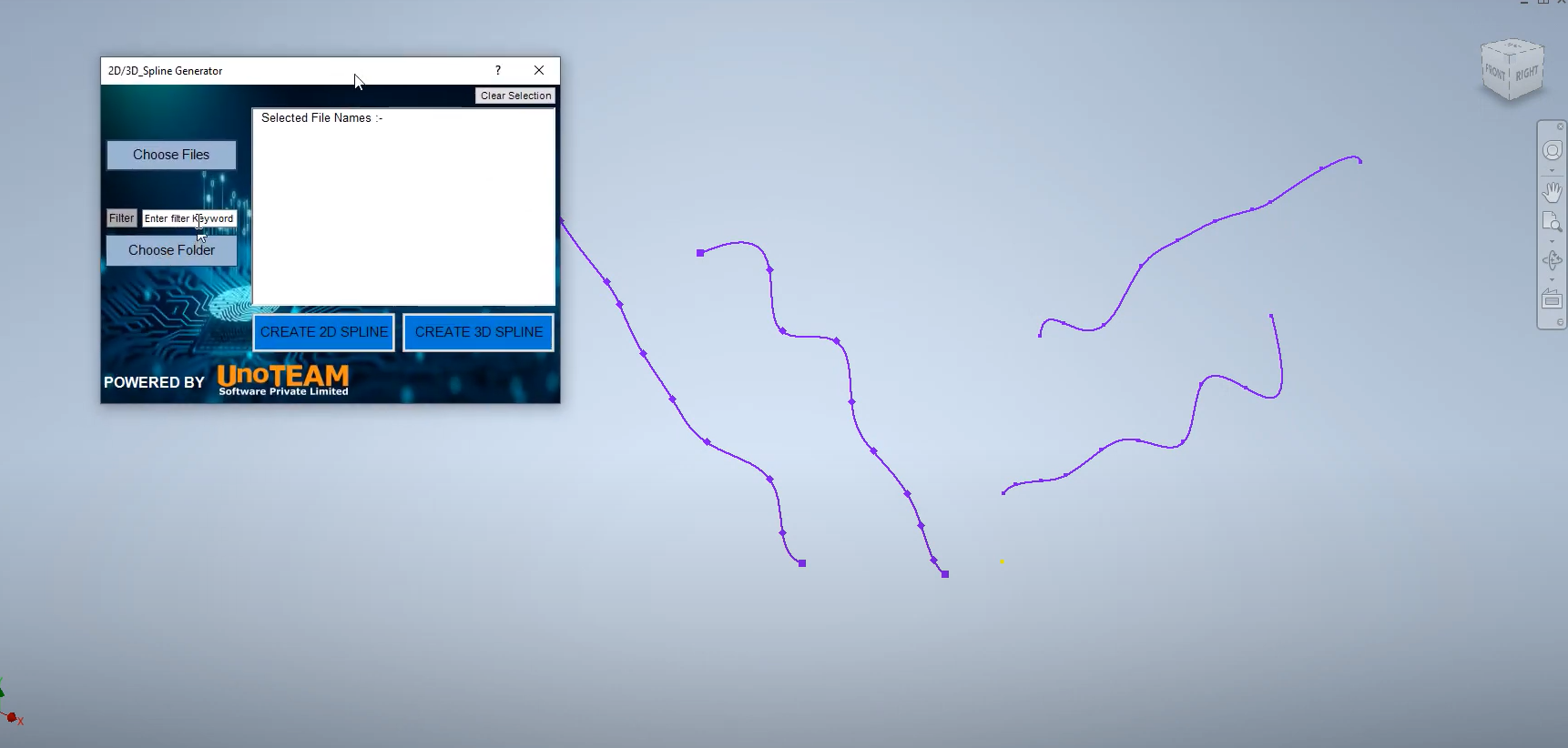

Creating Multiple Splines in Autodesk® Inventor® using Points from Excel Sheets.

General Usage Instructions

1. Right Click on the Tool Icon and click on Run as Administrator to Start the Application (or) Double click on Tool Icon to start the Application

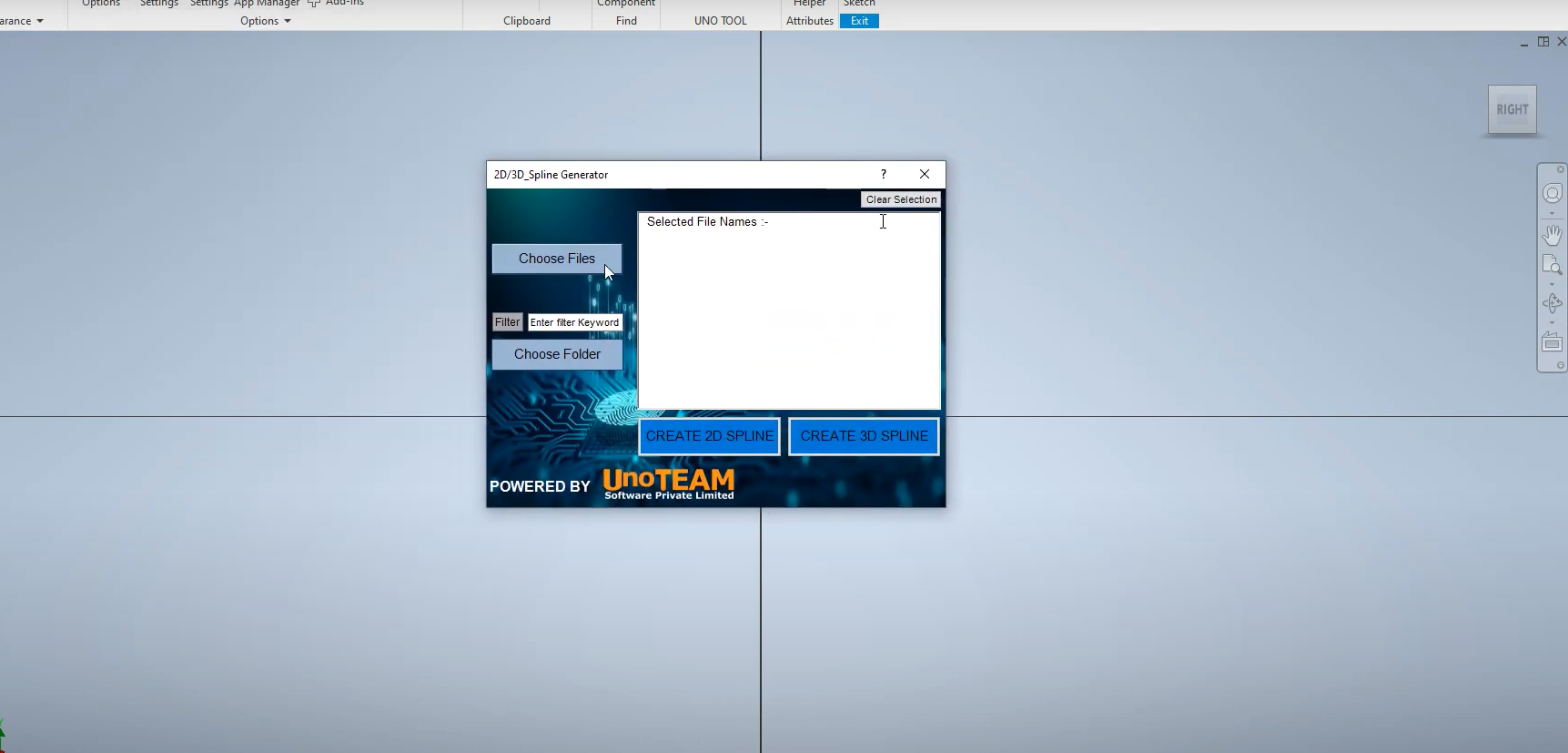

2. You can click on the Choose Files button to select the files manually in the Windows File Browser

3. You can click on Choose Folder to choose a bunch of files with similar names in the selected Folder all at once

4. Before clicking on the Choose Folder button you can filter the files you are about to choose in the Folder by typing a part of the File Name that all files have (at least 3 Characters should be sufficient)

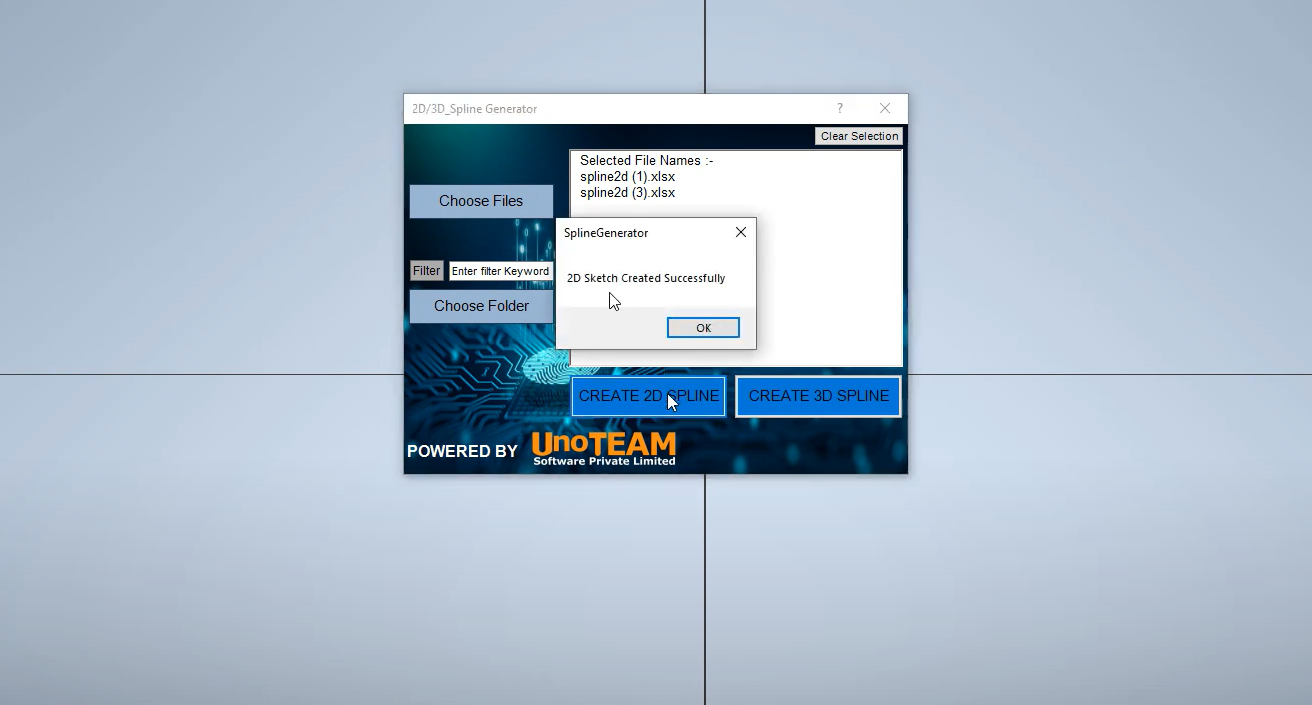

5. Based on the points you have selected click on CREATE 2D SPLINE or CREATE 3D SPLINE to create 2D or 3D Splines.

6. Before proceeding to click on the CREATE SPLINE button keep open the inventor application and also create a 2D or 3D Spline based on the points you have chosen




1. For installation of the Application double click on .msi File choose the path for installation and click on OK.

2. For Uninstalling the product open Control Panel, Go to Application Name (WCB Import Tool), and right-click on Uninstall.

Additional Information

Known Issues


Company Name: UnoTEAM Software Pvt Ltd
Support Contact: apps@unoteams.com

Author/Company Information

UnoTEAM Software Pvt Ltd

Support Information

Please contact:
Phone: +91 89788 34333
email: apps@unoteams.com

Version History

Version Number Version Description


This application can now differentiate between the layers involved in the spline generation
