ReplaceCopy

Win64, English

ConsultCAD
This addin will allow users to Replace files (part and drawing) with an identical copy of the same part/idw in the same Assembly by retaining the original file

General Usage Instructions

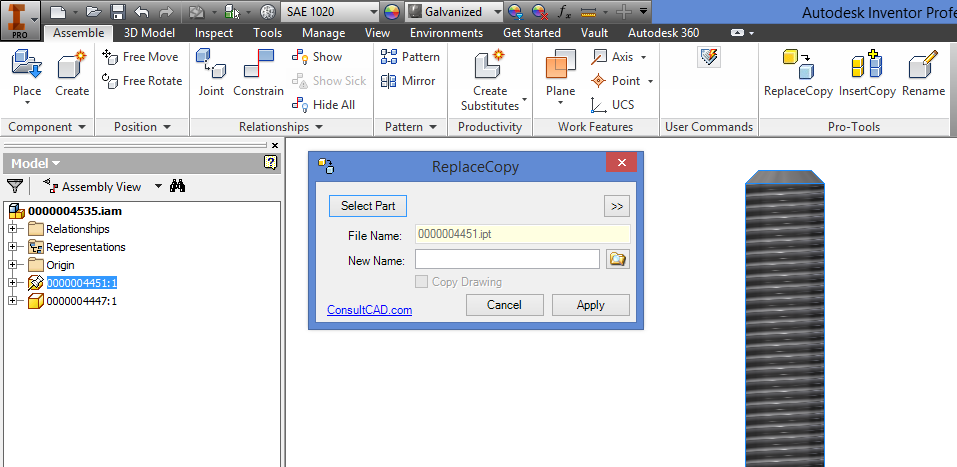

The ReplaceCopy command appears in an additional panel in the Assemble Ribbon and is available in the Assembly environment.

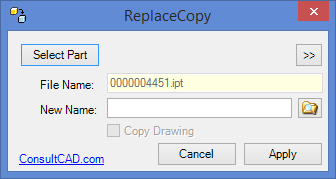

• When you run the ReplaceCopy command in the Assemble panel, a dialog will appear.

• This dialog provides you with the button for selecting the part.

• After selecting the part/instance, it displays the old name of the file selected, and a field is available for entering the new name of a file.

• You also have an option to Copy the Drawing if a drawing with the same name exists.

• “Apply” will rename the file and if the option is marked, a copy of the drawing with the new name will be created.

• The new name will be applied in the browser and also a copy will be created in the assembly retaining the original in the project.

• "Cancel" will close the dialog.

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You can unload the plugin without uninstalling it by unchecking the "Loaded/Unloaded" check box associated with the plugin in the Autodesk® Inventor® Add-In Manager. You may have to restart Inventor to completely unload the application.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, you can uninstall it from 'Control Panel/Programs and Features' (Windows 7/8.1/10), just as you would uninstall any other application from your system.

Additional Information

This plugin is written by Cristiano Oliveira, he is Autodesk Expert Elite and Consultant from ConsultCAD and Contributor Community Autodesk Brazil.

Known Issues

None

Contact

Company Name: ConsultCAD
Company URL: www.consultcad.com
Support Contact: support@consultcad.com

Author/Company Information

ConsultCAD

Support Information

Email us at support@consultcad.com with feedback or requests form enhancements.

Version History

Version Number Version Description

2.1.1

Autodesk® Inventor® 2022 compatibility(No change in version number)

2.1

Compatibility version 2021

2.0

- Compatibility version 2020 - Register Error Fixed

1.8

- Compatibility version 2020

1.7

- Compatibility version 2019 - Fix It

1.6

- Compatibility version 2018 - Fix It

1.5

Compatibility version 2018

1.4.1

- Hot Fix

1.4

- Hot Fix

1.3

1.3 - Support for 2016 Version

1.2

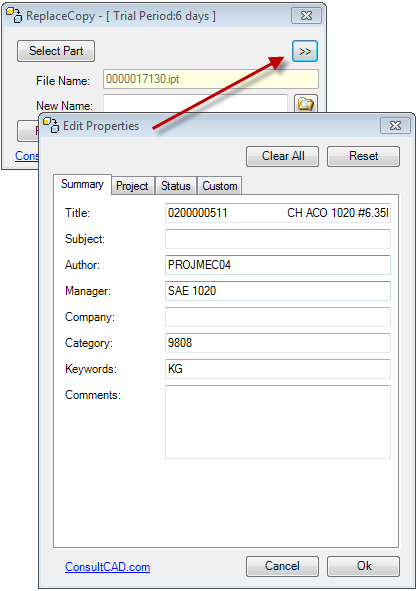

1.2 - New Features: Edit Properties for New Item

      - Support for 2015 Version

      - Enhancements: Pre-Selected Item, Enable Esc for Abort, Command Apply for Repeat

1.1

1.1 - Enable Crtl+V in input New Name

      - Hot Fix Choice destination path

1.0

1.0 - Original release
