Export Individual STL

Export Individual STL

Win64, English

Drawbridge Technologies (M) Sdn Bhd

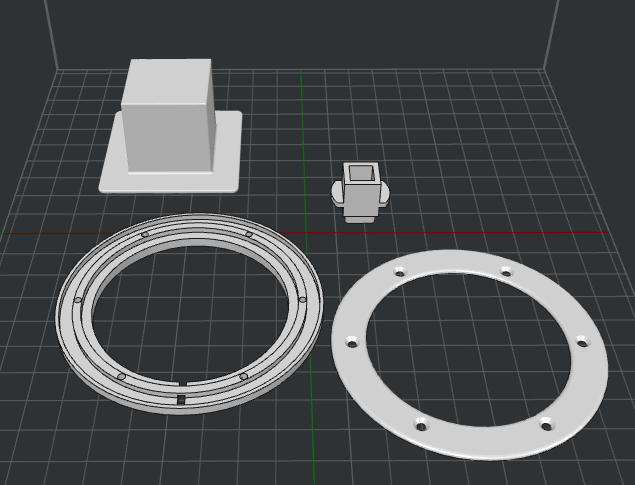

Export bodies or parts into individual STL files.

General Usage Instructions

In Part or Assembly File

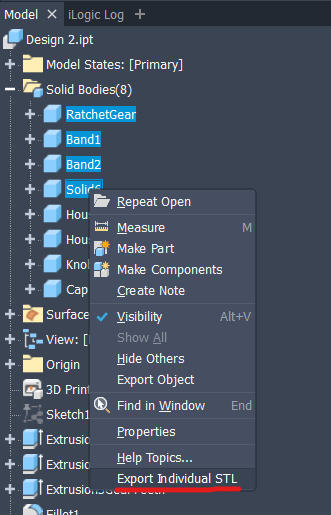

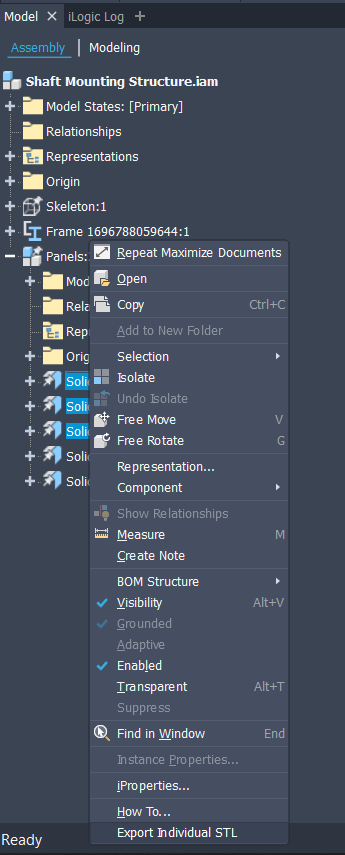

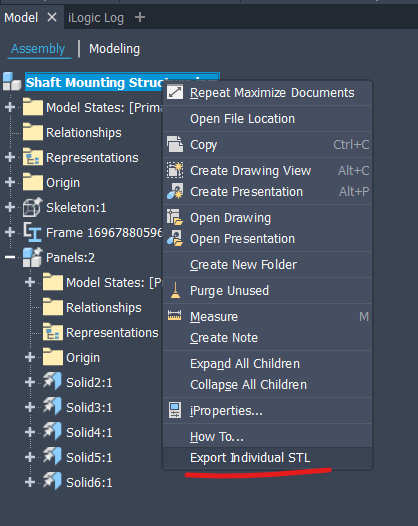

Select objects to export as STL (Solid Bodies, Surface Bodies, Part Occurrences, Assembly Occurrences) or clear selection to export all.

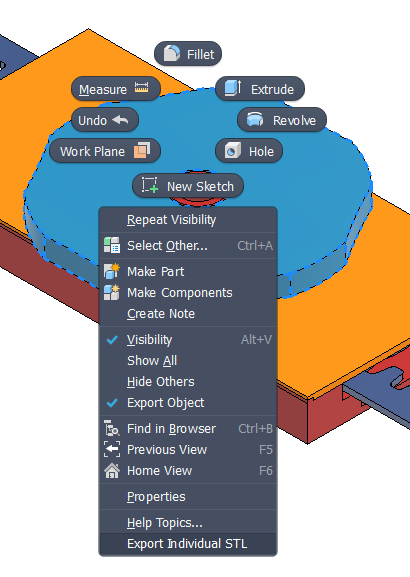

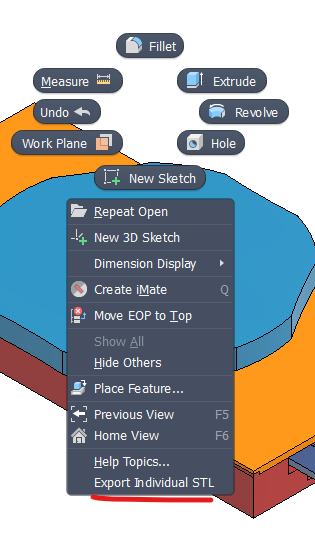

Right-Click, Export Individual STL

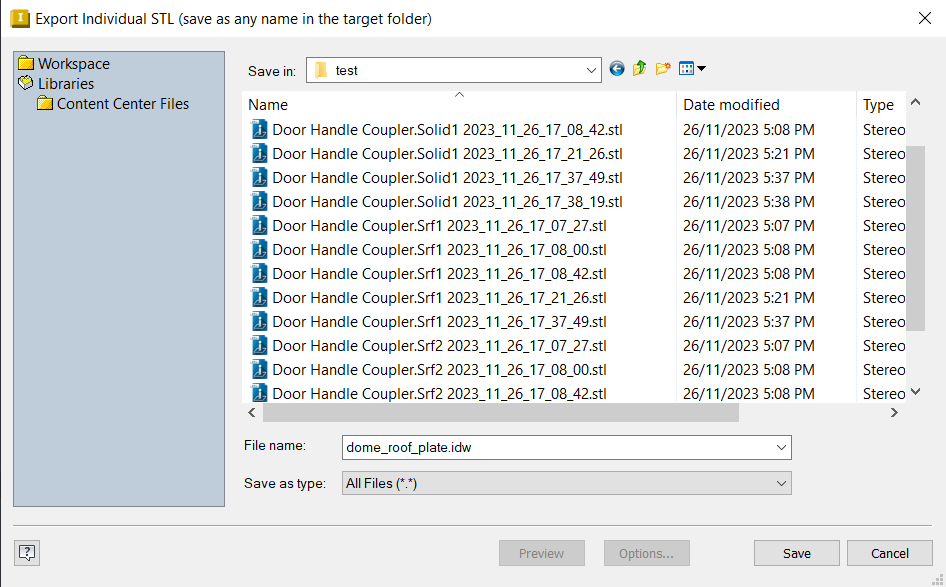

Browse for Save Directory (put any name, the app will save the files based on the [part name].[body name] [timestamp] format

Confirmation, click Yes to proceed, and No to abort.

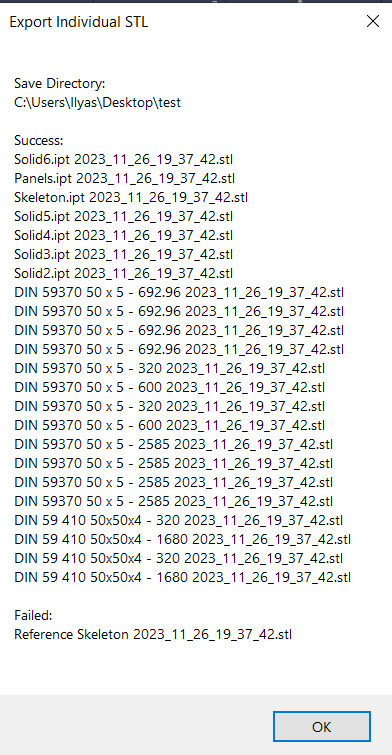

Review summary message for success and failed exports

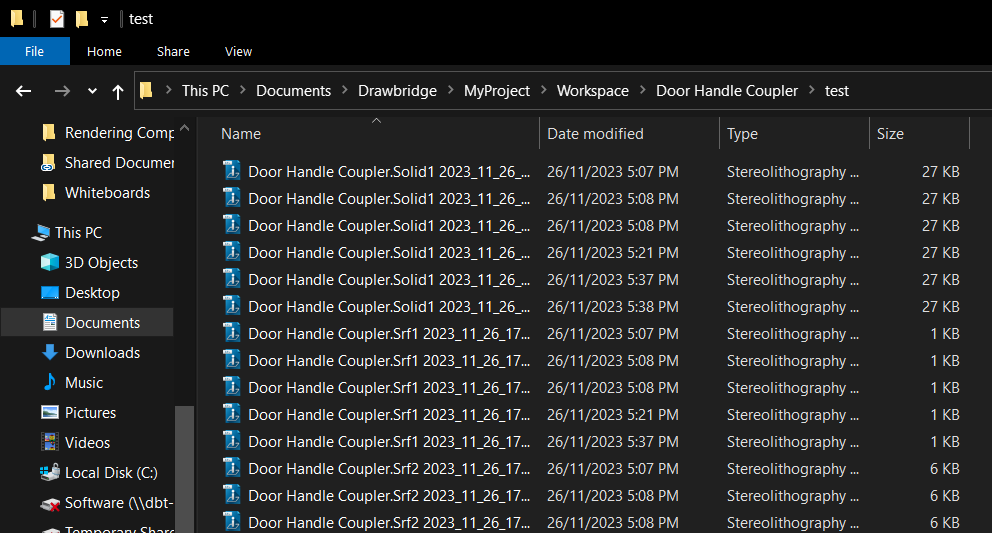

Check the save directory for exported files.

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You can unload the plugin without uninstalling it by unchecking the "Loaded/Unloaded" check box associated with the plugin in the Autodesk® Inventor® Add-In Manager. You may have to restart Inventor to completely unload the application.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, you can uninstall it from 'Control Panel/Programs and Features' (Windows 10/11), just as you would uninstall any other application from your system.

Additional Information

Known Issues

Contact

Company Name: Drawbridge Technologies (M) Sdn Bhd
Support Contact: ilyas@drawbridge.com.my

Author/Company Information

Drawbridge Technologies (M) Sdn Bhd

Support Information

Version History

Version Number Version Description

1.1.0

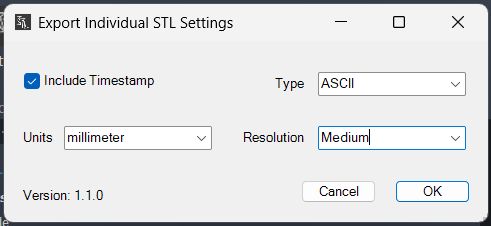

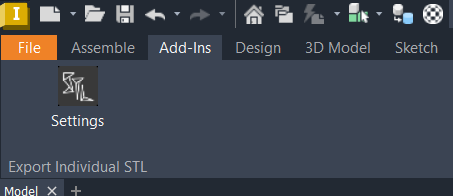

Added ability to adjust export settings from Addin > Export Individual STL > Settings. (Include Timestamp, Resolution, Units, ASCII/Binary)

1.0.0

First version.
