Rename Tool

Rename Tool

Win64, English

Monarch Innovation Private Limited
The application renames all parts, assemblies & drawings along with referenced documents based on string replace criteria specified by user.

General Usage Instructions

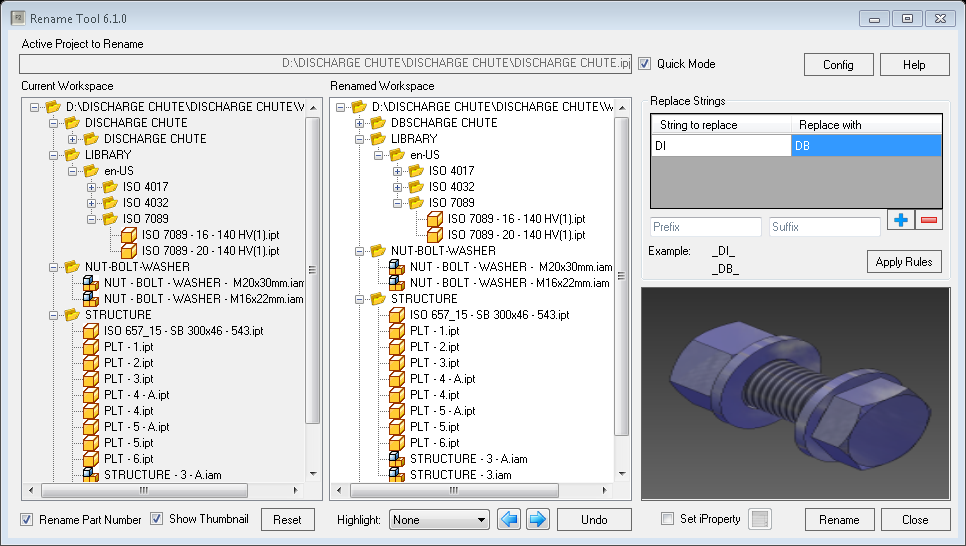

1) Launch the app

2) Browse for the active project.

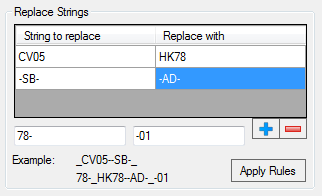

3) Define various rules to replace strings & specify Prefix and Suffix if needed.

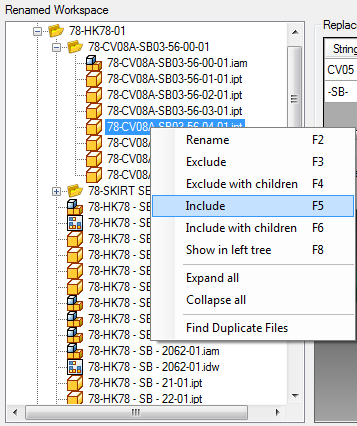

4) Exclude/Include folders & files from browser tree as required.

5) Rename files manually if needed

6) Click Rename button.




Double click on msi installer and follow the instructions.

Once installed, launch the application from desktop icon. On first invocation it will ask for the license. User needs administrator privileges for this.

User should activate the tool within 7 days, until then, the app works with full functionality. User has to send registration key to publisher at and publisher in return will send the license/activation key.

For any queries please contact for further assistance.

Additional Information

Licensing needs administration privileges. In case user is a normal user, the application will prompt for administration privileges. If the User Account Control (UAC) is not enabled, user may receive error. In such cases, the installation should be done with administration login. Rename Tool saves reports in MS EXCEL. So it is necessary to have it installed on user machine.

Rename tool does not work with Vault. Also, you need WorkSpace being defined in the project to run this tool.

Known Issues

Launching of the application takes a bit longer time than expected - reason, it tries to load the Autodesk® Inventor® project. We are working on it and will try to address this issue as soon as possible.


Company Name: Monarch Innovation Private Limited
Company URL:
Support Contact:

Author/Company Information

Monarch Innovation Private Limited

Support Information


Direct: +91- 9974852647

Office: +91- 79 - 40323597

Version History

Version Number Version Description


Added support for Inventor 2025


Added support for Inventor 2024.


Added support for Inventor 2023.


Update Help Url


Added support for Autodesk® Inventor® 2021.


Added support for Autodesk® Inventor® 2020.


Support for 2019 and removed support for 2015
